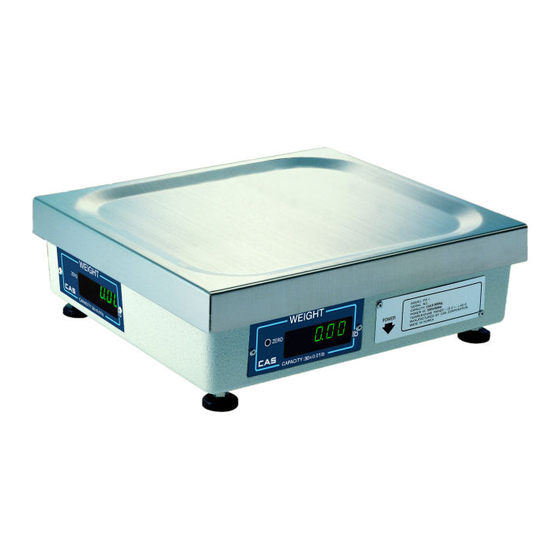

CAS PD-I Setting Up

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
th
One Blue Hill Plaza, 16
Floor, PO Box 1546
Pearl River, NY 10965
1-800-PC-AMERICA, 1-800-722-6374
(Voice) 845-920-0800 (Fax) 845-920-0880
Setting up the CAS PD-I
This document contains step-by-step instructions for setting up the CAS PD-I to work with CRE.
To connect the CAS PD-I to your computer, you need the following cable:
The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the PD-I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS PD-I

Summary of Contents for CAS PD-I

  • Page 1 (Voice) 845-920-0800 (Fax) 845-920-0880 Setting up the CAS PD-I This document contains step-by-step instructions for setting up the CAS PD-I to work with CRE. To connect the CAS PD-I to your computer, you need the following cable: The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128...
  • Page 2 Calibrating the CAS PD-I To calibrate the scale, turn it off and follow these steps. After making any of the following changes to the scale you will need to contact Weights and Measures to make sure the scale are certified and weighing items properly.
  • Page 3 5. Put the platter upside down (with the edges facing up) and place it on the scale platform. Make sure that the platter is pushed back far enough as to allow access to all 3 micro-switches and forward enough to be able to safely place 30 lb (or 15 kg) on the platter.
  • Page 4 8. You should see “Unit” and a number on the display. This number determines what unit the scale will use: Unit # Unit used Kilograms (kg) Pounds (lb) 9. Press SW4 to change the unit and SW5 once you have selected a unit. 10.
  • Page 5 12. Turn the scale off and place the platter properly on the platform. 13. Turn the scale on. 14. If all went well, the scale will do a test cycle and display 0.00. If this does not occur, turn the scale off, remove the platter, and repeat steps 2-13 until it does.
  • Page 6 15. Remove the platter. 16. Replace the calibration bolt and plate. 17. Replace the platter. P a g e...
  • Page 7 Connecting the CAS PD-I to your computer To connect the CAS PD-I to your computer, you need the following cable: The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128 Turn off your computer and follow these steps: 1.
  • Page 8 Setting up the CAS PD-I to work with CRE To set up the scale to work with CRE, turn on the computer, start CRE, select Manager, provide the requested credentials, and follow these steps. 1. Select Setup and then Setup Screen.
  • Page 9 5. Select Page 2. 6. Select the radio button next to 30x.01 lb under “Scale Weight Formatting”. 7. Select Scale. 8. Activate the scale feature and select Done. 9. Select Update. P a g e...
