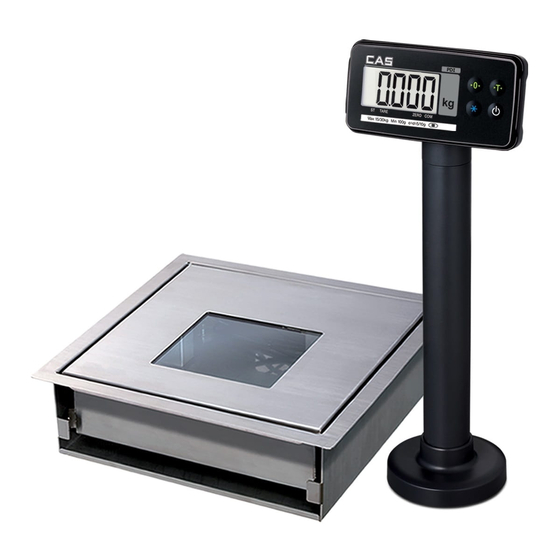

Ecr interface scale

Advertisement

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CAS PDS

  • Page 2: Table Of Contents

    4. Dimensions ................9 5. Front Panel.................11 6. Rear Panel ................. 13 7. Test Mode................14 8. Function Mode..............17 9. How to use................28 10. Communication.............. 30 11. CAS & Command Mode Protocol ......31 12. Error Message & Trouble Shooting......35...
  • Page 3: Precaution

    0. Precaution...
  • Page 5: Introduction

    Also, it is programmed on the basic of the user's convenience and contains help display functions to be used easily. Before using PDS, It is recommended to read this manual carefully and to apply the function application fully.
  • Page 6: Features & Main Function

    2. Features & Main Function Features Appropriate for Weight and Measurement System Easy Operation Full Digital Calibration Weight Back-Up [ Weight Memory at Sudden Power Failure ] 4 Multi-Point Calibration Command Mode Function (Control by PC – Request and Set the Data) Kg/lb Conversion &...
  • Page 7 Digital Part LED (6 digit) Display 25 mm (Height) Character Size "-" minus sign Display below zero ZERO, TARE, GROSS, NET, STABLE, HOLD, Lamp UNIT(kg, lb) AC 100 V ~ 240V (DC 9V, 600mA) AC Adapter -10℃ ~ 40℃ Operating Temperature Communication Part COM1 (RS-232 Printer &...
  • Page 8: Dimensions

    4. Dimension...
  • Page 9 * Be equipped Only 244*200*90 scanner size can be equipped, be cautious of side bracket touch during equipping.
  • Page 10: Front Panel

    5. Front Panel Display Lamp Measured Weight is stable STABLE Current Weight is 0 kg ZERO Used to weigh an item by using the container TARE Toggles the display between gross & net weight Hold Function is activated HOLD Current unit...
  • Page 11 Key Board ZERO KEY Used to remove small variations in the indicator’s zero TARE KEY Used to weigh an item by using the container Current weight is memorized as tare weight If pressed in unload condition, tare setting is released If pressed for 2~3 sec, you can go to KeyTare Mode When you know the tare weight, you can enter the tare weight UNIT KEY...
  • Page 12: Rear Panel

    6. Rear Panel Port for Power POWER Port for connecting Load Cell LOAD CELL Serial Interface COM1, COM2 Port RS-232C [connect to PC, Printer] Ground Terminal [ Frame Ground ] If it is not connected, it may cause trouble...
  • Page 13: Test Mode

    7. Test Mode ( How to Go to Test Mode To go to Test mode, press the [TARE]+[UNIT] key in starting mode until being displayed the message of “tESt” . In Test mode, Back-light is On. ( Test Menu(TEST1 – TEST6) Test 1 : Key test Test 2 : A/D conversion test Test 3 : Serial interface(Com1) test (RS-232)
  • Page 14 TEST 2 A/D Conversion TEST (Load Cell Test) FUNCTION DISPLAY DESCRIPTION UNIT Go to TEST3 tESt 2 TEST 2 Condition TEST 2 is performed automatically 24750 This value can be changed Note 1. Check the numeric by loading and unloading a weight. If the numeric is not changed or it is o, check the connection of the load cell.
  • Page 15 TEST 4 RS - 422/485 TEST with Computer (RS - 422/485 : Option) FUNCTION DISPLAY DESCRIPTION Transmit ‘0’ ZERO Transmit ‘1’ tESt 4 TEST 4 Condition TARE Transmit ‘2’ NET/GRS Transmit ‘4’ ----- Waiting for Transmission & reception PRINT Transmit ‘8’ 0 ----- 1 Receive : 1 Transmit : 0...
  • Page 16: Function Mode

    8. Function Mode How to Go to Set Mode If you press the [ENTER] key during 2~3 seconds in normal mode, you can go to Function Mode after displaying "on" and " dEUI=Z " " SEt=t " MODE DESCRIPTION TARE Go to the Set Mode Device ZERO...
  • Page 17 SET HOLD TYPE FUNCTION DISPLAY VAL. DESCRIPTION Compute the average value of Select 0 ~ 3 oscillating weight Compute the maximum value of oscillating weight Save & Compute the current value of ENTER Go to F03 oscillating weight Compute the average value of weight automatically (Live-stock) Save &...
  • Page 18 SELECT the METHOD of ACCUMULATION FUNCTION DISPLAY VAL. DESCRIPTION Select 0 ~ 2 When the PRINT Key is pressed Automatic accumulation - only stable state Save & ENTER Go to F08 Automatic accumulation - when the state is OK in the limit mode Save &...
  • Page 19 SELECT THE RANGE of PASSWORD TO BE APPLIED FUNCTION DISPLAY VAL. DESCRIPTION Select 0 or 1 Not set Save & Set the range of password ENTER Go to F10 F09 = 1 (Set the range of password) Display PASS ENTER _ _ _0 Using the key,...
  • Page 20 A/D CONVERTING SPEED FUNCTION DISPLAY VAL. DESCRIPTION Select 1 ~ 9 5times / sec ∫ ∫ Save & ENTER Go to F04 60 times / sec Save & Exit Save & go to Normal Mode UNIT Mode Menu DEVICE How to enter the device mode Press the [ZERO] key and Power On, the device mode is started.
  • Page 21 Save & go to Normal Mode UNIT COM1(RS-232) USE FUNCTION DISPLAY VAL. DESCRIPTION Do not use COM1 Select 0 ~ 4 CAS Protocol(22 bytes) Limit Protocol(22 bytes) Printer Mode Save & ENTER Go to d03 ECR Mode Save & Exit Save &...
  • Page 22 Save & go to Normal Mode UNIT COM2(RS-422) USE FUNCTION DISPLAY VAL. DESCRIPTION Do not use COM2 Select 0 ~ 3 CAS Protocol (22 bytes) Limit Protocol (22 bytes) Save & ENTER Go to d06 Printer Mode Save & Exit Save &...
  • Page 23 PRINTER TYPE FUNCTION DISPLAY VAL. DESCRIPTION Select 0 ~ 2 Do not use DLP (Label printer) Save & ENTER Go to d08 DEP (Roll printer) Save & Exit Save & go to Normal Mode UNIT AUTOMATIC PRINT FUNCTION DISPLAY VAL. DESCRIPTION Select 0 ~ 2 Do not use...
  • Page 24 Format 1 Total Format 2004.06.24 14:32:54 -------------------------------------------------- 001 ID_01 120.52 kg ID_01 TOTAL 002 ID_01 100.50 kg -------------------------------------------------- 003 ID_01 50.28 kg 2004.06.24 14:32:54 COUNT WEIGHT 4234.48kg Format 2 2004.06.24 14:32:54 -------------------------------------------------- No. 001 ID_01 GRAND TOTAL Gross : 120.52kg -------------------------------------------------- Tare : 50.00kg...
  • Page 25 Save & Exit Save & go to Normal Mode UNIT Note 1. How to input the format of user’s message print is explained chapter 14 CAS & Command Mode Protocol in detail. SELECT CLOCK FUNCTION DISPLAY VAL. DESCRIPTION Select 0 ~ 1...
  • Page 26 SELECT the Parity Bit of ECR FUNCTION DISPLAY VAL. DESCRIPTION Parity bit : 0 , Data bit : 8, Select 0 ~ 1 Stop bit : 1 Parity bit : Even , Data bit : 7, Save & Stop bit : 1 ENTER Go to d16 Parity bit : Odd , Data bit : 7,...
  • Page 27: How To Use

    9. How to use 9 - 1. HOW to SET the Original Number (Product ID) of Goods STEP VFD DISPLAY and KEY INPUT PLATFORM DESCRIPTION Empty 1500kg Goods(Iron) Weight(1500kg) Press [G/N] key for 2~3 seconds. Display : “CodE=z LiM=t tArE=g” “COdE”...
  • Page 28 9 - 2. HOW to INPUT the VALUE OF TARE DIRECTLY STEP VFD DISPLAY and KEY INPUT PLATFORM DESCRIPTION Press [TARE] key for 2~3 seconds Empty It’s displayed “tArE = z” “t-id = t”, Empty press [ZERO] key Input the value of tare which you know already with key Press [ENTER] key and exit 9 - 3.
  • Page 29: Communication

    10. Communication How to connect PC (COM1)
  • Page 30: Cas & Command Mode Protocol

    11. CAS & Command Mode Protocol CAS Protocol (22 bytes) – ASCII Code Weight Data ⓐ ⓑ ⓒ ⓓ ⓔ ⓕ ⓖ ⓗ ⓘ ⓙ ⓚ (8byte) ⓐ ⓑ ST (Stable), US (Unstable), OL (Over Load) ⓑ ⓓ ⓔ GS (Gross),...
  • Page 31 Command Mode Protocol Command (ASCII code) Description State Key Tare Value Read / Write Code Value Read / Write Current Weight Read Operating like the ZERO key Read Operating like the TARE key Read Operating like the Gross/Net key Read Change Device ID Read Operating like the ENTER key...
  • Page 32 CAS DLP Protocol VARIABLE DESCRIPTION Gross Weight (8 bytes) Tare Weight (8 bytes) Weight (8 bytes) Barcode (net weight) (8 bytes) Number of count when count mode (8 bytes) Percentage when percent mode (8 bytes) It is impossible to print the weight, count and percentage at the same time.
  • Page 33 ASCII CODE Letter Letter Letter Letter Letter “ ‘ & ‘ < >...
  • Page 34: Error Message & Trouble Shooting

    12.Error Message & Trouble Shooting Error Reason Solution Check the L/C connector & test Err 01 Initial value of A/D is fail A/D conversion in Test Mode 2 Load cell connection failure, Check the L/C connector & test Err 02 Error in A/D conversion part A/D conversion in Test Mode 2 Err 05...
  • Page 35 MEMO...
  • Page 36 MEMO...
