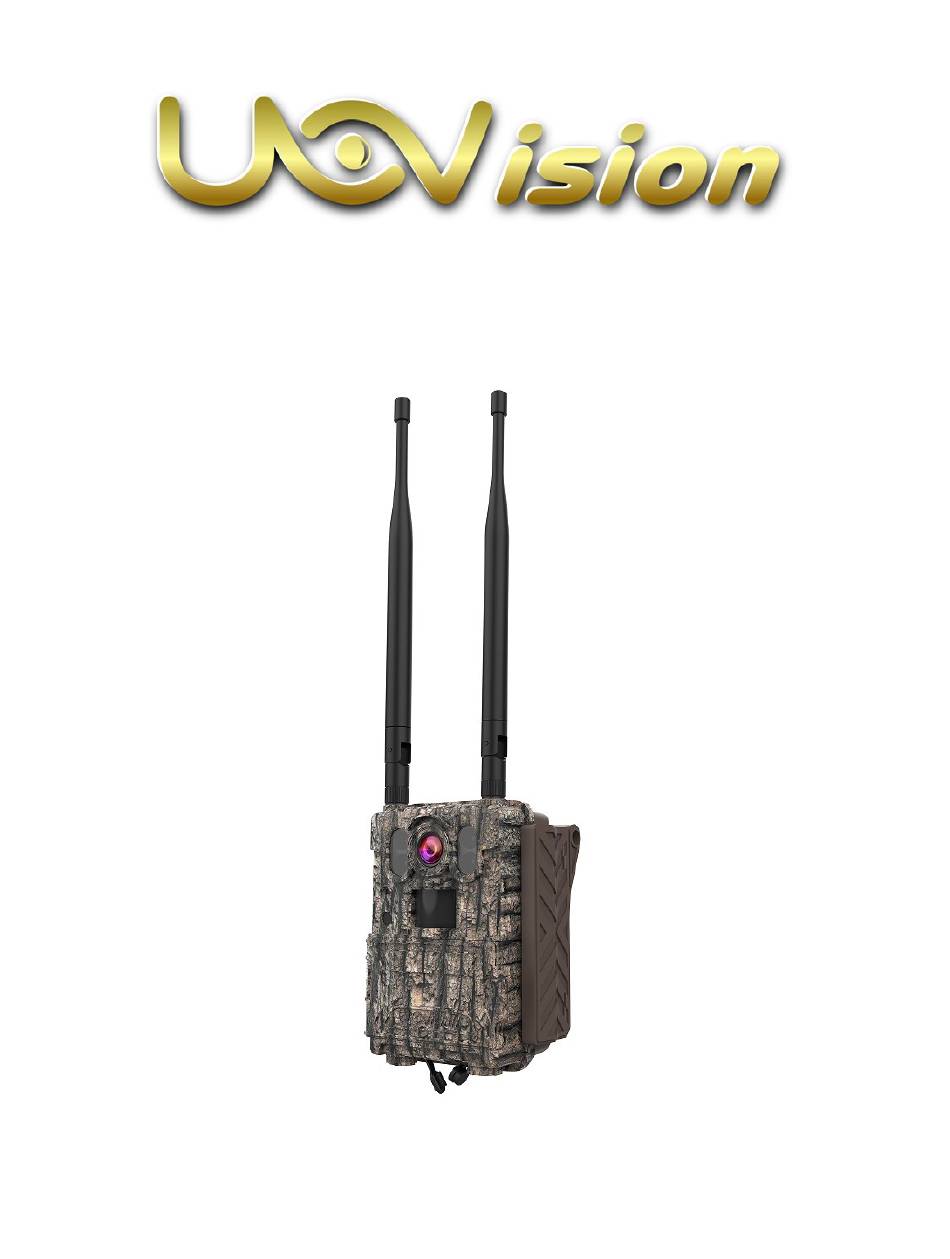

  • Page 1 Ultimate 4G LTE Trail Camera Instruction Manual (Model：UML2)

  • Page 2: Table Of Contents

    Content 1 Camera Overview ............3 2 Quick start guides ............5 2.1 Installing the batteries ..........5 2.2 Installing the SD card ..........6 2.3 Insert Nano SIM card ........... 7 2.4 Downloading the Mobile App ........7 2.5 Power switch and buttons ..........8 2.6 Setting map ..............
  • Page 3 What you will need to set this camera up: -Internet Access to https://www.linckeazi.com -SD Card -Nano SIM Card...
  • Page 4 This Camera is characterized by: 3K/1080P/720P H.264 Video,<0.6s video trigger speed  5MP/8MP/16MP/24MP/32MP Image Resolution  4G LTE  LinckEazi Cloud Platform  Free APP (Android&iOS)  Multiple Cloud Remote Control Commands  Easy Installation  Adjustable Hi-Power IR Flash ...
  • Page 5 Time Lapse(3Min-24hour)  Up to 4 Work Time Settings  2.0" Color LCD  SD Card Max to 512GB SD card (not incl)  SD Overwrite  Camo Color  Wall Mount Fixation Threads  Operation Temperatures -20°C … +60°C ...

  • Page 6: Camera Overview

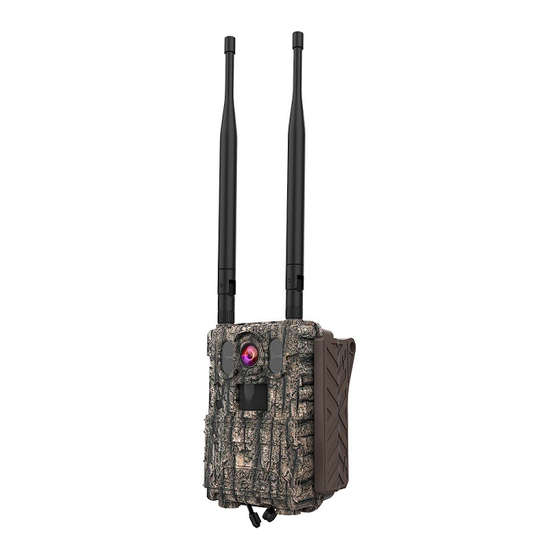

    1 Camera Overview 1, 2: LTE antenna 3: IR Led 4: Camera lens 5: PIR 6: Light sensor Page 3...
  • Page 7 7: Display screen 8: Key board Page 4...

  • Page 8: Quick Start Guides

    9: Battery pack cover 10: Battery interface 11: SIM slot 12: SD slot 13: Power Switch 14: External power jack 2 Quick start guides 2.1 Installing the batteries Step1: Put the battery pack in the back housing and connect the battery pack with main board's power interface.

  • Page 9: Installing The Sd Card

    2.2 Installing the SD card Insert the SD card as below direction. Page 6...

  • Page 10: Insert Nano Sim Card

    Support max to 512GB SD card。 Note: If the SD card is more than 32GB, please enter MENU->SYS->Format SD to format the SD card before use. Otherwise, the data stored in SD card will not be correct. 2.3 Insert Nano SIM card The SIM card slot is next to the SD slot.

  • Page 11: Power Switch And Buttons

    Android APP IOS APP 2.5 Power switch and buttons Slide the power switch to ON position, then you can start setting the CAM. Fig2 Power switch Power Switch: OFF: Power off (Please remove batteries when not in use); ON: Setting the camera; Entering Working mode: Press LEFT button, then press OK.
  • Page 12 Buttons: MENU: Enter menu ▲▼◄►: Navigation button. OK: Confirm operation ATTENTION: Video Playback is not available for this device; you could retrieve videos from the cloud platform or APP, or play videos from SD card. Page 9...

  • Page 13: Setting Map

    2.6 Setting map Fig3 Main Screen Settings: 4G LTE On/Off Sending Time Instant/0:00/1:00/.../23:00 Setting Sync Enter: Upload/Download FW Update No/Yes Page 10...
  • Page 14 Real Time/ Delay 0.5H/ 1H/ 2H/ 3H/ 4H/ Remote Control 6H/ 12H/ 24H Remote Control: You can remotely control your camera via mobile phone or web-portal. Choose Real Time, the wireless module will keep working, but the power consumption will be huge. Delay 24H means the wireless module will wake up after 24 hours even if there is no triggering.
  • Page 15 Camera Mode Photo/Video/Photo+Video Photo Photo Size 5MP/8MP/16MP/24MP/32MP Photo Burst 1-10 Send Option Single/Multiple (Multiple: It will sent the first 3 thumbnails) Flash Power Low/High Video Video Size 720,1080,3K Video length 5-60s，10 Flash Power Low/High Photo+Video 5MP/8MP/16MP/24MP/32MP Photo Size Photo Burst Video size 720,1080,3K Video length...
  • Page 16 Flash Power Low/High Photo Burst：It’s the number of pictures that to be taken of each triggering. If photo burst is 3, it means the camera will take 3 pictures after one triggering. Trigger Mode PIR/Time Lapse/Both PIR Sensitivity Normal/High/Low PIR Interval 0s-60m Time lapse 3Min~24 hours...
  • Page 17 live animal. It’s useful for constant monitoring of an area. Work Time：The camera can work at a preset time and preset days. In the rest of the time the camera is not work. Work hour: 00:00-00:00 means 24 hours. If the settings is cross the day, for example: Start: 20:00 Stop: 10:00 means 00:00-10:00 AM and 20:00-24:00 of the chosen day.

  • Page 18: Connecting Cam To Cloud Server

    Default Enter Password：Make sure you write down your password or save it to your mobile phone so you can access your camera if you ever forget your password. Diagnose: If the camera can’t work properly, please choose Diagnose. The camera will generate a log file folder in your SD card Please send all the files in log folder to FAQ for help.
  • Page 19 Android APP IOS APP Login your account: Login if you already have an account, or simply register one with your email account. Page 16...
  • Page 20 Fig 4 Login via web portal Fig 5 Login via Linckeazi APP Page 17...
  • Page 21 Add Device: Please note: The camera needs to be added in your cloud account before use. Name your camera; input the SN and IMEI of your camera. Add location description if necessary. The SN and IMEI are labeled inside the camera. Fig 6 Add camera via web portal Page 18...
  • Page 22 Fig 7 Add camera via APP Page 19...

  • Page 23: Setting Cam With Web Portal Or App

    3.2 Setting CAM with Web Portal or APP The CAM is easy to set through Web Portal or APP. Fig 8 Device Settings via web portal Page 20...
  • Page 24 Fig 9 Device settings via APP Page 21...

  • Page 25: Other Basic Operation Via App

    3.3 Other basic operation via APP Take a photo Retrieve a photo or video clip instantly Get location Get the location of your camera Camera settings Change the settings of your camera Camera Status Show the status of your camera Request HQ photos or Videos Request HQ photos or Video Clips from your camera.
  • Page 26 Fig 11 Page 23...

  • Page 27: Auxiliary Power

    4 Auxiliary power Your camera comes with an Auxiliary power jack. If you want to hook up an external 12V battery to power the camera, you can. The jack necessary to make the connection is a standard 4mm jack. 5 Mount tips For best results, mount the camera approximately 1-1.5 meter off the ground and 3-15 meters.
  • Page 28 b. Reflect with trees or other things to add more light to your target. Fig 13 c. Avoid placing the camera where the air flow is surging or too much vegetation. False triggers most occur on sunny, breezy days. When the wind moves the vegetation, the camera detects this and cannot distinguish it from a warm-blooded animal moving through the scene.

  • Page 29: Appendixⅰ: Technical Specifications

    AppendixⅠ: Technical Specifications Picture Resolution 5MP(Real Sensor)/8MP/16MP/24MP/32MP Lens F/NO=1.85 (Field of View)=65° Frequency Bands: For Europe: FDD-LTE: B1/B3/B5/B7/B8/B20/B28; GSM: B2/B3/B5/B8 For North America: FDD-LTE: B2/B4/B5/B12/B13/B14/B66/B71; Flash Power Full, Low Display Screen 2.0” LCD Memory Card Max to 512GB(Class 10) Video Resolution 3K,1080P, 720P PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low)
  • Page 30 Operation/Storage Tem. -20 - +60°C / -30 - +70°C Trigger Interval 0s – 60 min. Time lapse: 3min-24hours Photo Burst 1–10 Video Length 5s–60s Power Supply Rechargable Lithium battery Pack; DC 12V. Stand-by Current < 0.15 (<6mAh/Day) Low Battery Alert LED Indicator,Cloud Platform Mounting Rope/Belt/Python lock Dimensions 130mmX104mmX69mm...

  • Page 31: Appendix Ⅱ: Parts List

    Appendix Ⅱ: Parts List Part Name Quantity Digital Camera Antenna Belt DC adapter(EU/NA version) Lithium Battery connection wire Page 28...
  • Page 32 Declaration of Conformity to Directive 2014/53/EU CE Caution： Hereby, the manufacturer declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Please ask for your distributor for a copy of the Declaration of Conformity to Directive 2014/53/EU.
  • Page 33 WARRANTY The camera manufacturer provides 12 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 year, the camera manufacturer will repair or replace the camera at no charge. The purchase receipt must be included from an authorized retailer to validate the warranty.
