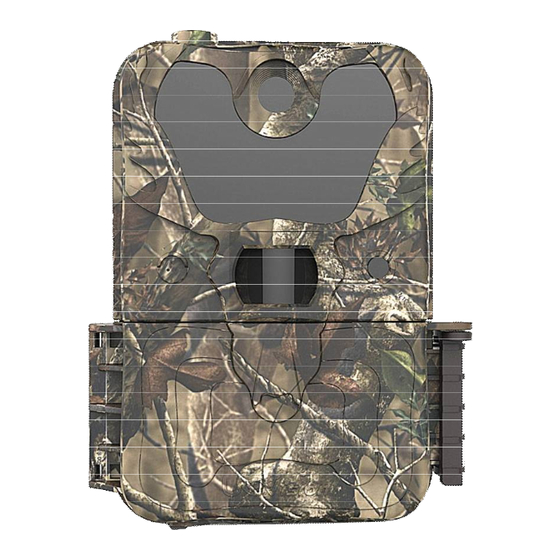

Uovision UV785 Instruction Manual
  1. Manuals
  2. Brands
  3. Uovision Manuals
  4. Scouting Camera
  5. UV785
  6. Instruction manual

Uovision UV785 Instruction Manual

Superb full hd 12mp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Content

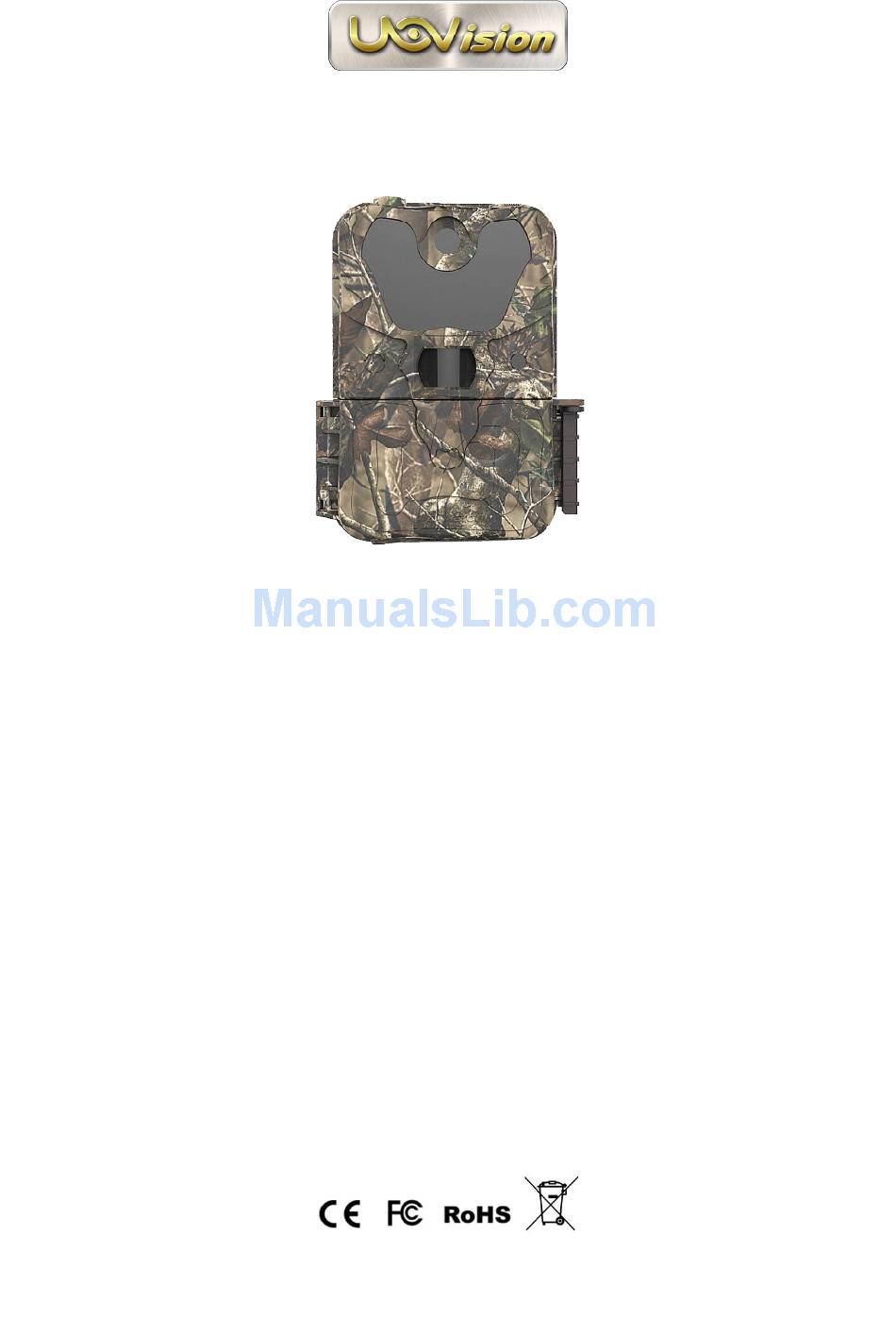

Superb Full HD Trail Camera
Uovision UV785 12MP Instruction Manual
UV785 Model
Page
1
1
2
2
2
2
3
4
4
6
6
7
7
7
8
9
10
©
Copyright 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV785 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Uovision UV785

Summary of Contents for Uovision UV785

  • Page 1: Table Of Contents

    Superb Full HD Trail Camera Uovision UV785 12MP Instruction Manual UV785 Model Content Page 1 General Description 2 Camera button info diagram 3 Installing the batteries 4 Inserting SD card 5 Customizing camera settings 5.1 CAM TAB 5.1.1 Camera Scene 5.1.2 Video Mode...

  • Page 2: General Description

    1 General Description Congratulations on your purchase of UV785 scouting camera. UV785 is a powerful and reliable performance Trail Camera. Features: 12MP invisible IR camera  1080P Full HD H.264 video with audio  0.6s trigger speed  Support 1-10 burst photos ...

  • Page 3: Installing The Batteries

    Operation Panel： MENU: To enter the menu, the power switch should be on SETUP. ▲▼◄►: Navigation arrows. (“▲”is the shortcut to choose “Video”, while “▼”for the “Photo”.) OK: Save parameter settings/Exchange between playback and preview. ► : To capture a photo or record a video manually. (Click ► again to stop the video.). Power Switch: OFF: turn off the power;...

  • Page 4: Camera Scene

    Fig.6. There are always a ‘*’ shows up beside every selected option. 5.1.1 Camera Scene UV785 camera has rich camera scene settings, including moving object and close object, with the help of camera scene, you can easily choose different combinations of shutter speed and exposure time according to particular cases.

  • Page 5: Video Mode

    Photo Size: 1.3MP, 3MP, 8MP, 10MP,12MP Flash Range: Low/Medium/High. Photo Burst: 1-10 Fig 8 5.1.2 Video Mode When you set Camera Mode as Video, then you will see submenu shows up. Video Size Select video resolution (in pixels per frame). Higher resolution produces better quality videos, but creates larger files that will take up more SD card space and fills it up faster.
  • Page 6 Trigger Mode There are 3 trigger modes: PIR trigger，Time lapse and PIR trigger & Time lapse. Fig 13 Fig 14 PIR trigger When choose PIR trigger, the PIR is active. Any motion (animals or humans) that is detected by PIR will trigger camera to capture a photo or video according to the preset PIR sensitivity and PIR Interval.

  • Page 7: Work Time

    second, set the Time Lapse as 4 hours, means that in addition to every 4 hours automatic field scan shooting. 5.3 Work Time The camera can just work at a preset time and preset days. In the rest of the time the camera is under standby mode. There are four work time can be set, see Figure17.

  • Page 8: Sensing Angle And Distance Test

    Fig 21 Fig 22 Overwrite The Over Write function will save new photos over the old photos on your SD card if it becomes full. Each time a new photo is taken the oldest photo on the card will be overwritten, however the camera may not continue to send pictures once the SD card is full.

  • Page 9: Trouble Shooting

    9 Trouble Shooting Q1: Cannot access the SETUP menu. A: Possible problem: No SD card in the card slot Corrupt SD card Batteries are too low to power up camera Q2: The photo is too dark at night. A: Possible problem: The illumination parameter is not set correctly.

  • Page 10: Appendix Ⅰ: Technical Specifications

    Appendix Ⅰ: Technical Specifications Picture Resolution 12MP, 8MP, 3MP, 1.3MP Lens F/NO=2.2 FOV(Field of View)=50° IR-Flash Low, medium, high Display Screen 2.4” LCD Memory Card Up to 64GB Video Resolution 1080P Full HD, 720P HD, WVGA PIR Sensor Multi Zone PIR Sensitivity Adjustable (Auto/Low/High) Trigger Time...

  • Page 11: Appendix Ⅱ: Parts List

    Appendix Ⅱ: Parts List Part Name Quantity Digital Camera Belt User Manual Customer Name: Contact Tel: Date of Purchase: Series No: Fault Description: Retailer: The camera manufacturer provides 12 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 year, the camera manufacturer will repair or replace the camera at no charge.
