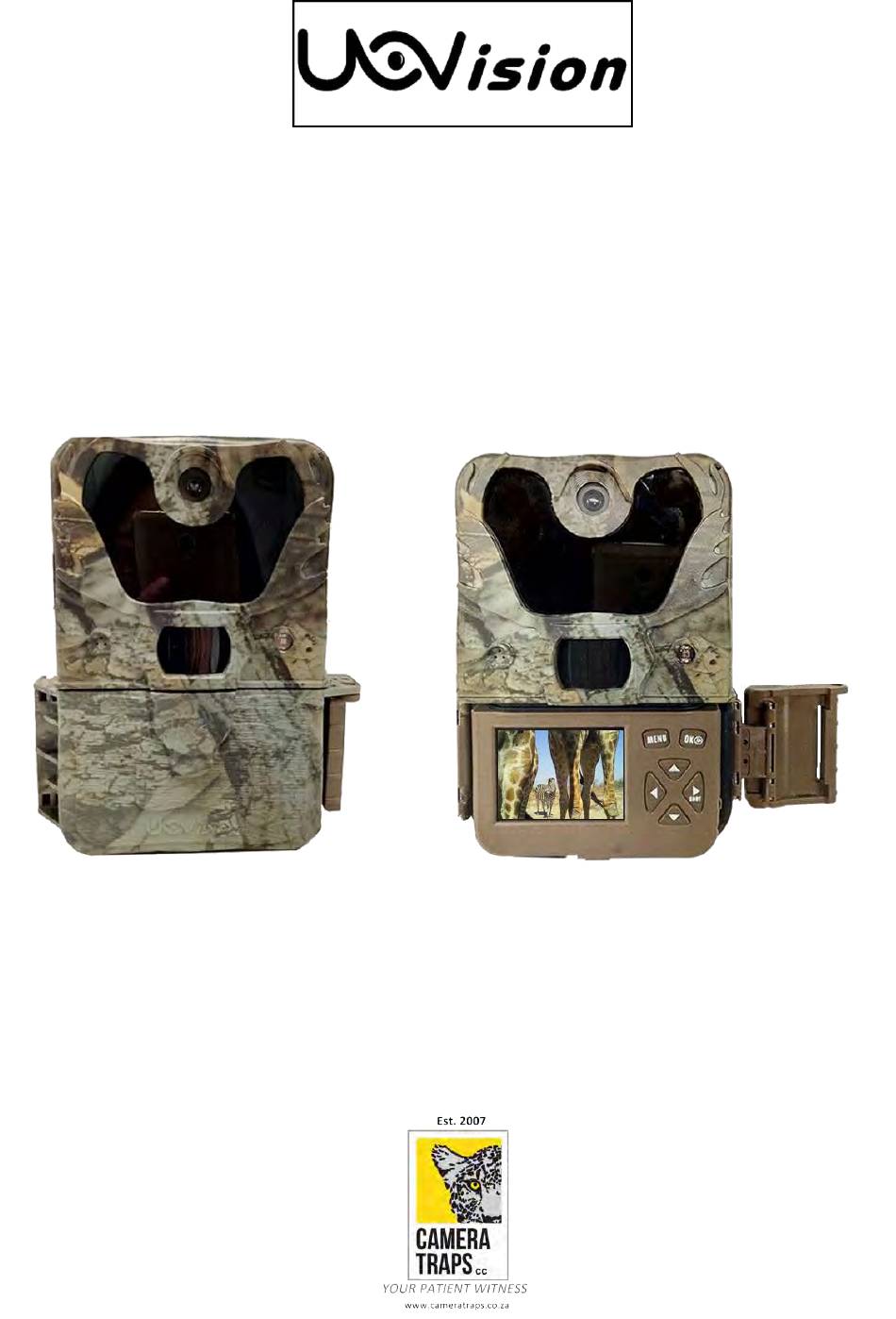

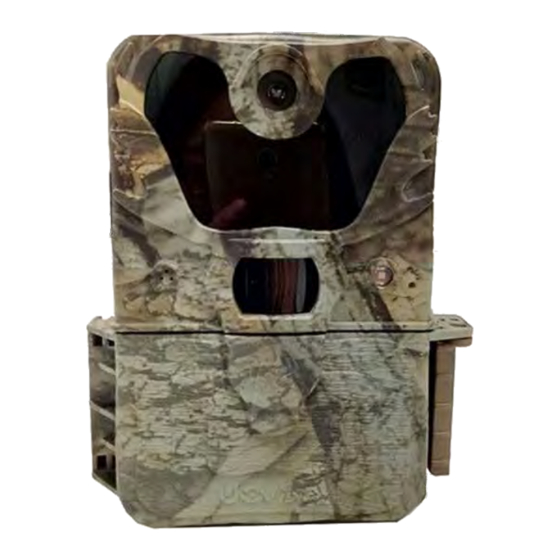

- Page 1 User Manual U V 785 - HD (BLACK FLASH / NO GLOW) + built-in viewer...
-
Page 2: Table Of Contents
Contents 1 General Description..............................1 2 Camera button info diagram ............................1 3 Installing the batteries ............................... 2 4 Inserting SD card ............................... 3 5 Customizing camera settings ............................ 3 5.1 CAM TAB ................................ 3 5.1.1 Camera Scene ............................ 4 5.1.2 Video Mode ............................ -
Page 3: General Description
1 General Description Main features: • 12MP black flash (no glow IR) camera with 20m+ flash range • Up to 64GB capacity SD card supported • 1080P H.264 video with audio • 0.4s trigger speed • Built-in 2.4” LCD colour (front-facing) viewing screen •... -
Page 4: Installing The Batteries
Operation Panel MENU: To enter the menu, the power switch should be on SETUP. ▲▼◄►: Navigation arrows. (“▲”is the shortcut to choose “Video”, while “▼”for the “Photo”.) OK : Save parameter settings. Exchange between playback and preview. ►Shot: To capture a photo or record a video manually. (Click ►again to stop the video.). Power Switch: OFF: turn off the power;... -
Page 5: Inserting Sd Card
4 Inserting the SD card The UV785-HD camera has no internal memory storage space to store pictures / video clips. You need to insert a SD memory card to let the camera work correctly. Standard size SD and SDHC (High Capacity) cards up to a maximum 64GB capacity are supported (Micro-SD memory cards with adapters are NOT recommended). -
Page 6: Camera Scene
5.1.1 Camera Scene The UV785 camera has numerous camera scene settings, including moving object and close object, with the help of camera scenes, you can easily choose different combinations of shutter speeds and exposure times according to particular setup scenarios. Figure 8 Camera Scene(B) Figure 7 Camera scene(A) Camera Scene... -
Page 7: Video Mode
5.1.2 Video Mode When you set Camera Mode as Video, then you will see these submenu shows up. Video Size Select video resolution (in pixels per frame). Higher resolution produces better quality videos, but creates larger files that will take up more SD card space and fills it up faster. It provides Full HD 1080P (1920x1080, 30fps), HD 720P (1280x720, 60fps) and WVGA (848x480, 60fps) videos. -
Page 8: Pir Tab
5.2 PIR TAB Trigger Mode There are 3 trigger modes: PIR trigger, Time lapse and PIR trigger & Time lapse. Figure 15 Trigger options Figure 14 Trigger Mode PIR trigger When you choose PIR trigger, the PIR is active. Any motion (animals or humans) that is detected by the PIR will trigger the camera to capture a photo or video according to the preset PIR sensitivity and PIR Interval. -
Page 9: Sys Tab
Figure 16 Work time menu On: It means enable the work time function. Off: It means the camera will work all the time. If you want set two different time periods, please set more than one Work Time. 5.4 SYS TAB Set Clock Enter to set the date and time. -
Page 10: Sensing Angle And Distance Test
6 Sensing Angle and Distance Test To perform the sensing angle and monitoring distance of the camera test: • Toggle the power switch to SETUP and you will notice that the front-facing lens will show you what the camera lens is 'seeing'. -
Page 11: File Format
8 File format The folders on the SD card that contain the triggered footage are named like 100_1502. The numbers behind”_” shows the year and month. The image files are are named as ”TIME0001.JPG” or ”PIRT0001.JPG” or ”MANU0001.JPG”. “TIME” means the photo or video is triggered by time-lapse. “PIRT”... -
Page 12: Appendix Ⅰ: Technical Specifications
Appendix Ⅰ: Technical Specifications Picture Resolution 12MP, 10MP, 8MP, 3MP, 1.3MP Lens F/NO=2.4 FOV(Field of View)=52° IR-Flash (No glow) (Low) 6m-12m, (High) 12m-25m Display Screen 2.4” LCD Memory Card Up to 32GB Video Resolution WVGA,720P,1080P PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low) Trigger Time High:0.4s / Low:0.6s... - Page 13 Declaration of Conformity to Directive 1999/5/EC CE Caution： Hereby, the manufacturer declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Pls ask for your distributor for a copy of the Declaration of Conformity to Directive 1999/5/EC.
