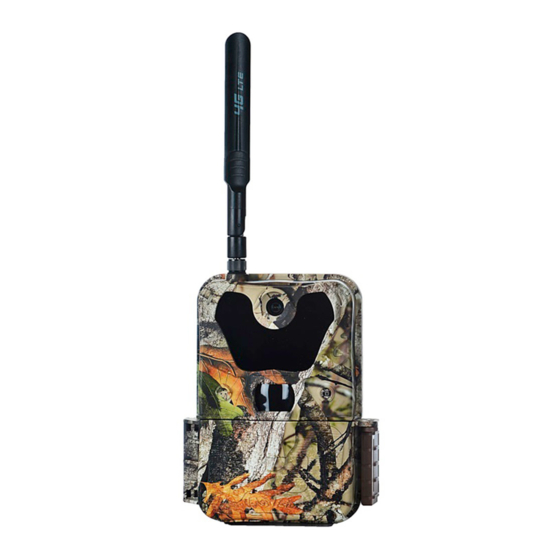

Uovision UM785-HD User Manual

Cellular black flash / no glow + built-in viewer
Hide thumbs Also See for UM785-HD:
Table of Contents

Advertisement

Quick Links

User Manual
UM785 - HD CELLULAR
(BLACK FLASH / NO GLOW) + built-in viewer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM785-HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Uovision UM785-HD

Summary of Contents for Uovision UM785-HD

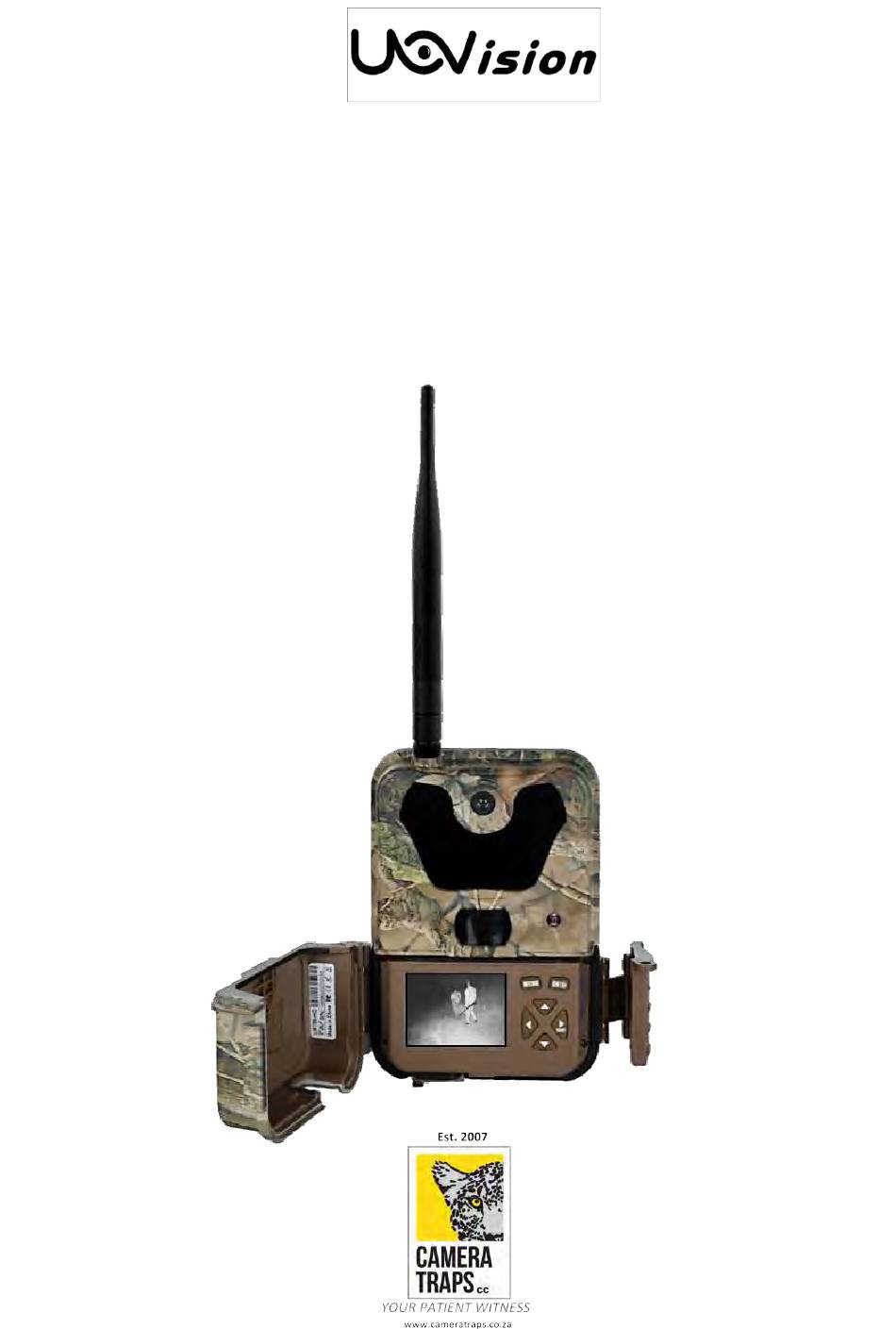

  • Page 1 User Manual UM785 - HD CELLULAR (BLACK FLASH / NO GLOW) + built-in viewer...

  • Page 2: Table Of Contents

    Content 1 General Description ..................................1 2 Camera button info diagram ................................1 3 Installing batteries ..................................... 2 4 SIM card ......................................3 5 Installing the SIM card and SD card ..............................3 6 Customising camera settings ................................3 6.1 Formatting the SD card ................................. 3 6.2 Download Tool (U Set .exe)..............................

  • Page 3: General Description

    1 General Description Main features: 12MP black flash (no glow IR) camera with 20m+ flash range 1080P H.264 video with audio 0.4s trigger speed GSM 900/1800/2100MHz networks, faster transmission speeds Built-in 2.4” LCD colour (front-facing) viewing screen Video/Full size picture transmission Remote control via SMS commands / Android App Support 1-10 burst photos Supports Wifi-SD card...

  • Page 4: Installing Batteries

    Operation Panel MENU: To enter the menu, the power switch should be on SETUP. ▲▼◄►: Navigation arrows. (“▲”is the shortcut to choose “Video”, while “▼”for the “Photo”.) OK : Save parameter settings. Exchange between playback and preview. ►Shot: To capture a photo or record a video manually. (Click ►again to stop the video.). Power Switch: OFF: turn off the power;...

  • Page 5: Sim Card

    4 SIM card (AIRTIME / DATA / PIN code OFF) The camera is designed to instantly transmit triggered footage once the photo or video is taken by using available cellular network signal and you can choose either of the following; MMS photos to up to 4 different cell phone numbers or (uses AIRTIME);...

  • Page 6: Setup With Pc / Laptop

    Figure 7 Download successful Figure 6 Download Tool Figure 8 U Set.exe TIP: You can open the program directly from the SD card but its a good idea to create a folder on your PC / laptop for your camera trap and copy this program into it. It saves you having to download it again for future use if you need to change things.
  • Page 7 Send Mode: Instant - Select 'ON' to have the footage immediately transmitted to you or OFF to disable the transmission feature. Number of transmissions: You can limit the number of transmissions you receive if required - if not, select '0' for unlimited. Daily Report - This option will only send you the last photo taken each day with a report of all the other activity captured during the day at preset time that you choose.
  • Page 8 SOUTH AFRICAN CELL NETWORK PARAMETERS: Vodacom CellC Telkom (8ta) Send To / SMS Control: Phone: Sends triggered footage as MMS's (images only) to cell phones (up to 4). Email: Sends triggered footage as Email attachments (images or video clips) to Email addresses (up to 4) Input phone numbers with no country prefixes and no spaces.
  • Page 9 Sending via Email: Select the Send To 'Email' option and then click the 'Email Setting' button and a separate window will open allowing you to input the SENDING parameters for the camera footage. Some of the main service providers are also listed here.

  • Page 10: Send A Test Photo

    After you have finished customising all the settings, make sure to save your path directly to the SD card root directory. Locate your SD card be pressing the '...' button (Fig.16). • It will then generate a ‘PROFILE.BIN’ file on SD card. TIP: You can also save the 'PROFILE.BIN' file into the folder you created on your PC / laptop (see previous TIP).
  • Page 11 Camera Scene Description Auto This option is appropriate for most of the use. We recommend this option for quick setup camera. It takes 8MP photos in daytime and 3MP photos at night. Close objects This option is suitable for object which is within the distance between 3m and 5m. The IR flash is dimmed to prevent excessive exposure.

  • Page 12: Video Mode

    6.5.3 Video Mode When you set Camera Mode as Video, then you will see these submenu shows up. Video Size Select video resolution (in pixels per frame). Higher resolution produces better quality videos, but creates larger files that will take up more SD card space and fills it up faster. It provides Full HD 1080P (1920x1080, 30fps), HD 720P (1280x720, 60fps) and WVGA (848x480, 60fps) videos.

  • Page 13: Work Time

    Figure 27 Trigger options Figure 26 Trigger Mode PIR trigger When you choose PIR trigger, the PIR is active. Any motion (animals or humans) that is detected by the PIR will trigger the camera to capture a photo or video according to the preset PIR sensitivity and PIR Interval. PIR Sensitivity The camera monitors temperature of ambient conditions.

  • Page 14: Sys Tab

    Figure 28 Work Time 1 Figure 29 Work time menu On: It means enable the work time function. Off: It means the camera will work all the time. If you want set two different time periods, please set more than one Work Time. 6.5.7 SYS TAB Set Clock Enter to set the date and time.

  • Page 15: Control Camera By App / Sms

    The number which has control of this function (command phone number) is the one in the first position of the phone number list. Android APP [called CamCtrl_M]: Please search ’UOVision’ or ’CamCtrl_M ’in the Google play store and install the APK file to your smart phone.
  • Page 16 Figure 34 CamCtrl_M App Input a name for your camera Press to ADD NEW CAMERA Input the cell number of the camera's SIM card (no spaces or country prefix codes) via the App. Once loaded - select your camera and there are a great settings / commands that can be set / changed Note: If you set Wireless Status to OFF, you will not receive photos or Daily reports to your phone or e‐mail.
  • Page 17 If you want to send SMS commands to the camera by normal text messages, below are a number of the most commonly used SMS commands: SMS Command Function...

  • Page 18: View Or Delete Photos On The Color Display

    8 View or Delete photos on the color display You can view your photos on the color display when in the field. If you want to do this, make sure the Power switch is setted to SETUP. Press the Play button. You can use the ◄► buttons to toggle through the photos. If you see photos you want to delete, press the DEL button.

  • Page 19: Appendix Ⅰ: Technical Specifications

    Appendix Ⅰ: Technical Specifications Picture Resolution 12MP, 8MP (Interpolated), 3MP, 1.3MP (CMOS 5MP) Lens F/NO=3.0 FOV (Field of View)=52° UMTS/HSPA+: 900/2100MHz Frequency Bands GSM/EDGE:850/900/1800/1900MHz IR-Flash (No glow) 50% (0-12m), 100% (12-25m) Display Screen 2.4” LCD Memory Card Up to 32GB Video Resolution WVGA,720P,1080P PIR Sensor...
