  • Page 1 UM785-4G LTE Scouting Camera Instruction Manual (For UM785-4G Model)

  • Page 2: Table Of Contents

    Content 1 Camera Overview ................1 2 Set power ....................3 3 Installing your SIM card and SD card .......... 4 4 Customizing camera settings ............5 4.1 Power switch button and menu buttons ......5 4.2 Setting maps ................7 4.3 Send a test photo ..............

  • Page 3: Camera Overview

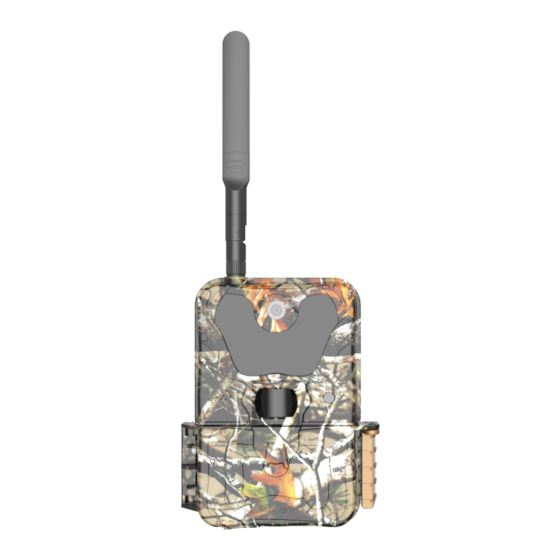

    1 Camera Overview Fig 1 Front View Page 1...
  • Page 4 Fig 2 Operation Interface Page 2...

  • Page 5: Set Power

    Fig 3 Bottom View 2 Set power To supply power for the camera, 4, 8 or 12 size AA batteries are needed. Notice ：  Do not mix different types of batteries  Please do not mix the old batteries with the new batteries ...

  • Page 6: Installing Your Sim Card And Sd Card

    3 Installing your SIM card and SD card Fig 4 Notice：  This product support B1/B3/B5/B7/B8/B20@FDD LTE B38/B40/B41@TDD LTE B1/B5/B8@WCDMA B3/B8@GSM. Be sure that the PIN Code of the SIM card is disabled  The maximum support SD memory is 32G Page 4...

  • Page 7: Customizing Camera Settings

    Customizing camera settings 4.1 Power switch button and menu buttons Fig 5 Power Switch  OFF: power off;  SETUP: setting the CAM;  ON: working mode (the screen will power off). Toggle the power switch to SETUP. You will see the screen shown below.
  • Page 8 Fig 6 Main Screen Press the MENU button. Use▲▼◄ ► buttons for navigation. ►button in the preview can also be directly manual photo. OK button to confirm operation/playback. Page 6...

  • Page 9: Setting Maps

    4.2 Setting maps Send Mode Off/Instant Remote Control Real Time/Delay 0.5H/1H/2H/3H/4H/6H/12H/24H FW Download Note： Send Mode: Off: disable the transmission function.Instant: enable the instant transmission. Max Number of Instant means the number of photos that is allowed to send out per day. If you want to control your data flow, set the maximum number.
  • Page 10 Photo Custom Settings Video Size： Camera Video WVGA/720P/1080P Mode Video Length： 5s-60s（Default:10s） Photo Size 3M/8M/10M/12M Flash Power Low/High Custom 1~10 Settings Photo Burst Burst Speed(Fast/Slow) Sending Option Shutter Speed Normal/Fast Photo Burst： It’s the taken number of pictures when a triggering. If photo burst is 3, it means the camera will take 3 pictures after one triggering.
  • Page 11 Trigger Mode PIR Trigger/Time Lapse/Both PIR Sensitivity Low/Auto/High PIR Interval 5s-60min（default：30s） Time Lapse 3min~24hours Interval （default:24Hours） Work-Time Default:Off （4 groups） PIR Interval：It means how often the PIR sensor can be allowed to work. This prevents the card from filling up with too many redundant images.

  • Page 12: Send A Test Photo

    Set Clock Enter to set date and time Language Ten languages Password Off/On Rename Off/On Overwrite Off/On Upload Settings Download Settings Format SD Card Format SD Card Restore all customer settings to Default default values Software version information Software Version Password：Make sure you write down your password or save it to your mobile phone so you can access your camera if you ever forget your password.

  • Page 13: Connecting Cam To Cloud Server

    Fig 7 Fig 8 Once you see send successful, check your email account or phone see if you receive the correct photo. If the sending is failure, choose Diagnose to generate a Log file and the FAQ will help you with your Log file. Fig 9 Fig 10 5 Connecting CAM to cloud server...
  • Page 14 https://www.linckeazi.com/index.html Click ‘Sign up’ on the page to pop up the registration page. The registered users of the platform need to fill in the user name, email address, email verification code, setup password, verification password (re-enter the setup password), and then agree to the terms and agreements to complete the platform registration.
  • Page 15 Click ‘Add Device’, a form will pop out requesting basic information for your CAM. Fig 13 Fig 14 Name your CAM, and add location description if necessary, the SN and IMEI can be found labeled inside CAM: SN labeled at the side of SIM slit IMEI labeled at the front panel Fig 15 Page 13...

  • Page 16: Send A Photo To Cloud Server

    5.2 Send a photo to cloud server Choose a picture, press MENU, Select ‘send’, the process of sending photo will present at screen, and within minutes your cloud account will receive your photo. If you have the E-mail transfer function enabled on your Linckeazi cloud platform, the cloud platform will also send a photo or video copy to your E-mail address.
  • Page 17 Fig 17 As to APP, Please search“Linckeazi” in Google play(or scan the QR code) and install the APK file to your smart phone. Android APP IOS APP The adding and setting process is quite similar to cloud server. Page 15...

  • Page 18: Mount Tips

    Fig 18 7 Mount tips Use cable or belt cross the holes or slits, tie it up at trees or anywhere you want to mount. Page 16...
  • Page 19 Mount the camera approximately 1.4m off the ground facing straight forward as level as possible. For instance, place the camera 7m-10m from a field edge facing the woods. For the inside of timber, positioning the camera facing a thicket approximately 7m-10m away. Fig 19 Don’t not face towards light Use the forest for reflection,...

  • Page 20: Appendix Ⅰ: Technical Specifications

    Appendix Ⅰ: Technical Specifications 12MP, 10MP, 8MP(Interpolated), Picture Resolution F/NO=2.2 FOV(Field of View)=58° Lens (FOV10m=7.72meter) FDD-LTE： B1/B3/B5/B7/B8/B20;TDD-LTE:B38/ Frequency Bands B40/B41;WCDMA: B1/B5/B8; GSM: 900/1800 IR-Flash 6m, 12m Display Screen 2.4” LCD Memory Card Up to 32GB Video Resolution WVGA,720P,1080P PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low)

  • Page 21: Appendix Ⅱ: Parts List

    Appendix Ⅱ: Parts List Part Name Quantity Digital Camera Belt User Manual Quick Start Antenna Page 19...
  • Page 22 Declaration of Conformity to Directive 2014/53/EU CE Caution： Hereby, the manufacturer declares that this camera is in compliance with the essential requirements other relevant provisions Directive 2014/53/EU. Pls ask for your distributor for a copy of the Declaration of Conformity to Directive 2014/53/EU.
  • Page 23 Customer Name: Contact Tel: Date of Purchase: Series No: Fault Description: Retailer: camera manufacturer provides months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 years, the camera manufacturer will repair or replace the camera at no charge.
  • Page 24 authorized retailer to validate the warranty. Improper use of the camera resulting in damage is not covered by this warranty. The camera manufacturer can provide repair service, after the warranty expiration. The customer will be responsible for any charges on parts, labor and shipping costs.
