Summary of Contents for Uovision UM795-HD

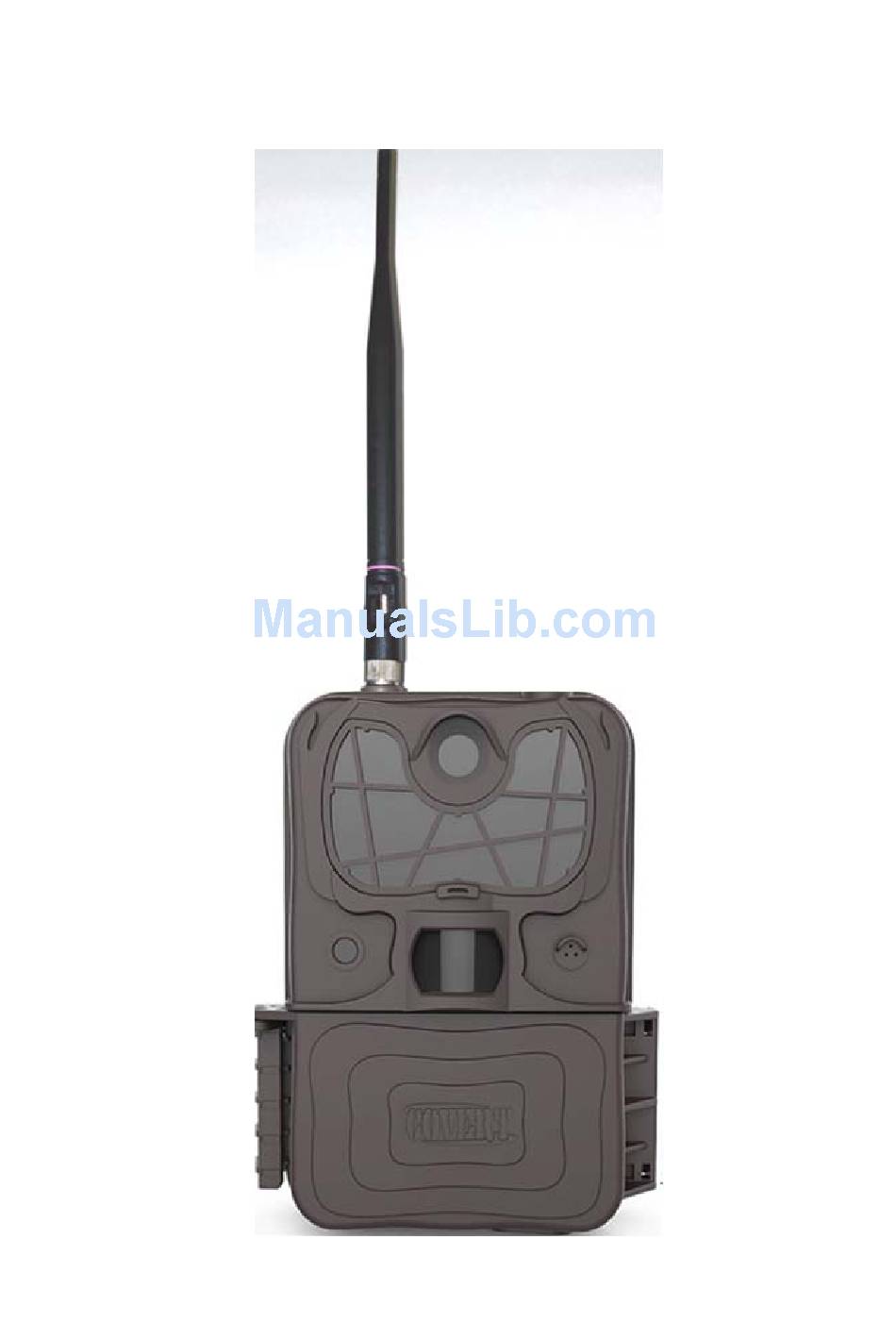

- Page 1 UM795-HD Manual ...
- Page 2 IMPROTANT NOTES Your camera is fitted with a weatherproof housing according to protection class IP56 (dust and water proof). So the camera can be used outdoors. Nevertheless protect the camera from extreme weather conditions and direct sunlight. The recommended storage and operation temperature is -10 to 40℃.
-
Page 3: Table Of Contents
CONTENT 1 Camera description & Overview ............................ 4 2 SD card capacity overview .............................. 5 3 Information on loading and exchange of batteries ........................ 5 4 Installing your SIM card ................................ 5 5 Camera Programming ................................ 5 6 Setting up the wireless network ............................ 11 7 Operation on web portal .............................. 13 8 Viewing/Deleting Images &Video Films .......................... 13 9 Tricks and tips on field setup .............................. 14 10 Specifications .................................. 14 11 FCC statement .................................. 15 ... -
Page 4: Camera Description & Overview
1 Camera description & Overview ... -
Page 5: 2 Sd Card Capacity Overview
2 SD card capacity overview Number of pictures on Photo Mode 1.3MP 2GB SDHC 2330 3495 6990 4GB SDHC 4660 6990 13980 8GB SDHC 9320 13980 27960 16GB SDHC 18640 55920 55920 32GB SDHC 37280 111840 111840 Number of pictures on Video Mode video HD Video 720p Video 720p Video... - Page 6 Overview Programming Options Press the control button ”MENU” while in SETUP mode. The symbols shown at the top bar describe the following programming options. Recording mode photo/video and all fine adjustments Trigger mode and all fine adjustments Setting and editing a time frame ...
- Page 7 release time to reduce blur caused by movements. Also, if you choose Customer, here you can change Photo Size, set Flash power, and Photo Burst. Video Mode: In Video Mode, you can further set the Video Size and Video Length. Picture +Video Mode: If you select the combination of photo and video, the camera will automatically take a 8MP picture and a video of 10s length with 720p resolution.
- Page 8 Camera Scene Auto 8MP Color picture at daylight, 3MP black&white picture at night Close Object For distance to object of 3 to 5 meters, the flash range will be adapted accordingly. 8 or 3MP Moving Object A shorter shutter release time reduces blur caused by movements.
- Page 9 Trigger Mode Settings PIR Sensitivity: The camera will react on movements and temperature changes. Low Auto High PIR Interval: The PIR sensor takes a break in order to avoid unnecessary recordings. 0 seconds means the PIR function is opened all the time. ...
- Page 10 Time Frame Setting Work Time 1: Select ”ON” or” OFF”. Select a work time for the activity of the camera. Now select the weekdays. Work Time 2: Repeat the steps as in work time 1, if desired. Work Time 3: Repeat the steps as in work time 1, if desired.
-
Page 11: 6 Setting Up The Wireless Network
System Settings The following settings can be done. (Information about navigation please see chapter camera programming) Set Clock You can choose different date formats according to different countries to set date and time. Password: Select ”On” and enter a 4 digit code to protect the camera from unauthorized use. Be sure to note the password and store the code at a safe place. -
Page 12: Remote Control
Send Image You can choose 0.5MB, 1.2MB and 3MB picture size to sending out to the web portal and download from the web portal. Remote Control Choose Off, Real Time, Delay 0.5H, Delay 1H, Delay 2H, Delay 3H, Delay 4H, Delay 6H, Delay 12H. -
Page 13: 7 Operation On Web Portal
is activated successfully, it shows ”Activation Success”. If the camera is not been activated, it shows the error code. FW Download Press FW Download button, the camera will download the newest FW from the web site. 7 Operation on web portal ... -
Page 14: 9 Tricks And Tips On Field Setup
10 Specifications Model Name UM795-HD Picture Resolution 12MP,10MP,8MP,3MP,1.3MP, image format JPEG Video Resolution HD 1080p/30 fps, 720p/60fps, WVGA/60fps with Audio Video format MOV/ Codec H264 F/NO=2.2 FOV(Field of View)=58°... -
Page 15: 11 Fcc Statement
11 FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
