- Page 1 Wireless Scouting Camera UM785-3G+ Cloud Instruction Manual (For UM785-HD Model)
-
Page 2: Table Of Contents
Content 1 Camera Overview ......................1 2 Set power..........................2 3 Installing your SIM card and SD card ................2 4 Customizing camera settings ..................... 4 4.1 Power switch button and menu buttons ..............4 4.2 Setting maps ......................5 4.3 Send a test photo ....................... -
Page 3: Camera Overview

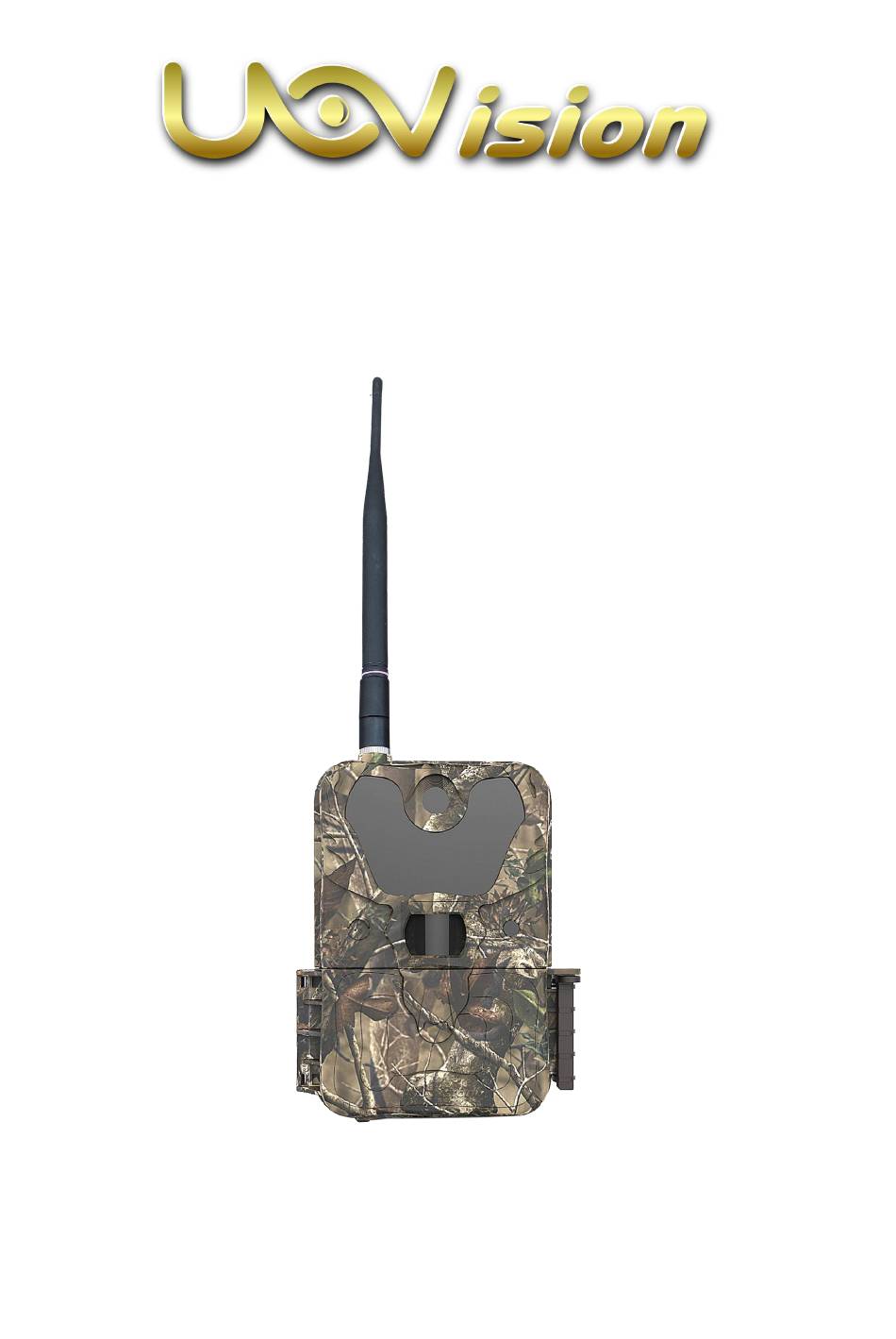

1 Camera Overview Figure 1 Front View Figure 2 Operation Interface Page 1... -
Page 4: Set Power
Figure 3 Bottom View 2 Set power To supply power for the camera, 4, 8 or 12 size AA batteries are needed. Notice ·Do not mix different types of batteries ·Please do not mix the old batteries with the new batteries ·Recommend high-density and high-performance batteries, such as Alkaline or Lithium batteries. - Page 5 Notice ·This product use UMTS/HSPA+ and GSM/EDGE cellular network. Be sure that the PIN Code of the SIM card is disabled ·The maximum support SD memory is 64G Page 3...
-
Page 6: Customizing Camera Settings
4 Customizing camera settings 4.1 Power switch button and menu buttons OFF: power off; SETUP: setting the CAM; ON: working mode (the screen will power off). Toggle the power switch to SETUP. You will see the screen shown below. -
Page 7: Setting Maps
Press the MENU button. Use▲▼◄ ► buttons for navigation. ►button in the preview can also be directly manual photo. OK button to confirm operation/playback. 4.2 Setting maps Note： Send Mode: Off: disable the transmission function. Instant: enable the instant transmission. Max Number of Instant means the number of photos that is allowed to send out per day. - Page 8 Page 6...
- Page 9 Note： Photo Burst: It’s the taken number of pictures when a triggering. If photo burst is 3, it means the camera will take 3 pictures after one triggering. You also can choose which one of the pictures will be sent via Send Option. PIR Interval：It means how often the PIR sensor can be allowed to work.
-
Page 10: Send A Test Photo
4.3 Send a test photo 1) Switch camera to Setup mode, press ► button to take a picture, then press OK button to check this picture; 2) Press the MENU button, choose send. You will see sending progress shows on the LCD screen. Once you see send successful, check your email account or phone see if you receive the correct photo. -
Page 11: Connecting Cam To Cloud Server
5 Connecting CAM to cloud server In order to ‘send’ your photo to your cloud account or mobile phone, you need adding CAM towards them first Open website: https://www.linckeazi.com/index.html Login, if you already have an account, or simply register one with your email account. - Page 12 Click ‘Add Device’, a form will pop out requesting basic information for your CAM. Name your CAM, and add location description if necessary, the SN and IMEI can be found labeled inside CAM: SN labeled at the side of SIM slit IMEI labeled at the front panel Page 10...
-
Page 13: Send A Photo To Cloud Server
5.1 Send a photo to cloud server Choose a picture, press MENU, Select ‘send’, the process of sending photo will present at screen, and within minutes your cloud account will receive your photo. If the above test has accomplished, then you can slide power switch to ‘on’... - Page 14 As to APP, Please search“Linckeazi” in Google play(or scan the QR code) and install the APK file to your smart phone. Android APP IOS APP The adding and setting process is quite similar to cloud server. Fig 18 Page 12...
-
Page 15: Mount Tips
2 Mount tips Use cable or belt cross the holes or slits, tie it up at trees or anywhere you want to mount. Mount the camera approximately 1.4m off the ground facing straight forward as level as possible. For instance, place the camera 7m-10m from a field edge facing the woods. -
Page 16: Appendix Ⅰ: Technical Specifications
Appendix Ⅰ: Technical Specifications Picture Resolution 12MP, 10MP, 8MP(Interpolated), 3MP Lens F/NO=2.4 FOV(Field of View)=46° UMTS/HSPA+: 900/2100MHz Frequency Bands GSM/EDGE:850/900/1800/1900MHz IR-Flash 6m, 12m Display Screen 2.4” LCD Memory Card Up to 64GB Video Resolution WVGA,720P,1080P PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low) Trigger Time 0.6s... -
Page 17: Appendix Ⅱ: Parts List
Appendix Ⅱ: Parts List Part Name Quantity Digital Camera Belt User Manual Antenna Page 15... - Page 18 Declaration of Conformity to Directive 2014/53/EU CE Caution： Hereby, the manufacturer declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Pls ask for your distributor for a copy of the Declaration of Conformity to Directive 2014/53/EU.
- Page 19 Customer Name: Contact Tel: Date of Purchase: Series No: Fault Description: Retailer: The camera manufacturer provides 24 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 2 years, the camera manufacturer will repair or replace the camera at no charge.
