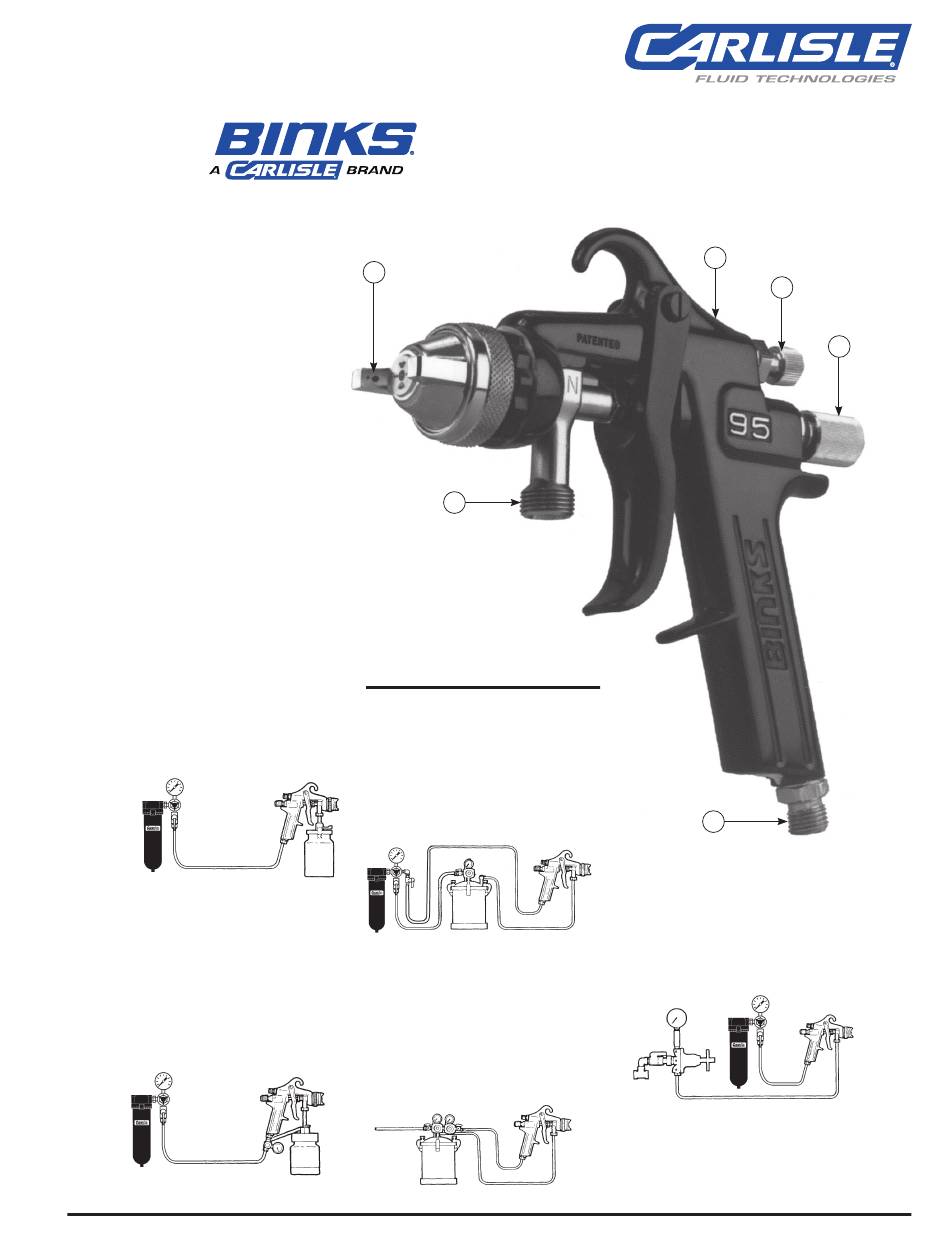

SERVICE MANUAL
EN

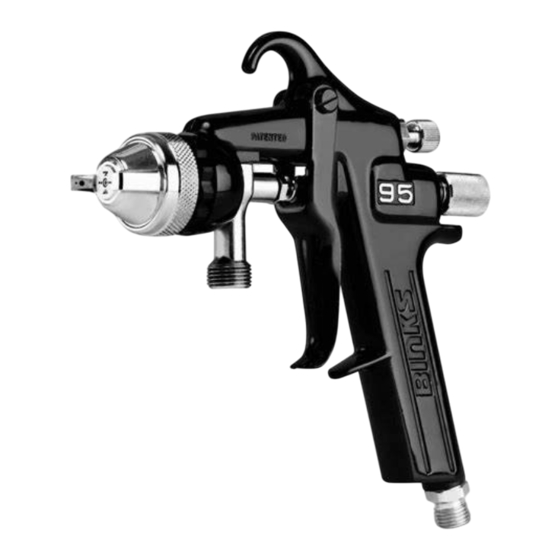

Model 95 Signature Series
Spray Gun
This handheld gun is the premier spray
gun in the Binks line. A combination
of the three best industrial spray guns,
Model 95 sets a new standard.
The Model 95 is a high production
gun with stainless steel fluid passages
which may be used with most coatings.
This new gun replaces Models 18, 62
and BBR spray guns, incorporating
the best features of all three: drop-
forged anodized alumninum body,
stainless steel fluid passages,
adjustable floating needle valve,
stainless steel or tungsten carbide
fluid nozzle, plated drop-forged
brass self-centering air nozzle, brass
air valve cartridge, adjustable spray
pattern, 3/8" NPS(m) fluid inlet, 1/4"
NPS(m) air inlet. Weight 1 lb., 11 oz.
TYPES OF INSTALLATION
SIPHON FEED CUP HOOKUP
Air pressure for atomization is regulated at
extractor. The amount of fluid is adjusted
by fluid control screw on gun, viscosity of
paint, and air pressure (see figure 1).
Extractor
Air
Siphon Cup
Figure 1
PRESSURE FEED CUP HOOKUP
For fine finishing with limited spraying.
Air pressure for atomization is regulated at
extractor; fluid pressure at cup regulator. For
heavy fluids and internal mix nozzle spray-
ing, fluid adjusted by control screw on gun.
Pressure cup also available less regulator
(see figure 2).
Oil & Water
Extractor
Cup
Regulator
Air
Figure 2
77-2625-R17 (1/2021)
1
Illustration Key
1. Air Nozzle Assembly
2. Gun Body
3. Side Port Controls
4. Fluid Control Knob
5. Air Connection 1/4" NPS(m)
6. Fluid Connection 3/8" NPS(m)
PRESSURE FEED TANK HOOKUP
For medium production spraying (sin gle
regulator).
Air pressure for atomi zation is regulated
at extractor, fluid pressure at tank regulator
(see figure 3).
Extractor
Figure 3
PRESSURE FEED TANK HOOKUP
For portable painting operations
(double regulator).
Air pressure for atomization and fluid
supply is regulated by two individual air
regulators on tank (see figure 4).
Air
Supply
Pressure
Fluid
Pressure Cup
Figure 4
MODEL 95 SPRAY GUN
6121-XXXX-X
6
Air
Fluid
Inlet
Outlet
Air
Pressure
Tank
Fluid
Air Supply
Tank
Fluid
1 / 12
2
3
5
PRESSURE FEED CIRCULATING
HOOKUP
For heavy production spraying.
Air pressure atomization regulated at
extractor. Fluid pressure regulated at fluid
regulator (see figure 5).
Extractor
Fluid
Regulator
Air
Figure 5
www.carlisleft.com
4
Fluid
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carlisle BINKS Signature Series
Summary of Contents for Carlisle BINKS Signature Series
- Page 1 SERVICE MANUAL MODEL 95 SPRAY GUN 6121-XXXX-X Model 95 Signature Series Spray Gun This handheld gun is the premier spray gun in the Binks line. A combination of the three best industrial spray guns, Model 95 sets a new standard. The Model 95 is a high production gun with stainless steel fluid passages which may be used with most coatings.
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
-
Page 3: Gun Handling
AIR PRESSURE Atomizing pressure must be set properly to allow for the drop Only 34 PSI at gun inlet in air pressure between the regulator and the spray gun. 25 feet of 1/4” I.D. hose causes a drop of 26 PSI between the air supply and the gun. (NOT RECOMMENDED) With 60 psi applied at air supply 5/16”... - Page 4 The spray pattern of In normal operation, the wings on the Binks gun is variable the nozzle are horizontal as illus- Spray width adjustment from round to flat with trated here. This provides all patterns in between. a vertical fan shaped pattern which Fluid gives maxi- control...
- Page 5 SPRAY GUN CLEANING INSTRUCTIONS AIR AND FLUID NOZZLE CLEANING GUN USED WITH In certain states it is now against the law CLEANING PRESSURE CONTAINER to spray solvents containing Volatile Organic Compounds (VOC)’s into the A faulty spray pattern is often caused by WARNING atmosphere when cleaning a spray gun.
- Page 6 Binks Model 95 SPRAY GUN Optional for vitreous applications, order Fluid Inlet Assembly Kit 54-4511. www.carlisleft.com 6 / 12 77-2625-R17 (1/2021)
-
Page 7: Parts List
PARTS LIST (When ordering, please specify Part No.) ITEM PART ITEM PART DESCRIPTION QTY. DESCRIPTION QTY. AIR CAP ASSEMBLY ......54-3504 PLUG ............. FLUID NOZZLE ....54-3578 TRIGGER ..........1 (Stainless Only) • 54-918 ^ SEALING RING ........54-4210 FLUID INLET .......... 1 •... - Page 8 NOZZLE and NEEDLE SELECTION CHARTS TYPE OF FLUID FLUID NOZZLE CFM AT FLUID NEEDLE NOS. FLUID NEEDLE TO BE SPRAYED X AIR TYPE PATTERN FOR SPRAY GUN PART NO. NOZZLES AT 8” MODEL 95 MODEL 95 VERY THIN 63ss x 63P 10.0 47-66300 14-16 secs.
- Page 9 SPECIAL NOZZLES – INTERNAL MIX HEAVY MATERIAL SEE CHART AIR & FLUID NOZLES NOZZLE TIP: AIR NOZZLE 200 SERIES, #54-2065 NITRALLOY RING #54-4512 #659 NEEDLE BASE & RING KIT ASSEMBLY GUIDE #54-1583 FLUID BASE NOZZLE SCREW #54-1584 RING (USED WITH 200 SERIES TIPS ONLY) SPECIAL NOZZLE –...
- Page 10 NOTES www.carlisleft.com 10 / 12 77-2625-R17 (1/2021)
- Page 11 NOTES 77-2625-R17 (1/2021) 11 / 12 www.carlisleft.com...
-
Page 12: Warranty Policy
This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
