SERVICE MANUAL
EN

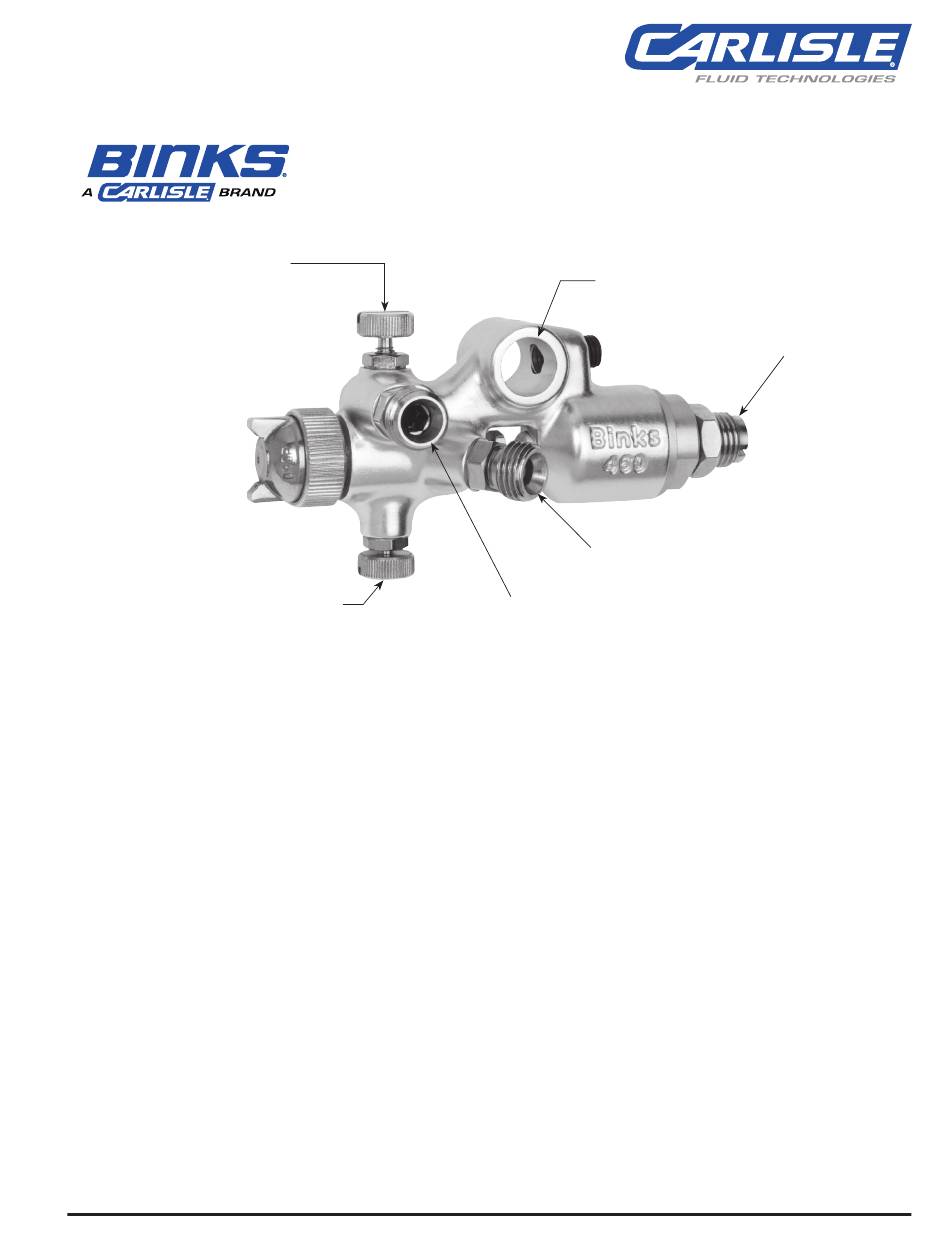

AIR FLOW ADJUSTMENT
Clockwise to reduce pressure;
Counterclockwise to increase pressure.
FAN SPRAY WIDTH ADJUSTMENT
Clockwise to reduce pressure;
Counterclockwise to increase pressure.
DESCRIPTION

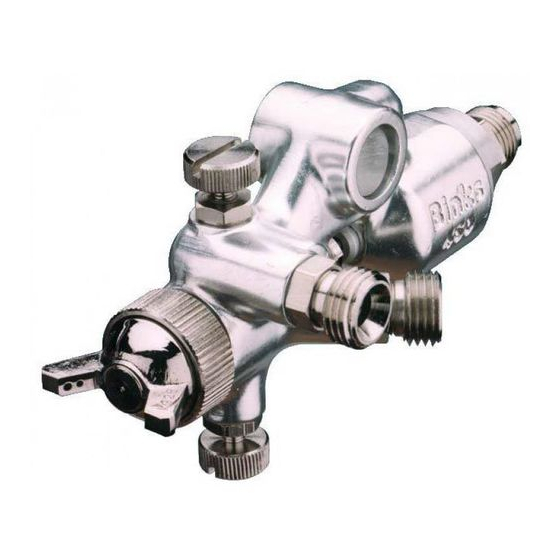

The Binks 460 Automatic Spray Gun is a small preci-
sion gun designed with accuracy in mind, for ease
of fitting to existing automatic and semi-automatic
machine. Its compact dimensions also enable the
gun to be installed neatly and at close quarters,
where the standard range of automatics cannot be
accommodated.
FEATURES
• Aluminum alloy body with brass air nozzle.
• Stainless steel needle valve and springs.
• Both gun operation and spray variation is con-
trolled from a single air supply.
• Control valves for atomization fan and air flow.
• No lag, instant piston controlled "on and off".
• A range of fluid nozzles for applying many liquid
coatings.
77-2019-R6 (12/2020)
MODEL 460
LIGHTWEIGHT AUTOMATIC SPRAY GUN
1 / 8
1/2" DIA. MOUNTING HOLE
FLUID INLET
1/4 NPS (m)
AIR INLET
1/4 NPS (m)
GUN ASSEMBLY ORDERING INFORMATION
6401-1800-5
460 Gun J920SS-J92P with .020" Fluid Nozzle
6401-1900-5
460 Gun J930SS-J92P with .030" Fluid Nozzle
6401-2000-5
460 Gun J940SS-J92P with .040" Fluid Nozzle
6401-2100-8
460 Gun K960SS-K92P with .060" Fluid Nozzle
6401-2200-5
460 Gun J940SS-J92R with .040" Fluid Nozzle
SPECIFICATIONS:
Max Air Pressure: 100 PSI/6.8 Bar
Min Air Pressure: 50PSI/3.4 Bar
Max Fluid Pressure: 100 PSI/6.8 Bar
Air Volume Requirements: 20 SCFM Max
Gun Body: Aluminum Forging
Fluid Path: Stainless Steel
Fluid Inlet: 1/4" NPS (M)
Air Inlet: 1/4" NPS (M)
Gun Weight: .43 Ibs/.2kg
Gun Mounting Hole: 1/2" Dia.
FLUID NEEDLE
ADJUSTMENT
www.carlisleft.com
Advertisement
Table of Contents
Related Manuals for Carlisle BINKS 460
Summary of Contents for Carlisle BINKS 460
- Page 1 Clockwise to reduce pressure; Counterclockwise to increase pressure. DESCRIPTION GUN ASSEMBLY ORDERING INFORMATION The Binks 460 Automatic Spray Gun is a small preci- 6401-1800-5 sion gun designed with accuracy in mind, for ease 460 Gun J920SS-J92P with .020" Fluid Nozzle...
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
- Page 3 Binks MODEL 460 LIGHTWEIGHT AUTOMATIC SPRAY GUN AIR FLOW ADJUSTMENT Clockwise to reduce pressure; Counterclockwise to increase pressure. 1/2" DIA. MOUNTING HOLE FLUID NEEDLE ADJUSTMENT FLUID INLET 1/4 NPS (m) NEEDLE ASSEMBLY AIR INLET 1/4 NPS (m) FAN SPRAY WIDTH ADJUSTMENT AIR NOZZLE FLUID NOZZLE Clockwise to reduce pressure;...
- Page 4 INSTALLATION, OPERATION & MAINTENANCE GUN MOUNTING FAULTY SPRAY A hexagon screw (13) will secure the spray gun to the 54-380 Caused by improper cleaning, or dried fluid on nozzle tip or in gun mounting rod. For special mountings, a 1/2" dia. rod will fir the air nozzle.
- Page 5 NOTES 77-2019-R6 (12/2020) 5 / 8 www.carlisleft.com...
- Page 6 NOTES www.carlisleft.com 6 / 8 77-2019-R6 (12/2020)
- Page 7 NOTES 77-2019-R6 (12/2020) 7 / 8 www.carlisleft.com...
- Page 8 This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
