Carlisle BINKS 80-295 Service Manual

SERVICE MANUAL
EN
CleanAir
centrifugal
air filter unit
Fluid Pressure
Gauge
Safety Va lve
(Do not tamper with
or readjust)
Fluid Pressure
Regulator
Lubricate
Cup Threads
NOTE
To loosen or tighten the cover from/to the cup, grasp the
cover and the base separately and twist. Do not attempt to
loosen or tighten the cover grasping the air regulator or
outlet assembly.

OPERATION AND CLEANING

External Mix Air Nozzle Application

Operation:
1. Connect hose as shown in diagram on front page.
2. Fill cup with strained fluid mixed in accordance with
manufacturer's recommendations on label of container.
3. Fasten cover securely.
4. Close air adjusting valve by turning clockwise.
5. Set air pressure at CleanAir filter unit to between 35 and 80 PSI,
depending upon atomization desired.
6. Set regulator on pressure cup to approximately 10 PSI for
enamels; 5 PSI for lacquers. (Turn knob clockwise to increase
pressure; to reduce pressure, turn knob counter-clockwise. Always
release air in cup by momentarily opening air release valve on
cover when attempting to reduce pressure.)
7. Open air adjusting valve.
8. With trigger fully pulled back, make several fast spray strokes
against a flat surface. After adjustment of pressure, proper
atomization will be indicated by an even distribution of finely
divided paint particles.
77-2823-R13 (2/2022)

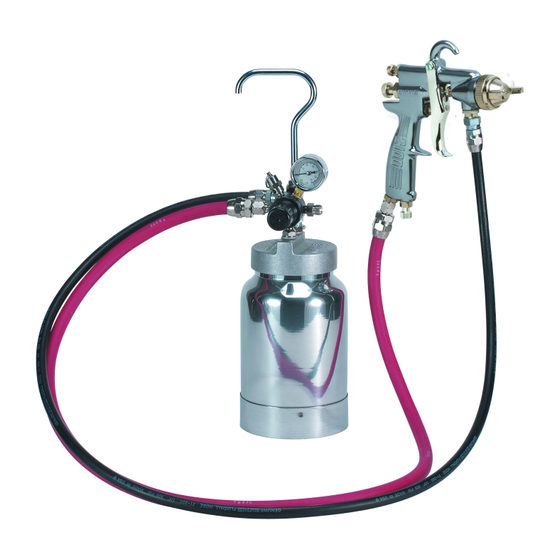

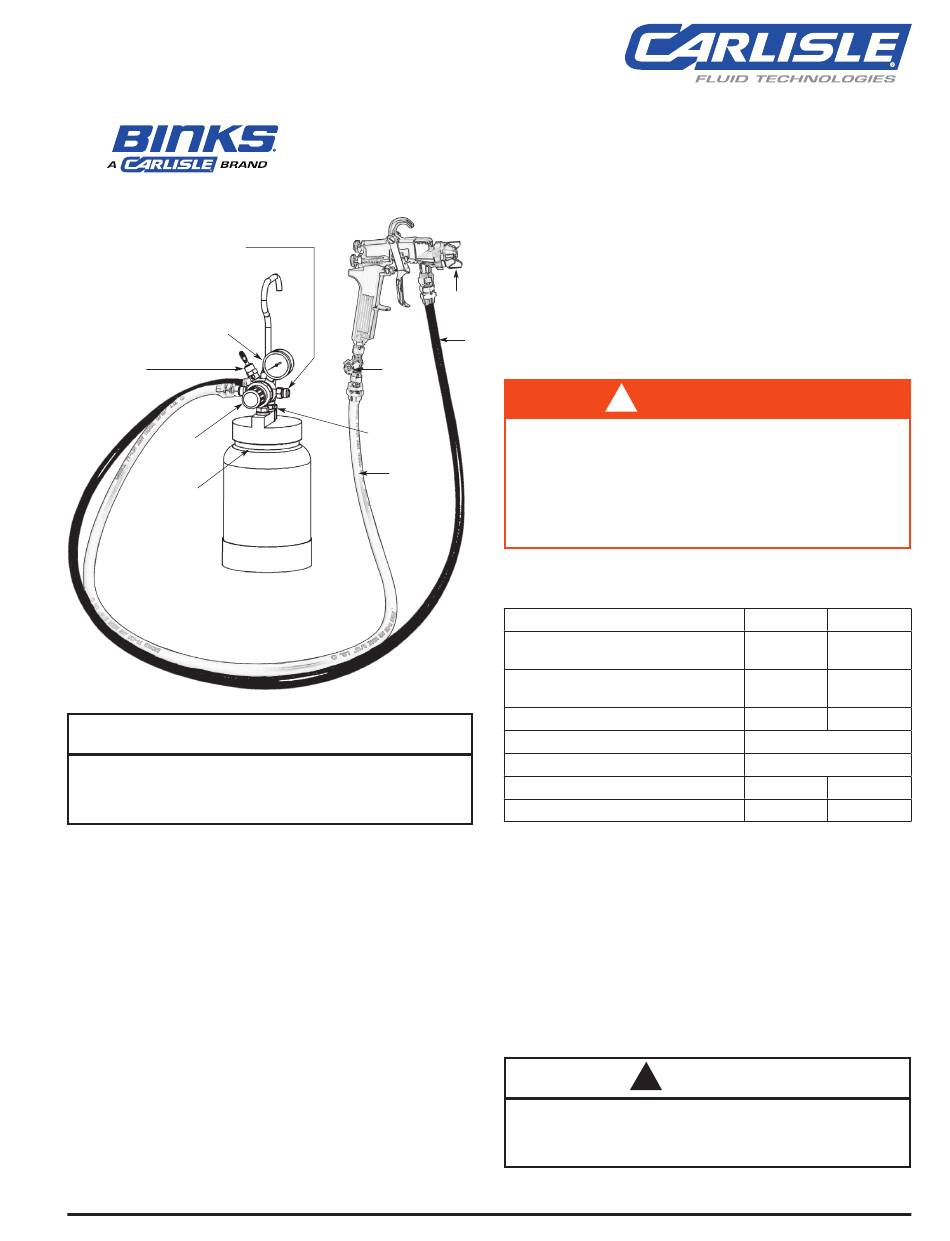

MODEL 80-295 (2 QT.) "STEADI-GRIP"
PRESSURE CONTAINER
Air Nozzle
(not included)
Fluid Hose
(not included)
Ai r
Adjusting
Va lve
(not included)
Air Release
Va lve
Air Hose
(not included)
1 / 4
WARNING
!
Halogenated hydrocarbon solvents – for example: 1,1,1, -
trichloroethane and methylene chloride – can chemically
react with aluminum parts and components and cause an
explosion hazard. These solvents will also corrode the
galvanized tank coating. Read the label or data sheet for the
material. Do not use materials containing these solvents with
these pressure containers.

SPECIFICATIONS

MAX. CUP PRESSURE
OVERALL HEIGHT
WITH AUXILIARY HANDLE
OVERALL HEIGHT
W/O AUXILIARY HANDLE
BASE DIAMETER
AIR INLET & OUTLET CONNECTION
FLUID INLET & OUTLET CONNECTION
FLUID CAPACITY
WEIGHT
IMPORTANT
The most efficient atomization air pressure is the lowest air pressure
that will properly atomize the paint. This will minimize the overspray,
deposit more paint on the surface and eliminate paint waste.
If a faster coverage is necessary, first increase fluid pressure and then
adjust atomization air pressure. If a slower coverage is more
desirable, first reduce the fluid pressure and then adjust atomization
air pressure. Always attempt to maintain the lowest pressures for
maximum efficiency.
For ease of removing cup cover and to prevent leakage, always
thoroughly grease the threads on the cup.
!
CAUTION
If the cup is accidentally tipped over or held at too great an
angle, fluid will load up the underside of cup cover, and leak
into regulator. In the event this happens, clean immediately!
50 psig 3.5 bar
16-15/16 in. 430 mm
13 in. 330 mm
5-1/4 in. 133 mm
1/4 NPS (m)
3/8 NPS (m)
2 qts. (US) 1.9 ltr
3 lb. 3 oz. 1.46 kg
(continued on page 3)
