Carlisle Binks 102-2400 FRP Service Manual

SERVICE MANUAL
EN
AIR ASSIST
AIR CAP
CATALYST
INJECTOR
CENTURY TIP

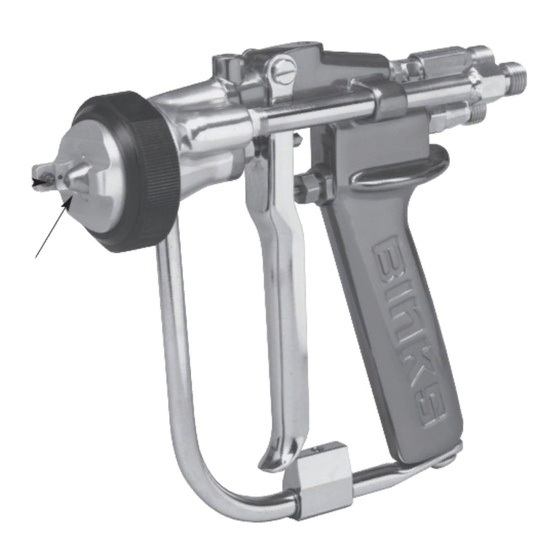

102-2400 Century Wet-Out Gun
111-4052 Wrench
102-2521 Catalyst Injector
102-2526 Catalyst Injector
102-2531 Catalyst Injector
106-1170 Start Up Kit
102-2494 Night Cap
WARNING — HIGH PRESSURE — WARNING
• FLUID UNDER HIGH PRESSURE CAN PENETRATE THE SKIN AND CAUSE SEVERE INTERNAL INJURY
• BE SURE TO REPORT NATURE OF INJURY AND TYPE OF FLUID OR SOLVENT TO THE DOCTOR
Be sure you understand ALL of the following instructions
thoroughly BEFORE operating any part of the airless equip-
ment system. CONSULT YOUR BINKS REPRESENTA-
TIVE TO CLEAR UP ANY ITEMS OF INSTRUCTION
YOU DO NOT UNDERSTAND.
1. Under no circumstances should the spray gun be carelessly
handled nor its spray (even when the nozzle is removed)
directed at close proximity at any part of the human body.
2. NEVER clean, change, or remove nozzle from the spray
gun without doing the following:
a. Lock trigger (62) by pushing forward. Rotate locking
block in upward position.
b. Shut off pump and turn off air supply.
c. Release fluid pressure in the entire system, from pump
to spray gun. Stop pump in down position.
3. NEVER attempt to force the flow of liquid backward
through the gun.
77-2520-R15 (5/2019)
Binks MODELS 102-2400 FRP,
AIR-ASSISTED AIRLESS
102-2500 GEL-COAT, AND
CENTURY SPRAY GUNS
102-2545 VINYL ESTER
MODELS 102-2400 FRP, 102-2500 GEL-COAT,
AIR-ASSISTED AIRLESS
AND 102-2545 VINYL ESTER
CENTURY SPRAY GUNS
CATALYST FILTER
UP TO 3500 POUNDS PER SQUARE INCH
• DO NOT POINT SPRAY GUN AT ANY PART OF THE HUMAN BODY
• IN CASE OF INJURY OBTAIN MEDICAL ATTENTION IMMEDIATELY
CHOPPER INLET
(not shown—see page 4)
AIR ASSIST INLET
1/4 NPS(m) / 1/4 NPT(m)
102-2500 Century Gel-Coat Gun
111-4052
102-2515
102-2518
102-2521
106-1170
102-2494
102-2545 Century Vinyl Ester Gun
111-4052
102-2521
102-2526
106-1170
102-2494
TRIGGER LOCK
4. NEVER plug a hose leak with your finger, with adhesive
tape, or other "stop-gap" device.
5. NEVER operate the airless system with a defective hose.
ALWAYS replace the defective hose immediately. For
continuing safety, users are urged to:
a. ALWAYS handle carefully all hose connections, joints,
and seating surfaces on the spray gun to prevent dam-
age.
b. NEVER kink or bend the fluid hose into less than a
four inch radius.
c. FREQUENTLY check the hose for kinks or abrasions.
These may develop into a rupture.
d. NEVER use standard hardware to modify the airless
system. ALWAYS use Binks high pressure fittings
only.
6. The airless pump must be grounded before operating the
airless system.
1 / 20
CATALYST INLET
1/4 NPS(m)
RESIN INLET
1/4 NPS(m) (102-2400 & 102-2500)
3/8 NPS(M) (102-2545)
Wrench
Catalyst Injector
Catalyst Injector
Catalyst Injector
Start Up Kit
Night Cap
Wrench
Catalyst Injector
Catalyst Injector
Start Up Kit
Night Cap
