StarTech.com RK4OD Quick Start Manual

19in Open Frame 2-Post Desktop Rack (4U, 8U and 12U Models)

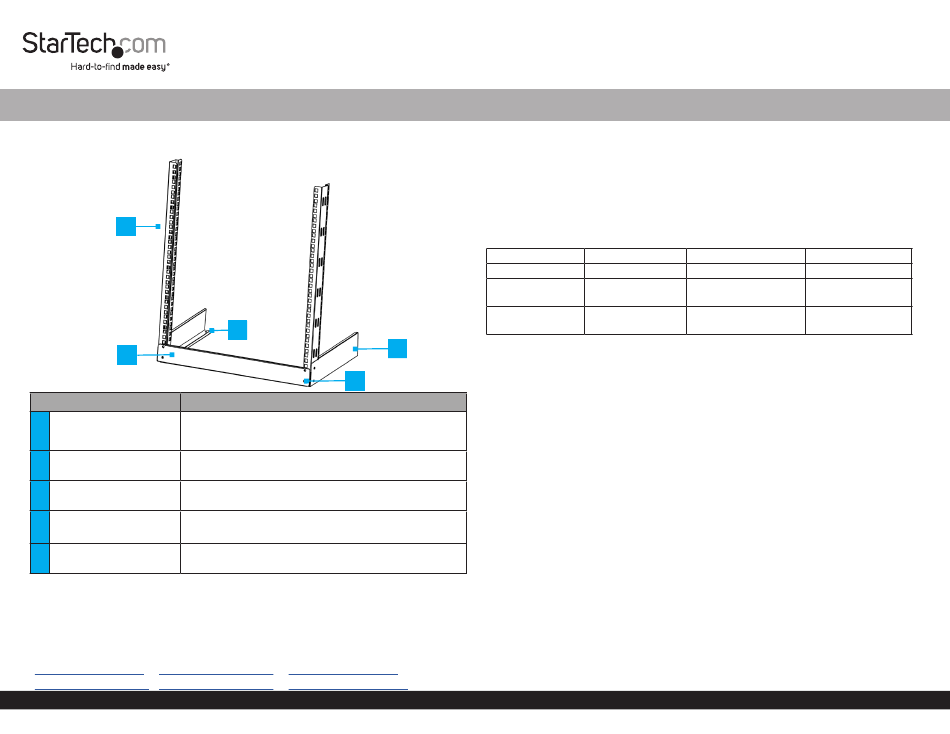

Product Diagram
(RK4OD, RK4OD2, RK8OD, RK8OD2, RK12OD, RK12OD2)
1
2
Component
• Feature Square Cage Nut Holes to mount your
1
Vertical Rails
equipment
2
Front Base Bracket • Stabilizes the frame and adds rigidity
3 • Insert the Rubber Feet to protect the surface
Rubber Feet Holes
• Used to connect the Vertical Rails, Front Base
4
Assembly Holes
Bracket, and Base Brackets together
5 Base Brackets • Stabilizes the frame and adds rigidity
Requirements
• Phillips head screwdriver
• Cage nut tool (Optional)
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/RK4OD www.StarTech.com/RK4OD2
www.StarTech.com/RK8OD2 www.StarTech.com/RK12OD
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
*Product may vary from image
3
5
4
Function
www.StarTech.com/RK8OD
www.StarTech.com/RK12OD2
Package Contents
• Left Base Bracket x 1 • M5x12mm Assembly Screws x 8
• Right Base Bracket x 1 • Quick-Start Guide x 1
• Front Base Bracket x 1 • M5/M6 Cage Nuts (QTY outlined in table below)
• Left Vertical Rail x 1 • Rackmount Screws (QTY outlined in table below)
• Right Vertical Rail x 1 • Plastic Washers (QTY outlined in table below)
• Rubber Feet x 4
Product ID M5/M6 Cage Nuts QTY
RK4OD / RK4OD2 16x
RK8OD / RK8OD2 Rev 01: 20x
Rev 02 or above: 32x
RK12OD / RK12OD2 Rev 01: 20x
Rev 02 or above: 48x
Warning Statements
Make sure to assemble this product according to the instructions.
Failure to do so might result in personal injury or property damage.
Make sure that the weight of the equipment doesn't exceed the
weight capacity of this product. If you exceed the weight capacity,
you might experience personal injury or damage to the equipment.
This product can support the following weight:
RK4OD: Rev 01 up to 66lb (30kg); Rev 02 or above up to 88lb (40kg).
RK4OD2: up to 88lb (40kg).
RK8OD/RK8OD2/RK12OD/RK12OD2: up to 110lb (50kg).
This product poses a tipping risk. Make sure to follow the installation
instructions. Failure to do so might result in personal injury or
property damage.
Never operate this product if parts are missing or damaged.
Avertissements
Assemblez ce produit conformément aux instructions. Si vous ne
respectez pas ces instructions, vous risquez de vous blesser ou
d'endommager l'équipement.
Vérifiez que le poids de l'equipement ne dépasse pas la capacité
pondérale du produit. Si vous dépassez la capacité pondérale, vous
risquez des blessures corporelles ou des dommages matériels. Ce
produit peut supporter de:
RK4OD: Rev 01 jusqu'à 30kg; Rev 02 ou supérieur jusqu'à 40kg
RK4OD2: jusqu'à 40kg.
RK8OD/RK8OD/RK12OD/RK12OD2: jusqu'à 50kg.
Ce produit présente un risque de basculement. Veillez à bien
suivre les instructions d'installation. Si vous ne respectez pas ces
instructions, vous risquez de vous blesser ou d'endommager
l'équipement.
N'utilisez pas ce produit si des pièces sont endommagées ou
manquantes.
Quick-Start Guide
Rackmount Screws QTY Plastic Washers QTY
16x 16x
Rev 01: 20x Rev 01: 20x
Rev 02 or above: 32x Rev 02 or above: 32x
Rev 01: 20x Rev 01: 20x
Rev 02 or above: 48x Rev 02 or above: 48x
Dichiarazioni di avvertenza
Assemblare il prodotto rispettando le istruzioni. Il mancato
rispetto delle istruzioni potrebbe causare danni a persone o
proprietà.
Verificare che il peso dell'attrezzatura non superi la capacità
di supporto del prodotto. In caso di superamento della
capacità di supporto potrebbero verificarsi danni a persone o
apparecchiature. Il prodotto è in grado di supportare i seguenti
pesi:
RK4OD: Rev 01 fino a 30kg; Rev 02 o superiore fino a 30kg;
RK4OD2: fino a 40kg.
RK8OD/RK8OD2/RK12OD/RK12OD2: fino a 50kg.
Questo prodotto rappresenta un rischio di ribaltamento.
Assicurarsi di seguire le istruzioni di installazione. Il mancato
rispetto delle istruzioni potrebbe causare danni a persone o
proprietà.
Non utilizzare il prodotto in presenza di parti mancanti o
danneggiate.
Warnhinweise
Montieren Sie dieses Produkt gemäß den Anweisungen.
Anderenfalls kann dies zu Verletzungen von Personen oder
Schäden an Eigentum führen.
Das Gewicht des Ausrüstung darf die zulässige Traglast des
Produkts nicht übersteigen. Wenn die Traglast überschritten wird,
kann dies zu Verletzungen von Personen oder Schäden an Geräten
führen. Dieses Produkt ist für folgendes Gewicht geeignet: 45.3 kg.
RK4OD: Rev 01bis 30kg; Rev 02 oder darüber bis zu 40kg
RK4OD2: bis 40kg.
RK8OD/RK8OD2/RK12OD/RK12OD2: bis 50kg.
Dieses Produkt kann umkippen. Befolgen Sie daher die
Installationsanweisungen genau. Andernfalls kann es zu
Verletzungen oder zur Beschädigung des Produkts kommen.
Das Produkt darf nicht bedient werden, wenn Teile fehlen oder
beschädigt sind.
Manual Revision: March 6, 2023 2:06 PM
