AUTO CHAIN LUBE TANK/PUMP ASSY

Operation:
The lubrication pump motor speed is 1 rpm with a displacement of .06cc per stroke (rev). The pump will output 1
drop of oil for each minute of conveyor chain travel. The oil is sent through the oil distribution hoses up to the
stainless steel brushes.
Priming:
Priming the system through the software can be very time consuming because of the low displacement of the
pump...
Priming should only be necessary after:
1. Servicing the auto lube system
2. The reservoir has been allowed to run dry and air has been pumped into the lube lines

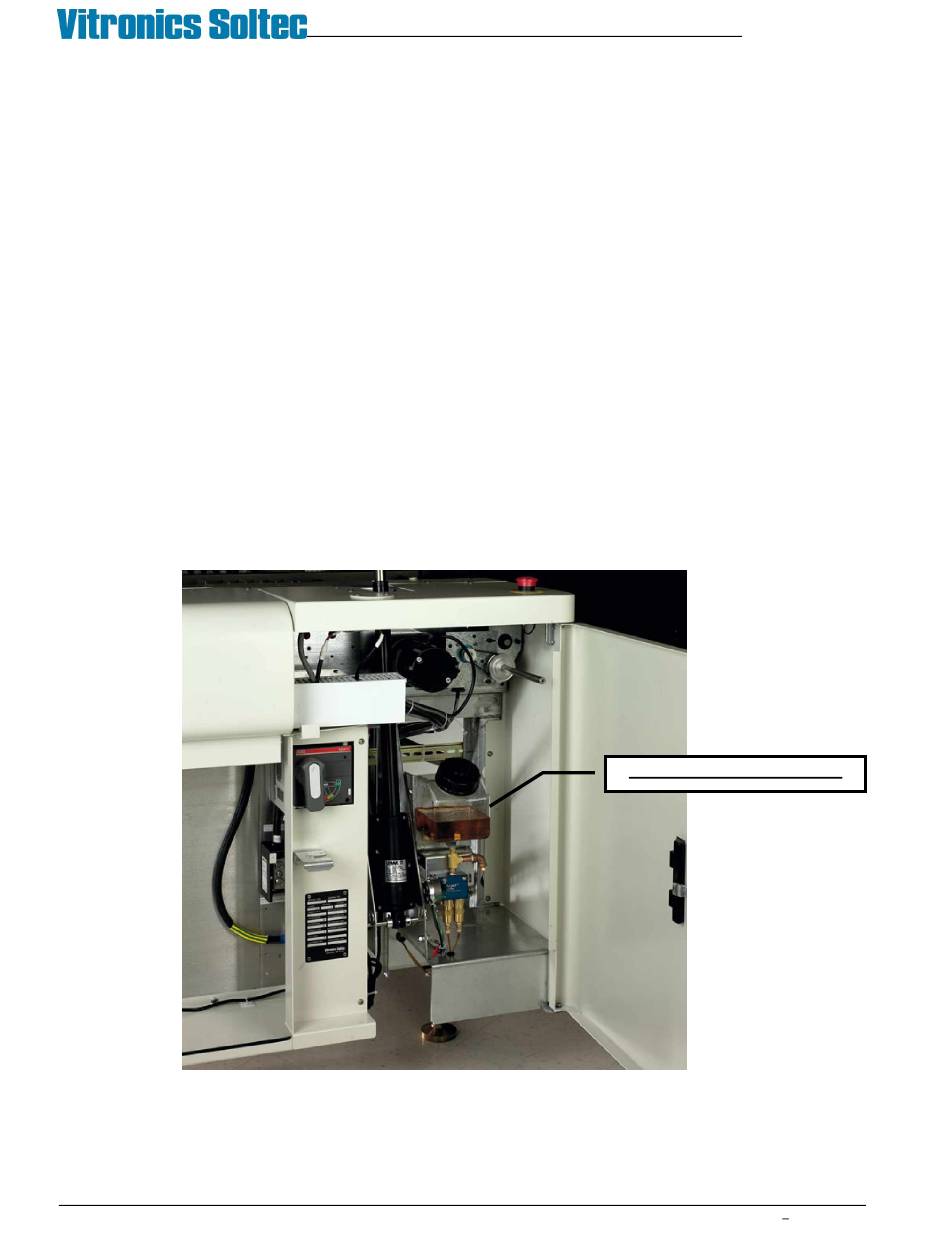

Location:
The Lubrication Tank-Pump Assembly is mounted to the frame at the front of the oven, inside the utility cabinet, at
the exit end of the oven.
October 10, 2008
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
41
XPM2 / XPM3 Technical Reference Manual
CHAIN LUBE RESERVOIR
Conveyor Systems
