3. Measure lane width midway between the feedscrew locations. Compare measurements to width at the
feedscrews. Allowable variation is .052 (1.32mm).

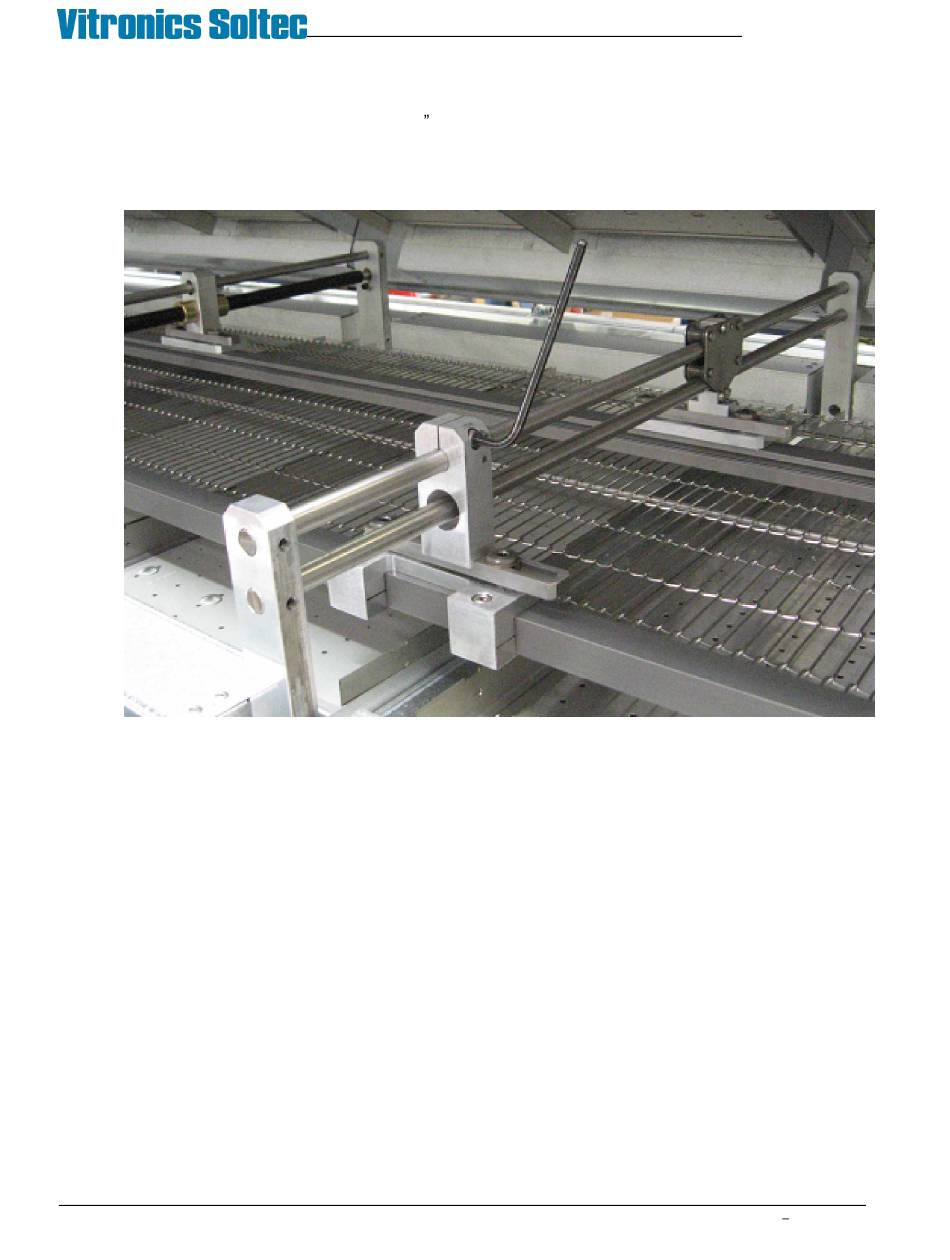

4. If adjustment is required in the span between the feedscrews move the fixed rail hanger on the gantry to
bring the measurements into specification.
October 10, 2008
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
22
XPM2 / XPM3 Technical Reference Manual
Conveyor Systems
