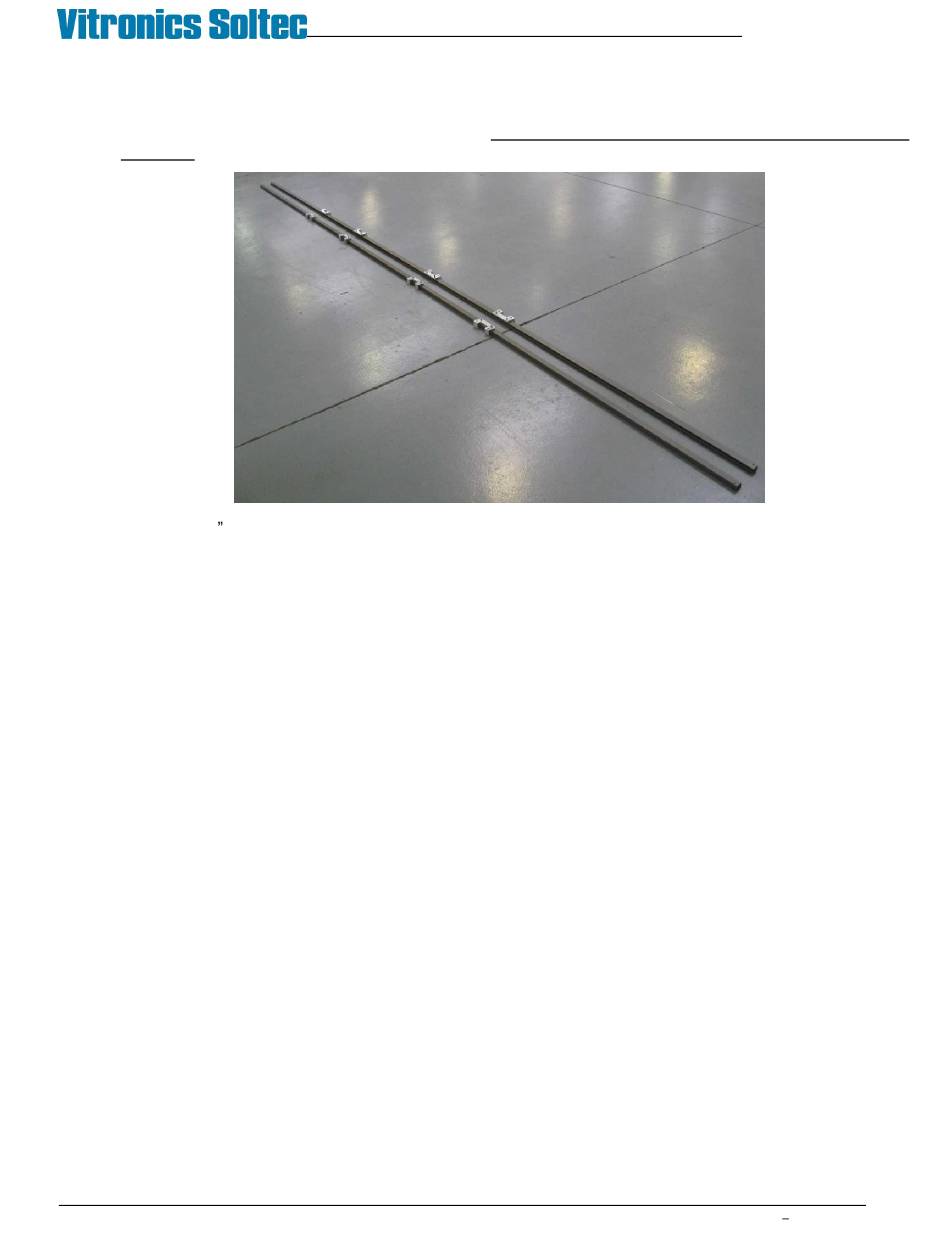

5. Slide the rail assemblies out from under the hanger bars and withdraw the rail from the oven tunnel.
Exercise extreme care when handling the rails. DO NOT to let them bend or they may be permanently
deformed.
6. Using a 3/16 hex key loosen but DO NOT REMOVE the two ¼-20 socket head cap screws in each rail
clamp and slide the clamps off the rail extrusions.
