REMOVE RAILS

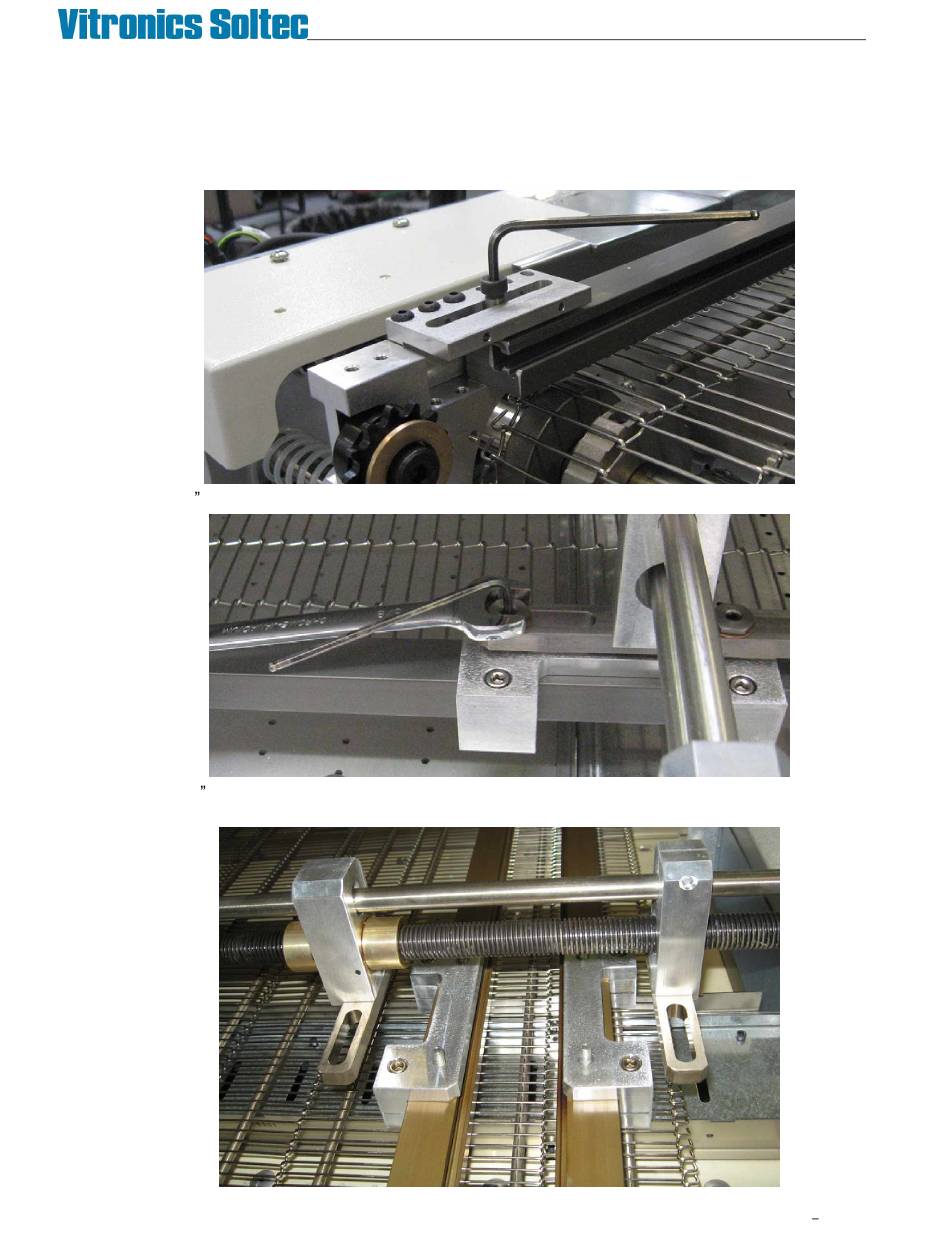

1. Remove both edge rail chains (see above).
2. Use a 5/32" hex key to remove the shoulder bolts that retain both ends of each rail in the rail capture
brackets.
3. Use a 1/8 hex key to loosen the set screw in the top of the barrel nuts on all rail of the hangers.
4. With a 5/8 hex wrench remove all of the barrel nuts and thrust washers. The rail (with rail clamps still
attached) will drop down to rest on the mesh belt.
