INSTALL XCS CHAIN

Note: The XCS chain is custom manufactured as a pitch matched set with the fixed edge rail chain. Do not mix or
splice these chains. Always replace both chains as a set.
1. Feed the XCS chain into the offload end of the XCS rail until it reaches the opposite end of the machine.
2. Continue to thread the XCS chain over the sprockets at the on-load end then feed it back under the oven.
3. Thread the XCS chain through the tensioner trolley at the center of the return loop. The XCS tensioner
trolley is properly oriented when its extension spring is beneath the large sprocket.
October 10, 2008
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS

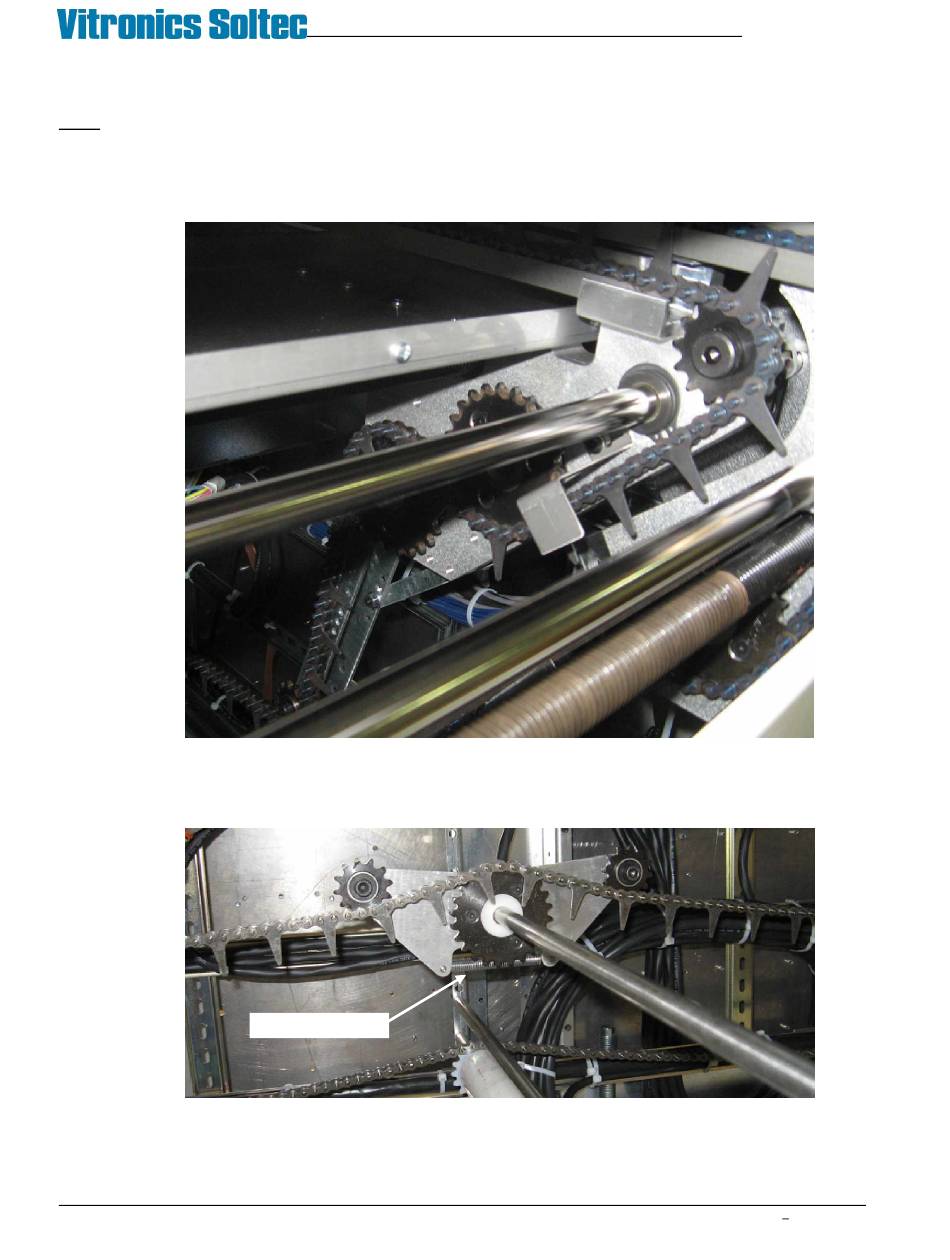

XCS chain routing typical, both ends
Spring side down
