DAQ system PCIe-FRM14 User Manual

Hide thumbs Also See for PCIe-FRM14:
Table of Contents

Advertisement

Quick Links

Download this manual

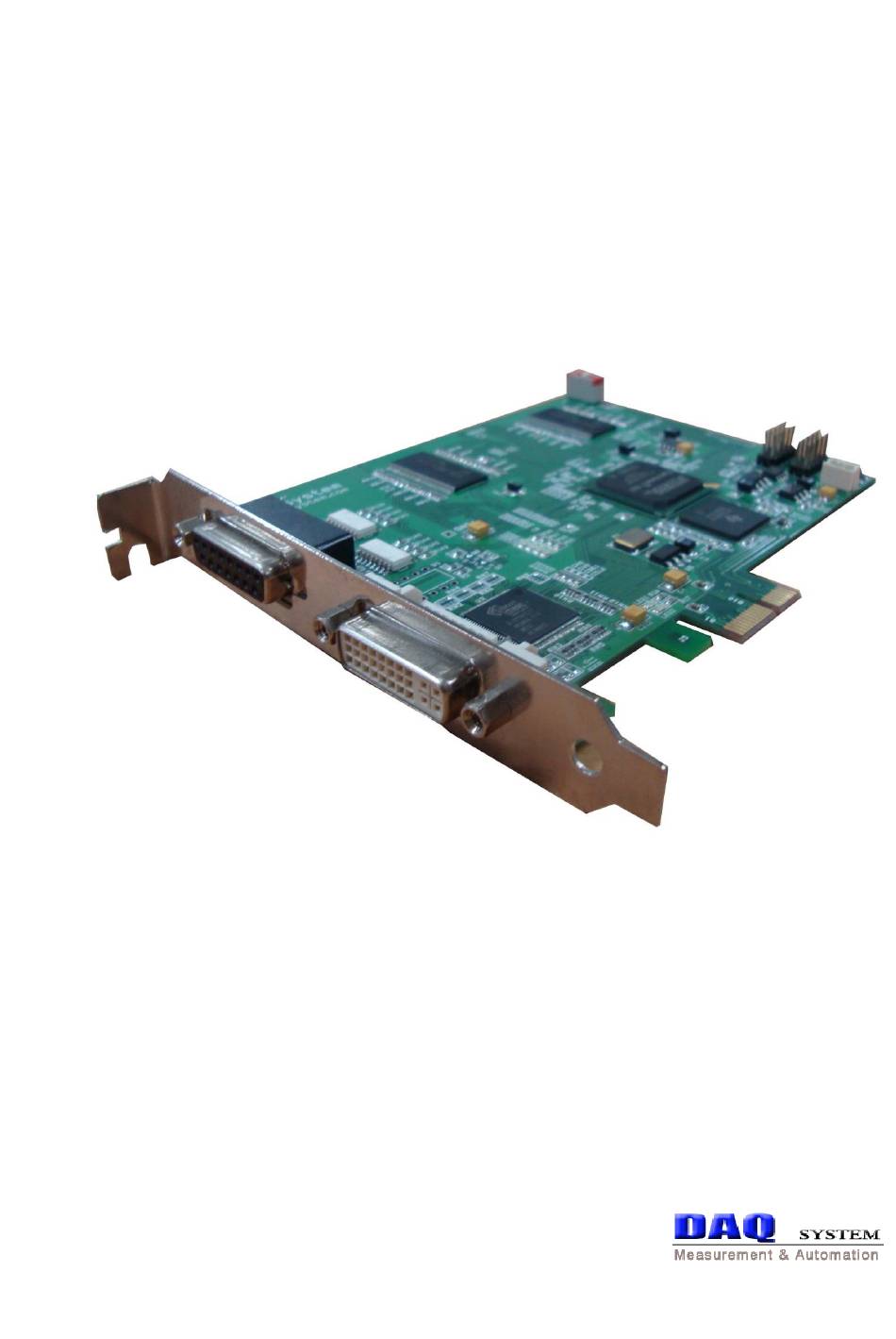

PCIe-FRM14
User Manual
Version 1.2
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe-FRM14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAQ system PCIe-FRM14

Summary of Contents for DAQ system PCIe-FRM14

  • Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.

  • Page 2: Table Of Contents

    PCIe-FRM14 User‟s Manual Contents 1. Introduction -------------------------------------------------------------------------- 1-1 Product Features ------------------------------------------------------------------------- 1-2 Product Application ------------------------------------------------------------------------- 2. PCIe-FRM14 Board Function 2-1 FPGA Block Diagram ---------------------------------------------------------------------- 2-2 DVI(Digital Video Interface) -------------------------------------------------------------- 3. PCIe-FRM14 Board Description 3-1 Board Layout ------------------------------------------------------------------------ 3-2 Device Features...
  • Page 3 PCIe-FRM14 User‟s Manual 5. Sample Program 5-1 Frm14Test Program ---------------------------------------------------------------------- 5-1-1 Image Frame Function -------------------------------------------------------------- 5-1-2 DIO Function -------------------------------------------------------------- 5-2 Frm14View 프로그램 ---------------------------------------------------------------------- Appendix A-1 Board Size --------------------------------------------------------------------- A-2 Repair Regulations --------------------------------------------------------------------- References ------------------------------------------------------------------------...

  • Page 4: Introduction

    LCD monitor inputs (using a splitter), game consoles, etc. - to the PC via the PCIe bus. [Figure 1-1. PCIe-FRM14 Board Usage 1] As shown in Figure [1-2], the PCIe-FRM14 is inserted into any available PCI Express slot in the PC2. The PCIe-FRM14 receives and outputs the data of the display of PC1 through PC2 application‟s program.
  • Page 5 It receives DVI input from other devices and can check it on the PC. The operation of the board is controlled by the program API, and [Figure 1-3] shows the state when PCIe-FRM14 is interlocked with the actual device. It is interfaced with external I/O through the 15Pin D-SUB connector on the left, and is connected to the DVI connector at the bottom to send and receive frame data with the DVI transmitter.

  • Page 6: Product Features

    PCIe-FRM14 User‟s Manual 1-1 Product Features Items Description Remark Hardware PC Interface PCI Express 4x Operation Power PC Power +3.3V (Max 1.1A) +12V (Max 1A). Video Interface 1 Port Single DVI Feature Full HD 1080P at 12fps MAX 1920x1200 resolution...

  • Page 7: Pcie-Frm14 Board Function

    2. PCIe-FRM14 Board Function 2-1 FPGA Block Diagram In the case of PCIe-FRM14, FPGA Core Logic is in charge of overall control. It receives RGB, HDMI (High-Definition Multimedia Interface), and DVI (Digital Visual Interface) signals as its main function and delivers it to the PC.
  • Page 8 DVI (Digital Visual Interface) is divided into DVI-D (Digital Only), DVI-A (Analog Only), and DVI-I (Integrated Digital & Analog) methods. The PCIe-FRM14 board supports DVI-I type DVI, so it is compatible with the existing analog type methods. Also, HDMI (High Definition Multimedia Interface) that uses the same format of digital image data can be used together by using the DVI to HDMI gender.
  • Page 9 PCIe-FRM14 User‟s Manual The data format of DVI is based on the Panel Link serial signal line. DVI uses a digital transmission protocol that is Transition Minimized Differential Signaling (TMDS) as shown in [Figure 2-2]. TMDS is composed of TMDS Transmitter and TMDS Receiver, and a Transmitter is mounted on the graphic card side and a Receiver is mounted on the monitor side to transmit digital data from the graphic card to the monitor.
  • Page 10 PCIe-FRM14 User‟s Manual PCIe-FRM14 supports single DVI. PCIe-FRM14 board supports DVI-I type DVI, so it is compatible with existing analog type methods. can [Refer to Section 3.3 Connector Pin out for DVI connector and signal line] Control signal line consists of LVAL (Line Valid), FVAL (Frame Valid), DVAL (Data Valid) and clock, and transmits the valid horizontal and vertical resolution and data of the image to be transmitted according to the clock.

  • Page 11: Pcie-Frm14 Board Description

    PCIe-FRM14 User‟s Manual 3. PCIe-FRM14 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 PCIe-FRM14 Board Layout [Figure 3-1. PCIe-FRM14 Layout] There are a total of six LEDs on the board, the most important of which is LED5, and the description of each is as follows.

  • Page 12: Device Features

    PCIe-FRM14 User‟s Manual 3-2 Device Features (1) FPGA : U6 All of the board functions are controlled by the Logic program of the FPGA. (2) DVI Receiver : U2 Receives DVI Data and transmits it to FPGA. (3) Regulator : U5, U9, U10 It supplies the power used by the board.

  • Page 13: Connector Pin Out

    PCIe-FRM14 User‟s Manual 3-3 Connector Pin-out The connectors and jumpers used in PCIe-FRM14 will be described. Main connectors include DVI connector CON1 for DVI connection and D-SUB 15pin connector for external I/O connection. [Figure 3-2] shows the bracket that interfaces with the board and the connection connector.

  • Page 14: Con1(Dvi) Connector

    [Figure 3-3] below shows the pin map of the DVI connector on the board. All pin specifications are input/output based on the DVI standard, so please refer to the DVI standard document for details. [Figure 3-3. PCIe-FRM14 CON1 Connector Pin-out] [Table 1. CON1 DVI Connector] Pin #...
  • Page 15 PCIe-FRM14 User‟s Manual TMDS Data3- Digital Blue- (Link 2) TMDS Data3+ Digital Blue+ (Link 2) +5V Power Power for monitor standby Pin 14 and regression for synchronization Hot Plug Detect TMDS Data0- Digital Blue- (Link 1) TMDS Data0+ Digital Blue+ (Link 1)

  • Page 16: P1(D-Sub15) Connector

    PCIe-FRM14 User‟s Manual 3-3-2 P1(D-Sub 15) Connector On the PCIe-FRM14 board, 4 digital inputs and 4 digital outputs isolated by photo- couplers are available through the P1 connector. The circuit is as follows. 2.4K DINx IN_COM < Photo coupler input>...
  • Page 17 PCIe-FRM14 User‟s Manual The pin map of the connector is shown in the figure below. IN_COM OUT_COM OUT3 OUT2 OUT1 OUT0 [Figure 3-5. D-SUB 15PIN pin-out] [Table 2. D-Sub 15 Connector] Pin No Signal Name Description Remark OUT0 Output 0...

  • Page 18: Sw1 Switch

    [Figure 3-6. SW1 Switch] 3-3-4 SW2 Switch The PCIe-FRM14 board is designed so that up to four PCIe-FRM14 boards can be used simultaneously in one system (PC). Each board classification can be set through the 4-pin DIP switch (SW1) in the board.

  • Page 19: Digital In/Out

    PCIe-FRM14 User‟s Manual 3.4 Digital In/Out 3-4-1 Photo-coupler Input 2.4K DIN0 DIN1 DIN2 DIN3 IN_COM [Figure 3-8. Photo-coupler Digital Input circuit] The photo-coupler input is input to the D-SUB 15-pin connector of the board, and in the program, DIO input bits 3 to 0 are connected as shown in the figure above.

  • Page 20: Photo-Coupler Output

    PCIe-FRM14 User‟s Manual 3.4.2 Photo-coupler Output OUT0 DOUT0 OUT1 DOUT1 OUT2 DOUT2 OUT3 DOUT3 OUT_COM [Figure 3-9. Photo-coupler Digital Output Circuit] The photo-coupler output is output to the DSUB 15-pin connector of the board, and in the program, bits 3 to 0 of the DIO output are connected as shown in the figure above.

  • Page 21: Installation

    PCIe-FRM14 User‟s Manual 4. Installation 4-1 Product Contents Before installing the board, check that the contents of the package are intact. 1. PCIe-FRM14 Board Drivers/Manual/API/Sample source etc. 2. CD ( Document Folder : Manual and Catalog Driver Folder : pcie_frm14.sys pcie-frm14.inf...

  • Page 22: Installation Process

    The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCIe-FRM14 board into the PCI Express Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, select as shown below and click the Next button.
  • Page 23 PCIe-FRM14 User‟s Manual 2. Select Driver from the enclosed CD and click the Next button. 3. Click the Next button. It indicates that the installation process is proceeding as shown below. The driver folder contains “pcie_frm14.inf” and “pcie_frm14.sys” files required for driver...
  • Page 24 4. When the installation is completed normally, it is shown in the figure below. 5. When the installation is complete, check whether the driver is installed normally in the following way. 6. In My Computer -> Properties -> Hardware -> Device Manager, check if the Multifunction Adapter -> “PCIe-FRM14” is installed.
  • Page 25 PCIe-FRM14 User‟s Manual 7. If it appears as shown in the figure below, the installation has been completed normally. If you can see the “PCIe-FRM14” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle)

  • Page 26: Sample Program

    PCIe-FRM14 User‟s Manual 5. Sample Program Sample programs “Frm14Test.exe” and “Frm14View” are provided in the TestApp folder of the CDROM provided with the board for easy use of the board. First, “Frm14Test.exe”, one of the executable files, displays Frame Data as a hexadecimal value and stores it in memory or hard disk so that developers can utilize the frame data needed, and “Frm14View.exe”...

  • Page 27: Image Frame Function

    All files specified above are included on the supplied CDROM. In order to run the sample program normally, the API DLL (PCIe-FRM14.DLL) must be in the folder of the executable file or in the Windows system folder or the folder specified by the Path environment variable.

  • Page 28: Frm14View 프로그램

    Windows system folder or the folder specified by the Path environment variable. [Figure 5-2] is a screen captured by connecting PCIe-FRM14 to the DVI connector of the graphic card of another system and executing “FrameView.exe” to capture the image displayed on the monitor.
  • Page 29 PCIe-FRM14 User‟s Manual (3) Stop --- Stop the saving. (4) Change Device --- Select a device which you wanted, if several devices are stick. (5) View Fullscreen --- A screen shows all over an image. (6) Board # selection --- Select a DVI Input number (0 : Bottom DVI, 1 : Upper DVI) (7) Device Start --- Start device which you selected.

  • Page 30: Appendix

    PCIe-FRM14 User‟s Manual Appendix Board Size The external sizes of the board are as follows. For detailed dimensions, please contact the person in charge.

  • Page 31: Repair Regulations

    ⑥ Products whose serial number has been changed or removed intentionally ⑦ If DAQ SYSTEM determines that it is the customer's fault for other reasons (5) Shipping costs for returning the repaired product to DAQ SYSTEM are the responsibility of the customer.

  • Page 32: References

    1. PCI Local Bus Specification Revision2.1 -- PCI Special Interest Group 2. How to install PCI DAQ Board -- DAQ system 3. AN201 How to build application using API -- DAQ system 4. AN312 PCIe-FRM14 API Programming -- DAQ system...
  • Page 33 PCIe-FRM14 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
