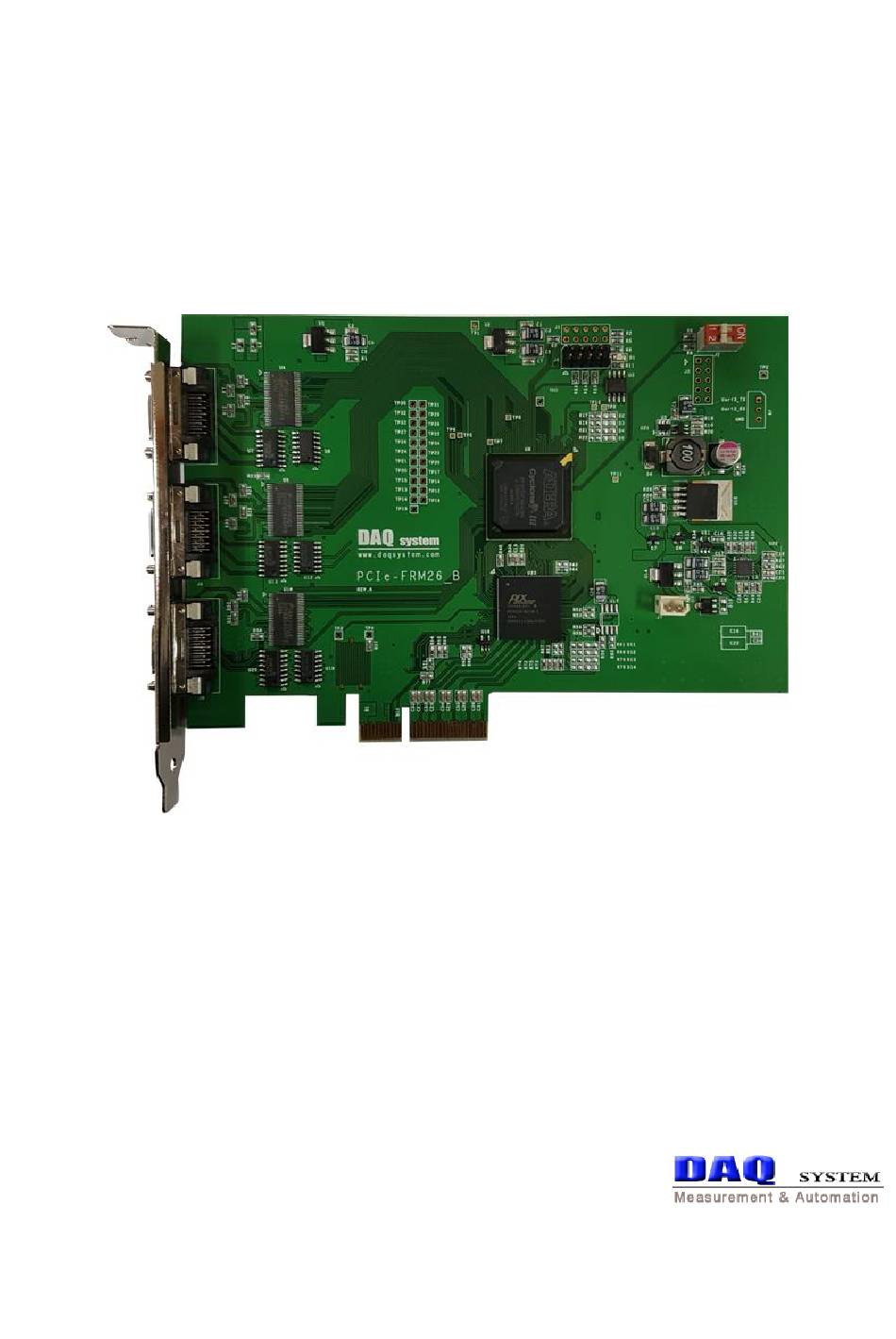

PCIe-FRM26_B
User Manual
Version 1.3
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system PCIe-FRM26-B
Summary of Contents for DAQ system PCIe-FRM26-B
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
PCIe-FRM26_B User’s Manual Contents 1. Introduction -------------------------------------------------------------------------- 1-1 Product Features ------------------------------------------------------------------------- 1-2 Product Application ------------------------------------------------------------------------- 2. PCIe-FRM26_B Board Function 2-1 Block Diagram ------------------------------------------------------------------------ 2-2 Camera Link ------------------------------------------------------------------------ 2-3 Camera Link & PCIE-FRM26_B --------------------------------------------------------- 3. PCIe-FRM26_B Board Description 3-1 PCIe-FRM26_B Board Layout --------------------------------------------------------------- 3-2 Device Features -------------------------------------------------------------... - Page 3 PCIe-FRM26_B User’s Manual 5. Sample Program ---------------------------------------------------------------------- 5-1 Image Display Function ---------------------------------------------------------------------- 5-2 UART Function --------------------------------------------------------------------- Appendix A-1 Board Size --------------------------------------------------------------------- A-2 Repair Regulations --------------------------------------------------------------------- References ------------------------------------------------------------------------- 30...
-
Page 4: Introduction
PCIe-FRM26_B User’s Manual 1. Introduction PCIe-FRM26_B is an image acquisition device that supports cameras compatible with 3 Base configuration camera Links. PCIe-FRM26_B acquires images in real time and sends them to the host PC. The easy installation method and fast image transfer make it a suitable device to meet the needs of the industry with low cost and high efficiency. -
Page 5: Product Features
PCIe-FRM26_B User’s Manual 1-1 Product Features Items Description Remark Hardware PC Interface PCI Express 4x Operation Power PC Power +3.3V (Max 1.1A) +12V (Max 1A). Video Interface 3 Basel Camera Link Feature Area Scan Camera Pixel Clock : 20 ~ 85MHz On-board Memory Communication UART(Data bit 8, 1 start, 1 stop, No... -
Page 6: Pcie-Frm26_B Board Function
PCIe-FRM26_B User’s Manual 2. PCIe-FRM26_B Board Function 2-1 Block Diagram As shown in the figure below, in the case of PCIe-FRM26_B, FPGA Core Logic is in charge of overall control. Main functions include Frame Data reception, Camera Control signal, and UART function. -
Page 7: Camera Link
PCIe-FRM26_B User’s Manual 2-2 Camera Link Camera Link is a communication interface developed for use in vision applications. In the past, camera manufacturers and frame grabber manufacturers used their own standard connectors and cables. This caused a lot of confusion and cost increase for users. In order to resolve this confusion, increasing data rate, and confusion in data transmission, the specifications of the Camera Link interface are the specifications of cable or connector assembly, transmission speed and It was made with regulations such as transmission method. - Page 8 PCIe-FRM26_B User’s Manual [Figure 2-2. Base Camera Link Block Diagram]...
-
Page 9: Camera Link & Pcie-Frm26_B
PCIe-FRM26_B User’s Manual 2-3 Camera Link & PCIe-FRM26_B PCIe-FRM26_B supports Camera Link Base Configuration. Base Configuration consists of 4 LVDS signal lines serializing 28-bit parallel signals including 24 data bits and 4 enable signals Frame Valid, Line Valid, Data Valid, and a spare, and 1 LVDS signal line for synchronizing with the camera. - Page 10 PCIe-FRM26_B User’s Manual The figure below shows the circuit that uses the serial input signal input through the Camera- link cable as a general input on the PCIe-FRM24_B board. [Figure 2-4. Serial Communication LVDS Digital Output Circuit]...
-
Page 11: Pcie-Frm26_B Board Description
PCIe-FRM26_B User’s Manual 3. PCIe-FRM26_B Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 PCIe-FRM26_B Board Layout FPGA system www.daqsystem.com PCIe-FRM26_B Rev. A PCI Express 4x Interface [Figure 3-1. PCIe-FRM26_B Layout] There are eight LEDs on the board, and the description of each is as follows. -
Page 12: Device Features
PCIe-FRM26_B User’s Manual 3-2 Device Features (1) SDR-26 Connecter : J5, J6, J8 Camera Link Base Connector (2) LVDS Link : U4, U6, U7, U9, U12, U13, U16, U19, U20 Receive an image frame. (3) FPGA : U8 All of the board functions are controlled by the Logic program of the FPGA. (4) PCI Express Chipset : U23 PCI Express Bridge. - Page 13 PCIe-FRM26_B User’s Manual 3-3 Connector Pin-out The connectors and jumpers used in PCIe-FRM26_B will be described. The main connectors are SDR 26pin connectors J5, J6, and J8 connectors for Camera Link connection. [Figure 3-2] shows the bracket that interfaces with the board and the connection connector. [Figure 3-2.
-
Page 14: Connector Pin Out
PCIe-FRM26_B User’s Manual 3-3-1 J5/J6/J8(SDR26) Connector The figure below shows the pin map of the J5/J6/J8 connector of the board used when using the Base Configuration Camera Link. All pin specifications are input/output based on the Camera Link standard, so please refer to the Camera Link standard document for details. Frame Grabber Inner shield Inner shield... -
Page 15: J6/J6/J8(Sdr26) Connector
PCIe-FRM26_B User’s Manual [Table 1. J5/J6/J8 Connector] Pin No Name Description Remark Inner Shield Cable shield CC4- Camera Control output 4- CC3+ Camera Control output 3+ CC2-- Camera Control output 2- CC1+ Camera Control output 1+ DRRX+ Serial to Frame grabber + DRTX- Serial to Camera- RxIN3+... -
Page 16: J2 Connector
PCIe-FRM26_B User’s Manual 3-3-2 J2 Connector PCIE-FRM26_B board is designed to use up to 4 PCIe-FRM26_B boards simultaneously in one system (PC). Each board classification can be set through the 4-pin DIP switch in the board. [Figure 3-3. J2 Connector (Top View)] [Table 2. -
Page 17: Installation
PCIe-FRM26_B User’s Manual 4. Installation 4-1 Product Contents Before installing the board, check that the contents of the package are intact. PCIe-FRM26_B Board CD (Driver/Manual/API/Sample Source etc.) 4-2 Installation Process The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCIe-FRM26_B board into the PCI Express Slot, and turn on the PC's power. - Page 18 PCIe-FRM26_B User’s Manual 1. Select Driver from the enclosed CD and click the Next button.
- Page 19 PCIe-FRM26_B User’s Manual 2. Click the Next button. It indicates that the installation process is proceeding as shown below.
- Page 20 PCIe-FRM26_B User’s Manual When the installation is complete, check whether the driver is installed normally in the following way. 4. In My Computer -> Properties -> Hardware -> Device Manager, check if the Multifunction Adaptor-> “PCIe-FRM26” is installed. The above figure shows the screen where the PCIe-FRM26_B board is normally installed in the PC. (Note) After initial installation, the PC must be rebooted for normal operation.
-
Page 21: Sample Program
PCIe-FRM26_B User’s Manual 5. Sample Program The TestApp folder on the CDROM supplied with the board provides a sample program "FrmTest" for easy use of the board. First, "FrmTest.exe", which is one of the executable files, displays frame data in hexadecimal value and stores it in memory or hard disk to utilize the frame data required by the developers. - Page 22 PCIe-FRM26_B User’s Manual In case of multi-board, two execution programs should be opened at the same time. Closing the program stops the remaining program operation. You need to run Device init and Start again. Sample program execution sequence is as follows. 1.
- Page 23 PCIe-FRM26_B User’s Manual The Video 0 is the screen displayed when connected to the J8 connector. (See Section 3.3) [Figure 5-2. Video 0 Display]...
- Page 24 PCIe-FRM26_B User’s Manual The Video 1 is the screen displayed when connected to the J5 connector. (See Section 3.3) [Figure 5-3. Video 1 Display]...
- Page 25 PCIe-FRM26_B User’s Manual The Video 2 is the screen displayed when connected to the J6 connector. (See Section 3.3) [Figure 5-4. Video 2 Display] (5) “Init ” button It initializes a LVDS and UART. (6) “Video 0 F/R” It displays the frame rate per second. (7) “Start”...
- Page 26 PCIe-FRM26_B User’s Manual the board, you have to wait until the save is completed. "Auto View": Show the video as checked. (9) “Save” button Clicking on the box will save the image data as a binary file in frame units. (10) “Get Res.”...
- Page 27 PCIe-FRM26_B User’s Manual Reference) If the default Delay/Width/Blank is set to 0/0/0, the total output is 50ns (10+40), so the maximum output is 20Mhz. The corresponding value increases by 10ns. Delay Width Blank Trigger Clock Delay Width Blank Trigger Clock Increasing the Width increases the pulse width, and increasing Delay and Blank increases the interval.
-
Page 28: Uart Function
PCIe-FRM26_B User’s Manual 5-2 UART Function (1) “Open” selection Normally UART Get is blocked and then clicked to open UART Get (For test) (2) “UART” selection It selects 9600, 19200, 38400, 57600, 115200 Baud Rate. (3) “UART Send” button It sends UART data in the above column.. (4) “UART Get”... -
Page 29: Appendix
PCIe-FRM26_B User’s Manual Appendix Board Size The external sizes of the board are as follows. For detailed dimensions, please contact the person in charge. -
Page 30: Repair Regulations
PCIe-FRM26_B User’s Manual A-2 Repair Regulations Thank you for purchasing a DAQSYSTEM product. Please refer to the following regarding Customer Service regulated by DAQSYSTEM. (1) Read the user manual and follow the instructions before using the DAQSYSTEM product. (2) When returning the product to be repaired, please write down the symptoms of the failure and send it to the head office. -
Page 31: References
-- Camera Link committee 2. PCI Local Bus Specification Revision2.1 -- PCI Special Interest Group 3. How to install PCI DAQ Board -- DAQ system 4. AN201 How to build application using API -- DAQ system 5. AN312 PCIe-FRM26_B API Programming -- DAQ system 6. - Page 32 PCIe-FRM26_B User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
