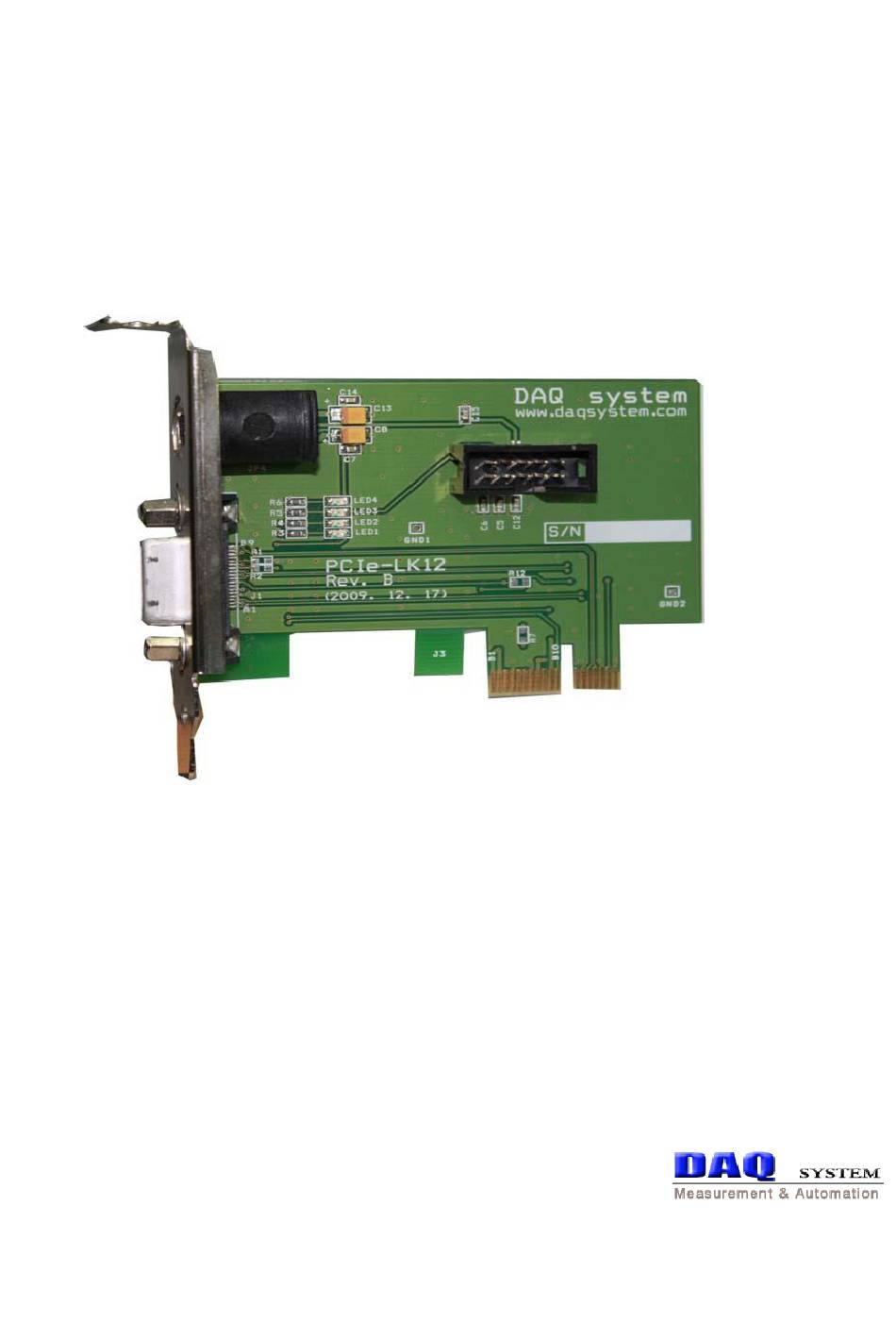

PCIe-LK12
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system PCIe-LK12
Summary of Contents for DAQ system PCIe-LK12
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
PCIe-LK12 User’s Manual Contents 1. PCIe-LK12 Introduction ------------------------------------------------------------ 1-1 PCIe-LK12 Features ------------------------------------------------------------------------- 1-2 Applications -------------------------------------------------------------------------- 2. PCIe-LK12 Board Description ----------------------------------------------------- PCIe-LK12 Connection ---------------------------------------------------------------- JP4 Connector Pin-Out ---------------------------------------------------------------- 2-2 J1 Connector Pin-Out ---------------------------------------------------------------------- Appendix A-1 PCIe-LK12 Board Size ----------------------------------------------------------------------- A-2 Repair Regulations... -
Page 3: Pcie-Lk12 Introduction
PCIe-LK12 User’s Manual 1. PCIe-LK12 Introduction The PCIe-LK12 PCI Express card is a board used to interface external Compact PCI products in general PCs. It is a board that provides the board's power and PCI Express signal with the standard 1x Express Card, and connects it with the company's cPCI-LK02 or cPCI-LK03, allowing Compact PCI products to interface with a PC without a driver. -
Page 4: Pcie-Lk12 Features
PCIe-LK12 User’s Manual 1-1 PCIe-LK12 Features x1 PCI Express link host interface Compliant with PCI Express Base Specification 1.1 Supply power for external devices (12V, 3.3V, 3.3V AUX) through the Mini Circular connector 1-2 Applications Industry Control Board ... -
Page 5: Pcie-Lk12 Board Description
PCIe-LK12 User’s Manual 2. PCIe-LK12 Board Description PCIe-LK12 supplies the PCI Express signal through the MDR18 connector (J1) and supplies various power sources (12V, 3.3V, 3.3V AUX) for external devices through the Mini Circular 6 pin connector. 2-1 PCIe-LK12 Connection... -
Page 6: Jp4 Connector Pin-Out
PCIe-LK12 User’s Manual 2-2 JP4 Connector Pin-Out PCIe-LK12 supplies various power sources (12V, 3.3V, 3.3V AUX) for external devices through JP4 (HR10-7R-6S-RA) Mini Circular connector. 3.3VauX 3.3V +12V [Figure 2-2. PCIe-LK12 JP4 Connector Pin-out] [Table 1. JP4 Connector Description] Name... -
Page 7: J1 Connector Pin-Out
PCIe-LK12 User’s Manual 2-3 J1 Connector Pin-Out This connector transmits the Express PCI signal of PCIe-LK12 through the J1 (MDR-18) connector. PERST# +3.3V CLKP CLKN PRESENT# WAKE# [Figure 2-3. PCIe-LK12 J1 Connector Pin-out] [Table 2. J1 Connector Description] Name Description... -
Page 8: Appendix
PCIe-LK12 User’s Manual Appendix A-1 PCIe-LK12 Board Size The size of the board is as follows. (78.5 x 59mm) 78.5... -
Page 9: Repair Regulations
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 10 PCIe-LK12 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
