3.4 Place the viscometer into the ViscoClock plus

Press the guidance plate (7) up against the handle plate (9) (see  Fig. 3).
- The following applies to the use of Ubbelohde and Micro Ubbelohde viscometers:
 Insert the viscometer sloped through the guidance plate (6), and then insert it vertically into the
centering (2) prism.
> The capillary tube of the viscometer is located underneath the IR light barriers.
 Lower the guidance plate (7).
 Check for correct seating of the silicone plug on the fill tube (21) (silicone plug 8D) and capillary
tube (22) (silicone plug 8S).
 The viscometer is now seated.
 Attach the silicone cap (10) to the ventilation tube at a 90° angle!
With a lateral load on the ventilation tube, the glass tube may break!
- The following applies to Micro Oswald viscometers:
 Insert the Micro Ostwald viscometer into the stand (3) of the ViscoClock plus so that the fill tube is
inserted into the elongated hole of the guidance plate (6).
 Lower the guidance plate (7).
 With Micro Ostwald viscometers, the manual pump set "suction" VZ 6554 is required.
7
6

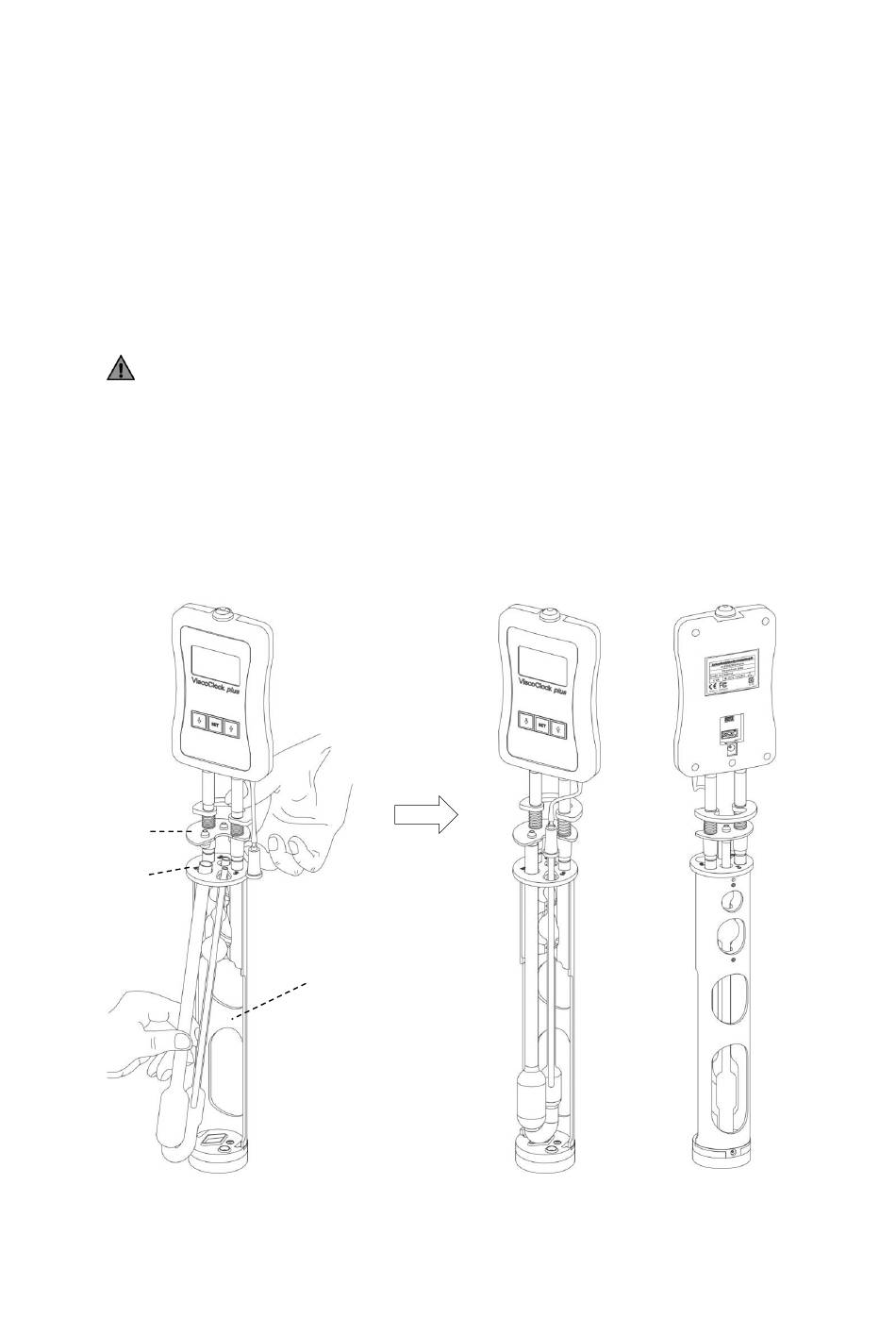

Fig. 3 Inserting the viscometer into the ViscoClock plus
