JB02020 Fingertip Oximeter
User Manual
Important: Do not operate the Finger Pulse
Oximeter without first reading and understanding
this manual! Save this manual for future use.
Info: The most current version of this manual can be found
online at www.grahamfield.com.
JB02020-INS-LAB-RevA20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the John Bunn JB02020 and is the answer not in the manual?

Questions and answers

Related Manuals for Graham Field John Bunn JB02020

Summary of Contents for Graham Field John Bunn JB02020

  • Page 1 JB02020 Fingertip Oximeter User Manual Important: Do not operate the Finger Pulse Oximeter without first reading and understanding this manual! Save this manual for future use. Info: The most current version of this manual can be found online at www.grahamfield.com. JB02020-INS-LAB-RevA20...

  • Page 2: Table Of Contents

    CONTENTS 1 INTRODUCTION ..............3 INTENDED USE ..............3 CONTRAINDICATIONS ............3 2 IMPORTANT SAFETY GUIDELINES—READ BEFORE USE ..4 WARNINGS ................5 NOTICES ................7 3 PRODUCT DESCRIPTION AND FEATURES ......8 CONTENTS — PACKING LIST ..........8 JB02020 FINGER PULSE OXIMETER FEATURES ....9 DECLARATION OF CONFORMITY .........

  • Page 3: Introduction

    1 INTRODUCTION Read and understand all instructions before using the John Bunn JB02020 Finger Pulse Oximeter. Intended Use This Fingertip Oximeter is intended to measure the pulse rate and functional oxygen saturation (SpO ) through a patient’s finger. It is applicable for spot-checking SpO and pulse rate of adult and pediatric patients in homes and medical clinics.

  • Page 4: Important Safety Guidelines-Read Before Use

    2 IMPORTANT SAFETY GUIDELINES—READ BEFORE USE The safety statements presented in this chapter refer to the basic safety information that the operator of the Finger Pulse Oximeter shall pay attention to and abide by. There are additional safety statements in other chapters or sections, which may be the same as or similar to the following, or specific to the operations.

  • Page 5: Warnings

    WARNINGS WARNING: Important! Read and understand this manual before using the oximeter. Do not use this device without proper instruction from a Healthcare Professional. If the oximeter is not properly operated, personal injury and/or damage to the oximeter could result. WARNING: EXPLOSION HAZARD: Do not use the oximeter in the presence of flammable anesthetics, explosive substances, vapors or liquids.
  • Page 6 WARNING: The oximeter is intended only as an adjunct in patient assessment. It must be used in conjunction with clinical signs and symptoms. It is intended as a measuring, not a treatment, device. WARNING: The infrared light emitted from the device (it is invisible) is harmful to the eyes.

  • Page 7: Notices

    Notices s NOTICE: Keep the Oximeter away from dust, lint, vibration, corrosive substances, explosive materials, high temperature, sunlight, and moisture. s NOTICE: If the Oximeter gets wet, stop using it and do not resume operation until it is dry and checked for correct operation.

  • Page 8: Product Description And Features

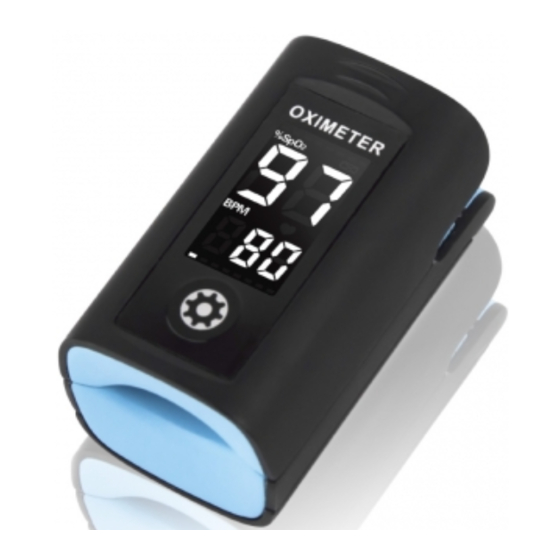

    3 PRODUCT DESCRIPTION AND FEATURES display screen display key rubber cushion JB02020 Finger Pulse Oximeter Contents — Packing List 1) One JB02020 Fingertip Oximeter 2) One Lanyard 3) Two AAA Alkaline Batteries 4) One User Manual JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...

  • Page 9: Jb02020 Finger Pulse Oximeter Features

    JB02020 Finger Pulse Oximeter Features • S-L-M Display type • Displays SpO , PR, PI • Auto on/off • PR and PI shifts • Pulse bar • Over-limits indicator • Two-direction display JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...

  • Page 10: Declaration Of Conformity

    Declaration of Conformity This device complies with the following standards: IEC 60601-1: 2005 Medical electrical equipment-Part 1: General requirements for basic safety and essential performance; BS/EN/ISO 9919:2009 or the equivalent ISO 80601-2-61:2011 - Medical electrical equipment - Part 2-61: Particular requirements for basic safety and essential performance of pulse Oximeter equipment.

  • Page 11: Setup-Battery Installation

    4 SETUP—BATTERY INSTALLATION Battery Installation 1. Slide battery cover open as shown above. 2. Install two AAA size batteries into the battery compartment as shown above. Note polarity markings and ensure batteries are correctly installed, or device may not function. 3.

  • Page 12: Operation Instructions

    5 OPERATION INSTRUCTIONS Before use: surface-clean sensor with a soft cloth damped with a solution of 75% isopropyl alcohol, then surface-clean with a cloth damped ONLY with clean water and dry with a clean, soft cloth. Open Oximeter and Position Finger 1.

  • Page 13: Correct Measurement Procedures

    Correct Measurement Procedures • Ensure finger is correctly positioned in sensor. • Relax; do not move; do not move finger during measurement. • Do not place wet finger in sensor. • Do not place the device on a limb with with a blood pressure cuff applied.

  • Page 14: Service Life, Repair, Maintenance, And Disposal

    6 SERVICE LIFE, REPAIR, MAINTENANCE, AND DISPOSAL Expected Service Life Info: The expected service life (not warranty) of this device is five years. Repair WARNING: DO NOT open the oximeter housing. It contains no serviceable parts. Service must be performed by trained, authorized personnel only, or device failure and health hazard could occur.

  • Page 15: Storage

    Storage • Remove batteries if the Oximeter will not be used for more than seven days. • Store the device in a dry, dust-free environment free from high temperature, sunlight, and dust. Humidity may damage or reduce the life of the device. When the oximeter is taken from a cold environment to a warm and humid environment, do not use it immediately —...

  • Page 16: Troubleshooting

    7 TROUBLESHOOTING Problem Solution / Pulse Rate Position the finger carefully as described in display unstable OPERATION INSTRUCTIONS; try again Unable to turn on device; 1. Patient must relax as described in OPERATION INSTRUCTIONS; try again no display 2. Change batteries Display direction doesn’t Shake Oximeter gently;...

  • Page 17: Technical Specifications

    8 TECHNICAL SPECIFICATIONS Transducer Dual-wavelength Measurement LED sensor with wavelength Red light 663 nm, Infrared light: 890 nm. Maximal average optical ≤2mW output power display range 35%~100% measuring accuracy ≤ 2% for SpO range from 70% to 100% Pulse Rate PR display range 30bpm~240bpm measurement...
  • Page 18 TECHNICAL SPECIFICATIONS CONTINUED Visual alert When measuring, if SpO value or pulse rate value function exceeds the preset limit, the measured value which exceeds limit will flash on the screen. Power supply Two AAA alkaline batteries requirement Supply voltage 3.0VDC Operating current ≤40mA Environmental...
  • Page 19 TECHNICAL SPECIFICATIONS CONTINUED Dimensions 56 mm (L) × 34 mm (W) × 30 mm (H) Net Weight Approximately 60g Classification Type of protection against Internally electric shock powered equipment. Degree of protection Type BF applied against electric shock parts. Degree of protection IP22 with against harmful solid protection against...

  • Page 20: Symbol Key

    9 SYMBOL KEY Symbol Description %SpO Pulse Oxygen Saturation Pulse Rate (Beats per Minute) Perfusion Index (%) Pulse Strength Bar Graph Low Battery Voltage CE Mark Serial Number Date of Manufacture Authorized Representative in the European Community Manufacturer (including address) BF Type Applied Part Attention: Refer to User Manual Dispose of this Device in Accordance...

  • Page 21: Limited Warranty

    10 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the Original Purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
  • Page 22 EXCLUSIONS The warranty does not cover and GF shall not be liable for the following: 1) Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse, negligence, alteration, accident, freight damage, tampering or failure to seek and obtain repair or replacement in a timely manner;...
  • Page 23 THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PARTS. GF SHALL NOT BE LIABLE FOR AND HEREBY DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER, OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND BENEFITS.

  • Page 24: Appendix I Emc

    APPENDIX I EMC This equipment meets the requirements of IEC 60601-1-2:2014. Table 1 JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 25 Table 1 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 26 Table 2 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 27 Table 2 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 28 Table 2 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 29 Table 3 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 30 Table 3 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 31 Table 3 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 32 Table 3 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 33 Table 3 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 34 Table 4 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 35 Table 4 continued JB02020-INS-LAB-RevA20 • Fingertip Oximeter User Manual...
  • Page 36 © 2020, GF Health Products, Inc. All Rights Reserved. John Bunn is a trademark of GF Health Products, Inc., One Graham Field Way, Atlanta GA 30340-3140 GF Health Products, Inc. is an ISO 13485:2016 Certified Company. Manufactured for GF Health Products, Inc.
