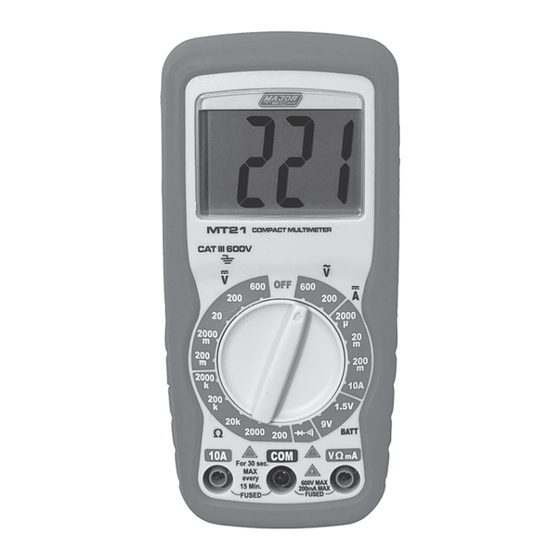

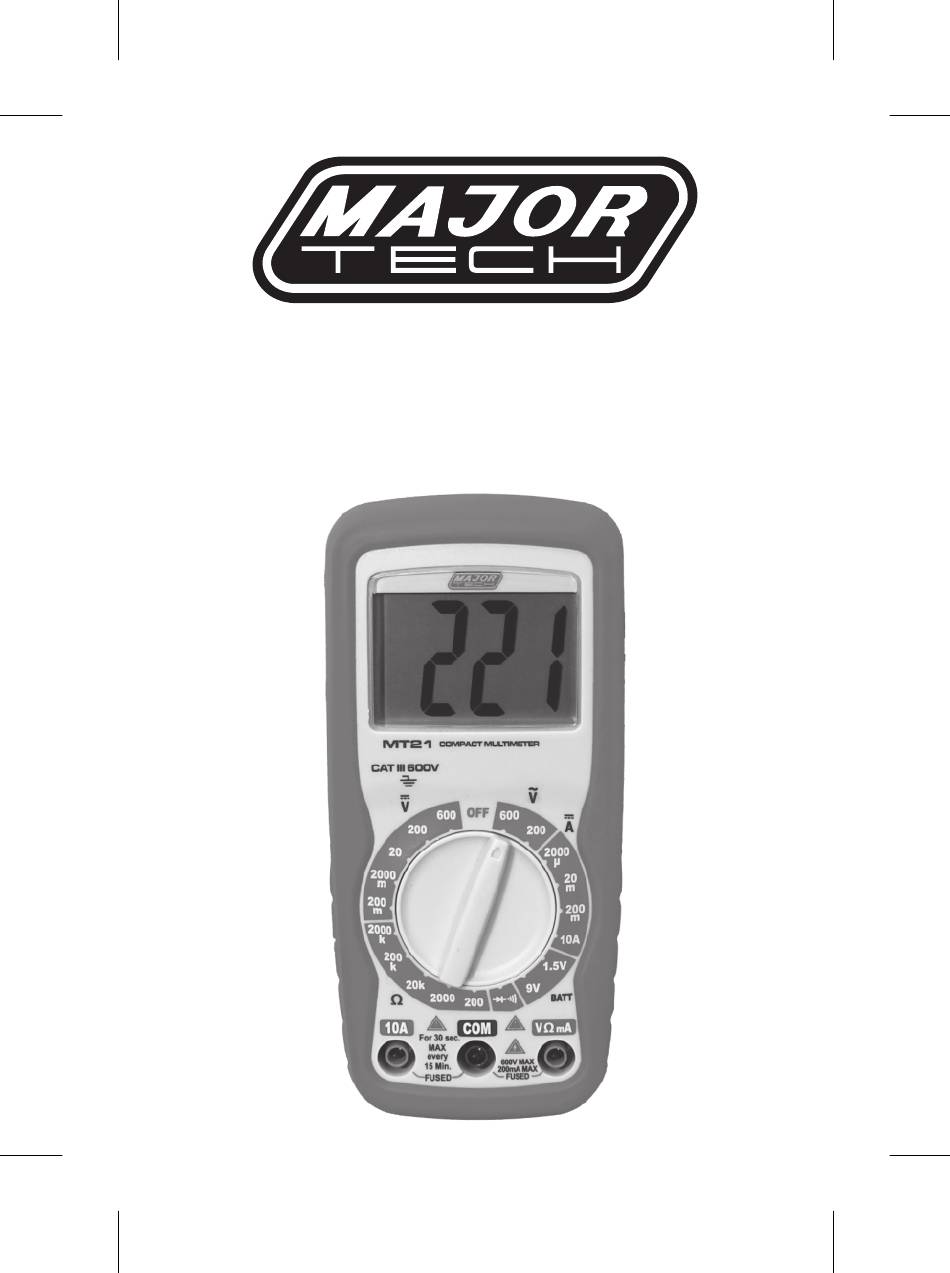

- Page 1 INSTRUCTION MANUAL MT21 600V AC/DC MULTIMETER...
-
Page 3: Table Of Contents
Contents Page no 1. Safety Instructions................4 2. Safety Symbols................4 3. Controls and Jacks................5 4. Symbols and Annunciators..............5 5. Specifications..................6 6. Battery Installation................7 7. Operating Instructions..............8 7.1. DC Voltage Measurements............8 7.2. AC Voltage Measurements............9 7.3. DC Current Measurements............9 7.4. Resistance Measurements.............10 7.5. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS This meter has been designed for safe use but must be operated with caution. The rules listed below must be carefully followed for safe operation. 1. NEVER apply voltage or current to the meter that exceeds the specified maximum: maximum: Input Limits Function... -
Page 5: Controls And Jacks
This symbol advises the user that the terminal(s) so marked must not be connected to a circuit point at which the 500V voltage with respect to earth ground exceeds (in this case) 500 VAC or VDC. This symbol adjacent to one or more terminals identifies them as being associated with ranges that may, in normal use, be subjected to particularly hazardous voltages. -
Page 6: Specifications
5. SPECIFICATIONS Range Resolution Accuracy Function DC Voltage (V DC) 200mV 0.1mV ±(0.5% reading + 2 digits) 2000mV 0.01V 200V 0.1V ±(0.8% reading + 2 digits) 600V AC Voltage (V AC) 200V 0.1V ±(1.2% reading + 10 digits 600V (50/60Hz) DC Current (A DC) 2000μA 1μA ±(1.0% reading + 2 digits) -
Page 7: Battery Installation
Function Range DCA voltage drop 200mV Display 3½ digit, 2000 count LCD, 1.1" digits Overrange indication "1" is displayed Polarity Automatic (no indication for positive polarity); Minus (-) sign for negative polarity. Measurement Rate 2 times per second, nominal Low Battery Indication "BAT"... -
Page 8: Operating Instructions
WARNING: To avoid electric shock, do not operate the meter until the battery door is in place and fastened securely. NOTE: If your meter does not work properly, check the fuses and batteries to make sure that they are still good and that they are properly inserted. -
Page 9: Ac Voltage Measurements
7.2. AC VOLTAGE MEASUREMENTS WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As a result, the reading may show 0 volts when the outlet actually has voltage on it. -
Page 10: Resistance Measurements
7. Read the current in the display. For mA DC measurements, reset the function switch to successively lower mA DC positions to obtain a higher resolution reading. The display will indicate the proper decimal point and value. 7.4. RESISTANCE MEASUREMENTS WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. -
Page 11: Battery Test
7.7. BATTERY TEST 1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive V jack. 2. Select the 1.5V or 9V BAT position using the function select switch. 3. - Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
