Manual
MODEL
O P E R A T O R ' S M A N U A L
J&M Manufacturing Co, Inc
284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: (419) 375-2376 | Fax: (419) 375-2708
www.jm-inc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nitro gro 5010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for J&M nitro gro 5010

Summary of Contents for J&M nitro gro 5010

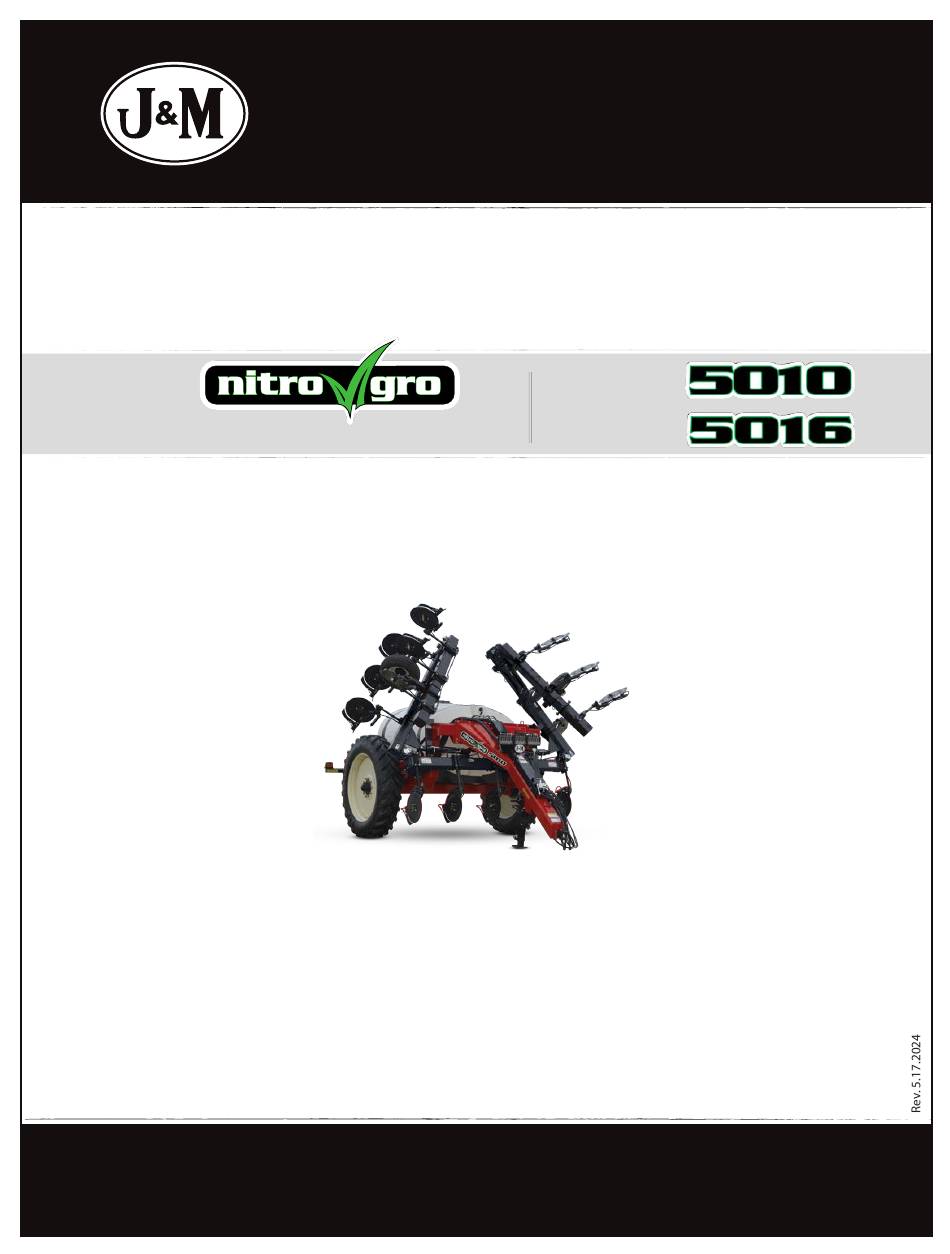

  • Page 1 Manual MODEL O P E R A T O R ’ S M A N U A L J&M Manufacturing Co, Inc 284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: (419) 375-2376 | Fax: (419) 375-2708 www.jm-inc.com...

  • Page 2: Table Of Contents

    Table Of Contents To The Dealer ....................4 Serial Number .
  • Page 3 Table Of Contents Frame ....................46 Toolbar .

  • Page 4: To The Dealer

    To The Dealer TO THE DEALER Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists are completed before releasing equipment to the owner. The dealer must complete the Warranty Registration found on the Dealer Portal website located at dealer.jm-inc.com and return it to J&M Mfg.

  • Page 5: Serial Number

    Serial Number Serial Number Location Serial Number______________________ Model Number_____5010 or 5016_____ Standard practice when ordering parts or obtaining information from your dealer requires the serial number and model number. Have numbers available before making contact. General Information TO THE OWNER: The purpose of this manual is to assist you in operating and maintaining your applicator in a safe manner.

  • Page 6: Safety Rules

    Safety Rules ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness, concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.

  • Page 7: Bolt Torque Chart

    Bolt Torque Chart Always tighten hardware to these values unless a different torque or tightening procedure is listed for specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware. Make sure fastener threads are clean and you start thread engagement properly.

  • Page 8: Specifications

    Specifications SPECIFICATIONS 5000 Series Applicators Tank Size 1,000 Gallon 1,600 Gallon Base Width 30’-0” 40’-0” Ground Clearance 34” 34” Row Spacing* 20”, 30” 20”, 30” Number of Coulters 11, 13, 15, 17, 23, 25 11, 13, 15, 17, 23, 25 Coulter Style Grove Engineered Products (GEP) or J&M Grove Engineered Products (GEP) or J&M...

  • Page 9: Nitrogro Components

    NitroGro Components Holding Tank Light Bar Flow Monitors (Optional) Hitch Toolbar Down Pressure Gauge Down Pressure Relief Valve Gauge Wheel Coulter 3-Section Boom Spike Shut Off Valve Agitation Valve Strainer Hydraulic Pump Rinse Tank Tank Fill Valve 2” or 3” Flow Monitors Flow monitors allow the operator to see the rate of flow to each coulter through a floating ball inside the transparent inspection tube.

  • Page 10: Toolbar Down Pressure Relief Valve And Gauge

    Toolbar Down Pressure Relief Valve and Gauge The down pressure relief valve provides adjustable hydraulic pressure to force the coulters on the wings into the ground while allowing the wing to flex up and down as needed to follow the contour of the ground. •...

  • Page 11: Coulter

    Coulter The number of coulters is determined by the number of rows (usually one less or one more). So the number of rows will be even, and the number of coulters will be odd, since you are placing the nitrogen between the rows. Example, a 16 row unit will have either 15 or 17 coulters.

  • Page 12: Strainer

    Strainer The NitroGro applicator is equipped with a strainer designed to remove dirt and debris from the fertilizer to prevent downstream clogs. The stainer should be cleaned daily during regular operation. Shut-Off & Fill Valve The NitroGro applicator is standard equipped with a 2” shut-off and fill valve. There is an upgrade option for a 3”...

  • Page 13: Pre-Operation Checklist

    Pre-Operation Checklist IMPORTANT - Before putting the applicator into operation, check the machine for damaged or worn parts and replace as necessary. Wheel Nuts Tightened During initial operation, tighten standard 3/4” wheel studs and nuts to a torque of 400 ft-lbs. Re-check wheel nut torque settings during initial break in period (10, 20, 50 acres), then every 10 hours of use for the first 40 hours.

  • Page 14: Hitching And Unhitching The Applicator

    Hitching and Unhitching the Applicator Connect the applicator to the tow vehicle using a hitch pin and make sure a retaining pin is secured in the hitch pin. Always attach the safety chains to the applicator and the tow vehicle. WARNING –...

  • Page 15: Connecting The Hydraulic Hoses

    Connecting the Hydraulic Hoses Connect the hoses so the toolbar raises when the tractor control lever is pulled back and lowered when the control is pushed forward. Hook up hydraulic lines as follows: Set #1 - Green Hoses - Raise & Lower/ Wing Kick/ Down-pressure/ Ground Drive if Equipped Set #2 - Red Hoses -Wing Fold Set #3 - Black Hoses - Hydraulic Pump (Hook the return hose to low pressure return port at the tractor) Folding &...

  • Page 16: Adjusting The Field Depth

    Adjusting the Field Depth All the cylinder rod spacers for setting the coulter soil depth of the enter section should be installed on the 4”x8” lift cylinders on the center toolbar, shown below. With the toolbar unfolded, lower the toolbar and leave in detent, applying constant downward pressure to the 4”x8” cylinders. Pull the applicator forward for 20-30 yards to allow the coulters to reach their maximum soil depth and stop.

  • Page 17: Transporting

    Transporting • Comply with ALL state and local laws governing highway safety and regulations when moving machinery on public roads. • Be sure an SMV (Slow Moving Vehicle) emblem is in place and clearly visible on the rear of the applicator. Position the SMV emblem with one point of the triangle upward and as near to the rear and centered or as near to the left of center of the unit as practicable.

  • Page 18: Whisker Switch Installation

    Whisker Switch Installation • Install Limit Switch Wire on the N.C. Terminals. • This will cause the pump to shut off when switch is pressed. • Position the switch on the mount next to the toolbar pivot point on the “drivers” side. •...

  • Page 19: Adapter Harnesses For Various Controller Options

    Troubleshooting HIGH BACK PRESSURE IN THE RETURN LINE: This is the most common cause of shortened motor seal life. The hydraulic motor seal is rated for 250 psi of back pressure. However, a continuous return pressure of 100 psi or less is recommended for efficient operation and optimum seal life. The high return pressure is caused by restrictions in hoses, fittings, and tractor plumbing.

  • Page 20: Operation

    Operation Hook tractor to NitroGro and adjust hitch so that frame on applicator is level or tilting backward slightly. See “Hitching and Unhitching the Applicator” on page Connect hydraulic lines. See “Connecting the Hydraulic Hoses” on page 15. Unfold the unit. See “Folding & Unfolding” on page 15. Set the coulter depth.

  • Page 21: Flow Monitor Set Up

    Flow Monitor Set Up The NitroGro applicator offers row spacing options of 20”, 22”, or 30”. The unit will be either be set up to re-apply the outside row (“1 Up”), or skip a row (“1 Down”). Using your row spacing and whether your applicator is “1 Up” or “1 Down”, refer to the chart below to determine the location and quantity of flow monitors for your applicator.

  • Page 22: Knife - 30" Row Spacing

    Knife - 30” Row Spacing 10 Gallons Per Acre 15 Gallons Per Acre Speed (MPH) 0.075 Orifice Pressure (psi) 0.107 Orifice Pressure (psi) 0.132 Orifice Pressure (psi) 0.161 Orifice Pressure (psi) GPM (per nozzle) 0.23 0.29 0.34 0.40 0.46 0.51 0.57 0.63 0.68 0.34 0.43 0.51 0.60 0.68 0.77 0.86 0.94 1.03 Flow Indicator Red Glass Ball Level 0.9 Flow Indicator 1/2”...
  • Page 23 Knife - 30” Row Spacing 40 Gallons Per Acre 45 Gallons Per Acre Speed (MPH) 0.075 Orifice Pressure (psi) 103 124 145 165 186 207 228 119 142 165 189 212 235 259 0.107 Orifice Pressure (psi) 102 114 0.132 Orifice Pressure (psi) 0.161 Orifice Pressure (psi) GPM (per nozzle) 0.91 1.14 1.37 1.60 1.83 2.05 2.28 2.51 2.74 1.03 1.28 1.54 1.80 2.05 2.31 2.57 2.83 3.08...

  • Page 24: Knife - 22" Row Spacing

    Knife - 22” Row Spacing 10 Gallons Per Acre 15 Gallons Per Acre Speed (MPH) 0.075 Orifice Pressure (psi) 0.107 Orifice Pressure (psi) 0.132 Orifice Pressure (psi) 0.161 Orifice Pressure (psi) GPM (per nozzle) 0.17 0.21 0.25 0.29 0.33 0.38 0.42 0.46 0.50 0.25 0.31 0.38 0.44 0.50 0.57 0.63 0.69 0.75 Flow Indicator Red Glass Ball Level Flow Indicator 1/2”...
  • Page 25 Knife - 22” Row Spacing 40 Gallons Per Acre 45 Gallons Per Acre Speed (MPH) 0.075 Orifice Pressure (psi) 100 116 131 146 161 116 133 150 167 184 0.107 Orifice Pressure (psi) 0.132 Orifice Pressure (psi) 0.161 Orifice Pressure (psi) GPM (per nozzle) 0.67 0.84 1.00 1.17 1.34 1.51 1.67 1.84 2.01 0.75 0.94 1.13 1.32 1.51 1.70 1.88 2.07 2.26 Flow Indicator 1/2"...

  • Page 26: Knife - 20" Row Spacing

    Knife - 20” Row Spacing 10 Gallons Per Acre 15 Gallons Per Acre Speed (MPH) 0.075 Orifice Pressure (psi) 0.107 Orifice Pressure (psi) 0.132 Orifice Pressure (psi) 0.161 Orifice Pressure (psi) GPM (per nozzle) 0.15 0.19 0.23 0.27 0.30 0.34 0.38 0.42 0.46 0.23 0.29 0.34 0.40 0.46 0.51 0.57 0.63 0.68 Flow Indicator Red Glass Ball Level Flow Indicator 1/2”...
  • Page 27 Knife - 20” Row Spacing 40 Gallons Per Acre 45 Gallons Per Acre Speed (MPH) 0.075 Orifice Pressure (psi) 103 117 131 145 103 119 134 150 165 0.107 Orifice Pressure (psi) 0.132 Orifice Pressure (psi) 0.161 Orifice Pressure (psi) GPM (per nozzle) 0.61 0.76 0.91 1.07 1.22 1.37 1.52 1.67 1.83 0.68 0.86 1.03 1.20 1.37 1.54 1.71 1.88 2.05 Flow Indicator 1/2"...

  • Page 28: Injectors - 30" Row Spacing

    Injectors - 30” Row Spacing 15 Gallons Per Acre Speed (MPH) #10 Injector (psi) #15 Injector (psi) #20 Injector (psi) #30 Injector (psi) #40 Injector (psi) GPM (per nozzle) 0.34 0.43 0.51 0.60 0.68 0.77 0.86 0.94 1.03 Flow Indicator Red Glass Ball Level Flow Indicator 1/2"...
  • Page 29 Injectors - 30” Row Spacing 40 Gallons Per Acre 45 Gallons Per Acre Speed (MPH) #10 Injector (psi) 115 128 143 113 132 146 163 #15 Injector (psi) #20 Injector (psi) #30 Injector (psi) #40 Injector (psi) GPM (per nozzle) 1.03 1.29 1.55 1.81 2.06 2.32 2.58 2.84 3.10 1.16 1.45 1.74 2.03 2.32 2.61 2.90 3.19 3.48 Flow Indicator 1/2"...

  • Page 30: Injectors - 22" Row Spacing

    Injectors - 22” Row Spacing 15 Gallons Per Acre Speed (MPH) #10 Injector (psi) #15 Injector (psi) #20 Injector (psi) #30 Injector (psi) #40 Injector (psi) GPM (per nozzle) 0.25 0.31 0.38 0.44 0.50 0.57 0.63 0.69 0.75 Flow Indicator Red Glass Ball Level 1.1 1.7 Flow Indicator 1/2"...
  • Page 31 Injectors - 22” Row Spacing 40 Gallons Per Acre 45 Gallons Per Acre Speed (MPH) #10 Injector (psi) 102 114 #15 Injector (psi) #20 Injector (psi) #30 Injector (psi) #40 Injector (psi) GPM (per nozzle) 0.76 0.95 1.14 1.32 1.51 1.70 1.89 2.08 2.27 0.85 1.06 1.28 1.49 1.70 1.92 2.13 2.34 2.55 Flow Indicator 1/2"...

  • Page 32: Injectors - 20" Row Spacing

    Injectors - 20” Row Spacing 20 Gallons Per Acre 25 Gallons Per Acre Speed (MPH) #10 Injector (psi) #15 Injector (psi) #20 Injector (psi) #30 Injector (psi) #40 Injector (psi) GPM (per nozzle) 0.34 0.43 0.52 0.60 0.69 0.77 0.86 0.95 1.03 0.43 0.54 0.64 0.75 0.86 0.97 1.07 1.18 1.29 Flow Indicator 1/2"...
  • Page 33 Injectors - 20” Row Spacing 50 Gallons Per Acre 55 Gallons Per Acre Speed (MPH) #10 Injector (psi) 103 115 104 115 129 #15 Injector (psi) #20 Injector (psi) #30 Injector (psi) #40 Injector (psi) GPM (per nozzle) 0.86 1.07 1.29 1.50 1.72 1.93 2.15 2.36 2.58 0.95 1.18 1.42 1.66 1.89 2.13 2.36 2.60 2.84 Flow Indicator 1/2"...

  • Page 34: Ground Drive Pump Rates

    Ground Drive Pump Rates 7055 Ground Drive Pump Pump Setting 30 ft (GPA) 30 ft (LPHa) 40 ft (GPA) 40 ft (LPHa) 11.2 104.4 78.2 16.7 156.6 12.5 117.3 22.3 208.8 16.7 156.4 27.9 261.0 20.9 195.5 33.5 313.2 25.1 234.6 39.1 365.4...
  • Page 35 This page is intentionally left blank. o_nitrogro_5000...

  • Page 36: Raven 450 Controller Set Up

    Raven 450 Controller Set Up Initial Console Programming HINT: If you enter the wrong value when entering your data press “ENTER” then press “ENTER” again and re-enter your value again. • Select the unit of measurement by pressing the CE button until the desired selection appears in the display and press “ENTER” NOTE - The unit of measurement for the United States is Volume per Acre.

  • Page 37: Raven Isobus Rate Controller Set Up

    Raven ISOBUS Rate Controller Set Up • On the second tab from the left, enter the Flowmeter Calibration (Meter Cal approximately 700 or 1340) number which is stamped on the flowmeter on the applicator. • Next select Valve Cal. Here, a Self Test speed can be entered for water testing and a nozzle flow check. •...

  • Page 38: John Deere Greenstar Rate Controller Pwm Setup

    John Deere Greenstar Rate Controller PWM Setup In the System Set-up Tab, select “3-Wire” (C) for the Section Valve Type. See your Nitrogro Owners Manual for information on the number of sections and section widths. In the System Set-up Tab, select “PWM Close” (F) for the Control Valve Type.
  • Page 39 John Deere Rate Controller 2000 PWM Setup On the Setup Sections page, select “3-Wire” (C) for the Section Valve Type. See “Flow Monitor Set Up” on page 30 for information on the number of sections and section widths. On the Setup Control Valve page, select “PWM Close” (F) for the Control Valve Type.

  • Page 40: Service

    Service To prolong the life of your NitroGro applicator, perform the following on a regular basis: 1. Clean strainer daily. 2. Grease coulter hubs with two pumps every 50 hours. 3. Check lighting before over the road transport. Make sure lights and SMV emblem are clean from dirt and field debris. 4.

  • Page 41: Removing Pump Safety Plugs

    Removing Pump Safety Plugs Loosen the stainless clamps shown below and remove the safety plugs. Then, attach the pump fittings using the stainless clamp, ensuring the gasket is seated correctly between the pump and pump fittings. Failing to remove these plugs can cause the pump to run dry and cause damage.

  • Page 42: Decals

    Decals ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged or Missing o_nitrogro_5000...

  • Page 43: Repair Parts List And Diagrams

    Decals Description Part No. Grease Point Decal JM0015104 Warning, Pinch Point Decal JM0014994 Down Pressure Decal (NitroGro) JM0035892 Warning, Insert Pin Before Road Transport Decal (NitroGro) JM0038103 Danger, Electrocution Hazard Decal (NitroGro) JM0035887 Caution, Failure to Observe Instructions Decal (NitroGro) JM0035881 Danger, Crushing Hazard Decal (NitroGro) JM0035883...

  • Page 44: Hitch

    Hitch Description Part No. 30k LB Safety Chain Set (2 Chains) JM0027440 NitroGro Applicator Safety Chain Spacer JM0059128 3/4”-10 x 6” Gr8 Z Hex Bolt JM0037185 3/8”-16 x 3/4” Gr5 Z Hex Bolt JM0001663 1/2” Hose Holder Rod (12HHR) JM0027120 CTD Perfect Hitch Base PP23XLR JM0037174 CTD Perfect Hitch Clevis 1-1/4”...

  • Page 45: Hub And Spindle

    Hub and Spindle Description Part No. W-891 Hub Assembly Complete with 22mm Studs and Nuts (Less Seal and Spindle) JM0050400 1”-8 Gr2 Z Centerlock Hex Nut JM0002149 1”-8 x 7” Gr5 Z Hex Bolt JM0016689 Spindle, 4-1/2” x 30-1/2” - Standard Axle (525-875, 5000) JM0018794 Seal (4-1/4”...

  • Page 46: Frame

    Frame Description Part No. Tongue - NitroGro 5000 JM0033656 Base Frame - NitroGro 5000 JM0036468 6” x 8” Adjustable Axle NitroGro 5000 (Bolt-On) JM0036561 Rear Frame 5016 (NitroGro) JM0039435 Saddle - Tank (NitroGro 5000) (After 2017) JM0036718 Rear Frame 5010 (NitroGro) JM0033744 3/4”-10 x 2-1/2”...

  • Page 47: Toolbar

    Toolbar Description Part No. Toolbar Base Section (NitroGro) (After 2017) JM0039525 2-1/2” ID x 3” OD x 2-1/4” Sleeve Composite Bearing JM0020546 3/4”-10 x 2-1/2” Gr8 YZ Hex Bolt JM0027464 Pivot Pin - 2-1/2” Dia with Bolt Retainer (NitroGro) JM0031502 3/4”-10 Gr2 Z Centerlock Hex Nut JM0002147 1”...

  • Page 48: Inside Wing

    Inside Wing Description Part No. Inside Wing - RH - NitroGro 5000 JM0036122 Inner Wing - LH - NitroGro 5000 JM0036129 3/4”-10 Gr2 Z Centerlock Hex Nut JM0002147 Dee Ring - Bolt Mounted JM0036703 3/4”-10 x 2-1/2” Gr8 YZ Hex Bolt JM0027464 1”...

  • Page 49: Tongue Shroud

    Tongue Shroud Description Part No. Hose Shroud - Tongue (5000) JM0034836 1/4”-20 Gr5 Z SF Hex Nut JM0001630 1/4”-20 x 2-1/2” Gr5 Z Hex Bolt JM0001506 5/16”-18 Gr5 Z SF Hex Nut JM0014049 5/16”-18 x 2-1/2” Gr5 Z Hex Bolt JM0028310 3/8”-16 x 1”...

  • Page 50: Gep Coulter Mount

    GEP Coulter Mount Description Part No. 3/8” x 3” SS Roll Pin JM0037162 QJ Mounting Tab for 5000 Coulter (NitroGro) JM0036048 28” Shaft for 5000 Coulter (NitroGro) JM0030959 28” Shaft for 5000 Coulter Mount - ParaLinkage JM0058251 5/8”-11 x 7-1/8” x 10-1/4” Square U-Bolt JM0030958 Channel Bracket Plate for 5000 Coulter (NitroGro) JM0030954...

  • Page 51: Gep Coulter Knife Assembly

    GEP Coulter Knife Assembly Description Part No. 1/2”-13 Gr2 Z Hex Nut JM0002124 1/2” Gr2 Z Lock Washer JM0019021 1/2” ID, 1-3/8” OD Z Flat Washer JM0003082 Knife Bracket Weldment JM0059364 3/8” Hose Clamp SS JM0039206 C050 Wiese Knife JM0031273 1/2”-13 x 1-3/4”...

  • Page 52: Coulter Blade And Hub Assembly

    Coulter Blade and Hub Assembly Description Part No. Seal Protector for GEP Coulter JM0038267 Small Outer Cone for 6-10 Ton (LM67048) JM0019564 1/2 “-13 x 2” Gr2 Z Carriage Bolt JM0038410 Small Cup for 6-10 Ton (LM67010) (200500) JM0026564 Hub Washer for GEP Coulter JM0038278 Cotter Pin 1/8”...

  • Page 53: J&M Para-Linkage Coulter

    J&M Para-Linkage Coulter 21 23 24 25 Description Part No. 3/8” x 2-1/2” SS Spiral Coiled Spring Pin 420SS HD JM0061533 Para-Linkage Coulter Mount Washer JM0049034 1-1/2” ID x 1-5/8 OD x 1” Length Sleeve Composite Bearing JM0048949 ParaLinkage Main body - Cast JM0051522 5/8”-11 GrC Z Distorted Thread Hex Nut JM0054594...

  • Page 54: J&M Row Closer

    J&M Row Closer 15 16 17 18 20 21 22 23 o_nitrogro_5000...
  • Page 55 J&M Row Closer Description Part No. 1/2”-13 x 5” Gr5 Z Hex Bolt JM0001594 0.256” Wire x 1-1/2” OD x 3-1/4” Length Compression Spring JM0059081 1/2” ID, 1-3/8” OD Z Flat Washer JM0003082 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511 Gooseneck Spring Loaded Closer Base Weldment JM0062117 Gooseneck Spring Loaded Closer Arm...

  • Page 56: 2" Fill/Tank Fittings

    2” Fill/Tank Fittings Description Part No. 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511 1/2”-13 x 1” Gr5 Z Hex Bolt JM0010225 Mounting Plate - 2” Ball Valve (NitroGro) JM0034889 Cable Lanyard (NitroGro) JM0039282 T-Bolt Hose Clamp 2” Hose, 2-5/16” Min OD JM0035247 2”...

  • Page 57: 3" Fill/Tank Fittings

    3” Fill/Tank Fittings Description Part No. 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511 1/2”-13 x 1” Gr5 Z Hex Bolt JM0010225 Cable Lanyard (NitroGro) JM0039282 T-Bolt Hose Clamp 3” Hose, 3-5/16” Min OD JM0035248 3” Manifold Flange x 3” Hose Barb JM0021244 Manifold Flange Clamp for M300 Fittings JM0035237...

  • Page 58: Hydraulic Pump Manifold Setup

    Hydraulic Pump Manifold Setup 14 15 Description Part No. 3/4” Hose Clamp SS JM0039205 M100 Manifold Flange x 3/4” Hose Barb; Straight JM0021401 Manifold Flange Clamp for M100 Fittings JM0032496 Manifold Gasket for M100 Fittings with Rib JM0035239 Ball Valve with M100 Manifold Flange JM0033824 Hose Clamp - 1-13/16”...

  • Page 59: Flow Monitors

    Flow Monitors Description Part No. Green Polyurethane Ball for Wilger Flow Indicator JM0055003 Red Polyurethane Ball for Wilger Flow Indicator JM0055004 Red Glass Ball for Wilger Flow Indicator JM0055005 1/2” SS Ball for Wilger Flow Indicator JM0055006 7/16” Stainless Steel Ball for Wilger Flow Indicator JM0061580 Cap with O-Ring - Wilger Flow Indicator JM0021579...

  • Page 60: Manifold (Hydraulic Pump Only)

    Manifold (Hydraulic Pump Only) Description Part No. M100 Manifold Flange x 3/4” Hose Barb; 90 Degree JM0032501 3/4” Hose Clamp SS JM0039205 Mount For Control Valves and Flow Monitors - 5000 Universal JM0077615 Raven Flow Meter RFM60P JM0032488 Manifold Flange Clamp for M100 Fittings JM0032496 Manifold Gasket for M100 Fittings with Rib JM0035239...

  • Page 61: Check Valve

    Check Valve Description Part No. Diaphragm Check Valve 3/4” Hose Tee Assembly JM0041782 Diaphragm Check Valve 3/4” Hose Single JM0041783 Diaphragm Check Valve 3/8” Hose Single Assembly JM0037890 3/4” Hose Clamp SS JM0039205 Diaphragm Check Valve 3/4” Hose Tee Only JM0036379 Diaphragm Check Valve 3/4”...

  • Page 62: Tank

    Tank Description Part No. 16” Fertilizer Tank Lid With Vent JM0037949 Band for Elliptical NitroGro Tank JM0030208 1,000 Gallon Elliptical Tank with Sump JM0027371 1,600 Gallon Elliptical Tank with Sump JM0027372 3/32” x 1-5/8” Hairpin Cotter Pin SS JM0061306 SS Rod for Tank Lid Baffling 17-1/2” JM0061194 Tank Lid Blow-Off Hinged Stop Plate JM0061600...

  • Page 63: Gauge Wheel

    Gauge Wheel Description Part No. 5/8”-11 x 7-1/8” x 8-11/16” Square U-Bolt JM0020901 Hitch Pin (5/8” x 6-1/2”) (HP-586) JM0003079 Gauge Wheel U-Bolt Mount Weldment (6000 Series) JM0047347 5000 Gauge Wheel Ambidextrous Weldment JM0077668 1/2”-13 x 3” Gr5 Z Hex Bolt JM0016678 5/8”...

  • Page 64: Hydraulic Schematic

    Hydraulic Schematic 3-1/2” x 14” 3-1/2” x 14” Fold/Unfold Fold/Unfold Outside Outside 4” x 24” Fold/Unfold 4” x 24” Inside Fold/Unfold Inside 4”x8” Down Pressure 4”x8” 4”x8” Raise/Lower Raise/Lower 0-1500 PSI Hydraulic Pump Pressure Gauge To Outlet To Inlet Manifold 21 22 o_nitrogro_5000...
  • Page 65 Hydraulic Schematic Description Part No. 3/8” Male JIC x 1/2” Male ORB; 90 Degree Elbow JM0037159 3-1/2” x 14” Welded Non-Cushion JD Cylinder JM0055022 Seal Kit for 3-1/2” x 14” Hydraulic Cylinder (JD-629) JM0074483 3/8” x 108” Hydraulic Hose 104inch6M3K-6G-6FJX-6G-6FJX JM0041615 3/8”...

  • Page 66: Wire Harness

    Wire Harness Power to Flow Harness Description Part No. Amber Light (Soil Conditioner, NitroGro) JM0009975 Red Light (Soil Conditioner, NitroGro) JM0009976 Right Light Harness (NitroGro) JM0061737 Left Light Harness (NitroGro) JM0061738 Front Main Harness with 7 Prong Connector (NitroGro) JM0061736 NitroGro 6000 - Rear Flood Light Harness JM0074220 LED Field Light with Weather Pack Connectors (SpeedTender, NitroGro) JM0050942...

  • Page 67: Scs 450 Liquid Control System

    SCS 450 Liquid Control System To weather pack on item 2 Power from main harness Valve Description Part No. Raven SCS450 Control Console JM0039335 NitroGro 5 Section - PWM 30’ Extension JM0055257 Mini Whisker Limit Switch JM0050161 Phoenix GPS Speed Sensor JM0039338 NitroGro Break Out Harness 4’...

  • Page 68: Iso Liquid Control System

    ISO Liquid Control System Auxiliary Power Toolbar Height Switch PWM Valve Description Part No. Raven Cable ISOBUS Hitch to Raven ECU (17’) JM0051018 Remote Switch Cable for Implement Engagement - ISO Control JM0050677 Mini Whisker Limit Switch JM0050161 Raven ISO Single Product Kit JM0039339 NitroGro Break Out Harness 4’...

  • Page 69: Fertilizer Hose Routing - Hydraulic Pump Without Flow Monitors

    Fertilizer Hose Routing - Hydraulic Pump without Flow Monitors 13 14 Check Valve to Knife/Injector Boom 3 Boom 1 Boom 2 Description Part No. 1-1/2” x 228” TSD Fertilizer Suction Hose (5016) JM0040211 1-1/2” x 180” TSD Fertilizer Suction Hose (5010) JM0040330 2”...

  • Page 70: Fertilizer Hose Routing - Hydraulic Pump With Flow Monitors

    Fertilizer Hose Routing - Hydraulic Pump with Flow Monitors 22 23 Boom 1 Flow Monitor to Check Valve Boom 3 Boom 2 Check Valve to Knife/Injector 30” Row Spacing Hose barb “T” will be used if you have too Flow Monitor to Check Valve many coulters.
  • Page 71 Fertilizer Hose Routing - Hydraulic Pump with Flow Monitors Description Part No. 1-1/2” x 228” TSD Fertilizer Suction Hose (5016) JM0040211 1-1/2” x 180” TSD Fertilizer Suction Hose (5010) JM0040330 2” x 32” TSD Fertilizer Suction Hose JM0040224 2” x 36” TSD Fertilizer Suction Hose JM0040215 3”...

  • Page 72: 5000 Ground Driven Pump

    5000 Ground Driven Pump 24 25 22 23 The hub, lugs and tire are the same as the “Gauge Wheel” on page 63. o_nitrogro_5000...
  • Page 73 5000 Ground Driven Pump Description Part No. John Blue Ground Driven Dual Piston Pump JM0035142 1-1/2” Male MPT x 2” Manifold Flange JM0035124 Manifold Flange Clamp for M200 Fittings JM0035251 Manifold Gasket for M200 Fittings JM0021145 2” Manifold Flange x 90 Deg 1-1/2” Hose Barb JM0034352 Hose Clamp - 1-13/16”...

  • Page 74: 5000 Ground Driven Pump Manifold

    5000 Ground Driven Pump Manifold 12 13 Description Part No. Hose Clamp - 1-13/16” Min, 2-1/16” Max JM0021189 2” Manifold Flange x 90 Deg 1-1/2” Hose Barb JM0034352 Manifold Flange Clamp for M200 Fittings JM0035251 Manifold Gasket for M200 Fittings JM0021145 3/8”-16 x 2-1/2”...

  • Page 75: Fertilizer Hose Routing - Ground Driven Pump Without Flow Monitors

    Fertilizer Hose Routing - Ground Driven Pump without Flow Monitors Ground Drive Manifold Fill Valve Tank Valve Ground Drive Pump Check Valve to Knife/Injector Boom 3 Boom 1 Boom 2 Description Part No. 1-1/2” x 228” TSD Fertilizer Suction Hose (5016) JM0040211 1-1/2”...

  • Page 76: Fertilizer Hose Routing - Ground Driven Pump With Flow Monitors

    Fertilizer Hose Routing - Ground Driven Pump with Flow Monitors Ground Drive Manifold Fill Valve Tank Valve Ground Drive Pump Boom 1 Flow Monitor to Check Valve Boom 3 Boom 2 Check Valve to Knife/Injector Hose barb “T” will be used if you have too 30”...

  • Page 77: Hand Wash Tank

    Hand Wash Tank Description Part No. 9 Gallon Safety/Fresh Water Tank JM0030587 Drum Faucet - 3/4” NPT (NitroGro) JM0039066 5/16”-18 x 1/2” Gr5 Z Hex Bolt JM0016674 3/4” NPT PVC Threaded Plug Schedule 40 (NitroGro) JM0037251 Manual Canister and SMV Description Part No.
