Summary of Contents for J&M Grain Storm 1050-18D

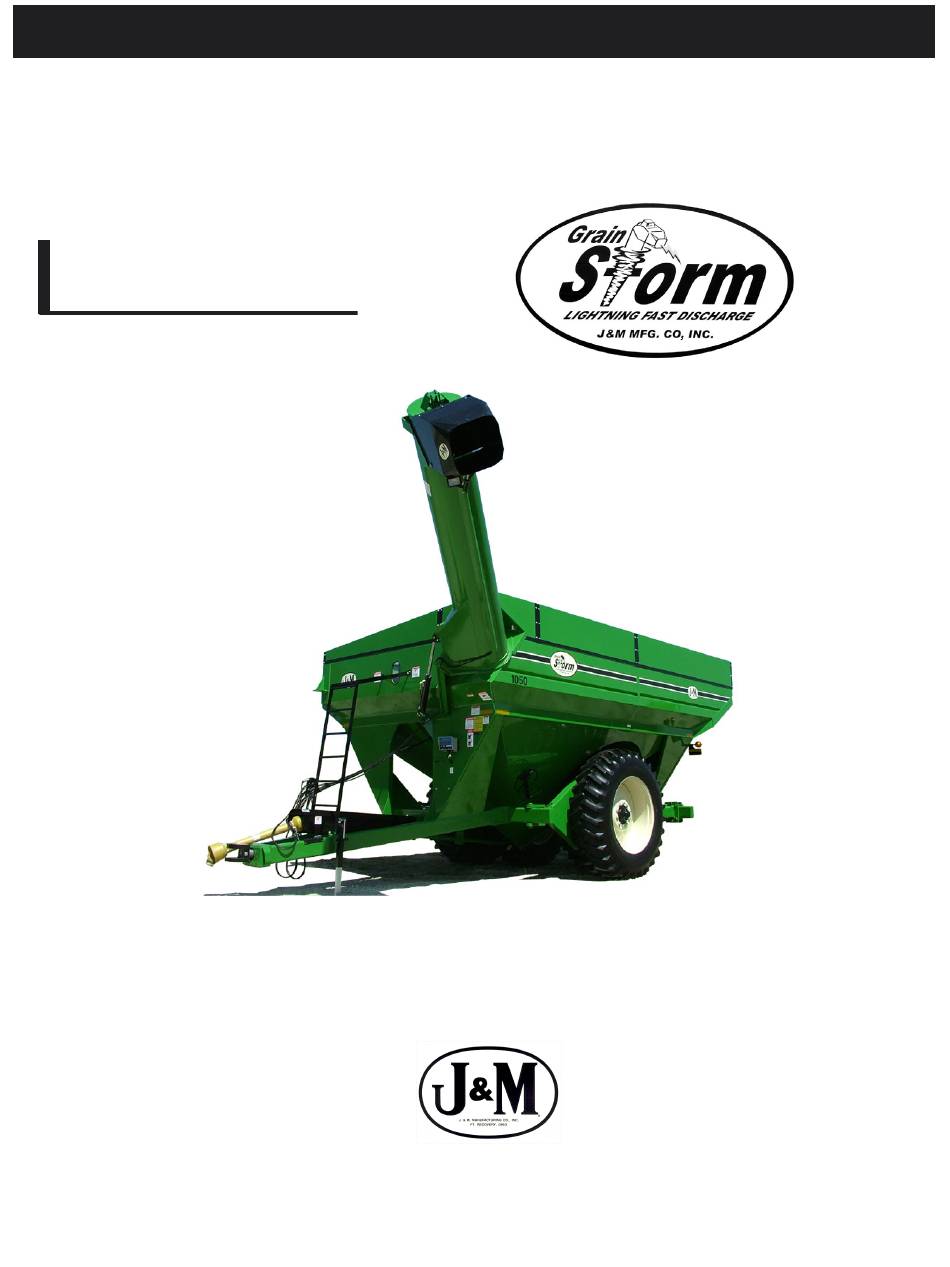

- Page 1 O P E R A T O R ’ S M A N U A L P A T E N T E D S I N G L E A U G E R G R A I N C A R T S 1050-18D Grain Cart J.
- Page 2 TO THE DEALER: Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual are completed before releasing equipment to the owner. The dealer must complete the Warranty Registration Card attached to the front inside cover of this manual and return to J.
-
Page 3: Specifications
1050-18D GRAIN CART SPECIFICATIONS DIMENSIONS SPECIFICATIONS Capacity 1050 bushels 1’-9” Auger, one vertical 18” diameter 18’-10” Wheels 16x42 or 18x38 Duals 8’-6” Hubs 10 bolt 22’-0” Spindles 4-1/2” diameter 29’-7” Weight (approx.) 16,100 Lbs. 13’-6” 1,000 rpm 6’-4” Tire Size 18.4x42 or 20.8x38 12’-0”... -
Page 4: Bolt Torque Chart
GENERAL INFORMATION BOLT TORQUE CHART Always tighten hardware to these values unless a different torque or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware. -
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION EXPRESS WARRANTY SPECIFICATIONS GENERAL INFORMATION BOLT TORQUE CHART SAFETY RULES SAFETY SIGNS INITIAL OPERATION OPERATION ROUTINE MAINTENANCE TROUBLE SHOOTING SERVICE 12-13 STORAGE REMOVING FROM STORAGE PARTS LISTS/DIAGRAMS 14-19 WEIGH SCALE INSTALLATION INSTRUCTIONS 20-22 ROLL TARP INSTALLATION 23-25 SERVICE RECORDS... -
Page 6: Safety Rules
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness, concern, judgement, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. -
Page 7: Safety Signs
750-16 OWNER’S MANUAL SAFETY SIGNS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged or Missing! Ref. # Description Part # Req’d IMPORTANT: Install new safety signs if the old signs are Sign, Danger CDD-101 destroyed, lost, painted over or cannot be read. When Sign, Danger CDD-103 parts are replaced that have safety signs, make sure you... -
Page 8: Initial Operation
INITIAL OPERATION/MAINTENANCE BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE GRAIN CART. Before the grain cart is put into service: Have the safety instructions been read and clearly understood by the operator(s) of this machine? Has the gearbox been properly filled with EP-80-90 gearbox lubricant? Have all nuts, bolts, bearings, and braces been properly fastened? IMPORTANT: Has the slip clutch on the PTO been serviced? If the slip clutch is left unchecked, damage to the power-take-off and drive shaft may result. - Page 9 OPERATING INSTRUCTIONS BE CERTAIN THAT ALL POWER IS SHUT OFF WHEN HOOKING UP TO TRACTOR OR CONNECTING HYDRAULIC LINES TO TRACTOR. Preparing the Grain Cart for Use (see tractor recommendation for grain cart model below): Model 525-14W Grain Cart requires a 100 hp tractor or larger. Model 620-14, 750-14, 750-16 or 750-18 Grain Cart requires a 130 hp tractor or larger.
- Page 10 IMPORTANT: 1) Hookup grain cart to tractor using a good quality hitch pin. Attach a safety chain (not included as standard equipment) to the tractor and around the A-frame of the cart as shown. Make sure the grain cart hitch properly matches the hitch of the tractor.
-
Page 11: Lubrication Service Schedule
LUBRICATION SERVICE SCHEDULE IMPORTANT: Your Grain Cart has grease fittings at all critical points. These should be serviced before the cart is put into operation. BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE GRAIN CART. Hitch: There is a grease fitting located on the pivot shaft of the swivel hitch. PTO &... -
Page 12: Trouble Shooting
TROUBLE SHOOTING MAKE SURE THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE GRAIN CART. MAINTENANCE AND REPAIR SERVICE WORK TO BE PERFORMED BY QUALIFIED SERVICEMEN ONLY. Trouble... Possible Cause ... Possible Remedy ... Auger will not return to down Dirt in restricter Remove restricter fittings from out- position or move from stow position... - Page 13 ADJUSTING THE SLIP CLUTCH After the first hour of operation, the slip-disc clutch should be checked for overheating. After this first check, the slip-disc clutch should be checked weekly or anytime there is excessive slippage of the friction discs. The slip-disc clutch should be checked for moisture, which could cause corrosion on the drive plates.
-
Page 14: Storage
ADJUSTING THE UPPER FLIGHTING MAKE SURE THAT ALL POWER IS SHUT OFF BEFORE ADJUSTING THE FLIGHTING ASSEMBLY. If the upper and lower flightings do not properly separate during the unfolding sequence, the upper flighting may need adjusting. Before making adjustment to upper flighting, check to see if the lugs and drive-dog are locking together by checking for a 1/8”... -
Page 15: Repair Parts List And Diagrams
REPAIR PARTS LIST AND DIAGRAMS When performing maintenance work, wear sturdy, rough-soled work shoes and protective equip- ment for eyes, hair, hands, hearing and head. Follow Operator’s Manual instructions to ensure safe and proper maintenance and repair. Your local, authorized dealer can supply genuine replacement parts. Substitute parts may not meet original equipment specifications and may be dangerous. -
Page 16: Power Take-Off Shaft
POWER TAKE-OFF SHAFT Part # Description 28428 Complete Collar Yoke C15 18130 Cross Journal Set 18133 Outer Yoke 00243 Roll Pin for Outer Tube 18210 Bush with Grease Nipple 30710 Complete Outer Tube 90010 Inner Tube 00271 Roll Pin for Inner Tube 18134 Inner Yoke 84033... -
Page 17: Drive Line Assembly
DRIVE LINE ASSEMBLY # Part # Description 1 252288 U-Joint (drive shaft to gearbox) 2 UCF-20928 1 3/4" Flange Bearing, 4 hole 3 38112 3/8" x 1 1/2" Half Moon Key 4 SS-3812 3/8" x 1/2" Set Screw 5 SS-1212 1/2"-20 x 1/2"... -
Page 18: Hydraulic Cylinder Assembly
HYDRAULIC CYLINDER ASSEMBLY (To Raise and Lower the Upper Auger) # Part # Description 1 JD25024 2 1/2" x 24" Hydraulic Cylinder 2 JD469 Seal Kit for 2 1/2" x 24" Hydraulic Cylinder 3 ICR4 1" x 4" Pin with Hair Pin 4 38SE90 3/8"... - Page 19 HYDRAULIC DRIVEN FLOW CONTROL SPOUT # Part # Description 1 FSH-18 Flow Control Spout Housing 2 HP-18 Hinge 3 BP-18 Baffle Plate 4 HC-FCS Hyd. Cylinder with clevis end and 1/2"-20 regular nut 5 SKHC-FCS Seal Kit for Hydraulic Cylinder 6 HH-1428 1/4"...
- Page 20 GRAIN CART LIGHT KIT # Part # Description 1 8WH-7PC Main Wiring Harness with 7- Prong Connector End 2 LE-1B Light Enhancer 3 WH-1 Wiring Harness (Rear Half) 4 EL-A1 Extendable Amber Light Assembly (Left/Right) 5 RL-R1L Rear Red Light, Left 5 RL-R1R Rear Red Light, Right 6 MS-1...
- Page 21 ELECTRONIC WEIGH SCALE SYSTEMS FOR GRAIN STORM 1050-22D Scale System Parts List (Digi-Star System) NOTE: Part # Description When inserting both the weigh 278WB-2 2-7/8" Hitch Weigh Bar with cable spindles or the hitch weigh 375WTS Weigh Spindle with cable bar, be sure that the TOP of EZ-2000 Indicator Box with mounting plate...
- Page 22 WEIGH SCALE RETROFIT KIT (Continued) MOUNTING THE BATTERY BOX On the rear side of the front, left leg of the grain cart (the leg below the auger hinge), position the Battery Box below and to the right of the grommet as shown. Battery Using the Battery Box as a template, mark and drill two 3/8”...
