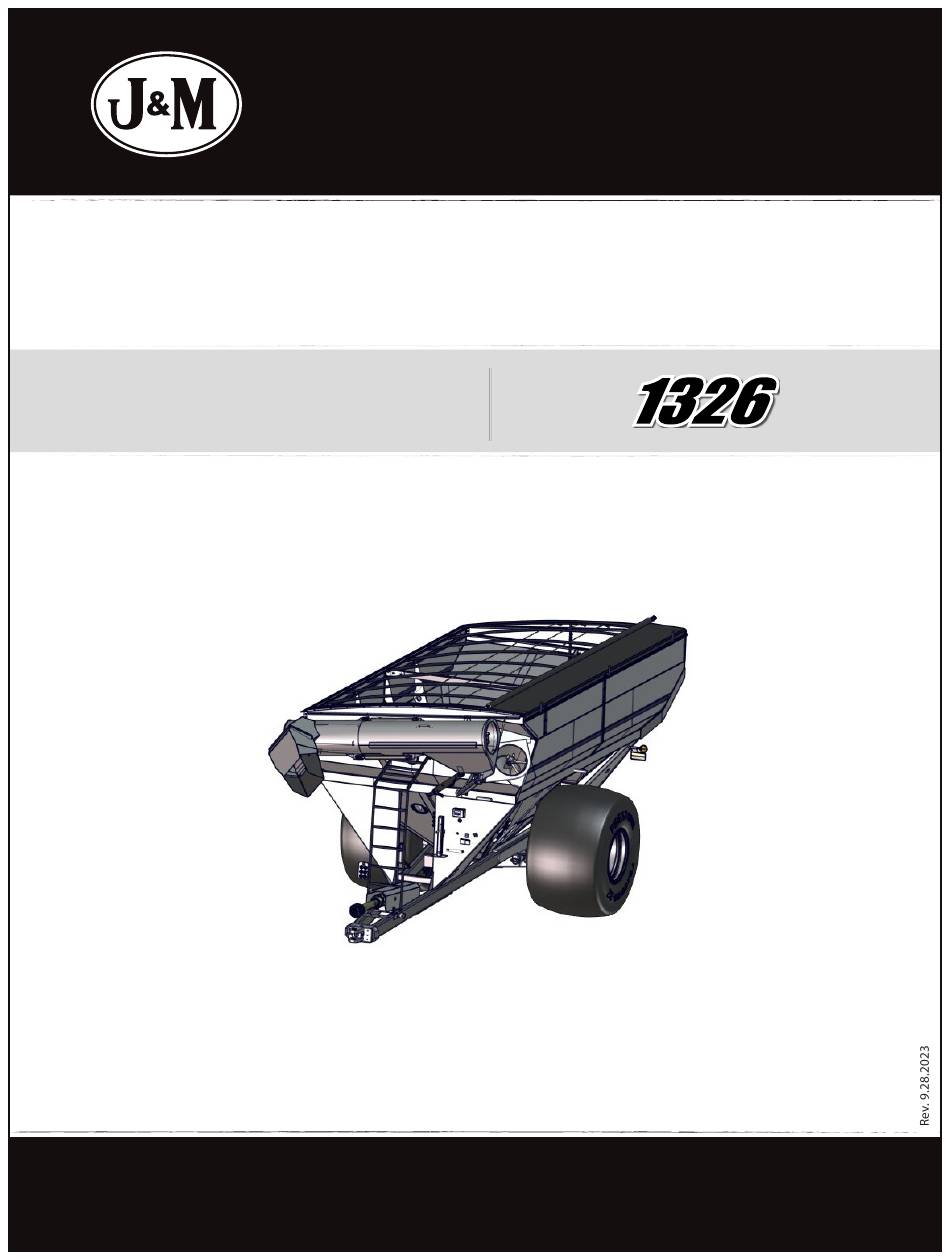

- Page 1 Manual GRAIN CART MODEL O P E R A T O R ’ S M A N U A L J&M Manufacturing Co, Inc 284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: (419) 375-2376 | Fax: (419) 375-2708 www.jm-inc.com...
- Page 2 Stance Front Auger Side Opposite Auger Side Rear...
-
Page 3: Table Of Contents
Table Of Contents To the Dealer ....................4 General Information . -
Page 4: To The Dealer
Use only genuine J&M service parts. Substitute parts may void warranty and may not meet standards required for safety and satisfactory operation. Record the model number and serial number of your equipment in the spaces provided: Model No:1326 Grain Cart Serial No: ________________________... -
Page 5: General Information
General Information TO THE OWNER: The purpose of this manual is to assist you in operating and maintaining your grain cart in a safe manner. Read it carefully. It furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe operating conditions. If this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to operating: 1. - Page 6 Specifications and Dimensions Specifications Dual Wheel Option Capacity 1325 Bushels 1’-6” Auger, One Vertical 22” 21’-9” Unload Speed 600+ bu/min 8’-6” Wheels (2) 18x42 25’-6” IF520/85R42 or Tires (2) 34’-5” 520/85R42 12”-6” Hubs (2) 10 Bolt 6’-4” Spindles (2) 4-1/2” Diameter 12’-4”...
-
Page 7: Bolt Torque Chart
Bolt Torque Chart Always tighten hardware to these values unless a different torque or tightening procedure is listed for specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware. Make sure fastener threads are clean and you start thread engagement properly. -
Page 8: Decals
Decals ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged or Missing KEEP OFF THE LADDER WHILE DO NOT ENTER GRAIN TANK WHEN THE MACHINE IS OPERATING, AUGER IS RUNNING. IN TRANSPORT OR THE UNLOADING AUGER IS IN MOTION KEEP HANDS AND CLOTHING AWAY FROM MOVING PARTS KEEP OFF THE LADDER WHILE... - Page 9 CHECK WHEEL LUGS CHECK BEFORE EVERY SEASON. Manufacturer is NOT responsible for damage from loose lug nuts. Description Part No. 14 1326 Opposite Auger Side Stripe Kit JM0025970 15 1326 Auger Side Stripe Kit JM0025969 16 Grain Storm Decal JM0025930...
-
Page 10: Safety Rules
Safety Rules ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness, concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. -
Page 11: Initial Operation And Maintenance
Initial Operation and Maintenance WARNING BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE GRAIN CART. Before the grain cart is put into service: • Have the safety instructions been read and clearly understood by the operator(s) of this machine? •... -
Page 12: Operating Instructions
BE CERTAIN THAT ALL POWER IS SHUT OFF WHEN HOOKING UP TO TRACTOR OR CONNECTING HYDRAULIC LINES TO TRACTOR. Tractor Requirements for proper towing: Model 1326 grain carts require a 250+ HP Tractor. IMPORTANT: Do NOT pull a loaded grain cart on highway. For incidental highway travel, observe the section below. -
Page 13: Adjusting Row Spacing For Walking Tandem Duals
Operating Instructions Attach the hydraulic lines to the tractor. Two hydraulic lines (green band) operate the inside gate mechanism. Connect these lines to one service outlet on the tractor. Two hydraulic lines (yellow band) operate the folding mechanism of the auger. Connect these lines to a second service outlet on the tractor. -
Page 14: Lubrication Service Schedule
The fluid level should rest at the inspection plug, pictured in blue below. When filled to the proper level, the gearbox should have 96 ounces of SAE 80W-90 lubricant. Change the oil annually before use. Gearbox Lubricant Model Ounces Input Shaft Output Shaft 1326 1-3/4” 2”... -
Page 15: Routine Maintenance
Routine Maintenance WARNING BE CERTAIN ALL POWER IS SHUT OFF WHEN SERVICING THE GRAIN CART • Repack the bearings in the hub assembly once a year or as needed. Use a good quality LS EP2 Severe Duty, High Shock Load, Lithium based Grease. -
Page 16: Adjusting The Lower And Upper Flighting
Adjusting the Lower and Upper Flighting WARNING MAKE SURE THAT ALL POWER IS SHUT OFF BEFORE ADJUSTING THE FLIGHTING ASSEMBLY. LOWER FLIGHTING - If the drive-dog and hanger assembly are becoming excessively hot during unloading, the lower flighting and/or hanger may need adjusting. The hanger bushing assembly has elongated holes where it attaches to the outer tube assembly. Loosen the two 1/2”... -
Page 17: Removing Dirt From The Restrictors On The Hydraulic Cylinder
Removing Dirt from the Restrictors on the Hydraulic Cylinder WARNING MAKE SURE THAT ALL POWER IS SHUT OFF AND THE UPPER AUGER TUBE IS IN THE DOWN POSITION BEFORE REMOVING THE RESTRICTORS Remove restrictors from the 90 degree street elbow on the tip spout hydraulic cylinder. Remove dirt from the fitting to allow hydraulic oil to flow through the restrictor. -
Page 18: Hub & Spindle Assembly 250-10 (Single Wheels)
Hub & Spindle Assembly 250-10 (Single Wheels) Torque Values 22mm Studs 640 Ft.-Lbs. NOTE: When installing a hub cap apply silicone around the rim for a better seal. Description Part No. G250-10 Hub, Spindle, and Bearings Assembly with 22mm Studs, Races and Nuts (HSA-1075-22) JM0019927 1”-8 Gr2 Z Centerlock Hex Nut JM0002149... -
Page 19: Hub & Spindle Assembly 550-20 (Single Wheels-20 Bolt Hubs)
Hub & Spindle Assembly 550-20 (Single Wheels-20 Bolt Hubs) Torque Values 22mm Studs 640 Ft.-Lbs. NOTE: When installing a hub NOTE: If the dust cap has a GKN cap apply silicone around the symbol call 419-375-2376 for rim for a better seal. parts. -
Page 20: Hub & Spindle Assembly W-881 (Walking Tandem Dual Wheels)
Hub & Spindle Assembly W-881 (Walking Tandem Dual Wheels) Torque Values 3/4" Studs 400 Ft.-Lbs. NOTE: When installing a hub cap apply silicone around the rim for a better seal. Description Part No. W-881 Hub Assembly Complete with 3/4” Studs and Nuts (Less Seal and Spindle) JM0050402 1”-8 Gr2 Z Centerlock Hex Nut JM0002149... -
Page 21: Power Take-Off (Pto) Shaft Assembly - Comer
Power Take-Off (PTO) Shaft Assembly - Comer Description Part No. Description Part No. Complete Comer 1-3/4” Collar Yoke C15 (28428) JM0025180 21 Flanged Yoke (Comer PTO) (18016) JM0025163 Complete Comer 1-3/8” Collar Yoke C15 (28426) JM0025181 22 Bushing (Comer PTO) (19019) JM0025164 Cross Journal Set (Comer PTO) (18130) JM0025144... -
Page 22: Power Take-Off (Pto) Shaft Assembly - Weasler
Power Take-Off (PTO) Shaft Assembly - Weasler Red lines indicate where to measure length. Front Half Back Half Description Part No. Back Half Weasler PTO 24k (1-3/4”) (Auto Clutch) 25-3/4” JM0018513 Back Half Weasler PTO 24k (1-3/4”) (Auto Clutch) (XL) 31-3/4” JM0030331 Front Half Weasler PTO 24k (1-3/4”) (Auto Clutch) 25”... -
Page 23: Driveline Assembly
Driveline Assembly Description Part No. 97” PTO and Drive Shaft Guard (1326, 1401) JM0017577 190” x 1-3/4” Drive Shaft (DS-134190) JM0026235 2” x 45” PVC JM0054224 2” x 31” PVC JM0018799 2” x 33” PVC JM0039459 44 Series U-Joint (252288) - Weasler 44063-A1 JM0017957 3/8”... -
Page 24: 130 Degree Gearbox Assembly (Weasler)
130 Degree Gearbox Assembly (Weasler) Takes 3 Quarts (96 Ounces) of SAE 80W-90 Gearbox Lubricant. In 2019, Weasler changed from quarter spline press-in fit to the splined fit of the current edition. When purchasing parts, ensure your shaft will fit the gear. Gearboxes with the press-in fitting will have “6050- 0359”... - Page 25 130 Degree Gearbox Assembly (Weasler) Description Part No. 1/2”-14 NPT Pipe Plug for Weasler Gearbox (72-20007) JM0025068 1/2” NPT Bushing 1/8” NPT Relief Plug (72-20011) JM0025067 2” Output Shaft - Splined (09-70194) JM0046062 Cap Screw 3/8”-16 UNC x 2-1/2”, Gr5 for Weasler Gearbox (72-0002) JM0025069 Housing Set For Weasler Gearbox (70-001114) JM0025053...
-
Page 26: Hitch And Jack Assembly
Hitch and Jack Assembly Hitch Options 19 20 Description Part No. 2-7/8” Cast Spade Hitch CAT 4 - 2” Pin (GC) JM0074581 1”-8 Gr2 Z Centerlock Hex Nut JM0002149 3-3/4” Neck Down to 2-7/8” Non Scale Bar JM0073447 1”-8 x 6” Gr8 YZ Hex Bolt JM0074245 1”-8 x 4”... -
Page 27: Lower Auger Assembly
3/8”-16 x 1” Gr8 YZ Hex Bolt JM0001485 10 3/8” ID, 1” OD Z Flat Washer JM0003061 11 1/2” Gate Indicator Rod (133-1/2” Rod Length) (1326, 1401) JM0019396 12 3/8”-16 Gr5 Z SF Hex Nut JM0002152 13 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092 14 1”... -
Page 28: Top Auger Linkage
Top Auger Linkage Description Part No. 1-1/4”-12 PN Gr2 Hex Jam Nut JM0001606 HD Adjustable Pac Man Weldment JM0021417 1” x 3” Clevis Pin with Cotter Pins JM0019407 5/8”-11 Gr2 Z Centerlock Hex Nut JM0002146 22” Top Auger Hinge Pin Weldment JM0025101 5/8”-11 x 1-3/4”... -
Page 29: Flow Control Spout Assembly
Flow Control Spout Assembly Description Part No. 22” Flow Control Spout Weldment (FSH-22NS) (1326, 1401) JM0018284 1/2”-13 x 24” Partially Threaded Stud JM0018648 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511 22” Baffle Plate (Rectangular) (BP-22NS) JM0010977 Hinge for 22” Flow Control Spout (HP-22) JM0018582 1/2”-13 x 2”... -
Page 30: Hydraulic Hoses & Cylinders
Hydraulic Hoses & Cylinders 1-3/4”x4” Hydraulic Cylinder “Tip Spout Cylinder” 2”x36” Hydraulic Cylinder “Door Cylinder” 3”x24” Hydraulic Cylinder “Fold Cylinder” “Door Cylinder” “Tip Spout Cylinder” “Fold Cylinder” *Couplers welded to Shell... - Page 31 Hydraulic Hoses & Cylinders Description Part No. 2” x 36” Hydraulic Cylinder (JD236) JM0018523 Seal Kit for 2” x 36” Hydraulic Cylinder (JD472) JM0026544 Seal Kit for 2” x 36” Hydraulic Cylinder (20036-SK) JM0082366 1-3/4” x 4” Hydraulic Cylinder (1/2” Clevis and Tab Ends) (HC-FCS) JM0018564 Seal Kit for 1-3/4”...
-
Page 32: Auto-Gate Shut-Off
Auto-Gate Shut-Off 2”x36” Hydraulic Cylinder “Door Cylinder” Constant Flow or Detent 12 GPM Flow Rate Cylinder Extend/Retract To Grain Cart Trailer Harness To iFarm/GT560 Description Part No. Auto Gate Control Manifold Assembly (1000 - 1400 Bushel Carts) JM0080322 #8 Male ORB x #8 Female ORB - Straight JM0080267 1/2”... -
Page 33: Lights And Wiring
Lights and Wiring Ground (White Wire) Field Light (Black Wire) Tail Light (Brown Wire) Amber Flashing Amber Flashing & Turn Signal & Turn Signal (Green Wire) (Yellow Wire) Description Part No. Red Oval LED Tail Light JM0034389 LED Amber Light (Circular) JM0018819 Extendable Amber Light Assembly (Left Side) JM0018817... -
Page 34: 5-Point Scale System For Single Wheel/Tracks
5-Point Scale System for Single Wheel/Tracks Grain Cart Main Harness GT 560 Power Cable GT 400 GT 400 and iFarm Power Cable GT 560 Tracks use all the same hardware and parts just use a different axle. - Page 35 5-Point Scale System for Single Wheel/Tracks When there is a conflict, highlighted rows are parts for Avery Weigh-Tronix scale systems. When there is a conflict, highlighted rows are parts for Avery Weigh-Tronix scale systems. When there is a conflict, highlighted rows are parts for Avery Weigh-Tronix scale systems. Description Part No.
-
Page 36: 5-Point Scale System For Walking Tandem Dual Wheels
5-Point Scale System for Walking Tandem Dual Wheels Grain Cart Main Harness GT 560 Power Cable GT 560 GT 400 GT 400 and iFarm Power Cable Description Part No. 3-3/4” Weigh-Tronix Scale Bar with 2-7/8” Load End (AWT27-100012) JM0074461 GT 400 Digi-Star Scale Display Monitor JM0019040 GT 560 Digi-Star Scale Display Monitor JM0044177... -
Page 37: Walking Tandem Dual Wheel Assembly
Walking Tandem Dual Wheel Assembly Description Part No. 1”-14 Gr8 YZ Hex Nut JM0019926 1-1/4” x 8” x 14” Walker Frame Clamp Plate (114814CP) JM0010145 1”-14 x 7-1/2” Gr8 YZ Hex Bolt JM0019925 Walker Main Frame Weldment (Left) (FW-1L) JM0019922* Walker Main Frame Weldment (Right) (FW-1R) JM0010082* 1-3/4”... -
Page 38: Sideboards
Back Endboard 141” x 13” (1312, 1326) (TTE-1325R) JM0009596* High Sideboard Corner 13” (1312, 1412, 1522, 1326, 1401) (TTE-1325HSC) JM0009700 Back Half High Sideboard 153” x 13-1/4” (1312, 1412, 1522, 1326, 1401) (TTE-1325HSR) JM0017484* High Sideboard Splice 13” x 4” (1312, 1412, 1522, 1326, 1401) (TTE-1325HSP) JM0009702 High Sideboard Brace End 12-1/2”... -
Page 39: Ladder Assembly
Ladder Assembly Description Part No. 4 Rung Ladder Assembly (LA-1050) JM0018805 Operator’s Manual Canister JM0010115 3/8”-16 Gr5 Z SF Hex Nut JM0002152 Universal Ladder Bracket JM0016922 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092 3/8”-16 x 1-3/4” Gr5 Z Hex Bolt JM0002097 3/8”-16 Gr2 Z Centerlock Hex Nut JM0001512... -
Page 40: Door Wheel Assembly
Inspection Windows Description Part No. 1 3/8”-16 Gr2 Z Centerlock Hex Nut JM0001512 2 Inside Window Clip - Deep JM0000253 3 Outside Window Clip - Shallow JM0000256 4 3/8”-16 x 3/4” Gr5 Z Hex Bolt JM0001663 5 Window Seal 3/4” ‘S’ Strip JM0000254 6 Standard Inspection Window JM0000255... -
Page 41: Spring Return Assembly
Spring Return Assembly 11 12 Description Part No. 1/4”-20 Gr2 Z Centerlock Hex Nut JM0001505 Aluminum Spacer for Spring Return (1-3/8” x 2-3/16”) Rectangular JM0002445 1-1/4” Idler Pulley (1/4” ID) JM0002439 Large Spring Return Pully Spacer (2 Holes) JM0018897 1-5/8” Idler Pully (Long Spring Return) JM0012970 1/4”-20 x 1”... -
Page 42: Roll Tarp Assembly
Roll Tarp Assembly 31 32 41 42... - Page 43 12 Endcap Prop - Upper 19” JM0021404 13 3/8”-16 Gr5 Z SF Hex Nut JM0002152 14 1/4” x 2” x 29” Bar with 120° Bend for Crank Handle (1312,1326,1522) JM0048492 15 1/2”-13 Gr2 Z Centerlock Hex Nut JM0003061 16 Crank Holder (Zinc Plated) (CH-1)
