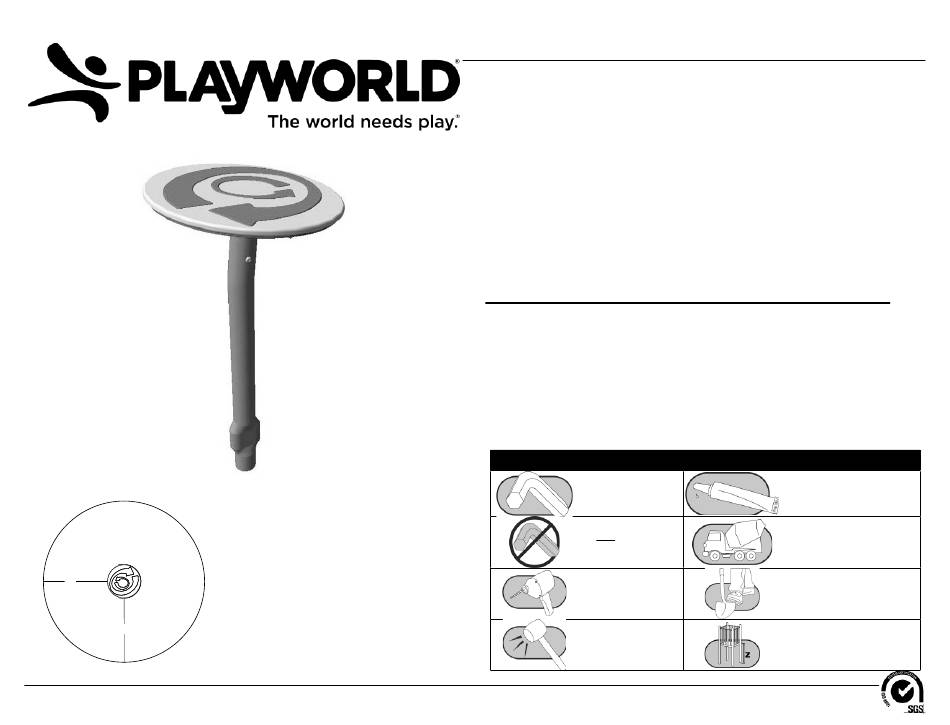

Installation Instructions
Assembly View
A
A
Page 1 of 8
Equipment Use Zone
A - (ASTM): 72 in. (1830 mm)
(CSA): 1800 mm
(EN): 1500 mm
Installation Instructions
Playworld Systems
Spintastic
Installation Preparation
Recommended Crew: ........................... One (1) adult
Installation Time: ................................... 0.5 hour
Concrete Required: ............................... 0.10 cubic yard (0,08 cubic meters)
Use Zone: .............................................. Refer to the information below
User Group Age (years): ....................... ASTM/CSA: 5-12, EN: 6-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully Tighten
Hardware
Drill
Hammer
Model XX0132
®
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Model ZZXX0132
PA1234
Advertisement
Related Manuals for Playworld Systems 0132 Series
Summary of Contents for Playworld Systems 0132 Series
- Page 1 Installation Instructions Installation Instructions Playworld Systems Model XX0132 ® Spintastic Installation Preparation Recommended Crew: ......One (1) adult Installation Time: ........0.5 hour Concrete Required: ....... 0.10 cubic yard (0,08 cubic meters) Use Zone: ..........Refer to the information below User Group Age (years): .......
-
Page 2: Installation Instructions
Installation Instructions Position Unit of Measurement Top View Top # Inches Bottom # [Millimeters] Footing Diagram EN: 118 mm Elevation Views Page 2 of 8 Model ZZXX0132 PA1234... - Page 3 Installation Instructions Follow the details in alphabetical order. For clarifi cation, each detail references the step description. The step descriptions start on page 4. Spintastic Assembly ASY0210 (1 Total) Insert the Spintastic Assembly into the anchor leg and align holes. Anchor Leg AFM4851 (1 Total)
- Page 4 Installation Instructions Notes Before You Begin: Do not over tighten bolts during assembly, only snug tighten them until assembly is complete. Carefully read and understand these installation instructions before you begin. Step 1: Before attempting to assemble your equipment, please review all installation information carefully.
-
Page 5: Bill Of Materials
Installation Instructions Bill of Materials XX0132 - SPINTASTIC PART NO. DESCRIPTION QTY. AFM4851 FAB METAL - 2.88" O.D. x 38.36" ASY0210 ASSEMBLY - SPINTASTIC BAD0085 THREAD LOCKING ADHESIVE BAE0661 BOLT - 3/8"-16 x 1/2" BUTTON HEAD - SS BAE0922 TOOL - TT 45 L WRENCH ALB0025 LABEL - AGE APPROPRIATE SHEET For Customer Service, Call... - Page 6 • Do not encase bottom of support post in concrete. Place post directly on packed Concrete stone. • The footings shown on Playworld Systems’ documentation are recommendations based 12" on historical performance in average soil conditions. Footing dimensions may be modifi ed...
-
Page 7: Equipment Maintenance
Installation Instructions Equipment Maintenance Fasteners Replacement Parts Playworld Systems Model ® • Inspect for loose fasteners. • Refer to your installation instructions to obtain replacement XX0132 Tightening torque specifi cations are: part number. Bolts and Nuts: Snug tighten and tighten an additional •... -
Page 8: Inspection Checklist
Inspection Form Installation Instructions Preventive Maintenance • Be sure that you are using a copy of this Inspection Form and not your original..for Safety's Sake! • Use the Inspection Codes listed below and record condition of equipment at time of examination on the Inspection Checklist. - Page 9 The use zone of stationary play equipment may be overlapped by the • Insure that Age Appropriate and Hard Surface Warning/Playworld Systems use zone of adjacent stationary play equipment if the adjacent designated play identification labels are properly affixed to the play equipment. Labels are to be surfaces are no greater than 700 mm above the protective surfacing level.
- Page 10 • IMPORTANT! Because accidental falls around your playground equipment Maintenance can occur, Playworld Systems recommends that the area under and around the • Inadequate maintenance of equipment has resulted in injuries on the playground. Because the safety of playground equipment and its stability depends...
- Page 11 Footing Details (in ground) Support Post Component Factory-Applied Protective Protective Surfacing Level Factory-Applied Protective Surfacing Level Sticker Protective Surfacing Level Surfacing Level Sticker Ground Level Varies Ground Level Varies 2" (51 mm) 2" (51 mm) 36" 24" (914 mm) (610 mm) 42"...
- Page 12 Footing Notes (in ground) IN GROUND FOOTING DIAGRAMS-BLOCK OPTION Support Post Component Factory-Applied Protective Protective Surfacing Level Surfacing Level Sticker Factory-Applied Protective Surfacing Level Sticker Ground Level Protective Surfacing Level Varies 2" (51 mm) 48" Ground Level Varies (1219 mm) 2"...
- Page 13 • Do not encase the bottom of the support post in concrete. Place the post directly on packed stone or other porous material. • The footings shown on Playworld Systems’ documentation are recommendations based on historical performance in average soil conditions. Footing dimensions may be modified by the owner based on actual soil conditions.
- Page 14 Footing Notes & Details (surface mount) FOOTING NOTES (SURFACE MOUNT) • Most support posts and component support legs will have either a factory-applied sticker with line, or factory-applied mark designating protective surfacing level on a clear and level installation site. Surface Mount Post •...
-
Page 15: Final Inspection
FINAL INSPECTION • Playworld Systems ® • Insure that hard surface warning/Playworld Systems ® identification labels are insists on the installation of protective surfacing within the use zone of each play structure in accordance with the applicable standard or properly affixed to the play equipment. Labels are to be plainly visible according to current playground equipment guidelines.
