Installation Instructions

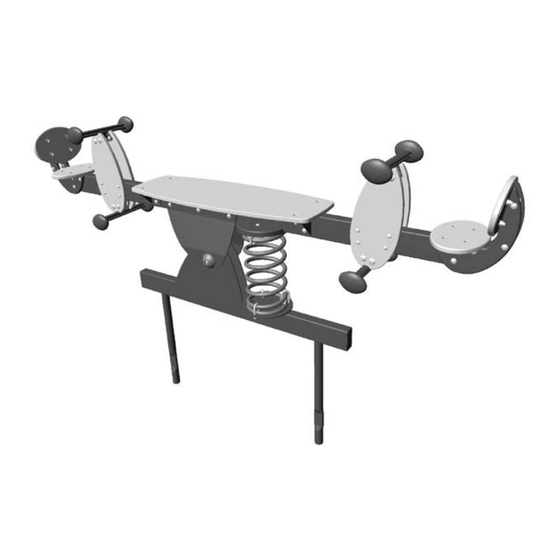

Assembly View
Use Zones: Duo See-Saws
A = ASTM: 84 in. (2134 mm)
CSA: 2100 mm
EN: 1500 mm
Page 1 of 14
A
Installation Instructions
Playworld Systems
Duo See-Saw
(w/ Seat Backs)
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time: ................................... 3 man-hours
Weight: .................................................. *196.6 lbs. (89,4 Kilos)
Concrete Required: ............................... 0.12 cubic yard (0,09 cubic meter)
Use Zone: .............................................. Refer to Use Zone information
User Group: ........................................... Ages 2 - 12 yrs
ICON KEY
Fully Tighten
Hardware
Do Not Fully TIghten
Hardware
Critical Fall Height
®
Model XX0596
*
Weights are approximate for determining manpower.
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Model XX0596
ECN2463
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Playworld Systems XX0596
Summary of Contents for Playworld Systems XX0596

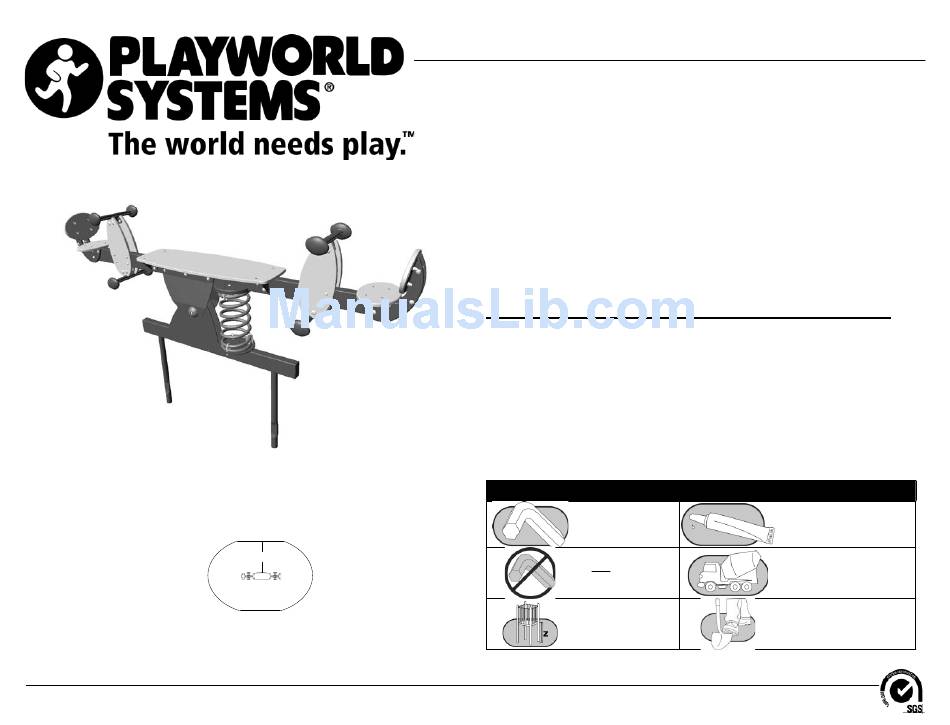

- Page 1 Installation Instructions Installation Instructions Playworld Systems ® Model XX0596 Duo See-Saw (w/ Seat Backs) Installation Preparation Recommended Crew: ......Two (2) adults Installation Time: ........3 man-hours Weight: ..........*196.6 lbs. (89,4 Kilos) Concrete Required: ....... 0.12 cubic yard (0,09 cubic meter) Use Zone: ..........
-
Page 2: Installation Instructions
Diameter stone. Support Post Footing Detail (ASTM/CSA) • The footings shown on Playworld Systems’ documentation are recommendations based on historical performance in average soil conditions. Footing dimensions may be modifi ed by the owner based on actual soil conditions. Protective Surfacing... - Page 3 Installation Instructions Position Unit of Measurement Top # Inches Bottom # [Millimeters] Apply The Surface Warning Labels Here Footing Diagram Top View Surfacing Warning Label 19.3" (489 mm) Elevation View Page 3 of 14 Model XX0596 ECN2463...
- Page 4 Important Note: The 2.94" U-bolt attaches through the spring wedge, then the 2" U-bolt over the second and bottom coil, and the 1-1/2" U-bolt over the bottom coil. Page 4 of 14 Model XX0596 ECN2463...
- Page 5 3/8" x 2" Important Note: Ensure that the square portion Button Head Bolt of the cross shaft is fully seated in the See-Saw BAE06673 mounting plate. Detail B Step 5 Detail C-1 Step 7 Page 5 of 14 Model XX0596 ECN2463...
- Page 6 2.94" U-bolt is lined up with the outer two 1/2" x 2.94" U-Bolt holes on the side of the mounting plate that has Detail F BAE1574 three holes arranged in a straight line. Step 10 (See Notes at Right) Page 6 of 14 Model XX0596 ECN2463...
- Page 7 BAE0936 See-Saw Cover Panel Mounting Brackets BFC0486 See-Saw Frame 3/8" Flat Washer BAE0595 3/8" Flat Washer BAE0595 3/8" Lock Nut BAE00620 3/8" Lock Nut Detail G BAE00620 Step 11 Detail H Step 12 Page 7 of 14 Model XX0596 ECN2463...
- Page 8 Detail J See-Saw Frame Step 14 Detail I Step 13 1" Bolts only Handle AAU0086 3/8" Lock Nut 3/8" x 1-1/2" BAE0620 Button Head Bolt BAE06645 3/8" Flat Washer BAE0595 Detail K Step 15 Page 8 of 14 Model XX0596 ECN2463...
- Page 9 3/8" Flat Washer BAE0595 BAE00620 BAE0595 Seat Cover BFC0487 3/8" Lock Nut 3/8" Flat Washer BAE00620 BAE0595 3/8" Flat Washer 3/8" Lock Nut BAE0595 BAE00620 Detail M Detail L Step 17 Step 16 Page 9 of 14 Model XX0596 ECN2463...
- Page 10 Check frame to ensure that it is plumb and level after pouring concrete. the second coil, and the end of the bottom coil. Position the 1-1/2" U-bolt over the bottom coil and insert it up through the plate. Make attachments as shown. Fully tighten connections. Page 10 of 14 Model XX0596 ECN2463...
- Page 11 __Step 15: Attach the handles to the side panels. See Detail K. Select (4) four handles and the appropriate hardware. There are (16) sixteen connections. Position each handle between the top or bottom of each pair of side panels and make attachments as shown. Page 11 of 14 Model XX0596 ECN2463...
-
Page 12: Bill Of Materials
For Customer Service, Call BFC1018 PANEL - 11.01" x 13.43" X .50" - TRIM, RIGHT 800-233-8404 or ALB0025 LABEL - AGE APPROPRIATE SHEET 570-522-9800 OUTSIDE U.S. 1000 Buffalo Road • Lewisburg, PA 17837 www.playworldsystems.com Page 12 of 14 Model XX0596 ECN2463... -
Page 13: Equipment Maintenance
• Inspect the spring to insure they are properly secured • Visually inspect handles and end caps for cracks or Model XX0596 to the anchor and spring plates. Check spring U-bolts to breakage. If any damage is detected, barricade equipment ensure secure connections. -
Page 14: Inspection Checklist
Inspect surfacing to insure proper depth and distribution. High Inspector: Name __________________________________ Signature:_________________________________________ Date:___ /___ /___ (Please Print) MAINTENANCE SCHEDULE Item in Question Description of Problem Corrective Action Date Repairer: Name __________________________________ Signature:________________________________________ Date:___ /___ /___ (Please Print) Page 14 of 14 Model XX0596 ECN2463... - Page 15 • Insure that Age Appropriate and Hard Surface Warning/Playworld Systems • Good drainage around the structure and its supports is important. Inquire identifi cation labels are properly affi xed to the play equipment. Labels are to be with local contractors for appropriate recommendations.
- Page 16 • IMPORTANT! Because accidental falls around your playground equipment Maintenance can occur, Playworld Systems recommends that the area under and around the • Inadequate maintenance of equipment has resulted in injuries on the structure be covered with a resilient material such as sand, bark mulch, or wood playground.
-
Page 17: Final Inspection
• Playworld Systems ® insists on the installation of protective surfacing within the • Insure that hard surface warning/Playworld Systems ® identifi cation labels are use zone of each play structure in accordance with the applicable specifi cations properly affi xed to the play equipment. Labels are to be plainly visible according in your area appropriate for the fall height of each structure.
