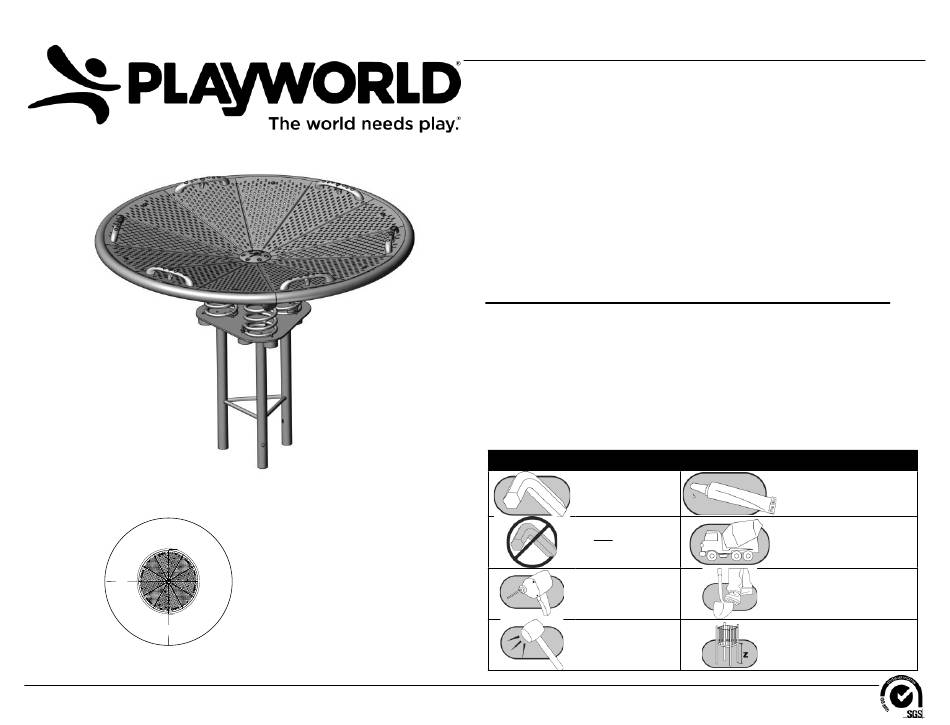

Installation Instructions
Assembly View
A
A
Refer to the Elevation View for the specifi c Critical Fall Height for the component.
Page 1 of 14
(representative structure)
Equipment Use Zone
A - (ASTM) 72 in. (1830 mm)
(CSA) 1800 mm
(EN) 1000 mm
Installation Instructions
Playworld Systems
Models XX0193 and XX0193S
®
Unity Rocker
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time (In-Ground): ................ 4 man-hours
Installation Time (Surface Mount): ........ 2.5 man-hours
Concrete Required: ............................... 0.39 cubic yard (0,30 cubic meters)
Use Zone: .............................................. Refer to the information below
User Group Age (years): ....................... ASTM/CSA: 2-12, EN: 2-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully Tighten
Hardware
Drill
Hammer
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Models XX0193 and XX0193S
ECN2716
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Playworld Systems Unity XX0193
Summary of Contents for Playworld Systems Unity XX0193
- Page 1 Installation Instructions Installation Instructions Playworld Systems Models XX0193 and XX0193S ® Unity Rocker Installation Preparation Recommended Crew: ......Two (2) adults Installation Time (In-Ground): ....4 man-hours Installation Time (Surface Mount): ..2.5 man-hours Concrete Required: ....... 0.39 cubic yard (0,30 cubic meters) Use Zone: ..........
- Page 2 Installation Instructions Footing Diagram Top View Position Unit of Measurement Top # Inches Bottom # [Millimeters] 19.3" (491 mm) Elevation Views XX0193 In-Ground Page 2 of 14 Models XX0193 and XX0193S ECN2716...
-
Page 3: Top View
Installation Instructions Top View Footing Diagram Position Unit of Measurement Top # Inches Bottom # [Millimeters] 19.3" (491 mm) Elevation Views XX0193S Surface Mount Page 3 of 14 Models XX0193 and XX0193S ECN2716... -
Page 4: Installation Instructions
• Do not encase bottom of support post in concrete. Place post directly on packed stone Varies or porous block. • The footings shown on Playworld Systems’ documentation are recommendations based on historical performance in average soil conditions. Footing dimensions may be modifi ed by the owner based on actual soil conditions. - Page 5 Installation Instructions FOOTING NOTES • All support posts and component support legs may have either a factory-applied sticker with line, or factory-applied mark designating protective surfacing level on a clear and Coil Spring Protective level installation site. Surfacing Level 2" in. (51 mm) •...
- Page 6 Installation Instructions Follow the details in alphabetical order. For clarifi cation, each detail references the step description. The step descriptions start on page 10. Spring ATM0093 Spring (3 Total) ATM0093 (3 Total) 3/8" x 2.50" U-Bolt Spring Wedge Casting 3/8" x 3.25" U-Bolt BAE0029 AAU0062 BAE1798...
- Page 7 Installation Instructions 3/8" x 1-3/4" Button Head Bolt BAE0665 (6 Total) Spring Wedge Casting Detail B-1 AAU0062 Plate (3 Total) APL2268 Step 5 (1 Total) Insert the spring wedge into the Sheet Plastic top of the spring until secure BFC3625 (1 Total) 1"...
- Page 8 Installation Instructions 3/8" x 1" Note: An alignment pin may be 1" O.D. Flat Washer Button Head Bolt 1" O.D. Flat Washer needed to line up holes before BAE0600 BAE0664 BAE0600 securing the planks together (6 Total) (36 Total) (72 Total) 3/8"...
- Page 9 Installation Instructions 3/8" x 1" Button Head Bolt BAE0664 (6 Total) 3/8" Flat Washer BAE0595 (6 Total) Casting Cover AAU0844 (1 Total) Detail G Step 10 Attach the casting cover Handhold AAU0845 (6 Total) Detail H 1" O.D. Flat Washer 3/8"...
- Page 10 Installation Instructions Notes Before You Begin: Do not over tighten bolts during assembly, only snug Step 8: Attach the perf sheets to the frame. See Details E-1 and E-2. Select tighten them until assembly is complete. the six Right Perf Sheets (BPM0323), align the holes on the top and bottom of the sheet with the frame and align the right side of the sheets with the left side Carefully read and understand these installation instructions before you of the tabs on the frame.
-
Page 11: Bill Of Materials
Installation Instructions Bill of Materials XX0193 - UNITY ROCKER XX0193S - UNITY ROCKER SURFACE MOUNT PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. AAU0062 CASTING - 7.09" O.D. SPRING WEDGE AAU0062 CASTING - 7.09" O.D. SPRING WEDGE AAU0843 HUB - 7.00" O.D. x 1.72" - CAST AAU0843 HUB - 7.00"... - Page 12 Installation Instructions This page is intentionally left blank. Page 12 of 14 Models XX0193 and XX0193S ECN2716...
-
Page 13: Equipment Maintenance
Installation Instructions Equipment Maintenance Fasteners Finish Playworld Systems ® • Inspect for loose fasteners. • Inspect metal parts for fi nish damage. Tightening torque specifi cations are: To repair painted surfaces, sand damaged area with Models XX0193 and XX0193S Bolts and Nuts: Snug tighten and tighten an additional sandpaper and wipe clean. -
Page 14: Inspection Checklist
Inspection Form Installation Instructions Preventive Maintenance • Be sure that you are using a copy of this Inspection Form and not your original..for Safety's Sake! • Use the Inspection Codes listed below and record condition of equipment at time of examination on the Inspection Checklist. - Page 15 Guidelines Important ! Please Read Completely Before Beginning Installation. According Rocking/Springing Equipment Intended for Sitting Use Zones to a report published by the U. S. Consumer Product Safety Commission (C.P.S.C.) A = ASTM: 72 in. (1829 mm) 72% of all playground injuries result from accidental falls. With this in mind, this CSA: 1800 mm equipment is designed to fill the need for safe yet challenging play.
- Page 16 IMPORTANT! Because accidental falls around your playground equipment must be developed for each playground and strictly followed. All equipment can occur, Playworld Systems recommends that the area under and around the must be inspected frequently for any potential hazards. Special attention must structure be covered with a resilient material such as sand, bark mulch, or wood to be given to moving parts and other components that can be expected to wear.
-
Page 17: Final Inspection
FINAL INSPECTION • Insure that hard surface warning/Playworld Systems identification labels are ® • Playworld Systems insists on the installation of protective surfacing within the properly affixed to the play equipment. Labels are to be plainly visible according ® use zone of each play structure in accordance with the applicable standard or to current playground equipment guidelines.
