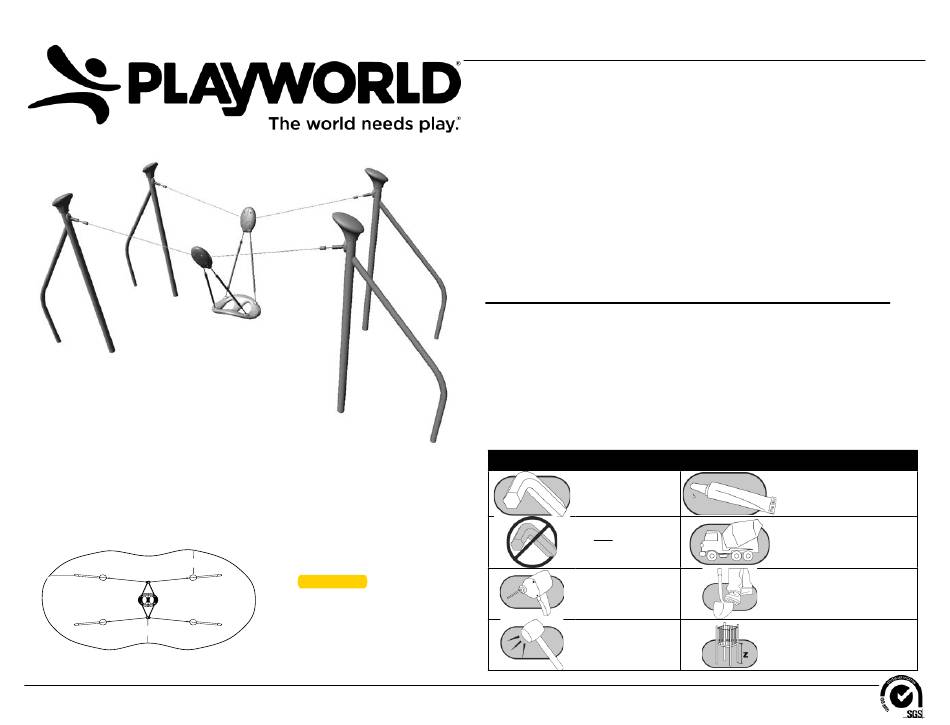

Installation Instructions Installation Instructions Playworld Systems Model XX0355 ® Cruise Line Installation Preparation Recommended Crew: ......Four (4) adults Installation Time: ........18 man-hours Concrete Required: ....... 6.65 cubic yards (5,06 cubic meters) Use Zone: ..........Refer to the information below User Group Age (years): .......
Installation Instructions Position Unit of Measurement Top # Inches Bottom # [Millimeters] Top View 27" (686 mm) Elevation Views Page 2 of 16 Model XX0355 ECN2579...
Page 3
Installation Instructions Important Note: Make Position Unit of Measurement sure the footings are laid Top # Inches Bottom # out and spaced as shown [Millimeters] in this Footing Diagram. Footing Diagram #1 - Top View Page 3 of 16 Model XX0355 ECN2579...
Page 4
Installation Instructions Position Unit of Measurement Top # Inches Bottom # [Millimeters] Footing Diagram #2 - Side View and Top View Page 4 of 16 Model XX0355 ECN2579...
Page 5
• Do not encase bottom of support post in concrete. Place post directly on packed stone 34" or porous block. (864 mm)) • The footings shown on Playworld Systems’ documentation are recommendations based on historical performance in average soil conditions. Footing dimensions may be modifi ed Concrete by the owner based on actual soil conditions.
Page 6
Installation Instructions Follow the details in alphabetical order. For clarifi cation, each detail references the step description. The step descriptions start on page 13. Post Cap BPL0313 (4 Total) Support Frame AFR1474 (4 Total) Cruise Line Platform BPL3175 (1 Total) Cruise Line Bumper AAU0790 (2 Total)
Page 7
Installation Instructions Cruise Line Rope Right Casting AMC0662 AAU0791 (4 Total) (2 Total) & Left Casting AAU0792 (2 Total) Remove the frox ball halves from one end of each rope and insert the rope through a platform casting. Frox Ball Half Place one frox ball half over the ferrule on the end of the rope.
Page 8
Installation Instructions Trolley Bracket AFM6847 (4 Total) End with no holes must stick out. 2.25" Spacer ATM0250 (8 Total) Spacer Plate APL2196 Side with the riv (12 Total) nuts must be to the inside. 1/4" x 3" Hex Head Bolt BAE9044 (8 Total) 3/8"...
Page 9
Installation Instructions Cable Assembly ASY0330 (2 Total) Pulley Assembly ASY0357 Trolley Bracket (2 Total) Assembly .375" Spacer ATM0249 1/2" Flat Washer (4 Total) BAE0690 (4 Total) 1/2" Hex Lock Nut BAE0720 (2 Total) 1/2" x 3-1/4" Hex Head Bolt BAE9043 (2 Total) Note: For ease of installation, attach the trolleys to the cable...
Page 10
Installation Instructions Step 10 Fully tighten all the connections to the trolley bracket assembly before proceeding with Step 11. Cable Guide AMC0660 Cruise Line Rope Cruise Line Rope (4 Total) w/ Left Casting w/ Right Casting Thin edge to the top. 1"...
Page 11
Installation Instructions Very Important Note: Ensure the castings on the cable assembly are oriented with the numbers at the top on the inside and the arrow pointing up on the opposite side! 3/8" Flat Washer BAE0595 (8 Total) 3/8" x 5" 3/8"...
Page 12
Installation Instructions 3/8" x 1-1/4" Button Head Bolt BAE0666 (8 Total) 3/8" Flat Washer BAE0595 (8 Total) Cruise Line Platform Contour of the casting must match the contour of the platform. Detail H Step 13 Attach the platform to the ropes. Page 12 of 16 Model XX0355 ECN2579...
Page 13
Installation Instructions Notes Before You Begin: Do not over tighten bolts during assembly, only snug Note: For ease of installation, attach the trolleys to the cable wire on the tighten them until assembly is complete. ground. Carefully read and understand these installation instructions before you Step 9: Attach the pulley to the trolley bracket assembly.
Bill of Materials Installation Instructions XX0355 - CRUISE LINE PART NO. DESCRIPTION QTY. AAU0790 BUMPER - CRUISE LINE AAU0791 CASTING - 5.04" x 3.36" x 2.06" (RIGHT) AAU0792 CASTING - 5.04" x 3.36" x 2.06" (LEFT) AAU0816 CASTING - CRUISE LINE TROLLEY COVER AFM6874 FAB METAL - 14.25"...
Fasteners Finish • Inspect for loose fasteners. • Inspect metal parts for fi nish damage. Playworld Systems ® Tightening torque specifi cations are: To repair painted surfaces, sand damaged area with Bolts and Nuts: Snug tighten and tighten an additional sandpaper and wipe clean.
Inspection Form Installation Instructions Preventive Maintenance • Be sure that you are using a copy of this Inspection Form and not your original..for Safety's Sake! • Use the Inspection Codes listed below and record condition of equipment at time of examination on the Inspection Checklist.
Page 17
IMPORTANT! Because accidental falls around your playground equipment surfaces are no greater than 700 mm above the protective surfacing level. They can occur, Playworld Systems recommends that the area under and around the should be a minimum of 1800 mm apart.
Page 18
It is important that playground supervisors recognize that preschool-age children require more attentive supervision on playgrounds than older children. Tools Required: Playworld Systems supplies a service kit that contains commonly • Do not permit the use of wet playground equipment. Wet equipment will inhibit used hex key wrenches required to assemble your equipment.
FINAL INSPECTION • Insure that hard surface warning/Playworld Systems ® identifi cation labels are • Playworld Systems ® insists on the installation of protective surfacing within the properly affi xed to the play equipment. Labels are to be plainly visible according use zone of each play structure in accordance with the applicable standard or to current playground equipment guidelines.
