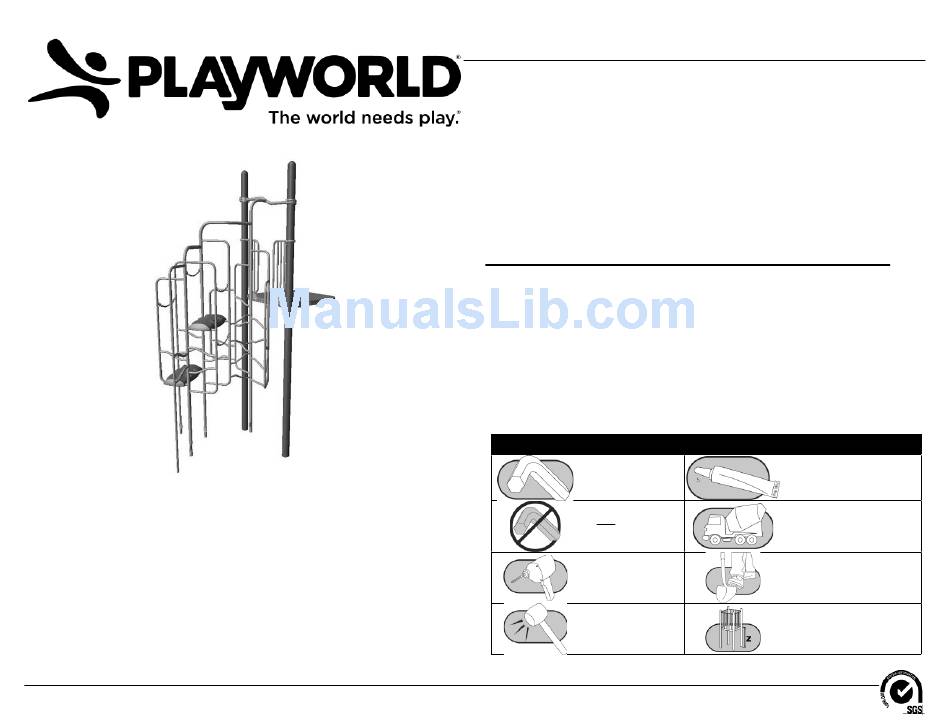

Installation Instructions
Assembly View
Page 1 of 10
(representative model)
Installation Instructions
Playmakers
Models PM6838 and PM6838S
®
Vine Climber w/Roto
In-Ground and Surface Mount
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time (in-ground): ................. 4 man-hours
Installation Time (surface mount): ......... 1.5 man-hours
Concrete Required (in-ground only): ..... 0.15 cubic yard (0,10 cubic meters)
Use Zone: .............................................. Refer to Master Drawing
User Group Age (years): ....................... ASTM/CSA: 5-12, EN: 6-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully TIghten
Hardware
Drill
Hammer
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Models PM6838 and PM6838S
PA1231
Advertisement
Table of Contents
Related Manuals for Playworld Systems Playmakers PM6838
Summary of Contents for Playworld Systems Playmakers PM6838
- Page 1 Installation Instructions Installation Instructions Playmakers Models PM6838 and PM6838S ® Vine Climber w/Roto In-Ground and Surface Mount Installation Preparation Recommended Crew: ......Two (2) adults Installation Time (in-ground): ....4 man-hours Installation Time (surface mount): ..1.5 man-hours Concrete Required (in-ground only): ..0.15 cubic yard (0,10 cubic meters) Use Zone: ..........
-
Page 2: Top View
Installation Instructions Footing Diagram Both Models Position Unit of Measurement Top # Inches Bottom # [Millimeters] 123" (3123 mm) Top View Top View Elevation Views Elevation Views PM6838 PM6838S Page 2 of 10 Models PM6838 and PM6838S PA1231... - Page 3 Installation Instructions Follow the details in alphabetical order. For clarifi cation, each detail references the step description. The step descriptions start on page 8. 3/8" Flat Washer BAE0595 Barrier Gate (2 Total) AEN0171 (2 Total) 3/8" x 1" Button Head Bolt BAE0664 (2 Total) Centerline Clamp...
- Page 4 Installation Instructions Climber Support Bar Wide Band Clamp Support Post 72" Vine Climber AFM4896 AAU0021 (1 Total) (2 Total) 3/8" x 2-1/2" 60" FS Climber Button Head Bolt See Table BAE0668 (1 Total) (1 Total) Climber Adaptor AAU0676 3/8" Flat Washer 3/8"...
- Page 5 Installation Instructions 72" Vine Climber 60" FS Climber 3/8" x 2-1/2" Button Head Bolt BAE0668 (4 Total) 3/8" x 1-3/4" Support Rung Button Head Bolt ARG0466 BAE0665 (4 Total) (4 Total) Detail G Step 10 Attach the support rungs to the climbers.
- Page 6 Installation Instructions Plank Rung ARG0464 3/8" Lock Nut (2 Total) BAE0620 (4 Total) 1" O.D. Flat Washer BAE0600 (8 Total) 3/8" x 1" Button Head Bolt BAE0664 Detail I (4 Total) Step 12 Attach the plank rungs to the climbers. Climber Plank BPL3126 (2 Total)
- Page 7 Installation Instructions Place the shackle through the eye of the rope. Wide Band Clamp Shackle BAE1572 (supplied with the rope) Drive Rivet BAE0020 (2 Total) Straight Rope Detail L-1 AMC0463 (4 Total) Step 16 7/16" x 1.5" Button Head Bolt BAE0702 (supplied with the rope) Insert the bolt through the...
-
Page 8: Final Details
Installation Instructions Notes Before You Begin: Do not over tighten bolts during assembly, only snug Step 9: Attach the 60" FS climber to the 72" vine climber. See Detail F. Position tighten them until assembly is complete. the climber adaptor against the top of the FS climber and then against the vine climber, and attach as shown. - Page 9 Installation Instructions Step 16: Install drive rivets. See Details L-1 and L-2. After the equipment assembly is complete, install a drive rivet in each clamp to permanently secure it to the support post. Using a 1/4" drill bit, drill through the clamp and support post.
-
Page 10: Bill Of Materials
Bill of Materials Installation Instructions PM6838S - VINE CLIMBER w/ROTO SURFACE MOUNT PM6838 - VINE CLIMBER w/ROTO PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. AAU0021 CLAMP - 5" WIDE ALUMINUM AAU0021 CLAMP - 5" WIDE ALUMINUM AAU0551 CLAMP - 5" CENTERLINE DIE CAST AAU0551 CLAMP - 5"...
