Installation Instructions
Assembly View
A
A
Page 1 of 10
Equipment Use Zone
A - ASTM: 72 in. (1830 mm)
A - CSA: 1800 mm
A - EN: 2000 mm
Installation Instructions
Playworld Systems
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time: ................................... 2 man-hours
Concrete Required: ............................... 0.06 cubic yard (0,04 cubic meters)
Use Zone: .............................................. Refer to the information below
User Group Age (years): ....................... ASTM/CSA: 5-12, EN: 6-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully TIghten
Hardware
Drill
Hammer
Model XX0065
®
Spincup
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Model ZZXX0065
ECN1983
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Playworld Systems 0065 Series
Summary of Contents for Playworld Systems 0065 Series

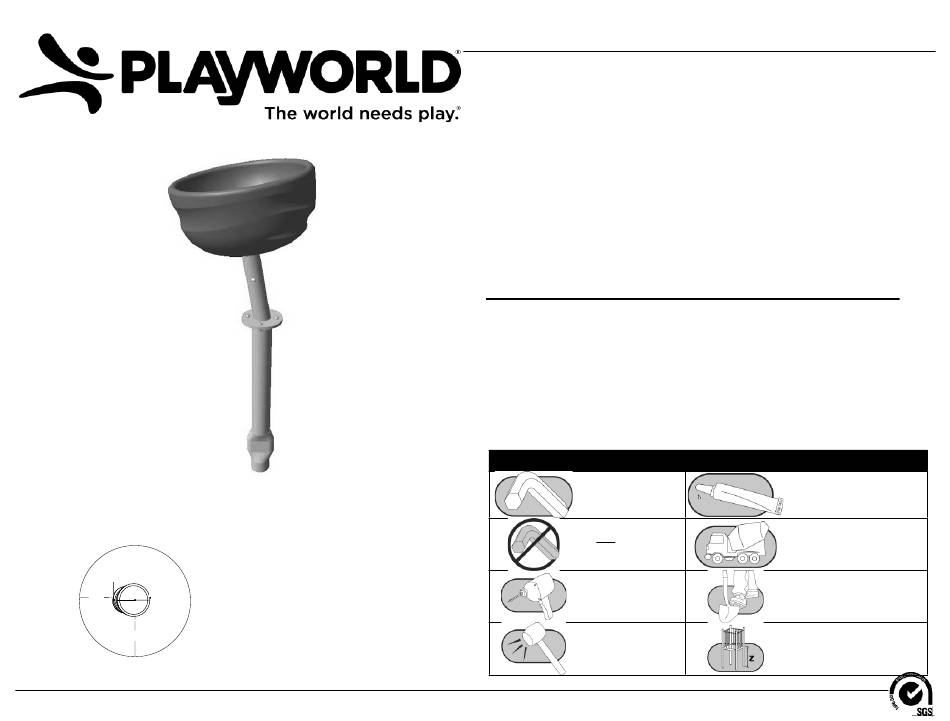

- Page 1 Installation Instructions Installation Instructions Playworld Systems Model XX0065 ® Spincup Installation Preparation Recommended Crew: ......Two (2) adults Installation Time: ........2 man-hours Concrete Required: ....... 0.06 cubic yard (0,04 cubic meters) Use Zone: ..........Refer to the information below User Group Age (years): .......
-
Page 2: Installation Instructions
Installation Instructions Top View 22" (559 mm) Footing Diagram 12.0" (305 mm) Diameter 24" 20.4" (609 mm) (518 mm) 24" (609 mm) Elevation Views Page 2 of 10 Model ZZXX0065 ECN1983... - Page 3 • Do not encase bottom of support post in concrete. Place post directly on packed stone Support Post Footing Detail (ASTM/CSA) or porous block. • The footings shown on Playworld Systems’ documentation are recommendations based on historical performance in average soil conditions. Footing dimensions may be modifi ed Support Post by the owner based on actual soil conditions.
- Page 4 Installation Instructions Follow the details in alphabetical order. For clarifi cation, each detail references the step description. The step descriptions start on page 5. Frame AFR0697 3/8" x 1" Button Head Bolt BAE0664 3/8" Flat Washer BAE0595 Bearing Unit ASY0131 3/8"...
- Page 5 Installation Instructions Seat Plate APL1552 3/8" x 1-1/4" Button Head Bolt Bearing Unit BAE0666 ASY0131 3/8" Flat Washer BAE0595 3/8" Lock Nut BAE0620 Detail D Step 7 Teacup Seat BPL3140 3/8" Flat Washer BAE0595 3/8" x 1" Button Head Bolt BAE0664 Detail E Step 8...
- Page 6 Installation Instructions __Notes Before You Begin: Do not over tighten bolts during assembly, only snug __Step 8: Attach the Spincup seat to the seat plate. See Detail E. Select the tighten them until assembly is complete unless otherwise specifi ed. teacup seat and the appropriate hardware.
-
Page 7: Bill Of Materials
Installation Instructions Bill of Materials XX0065 - SPINCUP PART NO. DESCRIPTION QTY. AFR0697 FRAME - SIMPLE TEACUP ANGLED APL1552 PLATE - 10.75" O.D. x .38" APT0564 POST - 7.00" O.D. x 34.00" ASY0131 ASSY - SIMPLE TEACUP BAD0085 THREAD LOCKING ADHESIVE BAE0595 WASHER - 3/8"... - Page 8 Installation Instructions This page is intentionally left blank. Page 8 of 10 Model ZZXX0065 ECN1983...
-
Page 9: Equipment Maintenance
Installation Instructions Equipment Maintenance Fasteners Finish Playworld Systems ® • Inspect for loose fasteners. • Inspect metal parts for fi nish damage. Model XX0065 Tightening torque specifi cations are: To repair painted surfaces, sand damaged area Bolts and Nuts: Snug tighten and tighten an with sandpaper and wipe clean. -
Page 10: Inspection Checklist
Inspection Form Installation Instructions Preventive Maintenance • Be sure that you are using a copy of this Inspection Form and not your original..for Safety's Sake! • Use the Inspection Codes listed below and record condition of equipment at time of examination on the Inspection Checklist. - Page 11 500 mm in diameter that rotates around a vertical • Insure that Age Appropriate and Hard Surface Warning/Playworld Systems axis. In addition to the use zone measurement, this zone will extend an additional identification labels are properly affixed to the play equipment. Labels are to be 1800 mm and may not be overlapped by the use or no-encroachment zones of plainly visible according to current playground equipment guidelines.
- Page 12 • IMPORTANT! Because accidental falls around your playground equipment Maintenance can occur, Playworld Systems recommends that the area under and around the • Inadequate maintenance of equipment has resulted in injuries on the structure be covered with a resilient material such as sand, bark mulch, or wood playground.
- Page 13 Footing Details (in ground) Support Post Support Post Factory-Applied Protective Factory-Applied Protective Protective Surfacing Level Protective Surfacing Level Surfacing Level Sticker Surfacing Level Sticker Ground Level Ground Level Varies Varies 2" (51 mm) 2" (51 mm) 48" 36" (1219 mm) (914 mm) 54"...
- Page 14 Protective Surfacing Level on packed stone or other porous material. Ground Level Varies • The footings shown on Playworld Systems’ documentation are recommendations 2" (51 mm) based on historical performance in average soil conditions. Footing dimensions 36" may be modified by the owner based on actual soil conditions.
- Page 15 Footing Detail (surface mount) Footing Notes FOOTING NOTES (SURFACE MOUNT) Surface Mount Post • Most support posts and component support legs will have either a factory-applied Protective sticker with line, or factory-applied mark designating protective surfacing level Surfacing Level on a clear and level installation site. Anchor Bolts Concrete Base Supplied By...
-
Page 16: Final Inspection
FINAL INSPECTION • Insure that hard surface warning/Playworld Systems ® identification labels are • Playworld Systems insists on the installation of protective surfacing within the ® properly affixed to the play equipment. Labels are to be plainly visible according use zone of each play structure in accordance with the applicable standard or to current playground equipment guidelines.
