Assembly View

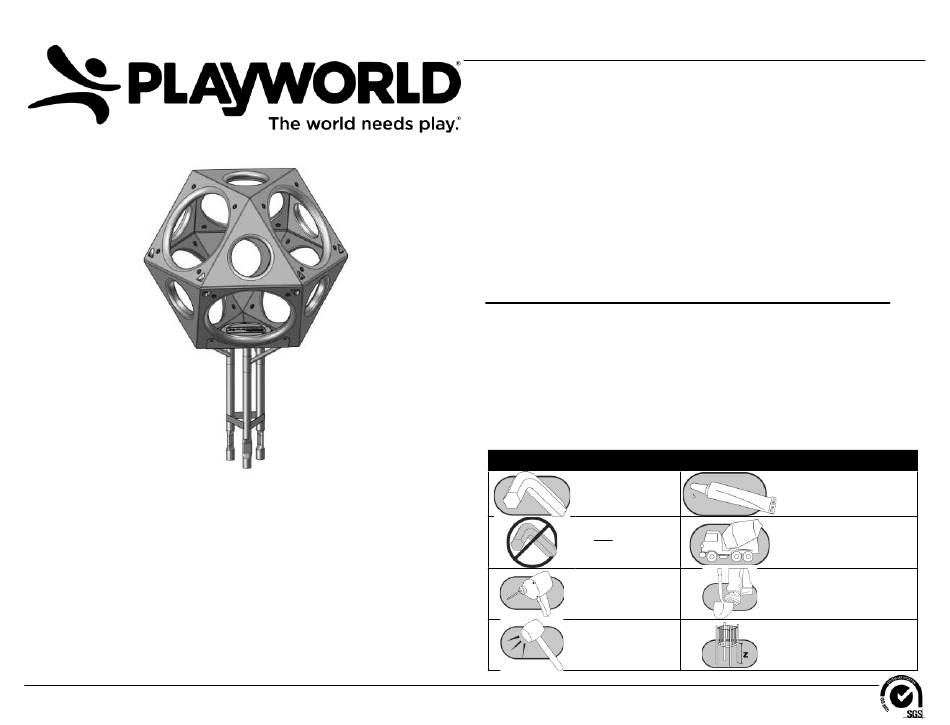

Page 1 of 12
(representative model)
Universal Models UN8727 and UN8727S
Ground Level PlayCube
In-Ground and Surface Mount
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time (In-Ground): ................ 1.5 man-hours
Installation Time (Surface Mount): ........ 1 man-hour
Concrete Required: ............................... 0.12 cubic yard (0,09 cubic meters)
Use Zone: .............................................. See the master layout drawing
User Group Age (single cube): .............. ASTM/CSA: 2-12, EN: 2-14
User Group Age (multiple cubes): ......... ASTM/CSA: 5-12, EN: 6-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully Tighten
Hardware
Drill
Hammer
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Models *UN8727 and UN8727S
PA1395, *ECN2643
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Playworld Systems UN8727
Summary of Contents for Playworld Systems UN8727
- Page 1 Installation Instructions Installation Instructions Universal Models UN8727 and UN8727S Ground Level PlayCube In-Ground and Surface Mount Installation Preparation Recommended Crew: ......Two (2) adults Installation Time (In-Ground): ....1.5 man-hours Installation Time (Surface Mount): ..1 man-hour Concrete Required: ....... 0.12 cubic yard (0,09 cubic meters) Use Zone: ..........
- Page 2 Installation Instructions Position Unit of Measurement Top # Inches Bottom # [Millimeters] Top View Footing Diagram 49" (1245 mm) Footed as shown Elevation Views UN8727 Page 2 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 3 Installation Instructions Position Unit of Measurement Top # Inches Bottom # [Millimeters] Top View Footing Diagram 49" (1245 mm) Footed as shown Elevation Views UN8727S Page 3 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 4 (1 Total) (12 Total) 3/8" Flat Washer BAE0595 (12 Total) 3/8" x 2-3/4" Button Head Bolt BAE06677 (6 Total) Detail A Step 4 Attach the top cube to the bottom cube. Page 4 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 5 (1 Total) Detail B Detail C Step 5 Step 6 (In-Ground Model) (In-Ground Model) Attach the anchor post to the bottom cube. Attach the logo casting to the bottom cube. Page 5 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 6 3/8" Barrel Nut Detail D BAE0632 (6 Total) Step 7 (Surface Mount Model) Attach the anchor frame to the bottom cube. Page 6 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 7 (28 Total if attaching to another cube) (36 Total if not attaching to another cube) Detail F Step 10 Fill in the unused holes inside and outside the ground level cube. Page 7 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 8 Installation Instructions Plastic Bolt Cap (half of a two-piece assembly) BPL0300 (12 Total) Detail G Step 11 Insert the bolt caps into the plastice washers. Page 8 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 9 Step 12: For areas complying with ASTM standard F1487 or the CSA Z-614, apply the age appropriate label to the component at eye level. Page 9 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 10 Bill of Materials Installation Instructions UN8727 - GROUND LEVEL PLAYCUBE PART NO. DESCRIPTION QTY. AAU0906 CASTING - PLAYCUBES LOGO AFR1820 POST - 32.48" x 28.44" x 42.28 BAD0085 THREAD LOCKING ADHESIVE BAE0595 WASHER - 3/8" SAE FLAT BAE0600 WASHER - 1" O.D. FLAT BAE0632 NUT - 3/8"-16 x 1.25 BARREL w/PATCH...
- Page 11 Universal • Inspect for loose fasteners. • Inspect metal parts for fi nish damage. Models UN8727 and UN8727S Tightening torque specifi cations are: To repair painted surfaces, sand damaged area with Bolts and Nuts: Snug tighten and tighten an additional sandpaper and wipe clean.
- Page 12 Inspect footing to insure support is secure and footing is not damaged. Inspector: Name __________________________________ Signature:_________________________________________ Date:___ /___ /___ (Please Print) MAINTENANCE SCHEDULE Item in Question Description of Problem Corrective Action Date Repairer: Name __________________________________ Signature:________________________________________ Date:___ /___ /___ (Please Print) Page 12 of 12 Models *UN8727 and UN8727S PA1395, *ECN2643...
- Page 13 The use zone of stationary play equipment may be overlapped by the • Insure that Age Appropriate and Hard Surface Warning/Playworld Systems use zone of adjacent stationary play equipment if the adjacent designated play identification labels are properly affixed to the play equipment. Labels are to be surfaces are no greater than 700 mm above the protective surfacing level.
- Page 14 • IMPORTANT! Because accidental falls around your playground equipment Maintenance can occur, Playworld Systems recommends that the area under and around the • Inadequate maintenance of equipment has resulted in injuries on the playground. Because the safety of playground equipment and its stability depends...
- Page 15 Footing Details (in ground) Support Post Component Factory-Applied Protective Protective Surfacing Level Factory-Applied Protective Surfacing Level Sticker Protective Surfacing Level Surfacing Level Sticker Ground Level Varies Ground Level Varies 2" (51 mm) 2" (51 mm) 36" 24" (914 mm) (610 mm) 42"...
- Page 16 Footing Notes (in ground) IN GROUND FOOTING DIAGRAMS-BLOCK OPTION Support Post Component Factory-Applied Protective Protective Surfacing Level Surfacing Level Sticker Factory-Applied Protective Surfacing Level Sticker Ground Level Protective Surfacing Level Varies 2" (51 mm) 48" Ground Level Varies (1219 mm) 2"...
- Page 17 • Do not encase the bottom of the support post in concrete. Place the post directly on packed stone or other porous material. • The footings shown on Playworld Systems’ documentation are recommendations based on historical performance in average soil conditions. Footing dimensions may be modified by the owner based on actual soil conditions.
- Page 18 Footing Notes & Details (surface mount) FOOTING NOTES (SURFACE MOUNT) • Most support posts and component support legs will have either a factory-applied sticker with line, or factory-applied mark designating protective surfacing level on a clear and level installation site. Surface Mount Post •...
- Page 19 FINAL INSPECTION • Playworld Systems ® • Insure that hard surface warning/Playworld Systems ® identification labels are insists on the installation of protective surfacing within the use zone of each play structure in accordance with the applicable standard or properly affixed to the play equipment. Labels are to be plainly visible according to current playground equipment guidelines.
