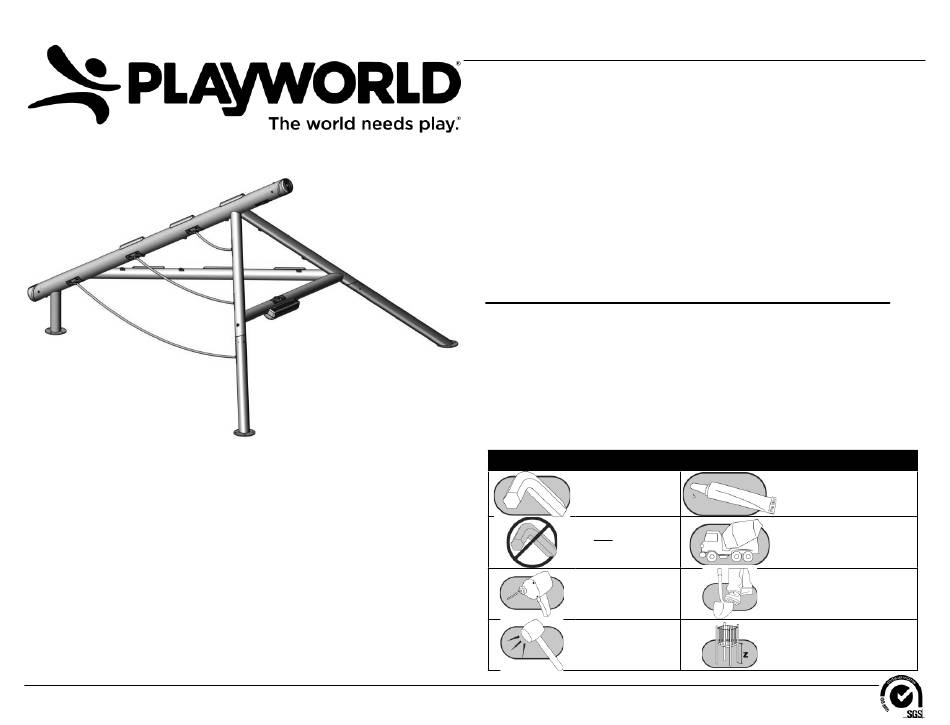

Installation Instructions Footing Diagram Position Unit of Measurement Top View Top # Inches Bottom # [Millimeters] 62.4" (1584 mm) Elevation Views (In-Ground Mount) XX0703 Page 2 of 14 Model XX0703 and XX0703S PA1361...
Page 3
Installation Instructions Footing Diagram Position Unit of Measurement Top # Inches Top View Bottom # [Millimeters] 62.4" (1584 mm) Elevation Views (Surface Mount) XX0703S Page 3 of 14 Model XX0703 and XX0703S PA1361...
Page 4
Installation Instructions Follow the details in alphabetical order. For clarifi cation, each detail references the step description. The step descriptions start on page 8. 1/2" x 1-1/2" Button Head Bolt BAE0687 Son Frame (10 Total) AFR1676 (1 Total) 1/2" Flat Washer BAE0690 (20 Total) Son Left Leg...
Page 5
Installation Instructions Note: These ends of Frox balls the rope will connect Note: These ends of to the lower side of the rope will connect the Son frame and to the upper post on right leg. the Son frame. Casting AAU0835 Casting (3 Total)
Page 6
Installation Instructions AAU0836 Son Frame AAU0835 3/8" Flat Washer BAE0595 (32 Total) 3/8" x 3/4" Button Head Bolt Detail D BAE0659 (32 Total) Step 7 Attach the rope castings to the right leg and the Son frame. 3/8" x 1-1/4" Button Head Bolt Handhold BAE0666...
Page 7
Installation Instructions Tubing End Support Casting 3/8" x 1" AAU6167 Button Head Bolt (2 Total) BAE0664 (6 Total) Detail F Align the holes in the casting with those in the frame. Step 11 Attach the cap castings to the ends of the Son frame. Plastic Bolt Cap 3/8"...
Page 8
Installation Instructions Notes Before You Begin: Do not over tighten bolts during assembly, only snug drop of thread locking adhesive to the bolt threads, and attach as shown. There tighten them until assembly is complete. Do not install bolt caps until the structure are four connections per casting.
Page 9
Installation Instructions Step 12: Attach the caps to the ends of the Son frame. See Detail G. Place the 5" caps on the ends of the Son frame (the longer side of the cap should be on the bottom when placing in the frame), select the appropriate hardware, apply a drop of thread locking adhesive to the bolt threads, and attach as shown.
Installation Instructions Bill of Materials ZZXX0703 - PLAYFORM 7 SON IN-GROUND MOUNT PART NO. DESCRIPTION QTY. AAU0827 5" PLAYFORM 7 CAP AAU0829 SMALL MOHAWK PLAYFORM 7 AAU0835 ROPE CASTING FOR 3.50" TUBING AAU0836 ROPE CASTING FOR 5.00" TUBING AAU0839 COVER CASTING FOR 12.00" BELT 3.50" O.D. TUBING AAU6167 CASTING - 5"...
Page 11
Bill of Materials Installation Instructions ZZXX0703S - PLAYFORM 7 SON SURFACE MOUNT PART NO. DESCRIPTION QTY. AAU0827 5" PLAYFORM 7 CAP AAU0829 SMALL MOHAWK PLAYFORM 7 AAU0835 ROPE CASTING FOR 3.50" TUBING AAU0836 ROPE CASTING FOR 5.00" TUBING AAU0839 COVER CASTING FOR 12.00" BELT 3.50" O.D. TUBING AAU6167 CASTING - 5"...
Page 12
Installation Instructions This page is intentionally left blank. Page 12 of 14 Model XX0703 and XX0703S PA1361...
Page 13
Model XX0703 and XX0703S Bolts and Nuts: Snug tighten and tighten an additional use until repair is completed. PlayForm 7 Son one-half turn. • If during the maintenance process a bolt needs to be Surfacing removed from a part or parts, it will be necessary to apply •...
Inspection Form Installation Instructions • Be sure that you are using a copy of this Inspection Form and not your original. Preventive Maintenance • Use the Inspection Codes listed below and record condition of equipment at time of . . . for Safety's Sake! examination on the Inspection Checklist.
