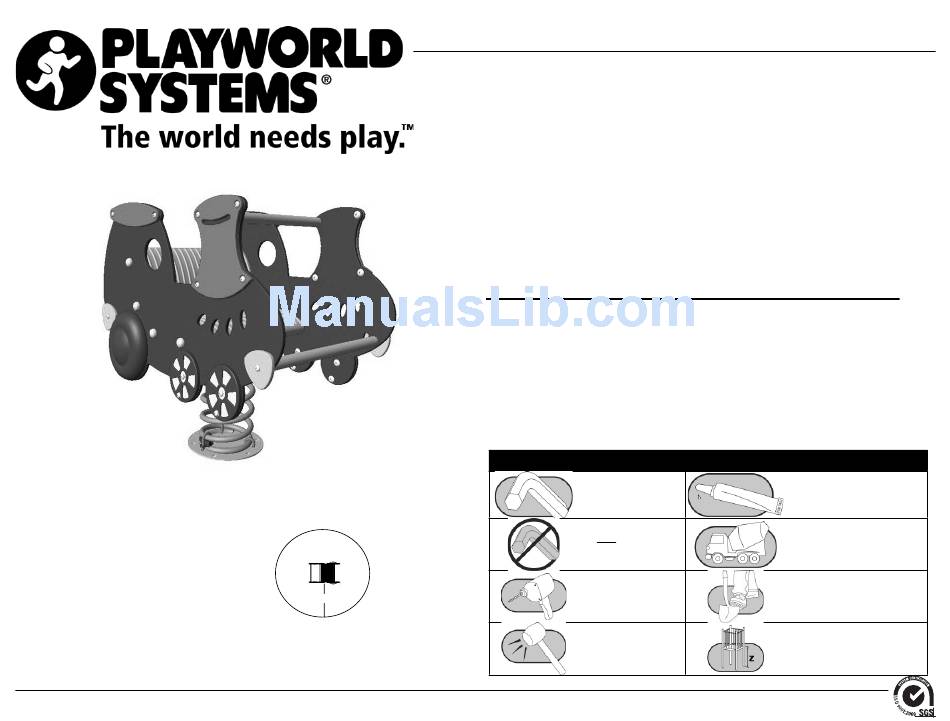

Installation Instructions
Assembly View
Spring Rider Use Zones
A = ASTM: 72 in. (1829 mm)
CSA: 1800 mm
EN: 1000 mm
Refer to the Elevation View for the specifi c Critical Fall Height for the component.
Page 1 of 12
(representative structure)
A
Installation Instructions
Playworld Systems
Train Spring Rider & Train Spring Rider w/ Sound
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time: ................................... 2 man-hours
Weight: .................................................. 100.9 Lbs. (45,8 Kilos)
Use Zone: .............................................. Refer to the information below
User Group Age (years): ....................... ASTM/CSA: 2-12, EN: 2-14
ICON KEY
Fully Tighten
Hardware
Do Not Fully Tighten
Hardware
Drill
Hammer
®
Models XX0549 & XX0550
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Models XX0549 & XX0550
ECN 1867
Advertisement
Table of Contents
Related Manuals for Playworld Systems XX0549
Summary of Contents for Playworld Systems XX0549
- Page 1 Installation Instructions Installation Instructions ® Playworld Systems Models XX0549 & XX0550 Train Spring Rider & Train Spring Rider w/ Sound Installation Preparation Recommended Crew: ......Two (2) adults Installation Time: ........2 man-hours Weight: ..........100.9 Lbs. (45,8 Kilos) Use Zone: ..........Refer to the information below User Group Age (years): .......
-
Page 2: Installation Instructions
Anchor Bolts Supplied By Customer Concrete Base Coil Spring Surface Mount Footing Detail Page 2 of 12 Models XX0549 & XX0550 ECN 1867... -
Page 3: Top View
Top View 12" (305 mm) Diameter 36" (914 mm) 25.6" (651 mm) Footing Diagram 32.2" (817 mm) Surfacing Level EN: 432 mm 2" (51 mm) Elevation Views XX0549 & XX0550 Page 3 of 12 Models XX0549 & XX0550 ECN 1867... - Page 4 3/8" x 1-1/2" U-Bolt BAE0028 BAE0027 Anchor Plate APL1238 3/8" x 2-3/4" U-Bolt BAE0047 3/8" Flat Washer Detail A-2 BAE0595 Detail B-3 Step 4 Hex Nut w/ Locking Ring Step 5 BAE0621 Page 4 of 12 Models XX0549 & XX0550 ECN 1867...
- Page 5 Important Note: Do Not install bolt caps Note: Sound electronics are factory until the entire structure is assembled. ready. No electrical connections will Step 8 need to be made. Note: Skip this step for model XX0549. Rider Seat BPL0266 Plastic Washer BPL0300 Rider Seat Detail D 3/8"...
- Page 6 3/8" Button Head Nut BAE0659 BAE0659 BAE0663 Leave this hole open Smokestack Panel BFC1225 (left) BFC1226 (right) Detail H Detail J Bumper Panel Step 11 3/8" Button Head Nut BFC1228 Step 13 BAE0663 Page 6 of 12 Models XX0549 & XX0550 ECN 1867...
- Page 7 3/8" x 3/4" Button Head Bolt BAE0659 3/8" Button Head Nut BAE0663 3/8" x 1-1/4" Button Head Bolt Trim Panel BAE0666 BFC1224 Detail L Spring Rider Wheel Step 15 BPL0267 Page 7 of 12 Models XX0549 & XX0550 ECN 1867...
- Page 8 Lower the seat between the side panels and align the holes. Attach as shown. Carefully read and understand these installation instructions before you begin. Note: Skip Step 8 if installing model XX0549. __Step 1: Before attempting to assemble your equipment, please review all Attach the sound electronics to the seat bracket.
- Page 9 Select the spring rider wheels and the appropriate hardware. There are (2) two connections per wheel, (4) four total connections. Align the spring rider wheels with the side panels in the appropriate position. Attach as shown. Page 9 of 12 Models XX0549 & XX0550 ECN 1867...
-
Page 10: Bill Of Materials
Bill of Materials Installation Instructions XX0549 - TRAIN SPRING RIDER XX0550 - TRAIN SPRING RIDER WITH SOUND PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. AAU0062 CASTING - 7-3/32" DEG SPRING WEDGE AAU0062 CASTING - 7-3/32" DEG SPRING WEDGE ABC0498 BRACKET - 8.13"... -
Page 11: Equipment Maintenance
Contact your sales representative immediately for a replacement part. For Customer Service, Call 800-233-8404 or 570-522-9800 OUTSIDE U.S. 1000 Buffalo Road • Lewisburg, PA 17837 www.playworldsystems.com Page 11 of 12 Models XX0549 & XX0550 ECN 1867... -
Page 12: Inspection Checklist
Medium Inspector: Name __________________________________ Signature:_________________________________________ Date:___ /___ /___ (Please Print) MAINTENANCE SCHEDULE Item in Question Description of Problem Corrective Action Date Repairer: Name __________________________________ Signature:________________________________________ Date:___ /___ /___ (Please Print) Page 12 of 12 Models XX0549 & XX0550 ECN 1867... - Page 13 Guidelines Important ! Please Read Completely Before Beginning Installation. According Rocking/Springing Equipment Intended for Sitting Use Zones to a report published by the U. S. Consumer Product Safety Commission (C.P.S.C.) A = ASTM: 72 in. (1829 mm) 72% of all playground injuries result from accidental falls. With this in mind, this CSA: 1800 mm equipment is designed to fi...
- Page 14 IMPORTANT! Because accidental falls around your playground equipment must be developed for each playground and strictly followed. All equipment can occur, Playworld Systems recommends that the area under and around the must be inspected frequently for any potential hazards. Special attention must structure be covered with a resilient material such as sand, bark mulch, or wood to be given to moving parts and other components that can be expected to wear.
-
Page 15: Final Inspection
• Playworld Systems ® insists on the installation of protective surfacing within the • Insure that hard surface warning/Playworld Systems ® identifi cation labels are use zone of each play structure in accordance with the applicable specifi cations properly affi xed to the play equipment. Labels are to be plainly visible according in your area appropriate for the fall height of each structure.
