Installation Instructions

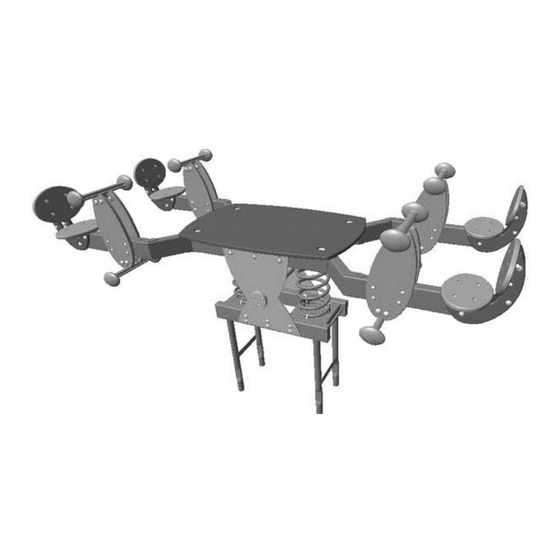

Assembly View
Use Zones: Quattro See-Saw
A = ASTM: 84 in. (2134 mm)
CSA: 2100 mm
EN: 1500 mm
Page 1 of 14
A
Installation Instructions
Playworld Systems
Quattro See-Saw
(w/ Seat Backs)
Installation Preparation
Recommended Crew: ........................... Two (2) adults
Installation Time: ................................... 5 man-hours
Weight: .................................................. *342.2 lbs. (155.5 Kilos)
Concrete Required: ............................... 0.24 cubic yard (0,18 cubic meter)
Use Zone: .............................................. Refer to Use Zone information
User Group (ages): ............................... ASTM/CSA: 2-12 yrs, EN: 2-14 yrs
ICON KEY
Fully Tighten
Hardware
Do Not Fully Tighten
Hardware
Drill
Hammer
®
Model XX0598
*
Weights are approximate for determining manpower.
Add 1 Drop of
Thread Locking Adhesive
Pour Concrete
Dig Footing Holes
Critical Fall Height
Model XX0598
ECN2218
Advertisement
Table of Contents
Related Manuals for Playworld Systems XX0598
Summary of Contents for Playworld Systems XX0598

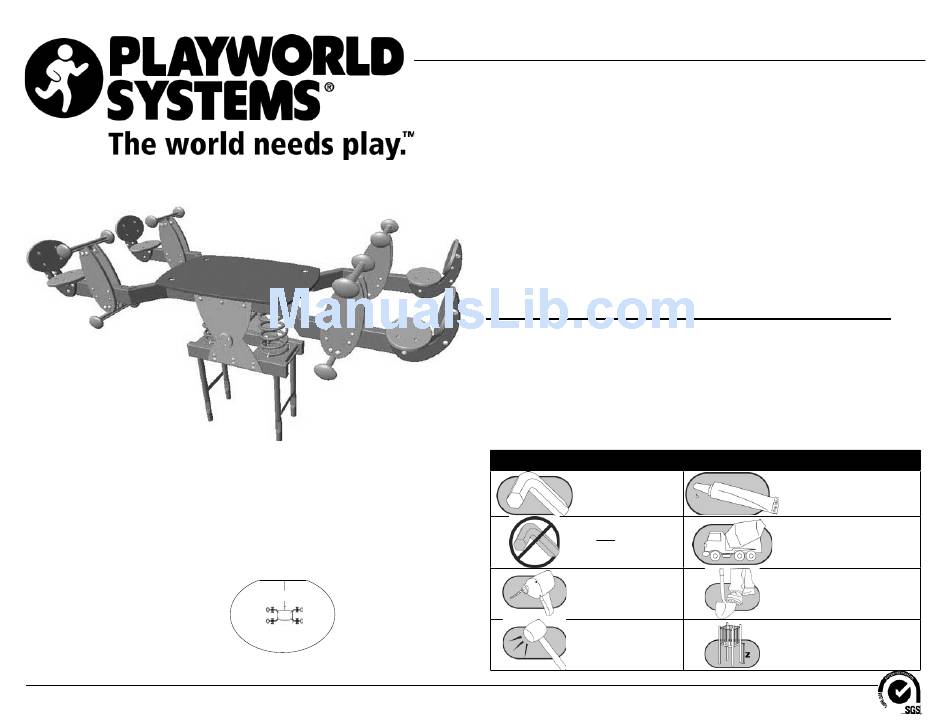

- Page 1 Installation Instructions Installation Instructions Playworld Systems ® Model XX0598 Quattro See-Saw (w/ Seat Backs) Installation Preparation Recommended Crew: ......Two (2) adults Installation Time: ........5 man-hours Weight: ..........*342.2 lbs. (155.5 Kilos) Concrete Required: ....... 0.24 cubic yard (0,18 cubic meter) Use Zone: ..........
-
Page 2: Installation Instructions
3URWHFWLYH 6XUIDFLQJ stone. /HYHO &RPSRQHQW • The footings shown on Playworld Systems’ documentation are recommendations *URXQG /HYHO based on historical performance in average soil conditions. Footing dimensions may be modifi ed by the owner based on actual soil conditions. PP... - Page 3 Installation Instructions Position Unit of Measurement Apply The Surface Warning Labels Here Top # Inches Bottom # [Millimeters] Footing Diagram Top View Surfacing Warning Label 17.8" (452 mm) Elevation View Page 3 of 14 Model XX0598 ECN2218...
- Page 4 2" U-bolt over the second BAE0621 3/8" Flat Washer and bottom coil, and the 1-1/2" U-bolt BAE0595 over the bottom coil. Detail C Detail B Step 5 Step 4 (both springs must be mounted the same way) Page 4 of 14 Model XX0598 ECN2218...
- Page 5 Installation Instructions Pivot Assembly ASY0256 Base Frame AFR1087 3/8" Flat Washer BAE0595 3/8" x 3/4" Button Head Bolt BAE0659 Detail D Step 7 Page 5 of 14 Model XX0598 ECN2218...
- Page 6 2" U-bolt over the second 3/8" x 1-1/2" U-bolt and bottom coil, and the 1-1/2" U-bolt BAE0027 over the bottom coil. Detail E-3 Spring Bottom View of the frame. ATM0014 Step 8 Page 6 of 14 Model XX0598 ECN2218...
- Page 7 3/8" Lock Nut BAE0620 3/8" Flat Washer BAE0595 3/8" x 1-1/4" Button Head Bolt 3/8" Flat Washer BAE0666 BAE0595 See-Saw Frame AFR1438 See-Saw Frame Detail H Detail G-2 Step 11 1" Bolts only Step 10 Page 7 of 14 Model XX0598 ECN2218...
- Page 8 See-Saw Frame 3/8" x 1-1/4" Button Head Bolt BAE0666 Detail I Step 12 Handle AAU0086 3/8" Lock Nut 3/8" x 1-1/2" BAE0620 Button Head Bolt BAE06645 3/8" Flat Washer BAE0595 Detail J Step 13 Page 8 of 14 Model XX0598 ECN2218...
- Page 9 3/8" Flat Washer BAE0595 BAE0620 BAE0595 Seat Cover BFC0487 3/8" Lock Nut 3/8" Flat Washer BAE0620 BAE0595 3/8" Flat Washer 3/8" Lock Nut BAE0595 BAE0620 Detail L Detail K Step 15 Step 14 Page 9 of 14 Model XX0598 ECN2218...
- Page 10 Step 16 of these instructions. Block and brace for concrete. Pour concrete and allow 72 hours for concrete to completely cure before continuing on with the installation. Check the frame to ensure that it is plumb and level after pouring the concrete. Page 10 of 14 Model XX0598 ECN2218...
- Page 11 __Step 15: Attach seat covers to the seat back. See Detail L. Select (4) four seat covers and the appropriate hardware. There are (16) sixteen connections. Position each seat cover, with countersunk holes out, against the seat backs and make attachments as shown. Page 11 of 14 Model XX0598 ECN2218...
-
Page 12: Bill Of Materials
PANEL - 11.01" x 13.43" x .50" - TRIM, RIGHT BFC1026 SHEET - .50" x 9.50" x 11.00" ALB0025 LABEL - AGE APPROPRIATE SHEET For Customer Service, Call 800-233-8404 or 570-522-9800 OUTSIDE U.S. 1000 Buffalo Road • Lewisburg, PA 17837 www.playworldsystems.com Page 12 of 14 Model XX0598 ECN2218... -
Page 13: Equipment Maintenance
• Inspect the spring to insure they are properly secured • Visually inspect handles and end caps for cracks or Model XX0598 to the anchor and spring plates. Check spring U-bolts to breakage. If any damage is detected, barricade equipment ensure secure connections. -
Page 14: Inspection Checklist
Inspect surfacing to insure proper depth and distribution. High Inspector: Name __________________________________ Signature:_________________________________________ Date:___ /___ /___ (Please Print) MAINTENANCE SCHEDULE Item in Question Description of Problem Corrective Action Date Repairer: Name __________________________________ Signature:________________________________________ Date:___ /___ /___ (Please Print) Page 14 of 14 Model XX0598 ECN2218... - Page 15 • Insure that Age Appropriate and Hard Surface Warning/Playworld Systems • Good drainage around the structure and its supports is important. Inquire identifi cation labels are properly affi xed to the play equipment. Labels are to be with local contractors for appropriate recommendations.
- Page 16 • IMPORTANT! Because accidental falls around your playground equipment Maintenance can occur, Playworld Systems recommends that the area under and around the • Inadequate maintenance of equipment has resulted in injuries on the structure be covered with a resilient material such as sand, bark mulch, or wood playground.
-
Page 17: Final Inspection
• Playworld Systems ® insists on the installation of protective surfacing within the • Insure that hard surface warning/Playworld Systems ® identifi cation labels are use zone of each play structure in accordance with the applicable specifi cations properly affi xed to the play equipment. Labels are to be plainly visible according in your area appropriate for the fall height of each structure.
