AMBERAIR COMPACT VEKA INT 400-4000 EKO
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMBERAIR COMPACT VEKA INT 400 EKO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Salda AMBERAIR COMPACT VEKA INT 400 EKO

Summary of Contents for Salda AMBERAIR COMPACT VEKA INT 400 EKO

  • Page 1 AMBERAIR COMPACT VEKA INT 400-4000 EKO MOUNTING AND INSTALLATION INSTRUCTION...

  • Page 2: Table Of Contents

    1. CONTENT 1. CONTENT 2. SYMBOLS AND MARKING 3. SAFETY INSTRUCTIONS AND PRECAUTIONS 4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION 4.2. DIMENSIONS AND WEIGHT 4.3. TECHNICAL DATA 4.4. OPERATING CONDITIONS 4.5. STANDARD PACKAGE OF COMPONENTS 4.6. DESCRIPTION OF COMPONENTS 5. INSTALLATION 5.1.

  • Page 3: Symbols And Marking

    2. SYMBOLS AND MARKING Warning – pay attention Additional information Apply the technical label on the unit (in an easily accessible location) or on the dashed location of the technical manual to keep the important information about the unit. Figure 2.1 Technical label 1 - Logo;...

  • Page 4: Safety Instructions And Precautions

    Danger: Fumes Salda Antifrost system uses dis-balancing of the air flow and it may cause negative pressure in premises. Great care should be taken when using at the same time in premises as another heating appliance what depend on the air in premises. Such appliances include gas, oil, wood or coal-fired boilers and heaters, fireplaces, continuous flow or other water heaters, gas hobs, cookers or ovens which draw air in from the room and duct exhaust gases out through a chimney or extraction ducting.

  • Page 5: Information About The Product

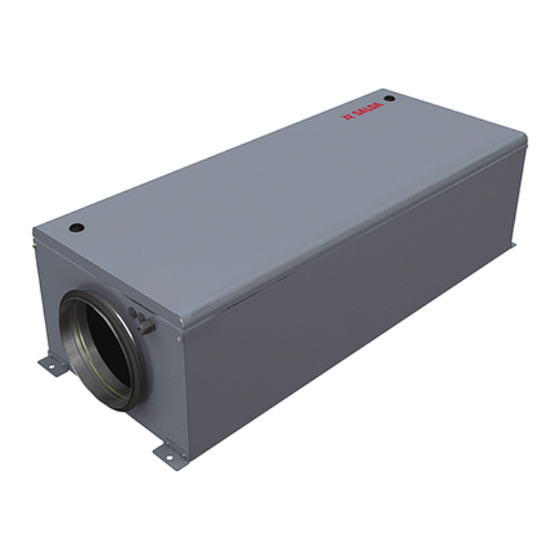

    4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION Air supply units AmberAir Compact VEKA INT EKO designed for the air supply to commercial, warehousing, industrial kitchen, etc. premises where heat recovery is not required. The ventilation unit has a low height for the installation under the ceilings, alternatively, AmberAir Compact VEKA INT EKO can be installed on the wall or under the roof.
  • Page 6 Figure 4.2.3 AmberAir Compact VEKA INT 3000-4000 EKO AmberAir Compact 1000 1000 W 2000 2000W 3000 3000 W 4000 4000 W VEKA INT EKO [mm] 1130 1200 1250 1550 1701 [mm] [mm] ØD [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1173 1240 1291...

  • Page 7: Technical Data

    AmberAir Compact 400-1.2 L1 400-2.0 L1 400-5.0 L1 700-2.4 L1 700-5.0 L1 700-9.0 L1 VEKA INT EKO WEIGHT [kg] AmberAir Compact 1000-2.4 L1 1000-5.0 L1 1000-9.0 L1 1000-12.0 L1 1000-14.4 L1 2000-6.0 L1 2000-15 L1 VEKA INT EKO W SW2 WEIGHT [kg] AmberAir Compact...
  • Page 8 65% ePM10 65% Device protection class IP34 IP34 IP34 IP34 IP34 Acoustic data: check the product page on www.salda.lt Not suitable for installation in living rooms: additional noise insulation required. | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...

  • Page 9: Operating Conditions

    4.4. OPERATING CONDITIONS AMBERAIR COMPACT VEKA INT EKO 400-700 1000-4000 Outdoor air temp. without frost protection -23 .. 40 Ambient air temp. 0 .. 40 -25 .. 40 Max. ambient air humidity 80 % Operation environment Indoor Indoor/outdoor 4.5. STANDARD PACKAGE OF COMPONENTS AMBERAIR COMPACT VEKA INT EKO 400-2000 3000-4000...

  • Page 10: Installation

    5. INSTALLATION 5.1. RECEPTION OF GOODS Each device is carefully checked before transportation. When receiving the goods, checking the devices for any damage made during transporta- tion is recommended. If any damage to the unit is observed, immediately contact the representatives of a transport company. Please inform the representative of the manufacturer, if any deviation of the device is noticed.

  • Page 11: Piping And Instrumentation Diagram

    • Before commencing the installation of the unit, please check if all ordered equipment has been delivered. Any deviation from the ordered equip- ment list must be reported to the product supplier. 5.4. PIPING AND INSTRUMENTATION DIAGRAM Figure 5.4.1 AmberAir Compact VEKA INT W EKO (* For AmberAir Compact VEKA 1000-2000 units TL is outside of the unit on the left side of Figure 5.4.2 AmberAir Compact VEKA INT E EKO (* For AmberAir Compact VEKA 400-700 units KE1 is on the right side of PV;...

  • Page 12: Mounting

    5.5. MOUNTING • Installation works should be carried out by qualified and trained staff only. • When connecting air ducts, consider the labels on the casing of the unit. • Before connecting to the air duct system, the connection openings of the ventilation unit should be closed. •...

  • Page 13: Unit Placing And Mounting Positioning Requirements

    Figure 5.5.3 AmberAir Compact VEKA INT 3000-4000 EKO maintenance side change 5.5.1. UNIT PLACING AND MOUNTING POSITIONING REQUIREMENTS 1,5xL 1,5xL Figure 5.5.1.1 Min. distance to open the door - 1,5xL; Min. distance to open the control box door - H > 400 mm. 5.5.2.

  • Page 14: Roof Mounting (Accessory)

    • When installing air ducts next to the ventilation equipment, brackets must be used. They suppress vibrations and assure secure installation of the various system parts. The necessary brackets can be found in our catalogue or on our website https://select.salda.lt.

  • Page 15: Connection Of The Unit To The Electric Network

    • Air ducts are often mistakenly connected in an inappropriate location. The ventilation units bear the labels indicating the correct air duct connec- tion layout. Before starting up the system, carefully check if all related works have been performed properly. For flange diameters see chapter "DIMENSIONS AND WEIGHT".

  • Page 16: Maintenance

    6. MAINTENANCE 6.1. SAFETY INSTRUCTION Unplug the unit from the mains before opening the door (disconnect the power plug from the outlet or in case an automatic circuit breaker is installed, disconnect it as well. Make sure that it cannot be turned on by the third parties) and wait until the fans completely stop (for about 2 min.).

  • Page 17: Filters Maintenance

    After changing the filters, please reload the filter timer (if used). The instruction on reloading can be found in the control panel operation manual or on our website www.salda.lt Operation of the unit without filters is not allowed.

  • Page 18: Heater Maintenance

    6.6. HEATER MAINTENANCE ELECTRICAL HEATER: • In case manual protection is activated, check for a fault before pressing the RESET button. If the fault is identified after it has been rectified, press the RESET button using a screwdriver or a similar object. •...

  • Page 19: Control Board Maintenance

    6.7. CONTROL BOARD MAINTENANCE • Disconnect product unit from electric power source. • Open unit cover (except AmberAir Compact VEKA INT EKO 3000-4000 units). • Unscrew the bolts of the control box cover. • Remove the control box cover. • Disconnect all cables, wires, and connectors from the control board and unscrew the control board mounting bolts. •...

  • Page 20: Control

    7. CONTROL 7.1. DEVICE CONTROL Ventilation unit equipped with EKO control board can be controlled with FLEX or Stouch remote controller. 7.2. DEVICE FUNCTIONS EKO control board operation functions and control of the device depends on the following: 1. Selected control interface (remote control panel). The selected interface affects access to the information and settings, however, it does not affect the logic of control.

  • Page 21: Connection Of Accessories

    8. CONNECTION OF ACCESSORIES 8.1. FIRE PROTECTION SIGNAL INPUT (FIRE PROTECTION INPUT (NC)) Fire protection signal input must be normally closed for AmberAir Compact VEKA INT EKO, until the fire protection system is not connected a jumper is installed in the factory. Figure 8.1.1 AmberAir Compact VEKA INT Figure 8.1.2 AmberAir Compact VEKA INT Figure 8.1.3 AmberAir Compact VEKA INT...

  • Page 22: Connection Of Remote Control Panel

    8.3. CONNECTION OF REMOTE CONTROL PANEL X1 (EKO controller) 8.4. WATER HEATER CIRCULATION PUMP AND VALVE ACTUATOR Water heater circulation pump and valve actuator can only be connected to the units that are designed to operate with water heater. Wiring diagram Valve actuator is controlled by 0-10 VDC signal.

  • Page 23: Extract Air Filter Pressure Switch

    8.6. EXTRACT AIR FILTER PRESSURE SWITCH AmberAir Compact VEKA INT EKO 3000-4000 units have designated input for external extract air filter differential pressure switch – type NC. Figure 8.6.1 AmberAir Compact VEKA INT EKO 3000-4000 E Figure 8.6.2 AmberAir Compact VEKA INT EKO 3000-4000 W AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...

  • Page 24: Recommended Scheme For Connection Of Internal And External Components

    8.7. RECOMMENDED SCHEME FOR CONNECTION OF INTERNAL AND EXTERNAL COMPONENTS 0-10V Alarm p-mA p-10V +24V VAL+ VAL- PE N Figure 8.7.1 AmberAir Compact VEKA INT EKO 400-1.2; 2.0; 700-2.4 | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...
  • Page 25 0-10V Alarm p-mA p-10V +24V VAL+ VAL- Figure 8.7.2 AmberAir Compact VEKA INT EKO 400-5.0; 700-5.0 AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...
  • Page 26 Min Max 0-10V Alarm p-mA p-10V +24V VAL+ VAL- LED4 LED2 LED5 230V L Sup NO_F NO_F Figure 8.7.3 AmberAir Compact VEKA INT EKO 700-9.0 | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...
  • Page 27 0-10V Alarm p-mA p-10V +24V VAL+ VAL- Figure 8.7.4 AmberAir Compact VEKA INT EKO 1000-2.4 AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...
  • Page 28 0-10V Alarm p-mA p-10V +24V VAL+ VAL- Figure 8.7.5 AmberAir Compact VEKA INT EKO 1000-5.0 | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...
  • Page 29 t-10V Alarm p-mA p-10V +24V VAL+ VAL- N L1 L2 Figure 8.7.6 AmberAir Compact VEKA INT EKO 1000-9.0; 12 AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...
  • Page 30 0-10V Alarm p-mA p-10V +24V VAL+ VAL- Figure 8.7.7 AmberAir Compact VEKA INT EKO 1000-14.4 W | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...
  • Page 31 PE N Figure 8.7.8 AmberAir Compact VEKA INT EKO 2000-6.0 AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...
  • Page 32 PE N Figure 8.7.9 AmberAir Compact VEKA INT EKO 2000-15; 21 | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...
  • Page 33 Figure 8.7.10 AmberAir Compact VEKA INT EKO 2000-26.9W AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...
  • Page 34 ON/OFF 230V AC PE L1 Control system STEP2 STEP3 STEP1 HEATER HEATER HEATER Figure 8.7.11 AmberAir Compact VEKA INT EKO 3000-4000 with electrical heater | EN AmberAir Compact VEKA INT 400-4000 EKO v2024.1...
  • Page 35 PE N Figure 8.7.12 AmberAir Compact VEKA INT EKO 3000-4000 with water heater AmberAir Compact VEKA INT 400-4000 EKO v2024.1 EN |...

  • Page 36: Possible Faults And Troubleshooting

    9. POSSIBLE FAULTS AND TROUBLESHOOTING FAILURE CAUSE EXPLANATION / CORRECTIVE ACTIONS Check whether the device is connected to the No supply voltage power network. Switch on only if the unit condition has been The unit is not operating The protection device is off or a current leak- evaluated by a qualified electrician.

  • Page 37: Ecodesign Data Table

    54,3 54,8 67,8 58,2 ErP Compliance 2018 2018 2018 2018 2018 Internet address for disassembly instructions https://select.salda.lt AMBERAIR COMPACT VEKA INT EKO 3000 3000 W 4000 4000 W Topology Bidirectional Bidirectional Bidirectional Bidirectional Type of drive (fan) Variable Variable Variable...

  • Page 38: Declaration Of Conformity

    LST EN 61000-6-4:2007/A11:2011 - Electromagnetic compatibility (EMC). Part 6-4: Generic standards - Emission standard for industrial environments. Should any alterations be made in the products, this declaration will no longer apply. Quality: SALDA UAB activities are in line with the international quality management system standard ISO 9001:2015. Date 2022-05-17...

  • Page 39: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where the Air Handling unit is manufactured 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where the Air Handling unit is manufactured without the control system and the control system is installed by the client or the third parties.
  • Page 40 Fan cleaning Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The customer shall be required to complete the Product Maintenance Table. MANUALS IN OTHER LANGUAGES https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ aa-compact-veka-int400- aa-compact-veka-int400- aa-compact-veka-int400- aa-compact-veka-int400- 4000eko-de...
