RIRS 12005500 V EKO 3.0 RHX
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading

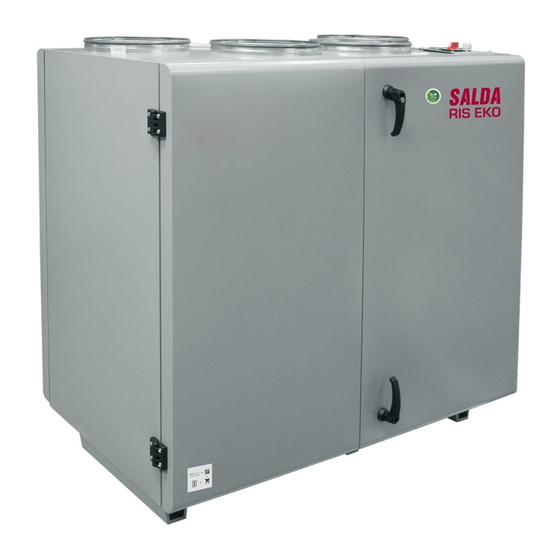

Summary of Contents for Salda RIRS EKO 3.0 1200 VEL

  • Page 1 RIRS 12005500 V EKO 3.0 RHX MOUNTING AND INSTALLATION INSTRUCTION...
  • Page 2: Table Of Contents

    1. CONTENT 2. SYMBOLS AND MARKING 3. SAFETY INSTRUCTIONS AND PRECAUTIONS 4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION 4.2. DIMENSIONS AND WEIGHT 4.3. TECHNICAL DATA 4.4. OPERATING CONDITIONS 4.5. STANDART PACKAGE OF COMPONENTS 4.6. DESCRIPTION OF COMPONENTS 5. INSTALATION 5.1. RECEPTION OF GOODS 5.2.
  • Page 3: Symbols And Marking

    2. SYMBOLS AND MARKING Warning – pay attention Additional information Apply the auxiliary label on the unit (on an easily accessible location) or on the dashed location of the technical manual in order to keep the important information about the unit. Figure.
  • Page 4 Figure. 2.7. Technical label place and air duct indication RIRS 5500 Figure. 2.8. Technical label place and air duct indication RIRS 5500 V EKO 3.0 (right version) V EKO 3.0 (left version) NOTE. Ducts are not the part of the unit. | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 5: Safety Instructions And Precautions

    3. SAFETY INSTRUCTIONS AND PRECAUTIONS Read these instructions very carefully before installing and using this equipment. Installation, connection and maintenance should be carried out Main safety rules Danger • of the device have stopped. • Make sure that the fans are not accessible through air ducts or branch openings. •...
  • Page 6: Information About The Product

    4. INFORMATION ABOUT THE PRODUCT 4.1. DESCRIPTION Not suitable for operation in pools, saunas and other similar premises. 4.2. DIMENSIONS AND WEIGHT Figure 4.2.1. RIRS 1200 -1900 VE/VW EKO 3.0 Figure 4.2.2. RIRS 2500 VE/VW EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 7 Figure 4.2.3. RIRS 3500 VE/VW EKO 3.0 Figure 4.2.4. RIRS 5500 VE/VW EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 8 RIRS EKO 3.0 1200 1200 1200 1200 1900 1900 1900 1900 2500 2500 2500 2500 [mm] 1500 1500 1500 1500 1500 1500 1500 1500 1600 1600 1600 1600 [mm] [mm] 1150 1150 1150 1150 1150 1150 1150 1150 1300 1300 1300 1300 [mm]...
  • Page 9: Technical Data

    4.3. TECHNICAL DATA RIRS EKO 3.0 RHX 1200 VE 1200 VW 1900 VE 1900 VW 2500 VE 2500 VW Exhaust air fan phase/voltage [50 Hz/VAC] 1/230 1/230 1/230 1/230 1/230 1/230 [kW/A] 0,38/2,5 0,38/2,5 0,47/2,04 0,47/2,04 0,715/3,1 0,715/3,1 speed [min 3370 3370 2530...
  • Page 10: Operating Conditions

    4.4. OPERATING CONDITIONS RIRS VE/VW EKO 3.0 RHX 1200 1900 2500 3500 5500 Minimum outdoor air temperature Maximum outdoor air temperature Minimum extracted air temperature Maximum extracted air temperature Maximum extracted air relative humidity Minimum ambient air temperature Maximum ambient air temperature Installation indoor/outdoor indoor/outdoor...
  • Page 11: Instalation

    5. INSTALATION 5.1. RECEPTION OF GOODS Each device is carefully checked before transportation. When receiving the goods, checking the devices for any damage made during transportation is recommended. If any damage to the unit is observed, immediately contact the representatives of a transport company. Please inform the representative of the manufacturer, if any deviation of the device is noticed.
  • Page 12: Unpacking

    Figure 5.2.2. Lifting by rope In order to prevent damage to the casing, only a product placed on a pallet should be lifted. 5.3. UNPACKING Accessories may be packed together with the product. Prior to transporting the unit, the accessories should be unpacked •...
  • Page 13: Piping And Instrumentation Diagram

    5.4. PIPING AND INSTRUMENTATION DIAGRAM * KE1 - only in electrical version; * KV1 - used in water version; ** Possible to control. THE LIST OF COMPONENTS Supply air fan Exhaust fan Exhaust air temperature sensor Supply air temperature sensor Extract air temperature and humidity sensor CO2 sensor Computer...
  • Page 14: Mounting

    5.5. MOUNTING • • When connecting air ducts, consider the labels on the casing of the unit. • Before connecting to the air duct system, the connection openings of ventilation unit should be closed. • • • • • • •...
  • Page 15: Connection Of The Unit To Electric Network

    • and noise level, you can increase the diameter. • In order to reduce the level of the noise in the air supply system, install dampers (see the chapter on air supply system installation). • • External air and exhaust system piping should be isolated in order to prevent heat loss and condensation. •...
  • Page 16: Maintenance

    6. MAINTENANCE 6.1. SAFETY INSTRUCTION Unplug the unit from the mains before opening the door (disconnect the power plug from the outlet or in case an automatic circuit breaker installed, disconnect it as well. Make sure that it cannot be turned on by third parties) and wait until the fans completely stop (for about 2 min.).
  • Page 17: Filters

    6.4. FILTERS direction. tion manual or on our website www.salda.lt 6.5. ROTOR MAINTENANCE • Maintenance of rotor heat exchanger must be performed on annual basis, once per year. • exchanger are tight. • clamp of the rotor heat exchanger section, and then remove the heat exchanger.
  • Page 18: Heater Maintenance

    • • Make sure the impeller is free of any obstacles. • • Prior to commencing any maintenance or repairs, make sure the unit is disconnected from the power source. 6.7. HEATER MAINTENANCE • • • • • If necessary, electric heater can be removed. Disconnect the electrical connector from the heater and remove the heater. 6.8.
  • Page 19: Control

    BMS over Modbus TCP/IP FLEX BMS over BACnet TCP/IP 7.2. DEVICE FUNCTIONS WEB application and SALDA AIR mobile application. Refer to the instruction manual of the existing control device for unit control instructions. RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 20: Accessories

    8. ACCESSORIES RIRS EKO 3.0 1200 VE 1200 VW 1900 VE 1900 VW Outlet covers LSVF 315 FIT000308 FIT000308 FIT000308 FIT000308 AVA 315 ACC000194 ACC000194 ACC000194 ACC000194 AVA-DX 315 ACC000148 ACC000148 ACC000148 ACC000148 Heaters/cool- ers (on duct) AVS 315 ACC000201 ACC000201 ACC000201 ACC000201...
  • Page 21 Filter set RIRS 1200/1900 V/H EKO 3.0 (ePM10- Filter sets ACC004884 ACC004884 ACC004884 ACC004884 50+ePM1-70-2pcs.) RIRS EKO 3.0 2500 VE 2500 VW LJ-E 50-25 FIT000423 FIT000423 LJ-PG 50-25 FIT000313 FIT000313 Outlet covers STP-C 500x250/400 ACC000027 ACC000027 AVA 400 ACC000195 ACC000195 AVA-DX 400 ACC000149 ACC000149...
  • Page 22 ACC000305 ACC000305 ACC000316 Actuators ACC000317 ACC000318 ACC000318 SKG-A 400 FIT000747 FIT000747 Dampers SSK 500-250 ACC000133 ACC000133 AKS 400-12 FIT000278 FIT000278 Silencers SKS 50-25 FIT000299 FIT000299 SSP 500x250x1000-2x100 ACC000126 ACC000126 SSP 500x250x900-4x100 ACC000121 ACC000121 Filter sets Filter set RIRS 2500 V EKO 3.0 (ePM10-50+ePM1-70-2pcs.) ACC004889 ACC004889 RIRS EKO 3.0...
  • Page 23 ACC000269 ACC000269 ACC000269 ACC000269 Remote control panel FLEX ACC000270 ACC000270 ACC000270 ACC000270 Remote control panel ST-SA-Control ACC000271 ACC000271 ACC000271 ACC000271 Control Remote control panel Stouch ACC000272 ACC000272 ACC000272 ACC000272 ACC004460 ACC004460 ACC004460 ACC004460 Router TP-Link TL-WR802N ACC000273 ACC000273 ACC000273 ACC000273 Sensor CO duct S-KCO2 ACC000277...
  • Page 24: Connection Of Accessories

    8.1. CONNECTION OF ACCESSORIES 8.1.1. FIRE PROTECTION SIGNAL INPUT (FIRE PROTECTION INPUT (NC)) 8.1.2. EXTERNAL CO /PRESSURE SENSORS Sensors connection: The CO2 transmitter is installed in the extract air duct or room. 8.1.3. ROOM CO2 TRANSMITTER INSTALLATION RECOMMENDATION 5 0 c m i n .
  • Page 25: Co2 Concentration According To Pettenkofer Limit

    8.1.4. CO2 CONCENTRATION ACCORDING TO PETTENKOFER LIMIT 8.1.5. CONNECTION OF SUPPLY AND EXTRACT AIR DAMPERS tuators. Wiring diagram for RIRS VE EKO 3.0 M2, M3 – Open/Close damper actuators. Upon activation of outputs X16:17, X16:20 the dampers shall open, Upon activation of outputs X16:16, X16:19 the dampers shall close.
  • Page 26: Connection Of Remote Control Panel Or Modbus

    8.1.6. CONNECTION OF REMOTE CONTROL PANEL OR MODBUS 8.1.7. WATER HEATER CIRCULATION PUMP AND VALVE ACTUATOR EKO 3.0 units). Wiring diagram | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 27: Recommended Scheme For Connection Of Internal And External Components

    8.1.8. RECOMMENDED SCHEME FOR CONNECTION OF INTERNAL AND EXTERNAL COMPONENTS Figure 8.1.9. RIRS 1200 VE EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 28 Figure 8.1.10. RIRS 1200 VW EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 29 Figure 8.1.11. RIRS 1900 VE EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 30 Figure 8.1.12. RIRS 1900 VW EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 31 Figure 8.1.13. RIRS 2500 VE EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 32 Figure 8.1.14. RIRS 2500 VW EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 33 Figure 8.1.15. RIRS 3500 VE EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 34 Figure 8.1.16. RIRS 3500 VW EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 35 Figure 8.1.17. RIRS 5500 VE EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2020.1 EN |...
  • Page 36 Figure 8.1.18. RIRS 5500 VW EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 37: Possible Faults And Troubleshooting

    9. POSSIBLE FAULTS AND TROUBLESHOOTING FAILURE CAUSE EXPLANATION / CORRECTIVE ACTIONS No supply voltage Unit is not operating relay is active (if installed by the installer) ic protection fans are rotating Air supply heater or pre-heater is not operat- Possible heater or unit failure. MUST contact ing or malfunctioning (if installed) Manual protection is activated elimination.
  • Page 38: Ecodesign Data Table

    10. ECODESIGN DATA TABLE RIRS EKO 3.0 1200 VE 1200 VW 1900 VE 1900 VW Declared typology bidirectional bidirectional bidirectional bidirectional Type of drive Variable Variable Variable Variable Type of HRS regenerative regenerative regenerative regenerative 75,3 75,3 /s ] 0,36 0,36 0,41 0,41...
  • Page 39 RIRS EKO 3.0 5500 VE 5500 VW Declared typology bidirectional bidirectional Type of drive Variable Variable Type of HRS regenerative regenerative 74,2 74,2 /s ] 1,33 1,33 [ kW ] 2,59 2,59 SFPint [ W/(m /s) ] Face velocity [ m/s ] Normal external pressure [ Pa ] Internal pressure drop of ventilation components...
  • Page 40: Declaration Of Confimity

    11. DECLARATION OF CONFIMITY Manufacturer SALDA, UAB LT-78109 Šiauliai, Lithuania Tel.: +370 41 540415 www.salda.lt RIRS * EKO 3.0 Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU Ecodesign Directive 2009/125/EC RoHS 2 Directive 2011/65/EU Ecodesign requirements for ventilation units Nr. 1253/2014 Energy labeling of residential units Nr.
  • Page 41: Warranty

    12. WARRANTY date. such damage. damaged by installing the control system. 4.1. mechanical damage; 4.2. damage caused by entering outside objects, materials, liquids; lation and mounting regulations, deliberate or careless users or third-party behavior. days and deliver the equipment to manufacturer. Delivery costs should be covered by customer. Manufacturer reserves the right to change this technical passport any time without prior notice, if some typographic errors or inaccurate information is found, as well as after improving the apps and/or the devices.
  • Page 42 RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 43 RIRS 1200-5500 V EKO 3.0 v2020.1...
  • Page 44 Once per year** Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The customer shall be required to complete the Product Maintenance Table. MANUALS IN OTHER LANGUAGES https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ https://select.salda.lt/file/ rirs1200-5500vekode rirs1200-5500vekodk rirs1200-5500vekofr rirs1200-5500vekolt rirs1200-5500vekopl https://select.salda.lt/file/...
