Goodrive100-PV Solar Pumping Controller
GPRS module and monitoring APP
GD100-PV series support the installation of the GPRS module to implement remote monitoring. The controller operation state can
be monitored on the APP in the mobile phone or web page in r e al time.

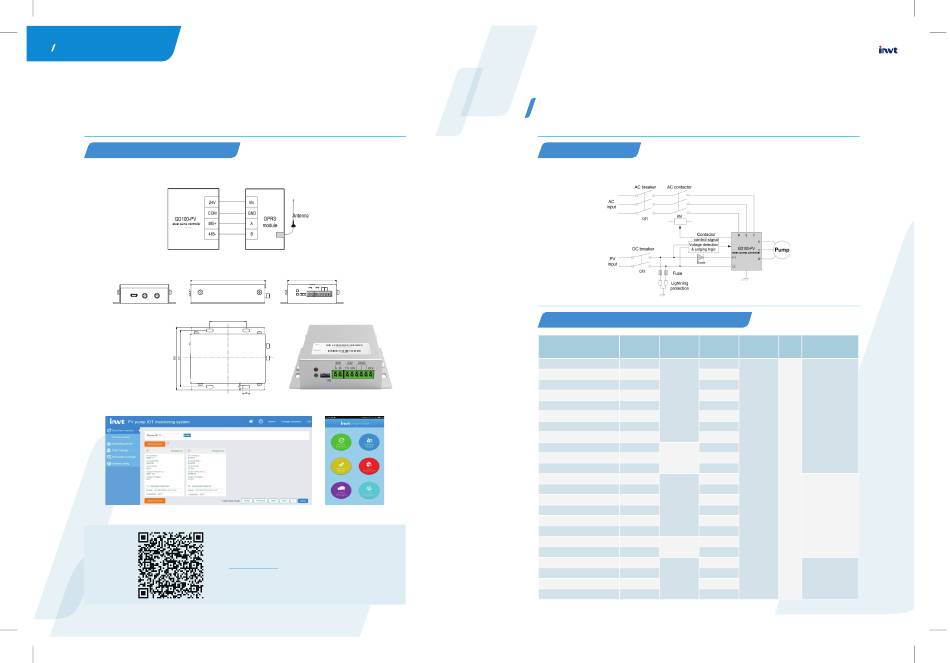

Diagram of connecting the GPRS module to the controller
103.4
USB
GPRS
GPS
50
GPRS module installation dimensions
Computer monitoring interface
9
67.5
485
232
GND
A B
TX RX
24V
ON
Mobile APP interface
The web page of IOT monitoring system for GD100-PV is:
, and you can download the android
iot.invt.com:12000
APP by sweep the QR-Code.
Solution for Auto Switch
Solution Introduction
Generally,
controller
s do not allow simultaneous connection of PV and grid input. If such simultaneous connection is r
external configuration must be made to switch the control circuit. One solution for auto switch is recommended:
Model selection reference for low-voltage apparatus
AC breaker
DC breaker
AC contactor
Model
(A)
(A)
(A)
GD100-0R4G-SS2-PV-AS
16
16
GD100-0R7G-SS2-PV-AS
25
25
GD100-1R5G-SS2-PV-AS
40
32
GD100-2R2G-SS2-PV-AS
40
32
16A/500V
GD100-0R4G-S2-PV-AS
16
10
GD100-0R7G-S2-PV-AS
16
16
GD100-1R5G-S2-PV-AS
25
25
GD100-2R2G-S2-PV-AS
40
32
GD100-0R7G-4-PV-AS
10
10
GD100-1R5G-4-PV-AS
10
16A/1000V
10
GD100-2R2G-4-PV-AS
16
10
GD100-004G-4-PV-AS
25
16
GD100-5R5G-4-PV-AS
25
16
GD100-004G-2-PV-AS
25
16
63A/1000V
GD100-7R5G-4-PV-AS
40
25
GD100-5R5G-2-PV-AS
40
25
GD100-011G-4-PV-AS
63
32
GD100-7R5G-2-PV-AS
63
32
80A/1000V
GD100-015G-4-PV-AS
63
50
GD100-018G-4-PV-AS
100
63
GD100-022G-4-PV-AS
100
80
125A/1000V
GD100-030G-4-PV-AS
125
95
GD100-037G-4-PV-AS
160
120
Above 37KW of IP54 model please refer operation manual page 57-58
equired,
Surge
Fuse
Diode
protection
Not required
since equipped
the boost module
Type II
30A
1000VDC
55A/
1600V
110A/
1600V
10
