Goodrive100-PV Solar Pumping Controller
Models of IP54 support wall mounting

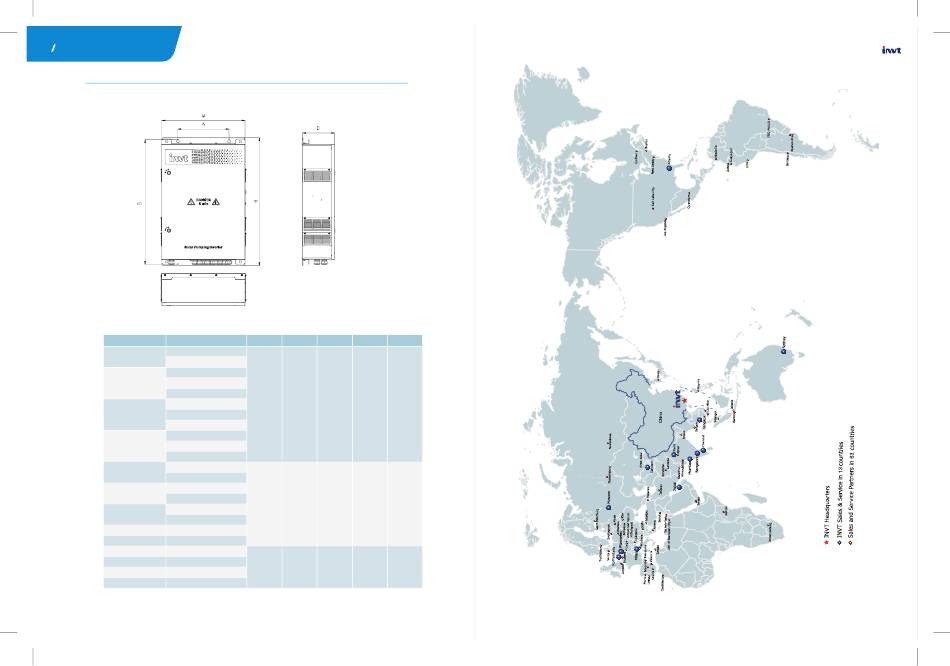

IP54 controller dimensional drawing
IP54 controller dimensions (unit: mm)
Power(kW) Model
GD100-0R4G-S25-PV-AS
0.4
GD100-0R4G-SS25-PV-AS
GD100-0R7G-45-PV-AS
0.75 GD100-0R7G-S25-PV-AS
GD100-0R7G-SS25-PV-AS
GD100-1R5G-45-PV-AS
1.5 GD100-1R5G-S25-PV-AS
GD100-1R5G-SS25-PV-AS
GD100-2R2G-45-PV-AS
2.2 GD100-2R2G-S25-PV-AS
GD100-2R2G-SS25-PV-AS
GD100-004G-45-PV-AS
4
GD100-004G-25-PV-AS
GD100-5R5G-45-PV-AS
5.5
GD100-5R5G-25-PV-AS
GD100-7R5G-45-PV-AS
7.5
GD100-7R5G-25-PV-AS
11 GD100-011G-45-PV-AS
15 GD100-015G-45-PV-AS
18.5 GD100-018G-45-PV-AS
22 GD100-022G-45-PV-AS
30 GD100-030G-45-PV-AS
37 GD100-037G-45-PV-AS
If you need capacity above 37kW of IP54 model please contact INVT.
