- Page 1 Ruijie Reyee RG-ES216GC- V2, ES224GC-V2 Switch Installation Guide Document Version: V1.2 Date: 2024.05.31 Copyright © 2024 Ruijie Networks...
- Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support The official website of Ruijie Reyee: https://reyee.ruijie.com Technical Support Website: https://reyee.ruijie.com/en-global/support Case Portal: https://www.ruijienetworks.com/support/caseportal Community: https://community.ruijienetworks.com... -
Page 4: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 RG-ES224GC-V2........................1 1.1.1 Package Contents ......................1 1.1.2 Technical Specifications ....................2 1.1.3 Product Appearance ...................... 3 1.1.4 Front Panel ........................3 1.1.5 Back Panel ........................4 1.1.6 Heat Dissipation ......................4 1.2 RG-ES216GC-V2........................ - Page 5 2.2 Installation Site Requirements ....................10 2.2.1 Bearing Requirements: ....................10 2.2.2 Ventilation ........................10 2.2.3 Space Requirements ....................10 2.2.4 Temperature and Humidity ................... 10 2.2.5 Cleanness ........................11 2.2.6 Interference Resistance ....................12 2.2.7 Grounding ........................12 2.2.8 Lightning Resistance....................13 2.2.9 EMI ..........................
- Page 6 5.1 General Troubleshooting Procedure ..................22 5.2 Troubleshooting Common Faults .................... 22 Appendix A Connectors and Connection Media ................24 Appendix B Mini-GBIC and SPF+ Module ..................26 Appendix C Lightning Protection ......................30 Appendix D Cabling Recommendations in Installation ..............32 Appendix E Site Selection ........................
-
Page 7: Product Overview
Installation Guide Product Overview Product Overview Table 1-1 Interface Specifications of the RG-ES224GC-V2/ES216GC-V2 Switch 10/100/1000 Base-T Auto- 1000Base-X SFP Console Power Supply Model sensing Port Port Options Ethernet Port Fixed power RG-ES224GC-V2 supply Fixed power RG-ES216GC-V2 supply 1000Base-T is compatible with 100Base-TX and 10Base-T in the downlink direction. RG-ES224GC-V2 1.1.1 Package Contents... -
Page 8: Technical Specifications
Installation Guide Product Overview 1.1.2 Technical Specifications Model RG-ES224GC-V2 Port 24 x 10/100/1000 Base-T Ethernet ports with auto-negotiation SFP Port Not supported AC input Rated voltage range: 100V to 240V Power Supply Maximum voltage range: 90V to 264V Frequency: 50/60 Hz Rated current: 0.6A Earth Leakage ≤... -
Page 9: Product Appearance

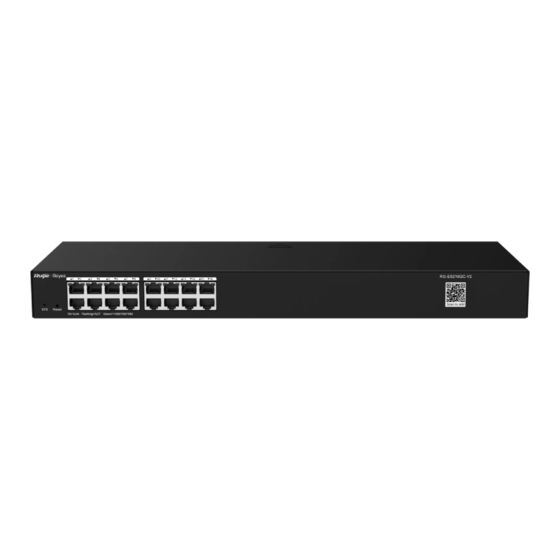

Installation Guide Product Overview 1.1.3 Product Appearance On the front panel, the RG-ES224GC-V2 Ethernet switch provides twenty-four 10/100/1000Base-T Ethernet ports. On the back panel, it provides an AC power port. Figure 1-2 Appearance of RG-ES224GC-V2 1.1.4 Front Panel Item Description Off: The switch is not receiving power. -
Page 10: Back Panel
Installation Guide Product Overview 1.1.5 Back Panel Item Description Connected to an external AC power source through the supplied power Power socket cord. Power cord retention For fixing the power cord retainer. clips Heat dissipation For heat dissipation. holes Protective earthing For fixing the grounding lug to ensure that the chassis is properly terminal grounded to an external grounding conductor. -
Page 11: Technical Specifications
Installation Guide Product Overview Item Quantity Power cord Power cord retainer Note The package contents above are intended to provide a general overview, and are subject to the terms of the order contract. Please check your goods carefully against the package contents or order contract. If you have any questions, please contact the distributor. -
Page 12: Product Appearance
Installation Guide Product Overview Model RG-ES216GC-V2 Number of Fans Fanless Temperature Not supported Warning Certification Dimensions 440 mm x 165 mm x 44 mm (W x D x H) Net Weight 2.0 kg Warning Operation of this equipment in a residential environment could cause radio interference. 1.2.3 Product Appearance On the front panel, the RG-ES216GC-V2 Ethernet switch provides sixteen 10/100/1000Base-T Ethernet ports. -
Page 13: Back Panel
Installation Guide Product Overview Note: 1. Power status LED 3. 10/100/1000Base-T Ethernet port with auto- negotiation 2. System reset button 4. Port status LED 5. Nameplate at the bottom of the device The switch reboots after the reset button is pressed for less than 2 seconds. The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the status LED blinks). - Page 14 Installation Guide Product Overview Panel State Meaning Identification Blinking The switch is being upgraded or initialized. System status green Solid green The switch is operational. The port is not connected. The port is connected at 10/100/1000 1000Mbps RJ-45 Solid green 1-16 Mbps.
-
Page 15: Preparation Before Installation
Installation Guide Preparation before Installation Preparation before Installation Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-ES200 series switch. The following safety suggestions do not cover all possible dangers. 2.1.1 Installation ... -
Page 16: Static Discharge Damage Prevention
Installation Guide Preparation before Installation leakage current of all the power supplies. The rated leakage non-action current of a leakage protector shall be 50% of the leakage action current. Take a leakage protector with 30mA rated leakage action current as an example. -
Page 17: Cleanness
Installation Guide Preparation before Installation In an environment with low relative humidity, however, the insulating strip may dry and shrink. Static electricity may occur easily and endanger the circuit on the equipment. In an environment with high temperature, the equipment is subject to even greater harm, as its performance may degrade significantly and various hardware faults may occur. -
Page 18: Interference Resistance
Installation Guide Preparation before Installation 2.2.6 Interference Resistance The switch is vulnerable to external interface caused by capacity coupling, inductance coupling, electromagnetic wave radiation, common impedance (including grounding system) coupling and conducting wires (including power cords, signal and output wires). Therefore, the following points should be noted: ... -
Page 19: Lightning Resistance
Installation Guide Preparation before Installation The grounding required for EMC design includes shielding ground, filter ground, noise and interference suppression, and level reference. All the above constitute the comprehensive grounding requirements. The resistance of earth wires should be less than 1 ohm. The RG-ES200 series switch back plane is reserved with one grounding pole, as shown in Figure 2-1. -
Page 20: Rack Requirements
Installation Guide Preparation before Installation Rack Requirements The switch meets the EIA standard and can be installed in a 19-inch rack. If you want to install the switch in a rack, make sure that the rack observes the following requirements: (1) Use a four-post 19-inch cabinet. -
Page 21: Product Installation
Installation Guide Product Installation Product Installation Please ensure that you have carefully read Chapter 2. Make sure that the requirements set forth in Chapter 2 have been met. Installation Flowchart Confirmations before Installation Before installation, please confirm the following points: ... -
Page 22: Mounting The Switch To A Standard 19-Inch Rack
Installation Guide Product Installation Ensure that the interface of the power supply cable is well connected to the power interface of the device. The power cables must be protected using power cable retention clips after they are connected to the device. - Page 23 Installation Guide Product Installation Figure 3-3 Attaching the Mounting Bracket to RG-ES224GC-V2/RG-ES216GC-V2 Step 2: Use the supplied M6 screws and cage nuts to securely attach the mounting brackets to the rack, as shown in Figure 3-4 and Figure 3-5. Figure 3-4 Attaching the Brackets to the Rack Figure 3-5 Attaching the Brackets to the Rack...
-
Page 24: Mounting The Switch On A Table
Installation Guide Product Installation 3.3.2 Mounting the Switch on a Table Attach the four rubber pads to the recessed areas on the bottom of the switch, as shown in Figure 3-6 and Figure 3-7. Figure 3-6 Attaching the Rubber Feet to the Recessed Areas Figure 3-7 Attaching the Rubber Pads to the Recessed Areas Place the switch on the table, as shown in Figure 3-8 and Figure 3-9. -
Page 25: Connecting The Power Cord
Installation Guide Product Installation Figure 3-8 Mounting the Switch on the Table Figure 3-9 Mounting the Switch on the Table The device must be installed and operated in the place that can restrict its movement. Connecting the Power Cord Make sure that the ground wire is connected before connecting the power cord. 3.4.1 Connecting the AC Power Cord Connect the AC power cord:... -
Page 26: Checking After Installation
Installation Guide Product Installation Step 3: Check if the status LED on the front panel of the switch has started to blink. The blinking LED indicates that the power connection is correct and the switch is initializing. Checking after Installation Before checking the installation, switch off the power supply so as to avoid any personal injury or damage to the component due to connection errors. -
Page 27: Debugging
Installation Guide Debugging Debugging Setting up the Configuration Environment Connect the Ethernet cable Connect the RJ45 connector at one end of the Ethernet cable into the Ethernet port of the PC. Connect the RJ45 connector at the other end of the Ethernet cable into any port of the switch. Log in to Eweb ... -
Page 28: Maintenance And Troubleshooting
Installation Guide Maintenance and Troubleshooting Maintenance and Troubleshooting General Troubleshooting Procedure Troubleshooting Common Faults Symptom Possible Causes Solution Press and hold the Reset button for more Forgetting the than 5 seconds to restore the switch to management A password is manually factory default settings. - Page 29 Installation Guide Maintenance and Troubleshooting Symptom Possible Causes Solution The fiber type is not correct. Replace the optical fiber with one of the appropriate type. The length of the optical fiber exceeds that rated of Replace the optical fiber with one of the optical module.
-
Page 30: Appendix A Connectors And Connection Media
Installation Guide Appendix A Connectors and Connection Media Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m. - Page 31 Installation Guide Appendix A Connectors and Connection Media Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure 5-4: Figure 5-4 Figure A-4 Optical Fiber Connections...
-
Page 32: Appendix B Mini-Gbic And Spf+ Module
You can select the Mini-GBIC module to suit your specific needs. The models and technical specifications of some Mini-GBIC and 10G SFP+ modules are listed below. For details, see Ruijie Transceiver Installation and Reference Guide. - Page 33 Installation Guide Appendix B Mini-GBIC and SPF+ Module Wave Media Intensity of Intensity of Length Type (Yes/No) Transmitted Received Light (nm) Light (dBm) (dBm) Model GE-SFP- 1550TX/1 LH40- 310RX SM1550-BIDI Mini-GBIC- 1550 ZX50 Mini-GBIC- 1550 ZX80 Mini-GBIC- 1550 ZX100 GE-SFP-SX -9.5 GE-SFP-LX 1310...
- Page 34 Installation Guide Appendix B Mini-GBIC and SPF+ Module Interface Model Fiber Type Core Size(μm) Cable Distance (Max.) Type GE-SFP-LX- 9/125 10km SM1310 Mini-GBIC- LH40- 9/125 40km SM1310 GE-SFP-SX- 50/125 500m SM1310-BIDI GE-SFP-SX- 50/125 500m SM1550-BIDI GE-SFP- 9/125 LX20- 20km SM1310-BIDI GE-SFP- 9/125 20km...
- Page 35 Installation Guide Appendix B Mini-GBIC and SPF+ Module Interface Model Fiber Type Core Size(μm) Cable Distance (Max.) Type Mini-GBIC- RJ45 Category 5 (or above ) UTP or STP 100m For the optical module with transmission distance exceeding 40 km and more, one on-line optical attenuator should be added on the link to avoid the overload of the optical receiver when short single-mode optical fibers are used.
-
Page 36: Appendix C Lightning Protection
Installation Guide Appendix C Lightning Protection Appendix C Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row shall be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch. - Page 37 Installation Guide Appendix C Lightning Protection and paste the Ethernet port arrester to the switch framework. The paste location for the Ethernet port arrester shall be as close to the grounding terminal of the switch. (2) Based on the distance of the switch grounding terminal, cut the grounding line for the Ethernet port arrester and firmly tighten the grounding line to the grounding terminal of the switch.
-
Page 38: Appendix D Cabling Recommendations In Installation
Installation Guide Appendix D Cabling Recommendations in Installation Appendix D Cabling Recommendations in Installation When RG-ES200 series switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cabling rack, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room. - Page 39 Installation Guide Appendix D Cabling Recommendations in Installation The metal hole traversed by cables should have a smooth and fully rounding surface or an insulated lining. Proper buckles should be selected to bundle up cables. It is forbidden to connect two or more buckles to bundle up cables.
- Page 40 Installation Guide Appendix D Cabling Recommendations in Installation The power cables connecting moving parts such as door grounding wires should be reserved with some access after assembled. When the moving part reaches the installation position, the remaining part should not touch heat sources, sharp corners, or sharp edges.
-
Page 41: Appendix E Site Selection
Installation Guide Appendix E Site Selection Appendix E Site Selection The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.
