Aufbauanleitung für Helling (= bedruckter Karton, einzeln bei den Rechnungsunterlagen beigelegt!)
Making the jigs for constructing the Mini Holli.
( First make the jigs then the model )
You will need the following tools:- a steel rule, scissors and craft a knife.

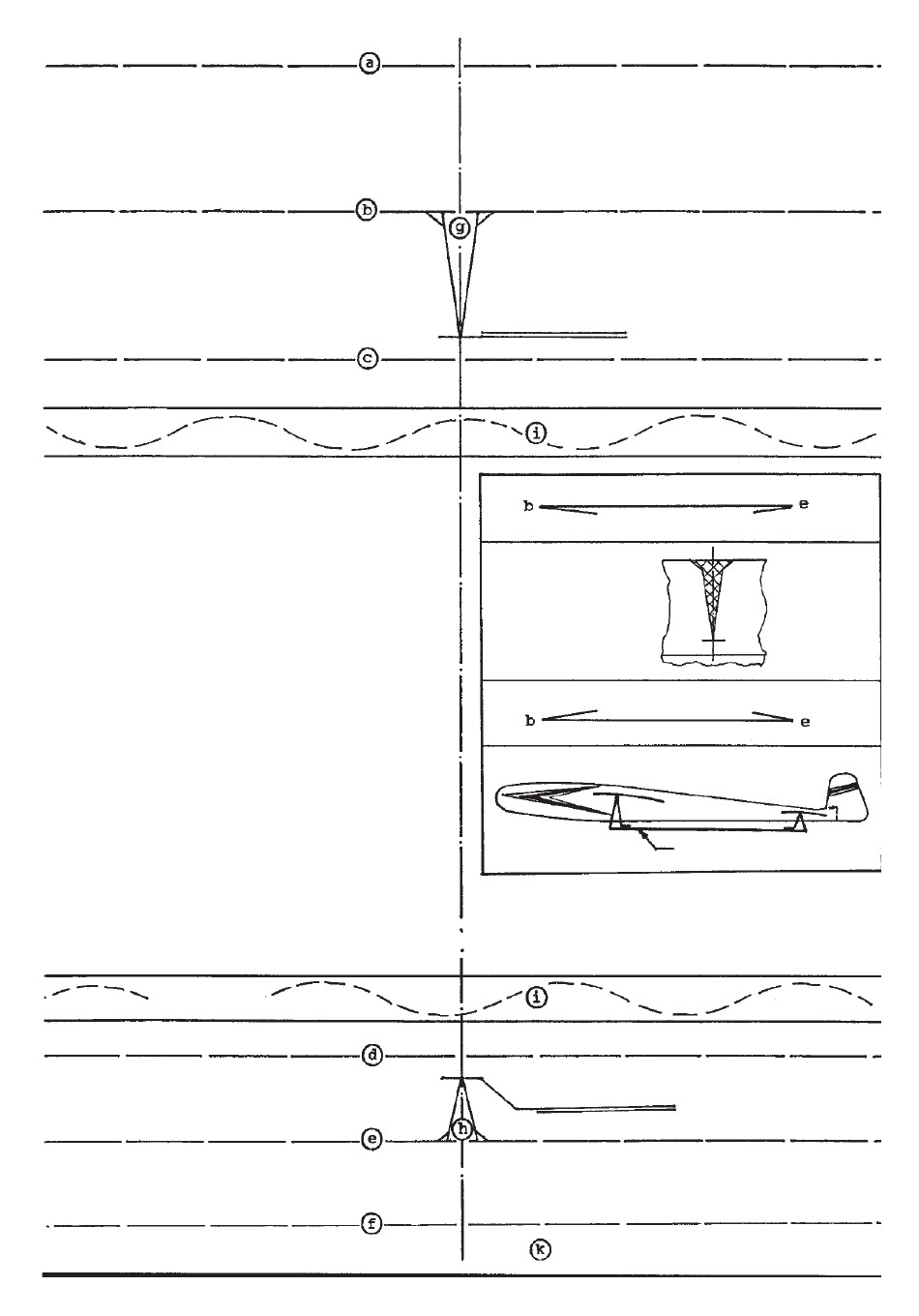

1. Score the card on the lines marked a,b,c,d,e and f with the back of the knife
blade so that it will bend easily, use a steel rule to ensure that the lines are
straight.
2. Bend the card on the lines b and e through 180 degrees down and back on it-
self. (see diagram 1)
3. Remove the shapes marked g and h and finally snip the corners with scissors
as shown in diagram 2.
4. Open the card back to its original flat state.
5. Now bend the card on the lines a and f through 180 degrees under and back on
itself.
6.Then bend the card on the lines b and e through 180 degrees upwards and
back on itself.( see diagram 3)
7. Flatten the card out once again.
8.Now bend the card on the lines c and d through 180 degrees upwards and back
on itself.
9. Flatten the card again.
10. On the part marked i, spread a thin wavy line of universal glue.(see diagram)
11. Stick the part marked k onto the glued area marked i
After wings and tailplane have been added to the model, it can be placed on the
jig to dry. This will en sure all parts, wing and tailplane are in line. You may need
to weigh the model down with something like a biro so that it does not move about
whilst drying. Leave for half an hour so the glue will set.( see diagram 4 )
Universal glue
2
Cut only to here!
.
The jig is now complete.
When gluing the small dowels in the body of the plane it is essential
that the slits for the wings and the tail plane are left free.
Use the enclosed disc as trimming weight
( diagram 1 )
( diagram 2 )
( diagram 3 )
( diagram 4 )
Cut only to here!
jigs for constructing
E102076#1
