User Guide EVAL-AD4052
QUICK START GUIDE
analog input Subminiature Version A (SMA) connectors to drive
the AD4052 inputs into their specified operating ranges. See the
Analog Front-End (AFE) section for more information.
If no signal generator is available, a jumper cable between the
VREF and VCM test points can be used to bias the AD4052 analog
inputs to VREF. This is preferred over connecting the amplifier
inputs to GND, because the amplifier VEE rails are connected to
GND by default.

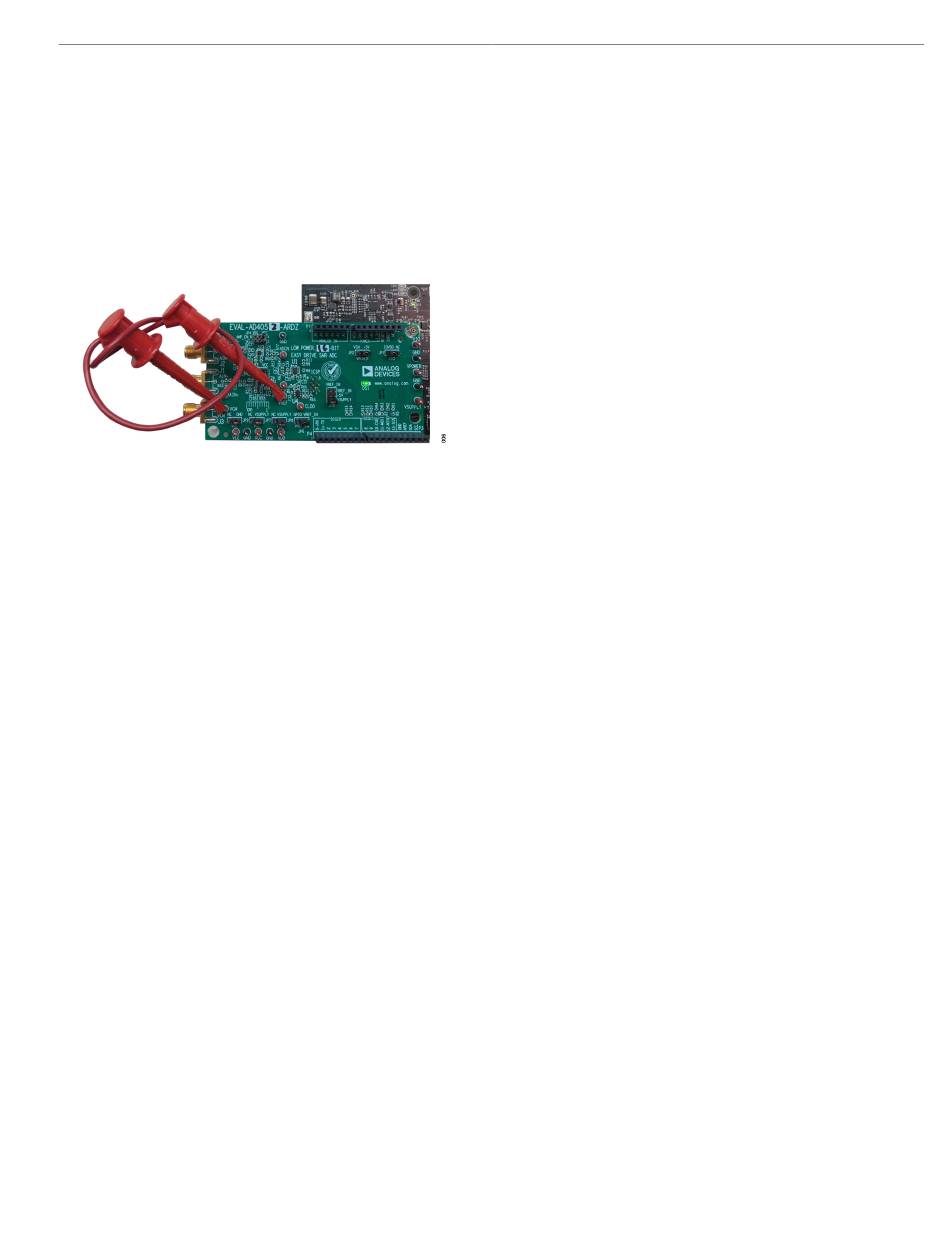

Figure 6. Biasing the EVAL-AD4052-ARDZ Inputs without Signal Generator
Hardware for Software Validation
