Edit ion May 2024

Order no. 132 970-inter_155

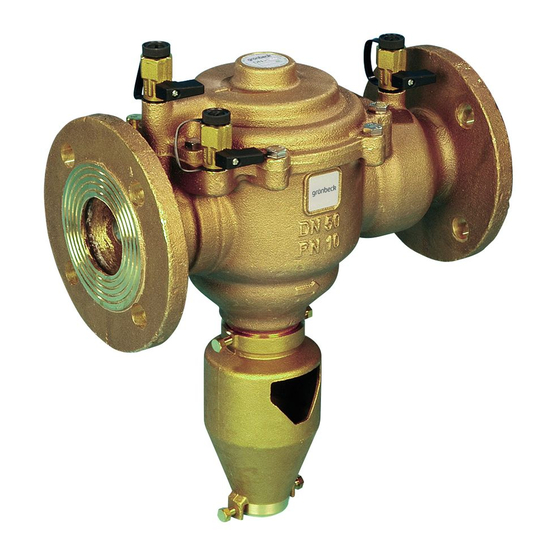

Euro system separator GENO-DK 2

Euro system separator GENO-DK 2-Maxi

Euro system separator GENO-DK-Maxi

Euro system separator GENO-DK 2 nominal diameter DN 15/20

Euro system separator GENO-DK 2-Maxi DN 100

Euro system separator GENO-DK Maxi

Operation manual

Table of Contents

Need help?

Do you have a question about the GENO-DK 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grunbeck GENO-DK 2

Page 1 Operation manual Euro system separator GENO-DK 2 Euro system separator GENO-DK 2-Maxi Euro system separator GENO-DK-Maxi Euro system separator GENO-DK 2 nominal diameter DN 15/20 Euro system separator GENO-DK 2-Maxi DN 100 Euro system separator GENO-DK Maxi Edit ion May 2024...
Page 2: Table Of Contents
Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Table of contents A General information ............. 1 Preface 2 General safety information 3 Transportation and storage 4 Disposal of used parts and materials B Basic information ............1 Laws, regulations, standards...
Page 3 Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Publisher’s information All rights reserved. © Copyright by Grünbeck Wasseraufbereitung GmbH Printed in Germany Effective with the date of edition on the cover sheet. –We reserve the right to modifications in terms of technical progress- Reprints, translations into foreign languages, electronic storage or copying only with explicit written approval of Grünbeck Wasserauf-...
Page 4: A General Information
Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi General information 1 | Preface Thank you for opting for a Grünbeck product. Backed by decades of experience in the area of water treatment, we provide solutions for all processes. All Grünbeck systems and devices are made of high-quality materials.
Page 5: General Safety Information
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi 2 | General safety information Only persons who have read and understood this operation manual are permitted to Operating personnel work with the system. The safety guidelines are to be strictly adhered to.
Page 6 Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi 4 | Disposal Obey the applicable national regulations. 4.1 Packaging Dispose of the packaging in an environmentally sound manner. 4.2 Product If this symbol (crossed-out wheelie bin) is on the product, this product or its electrical and electronic components must not be disposed of as household waste.
Page 7: B Basic Information
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Basic information (System separators) 1 | Laws, regulations, standards In the interest of good health, rules cannot be ignored when it comes to the pro- cessing of drinking water. This operation manual takes the applicable German guidelines into account and provides all the information you need to safely operate your system separators.
Page 8: Classification Of Liquid Categories
Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi 3 | Classification of liquid categories Liquid category 1 Water for human consumption that is withdrawn directly from a drinking water instal- lation. Examples: Temporary turbidity due to air bubbles. Liquid category 2 Liquids that do not represent a health risk to human beings.
Page 9: Function
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi 4 | Function The system separator consists of two non-return valves, a middle chamber and a membrane-controlled discharge valve. The water entering the system separator opens the non-return valve on the inlet side (A) and at the same time exerts pres- sure via the drain (1) on the membrane (2) which closes the discharge valve by means of a rod and thus the water opens the second non-return valve.
Page 10: C Product Description
Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Product description (system separators) 1 | Type designation plate The type designation plate is located on the housing of the system separator. If you have questions concerning the system, please specify the information shown on the type designation plate of the unit in order to speed up the processing of your re- quest.
Page 11: Technical Specifications
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi 3 | Technical specifications Table C-1: Technical specifications Euro system separator GENO-DK 2 Connection data Nominal connection diameter DN 15 DN 20 DN 25 DN 32 DN 40 DN 50 ½“ ¾“...
Page 12 132 470 Fig. C-3: Installation example for GENO-backwash filter MX DN 100 with Euro system separator ® GENO -DK 2-Maxi DN 100 Fig. C-4: Dimensional drawing Euro system separator GENO-DK 2-Maxi DN 100 Order no. 132 970-inter_155 Edited by: G:\BA-132970-INTER_155_SYSTEMTR_DK.DOCX...
Page 13 Ambient data Max. water temperature [°C] Max. ambient temperature [°C] Order no. 132 720 132 725 132 730 3.1 Pressure loss curves Fig. C-5: Pressure loss curve 1: Euro system separator GENO-DK 2 Order no. 132 970-inter_155 Edited by: G:\BA-132970-INTER_155_SYSTEMTR_DK.DOCX...
Page 14: Scope Of Supply
Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Fig. C-6: Pressure loss curve 2: Euro system separator GENO-DK 2-Maxi Fig. C-7: Pressure loss curve 3: Euro system separator GENO-DK-Maxi 4 | Scope of supply System separator with drain connection.
Page 15: D Installation And Start-Up
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Installation and start-up 1 | General installation information Please observe local directives and general regulations for installa- • tion. The installation site must be accessible for maintenance work and • be protected against flooding and frost. It must ensure the protec- tion of the device from chemicals, dyes, solvents and steam/va- pours.
Page 16 • tem (such as EBRO flaps) do not protrude into the system separator and damage components located inside. Fig. D-1: Installation example Euro system separator GENO-DK 2 Shut-off valve Euro system separator GENO-DK 2 Fine filter BOXER-KD with pressure reducer...
Page 17: Start-Up
Carry out visual inspection. Thereby, make sure that no water leaks • at any point of the system. Fig. D-2: Exploded drawing of Euro system separator GENO-DK 2 Shut-off valve on inlet side Shut-off valve on outlet side Euro system separator GENO®-DK 2...
Page 18: E Troubleshooting
Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Troubleshooting Even carefully designed and manufactured technical systems that are properly oper- ated, may experience malfunctions. Table E-1 provides an overview of possible problems that may occur during the operation of the system separators and indicates their causes and the corresponding remedies.
Page 19: Maintenance
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Maintenance, care and spare parts 1 | Basic information In order to guarantee the reliable function of the system separators over a long pe- riod of time, some maintenance has to be performed at regular intervals. This ap- plies in particular to safety devices used in the drinking water supply: The required measures are defined in regulations and guidelines.
Page 20 Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi The parts indicated in the following drawing are considered to be wearing parts. Fig. F-1: Wearing parts of Euro system separator GENO-DK 2 Drain seal Drain seat Non-return valve outlet side Non return valve inlet side Order no.
Page 21 Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Fig. F-2: Wearing parts of Euro system separator GENO-DK 2 Maxi Drain seal Drain seat Non-return valve outlet side Non return valve inlet side Order no. 132 970-inter_155 Edited by: G:\BA-132970-INTER_155_SYSTEMTR_DK.DOCX...
Page 22 Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Fig. F-3: Wearing parts of Euro system separator GENO-DK Maxi O-Ring Drain seat Control diaphragm / Drain seal kit head diaphragm Non-return valve outlet side Non-return valve inlet side Order no. 132 970-inter_155...
Page 23: Operation Log
Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Operation Log Customer Name: ..............Address: ............................................½“ ® Euro system sep arator GENO ¾“ (Please check appropriate box) 1“ 1¼“ 1½“ 2“ DN 50 DN 65 DN 80 DN 100...
Page 24 Euro System Separator GENO DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Operation log for inspection, maintenance and repair work ® on Euro system separator GENO Work performed Confirmation of execution Description: _______________________________________ Inspection Company: ............. _________________________________________________ Maintenance Name: .............._________________________________________________ Repair Date/ _________________________________________________ Signature: ..............
Page 25 Euro System Separator GENO-DK 2, GENO-DK 2-Maxi, GENO-DK-Maxi Operation log for inspection, maintenance and repair work ® on Euro system separator GENO Work performed Confirmation of execution Inspection Description: _______________________________________ Company: ............. _________________________________________________ Maintenance Name: .............._________________________________________________ Repair Date/ _________________________________________________ Signature: ..............
