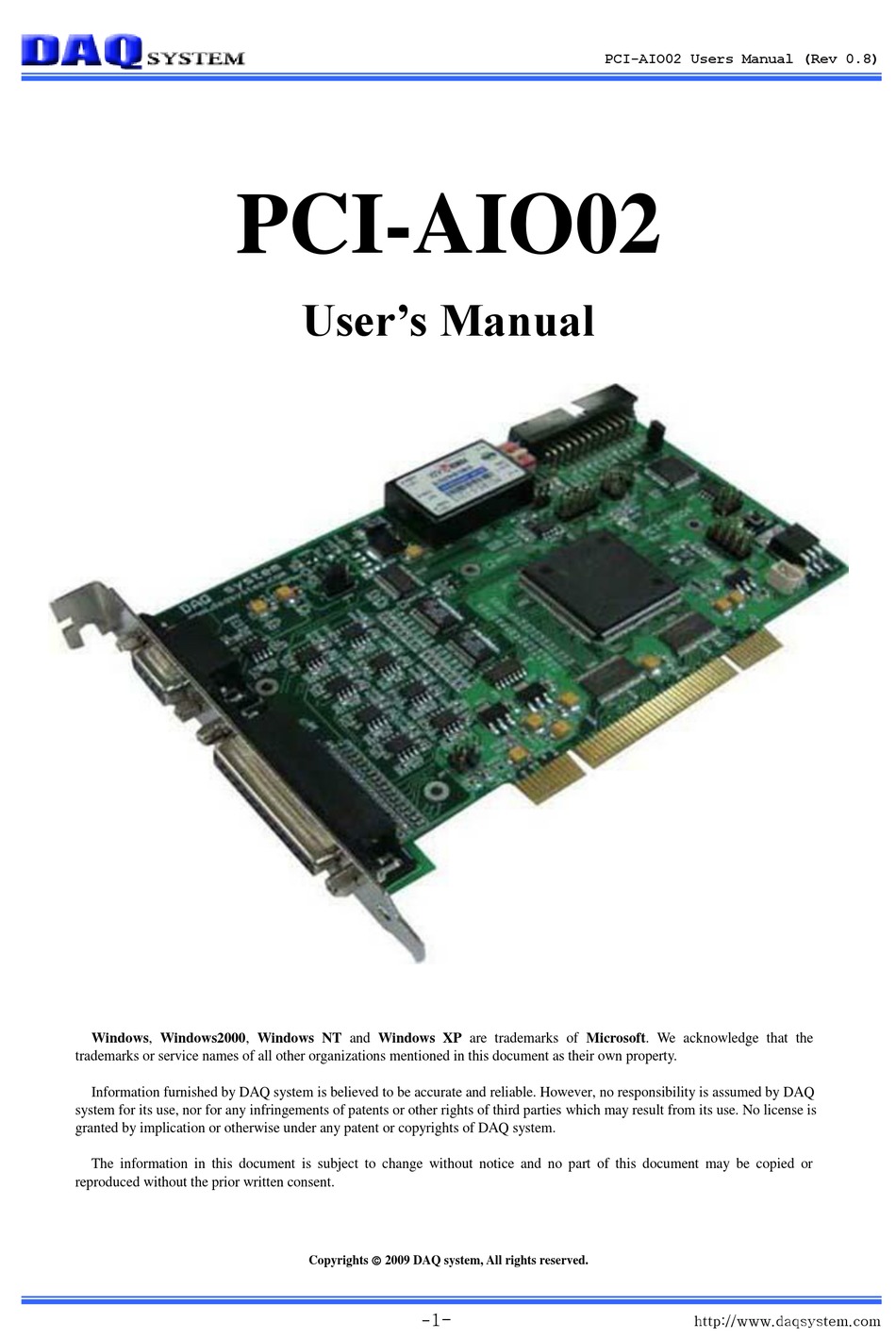

PCI-AIO02
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.
User's Manual
Copyrights  2009 DAQ system, All rights reserved.
1-
-
PCI-AIO02 Users Manual (Rev 0.8)
http://www.daqsystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-AIO02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAQ system PCI-AIO02

Summary of Contents for DAQ system PCI-AIO02

  • Page 1 Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ system.

  • Page 2: Table Of Contents

    PCI-AIO02 Users Manual (Rev 0.8) Contents PCI-AIO02 Block Diagram Connector Pin Map Board Address Setup Analog Output Connection Diagram Analog Input Connection Diagram Installation 6.1 Package content 6.2 Installation Sequence Sample Program 7.1 System Function 7.2 ADC Test Function 7.3 DAC Test Function 7.4 Select Channel graph...
  • Page 3 PCI-AIO02 Users Manual (Rev 0.8) UPDATE HISTORY 2010-10-12 API Function Add ADC_StartBufferedRead() ADC_StoptBufferedRead() ADC_GetBufferedData() ADC_GetBufferedDataEx() ADC_SetAvgCounter() API Function Explanation ADC_GetData() 2010-11-05 API Function Add GetBoardVersion() - It will apply to Board Version2. 2011-06-13 Change Document 12-Bit ADC -> 12/14/16-Bit ADC 2011-07-04 6.

  • Page 4: Pci-Aio02 Block Diagram

    12/14/16-bit Resolution [Figure 1-1. PCI-AIO02 Internal Block Diagram] The PCI-AIO02 is a board having the functions of analog I/O PCI board with the 16-bit DAC 8 channels, 12/14/16-bit ADC 8 channels. PCI 32-bit, 33MHz 5/3.3V Compatible Target Board 8-Ch Input 12/14/16-비트 ADC(8-Ch SE or 4-Ch DI) Support various ADC Input Range (+5V, +10V, ±5V, ±10V)

  • Page 5: Connector Pin Map

    PCI-AIO02 Users Manual (Rev 0.8) 2. Connector Pin Map The D-SUB 15pin and 25pin connector which was fixed to standard PCI Bracket is used for Analog signal Input/Output. [Figure 2-1. PCI-AIO02 PCI Bracket] http://www.daqsystem.com...
  • Page 6 PCI-AIO02 Users Manual (Rev 0.8) DGND EXT_PACE_OUT1 EXT_FACE_IN1 EXT_TRG1 EXT_PACE_OUT0 EXT_FACE_IN0 EXT_TRG0 AGND EREF25 ADC IN7 ADC IN6 ADC IN5 ADC IN4 ADC IN3 ADC IN2 ADC IN1 ADC IN0 [Figure 2-2. PCI-AIO02 D-sub25 Connecter Pin] http://www.daqsystem.com...
  • Page 7 PCI-AIO02 Users Manual (Rev 0.8) [Table 1. PCI-AIO02 D-sub 25 Pin Connecter Description] Pin# Pin Name Description Remark ADC IN0 Analog Input Channel 0 +/- 10V Input ADC IN2 Analog Input Channel 2 +/- 10V Input ADC IN4 Analog Input Channel 4...
  • Page 8 DAC_OUT4 DAC_OUT5 AGND DAC_OUT2 DAC_OUT3 DAC_OUT0 DGND DAC_OUT1 [Figure 2-3. PCI-AIO02 D-sub15 Connecter Pin] [Table 2. PCI-AIO02 D-sub 15 Pin Connecter Description] Pin# Pin Name Description Remark DAC_OUT0 Analog Output Channel 0 Max. +/- 10.8V Output DAC_OUT2 Analog Output Channel 2 Max.

  • Page 9: Board Address Setup

    PCI-AIO02 Users Manual (Rev 0.8) 3. Board Address Setup If mounting works in one system that a lot of I/O ports are required, several AIO series boards are classified according to each board address. Distribution of each board sets it up through 4 pin DIP switch (SW1). A system is designed of maximum four boards at the same time so as usable.

  • Page 10: Analog Output Connection Diagram

    PCI-AIO02 Users Manual (Rev 0.8) 4. Analog Output Connection Diagram DAC CH0-7 AGND Actuator [Figure 4-1. Analog Output Connection] An analog output goes out through D-sub 15 pin connector like Figure 4-1. The eight analog channel outputs are making it with bases of channel0 ~ channel 7 by AGND. Always AGND and DAC channel shall be connected outside with pairs.

  • Page 11: Analog Input Connection Diagram

    PCI-AIO02 Users Manual (Rev 0.8) 5. Analog Input Connection Diagram An analog input supports SE (Single Ended) Input and DI (Differential Input) method. ADC CH0-15 AGND Sensor [Figure 5-1. Analog SE (Single Ended) Input Connection] A common analog GROUND(AGND) works input basis for the SE connection. At this time, the input channel has total 8 channels.

  • Page 12: Installation

    To install your PCI-AIO01 board in your PC, follow the steps described in the document “How to install PCI DAQ Board” provided by DAQ System. If the document is missing, you can get it from www.daqsystem.com. The PCI-AIO02 board is completely Plug & Play. There are no switches or jumpers to set.
  • Page 13 PCI-AIO02 Users Manual (Rev 0.8) If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the figure.
  • Page 14 PCI-AIO02 Users Manual (Rev 0.8) If the installation is completely finished, you can show below message window. http://www.daqsystem.com...
  • Page 15 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-AIO02] If you can see the “PCI-AIO02” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle) Notice : After installation, you should re-boot the system for the proper operation.

  • Page 16: Sample Program

    PCI-AIO02 Users Manual (Rev 0.8) 7. Sample Program DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board.

  • Page 17: System Function

    PCI-AIO02 Users Manual (Rev 0.8) 7.1 System Function (1) Select Device Open the device PCI-AIO0 ~ AIO05 Board (2) Board Number Select the board number. (0 ~ 3) (3) „Device Open‟ Button When the button clicks, open the selected board.
  • Page 18 PCI-AIO02 Users Manual (Rev 0.8) (8) Select Range Set up the ADC input range per channel. (0 to 5, ±5, 0 to 10V, ±10V) (9) Voltage Level Conversion Change the data to voltage level. (10) Select Resolution Set up AD Data width (bit).

  • Page 19: Select Channel Graph

    PCI-AIO02 Users Manual (Rev 0.8) 7.4 Select Channel Graph (1) Average Numbers It designate the data number that a moving average is applied to 0 ~ 255. It is not applied to AD data collection by ADC_GetData() function. (2) Offset It is an offset to display graph.
  • Page 20 PCI-AIO02 Users Manual (Rev 0.8) References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. General information on PCI board API -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5.
  • Page 21 PCI-AIO02 Users Manual (Rev 0.8) http://www.daqsystem.com...
