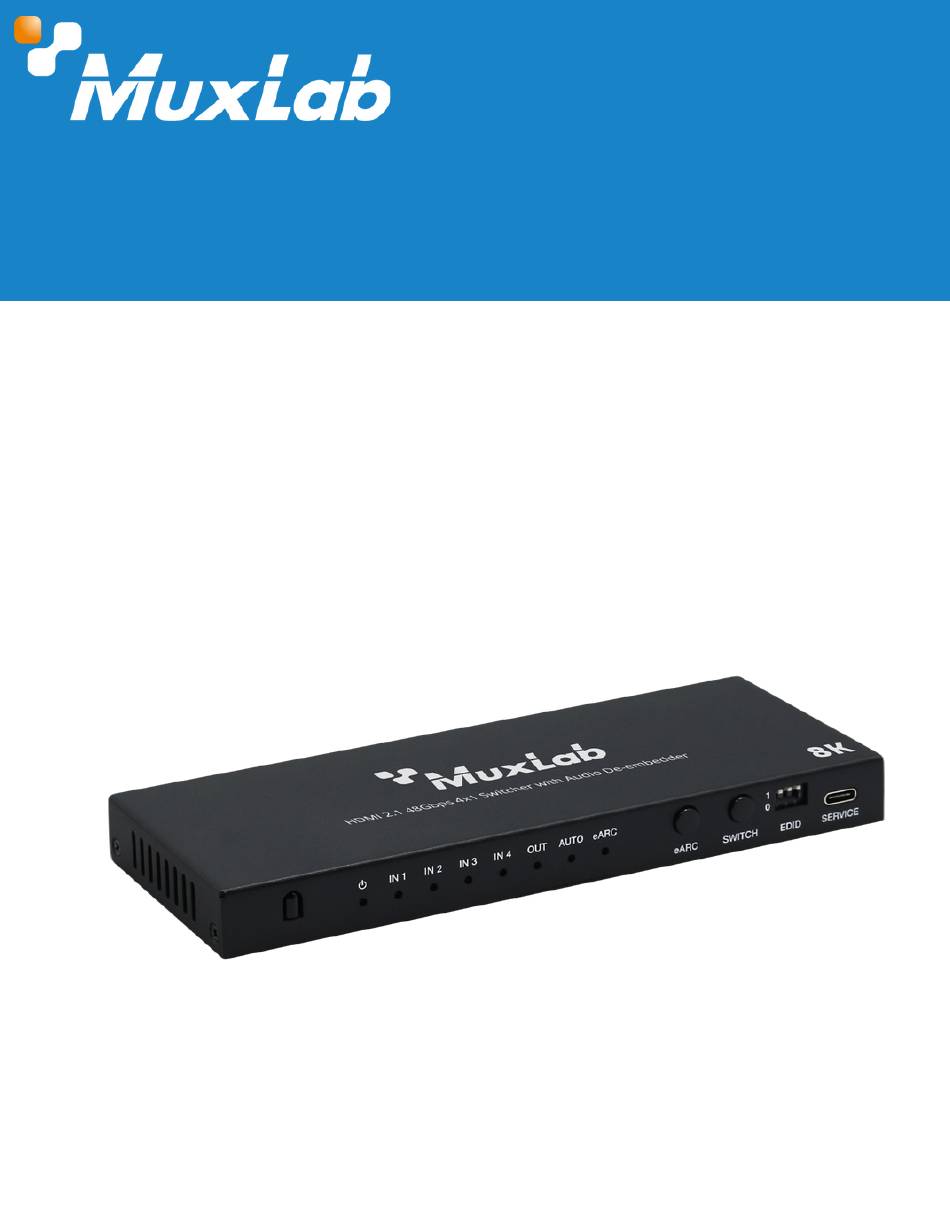

HDMI 2.1 48Gbps 4x1 Switcher with
Audio De-embedder
User Manual
500513
© MuxLab Inc. 2024
1
94-001042-A/SE-001042-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500513 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MuxLab 500513

  • Page 1 HDMI 2.1 48Gbps 4x1 Switcher with Audio De-embedder User Manual 500513 © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 2: Table Of Contents

    Table of Contents 1. Safety Precautions..............................3 2. Introduction................................4 3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Operation Controls and Functions........................6 6.1 Front Panel................................6 6.2 Rear Panel................................7 7. IR Remote..................................7 8. RS232 Control................................8 8. Application Example...............................9 © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 3: Safety Precautions

    All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.
  • Page 4: Introduction

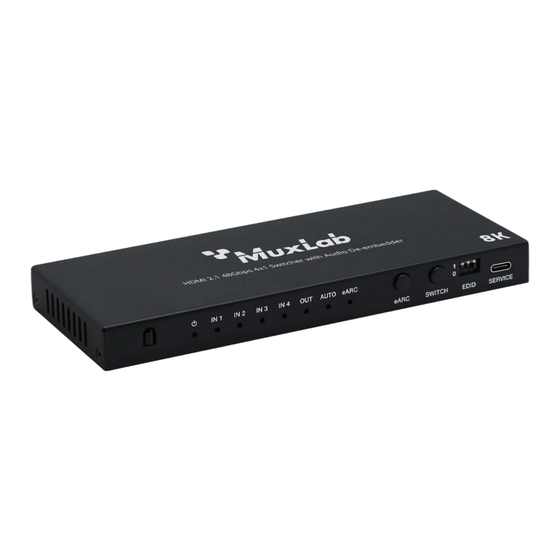

    HDMI 2.1 48Gbps 4x1 Switcher with Audio De-embedder 2. Introduction The HDMI 2.1 48Gbps 4x1 Switch with Audio De-embedder (model: 500513) is a 4-in-1-out 8K switch. It supports 4 HDMI signal inputs and 1 HDMI signal output, the highest resolution is...
  • Page 5: Specifications

    0°C ~ 40°C / 32°F ~ 104°F -20℃ ~ 60℃/-4°F ~ 140°F Storage Temperature 20~90% RH (Non-condensing) Relative Humidity 2 years Warranty 500513 HDMI 2.1 48Gbps 4x1 Switcher with Audio De-embedder Order Information (UPC: 627699005132) © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 6: Operation Controls And Functions

    EDID DIP Switch 011 - FRL 12G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD 010 - FRL 10G_8K_HDR, Audio 2ch PCM 001 - FRL 10G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY 000 - FRL 10G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD Firmware update and control port. Service © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 7: Rear Panel

    Press this button to turn on/off ARC/eARC function. Auto: Press this button to turn on/off the auto switching function. 1/2/3/4: Press 1/2/3/4 button to select HDMI signal source IN 1/2/3/4 to output. Press this buttonto select the next HDMI signal source circularly. © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 8: Rs232 Control

    Switcher. For correct communication, configure the RS232 parameters with the following settings: • 57600 baud • 8 data bits • 1 stop bit • 0 Check bit 500513 ASCII Commands Command Code Feedback Description Example help<CR> List all commands help<CR>...
  • Page 9: Application Example

    HDMI 2.1 48Gbps 4x1 Switcher with Audio De-embedder 9. Application Example Situation 1 When the ARC/eARC function is turned off, the connection diagram is as following. At this moment, the optical audio or analog audio is from the selected input channel. © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 10 Auto Switching is enabled. For example, if the IN 3 is connected to a source device now, and it will not be output as the signal source automatically because the IN 1 is locked. © MuxLab Inc. 2024 94-001042-A/SE-001042-A...
  • Page 11 At this moment, the optical audio or L/R audio is also from the selected input channel. 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: HDMI 2.1 48Gbps 4x1 Switcher with Audio De-embedder 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500513 salesteam@muxlab.com | www.muxlab.com...
