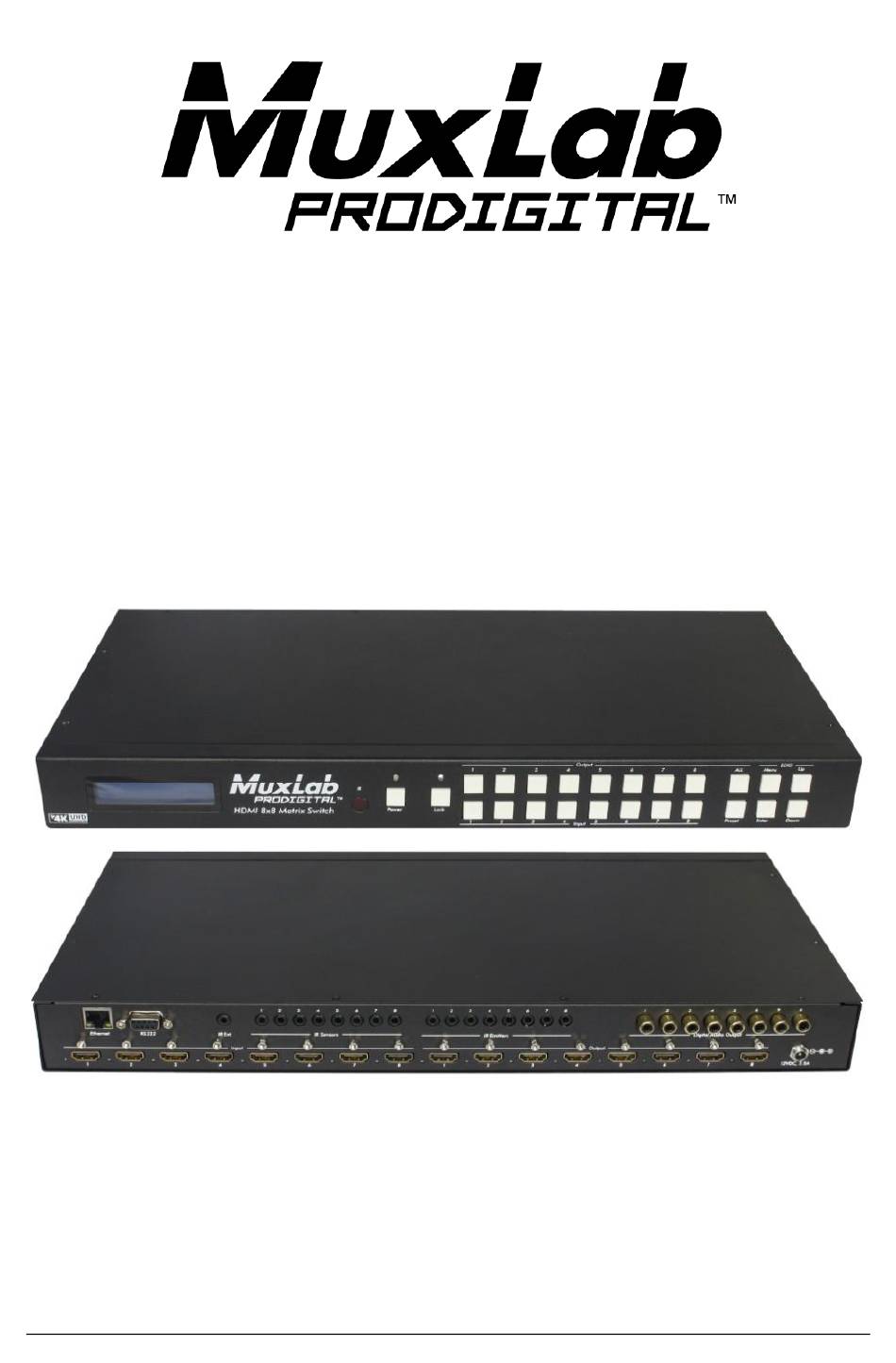

Page 1: Installation Guide

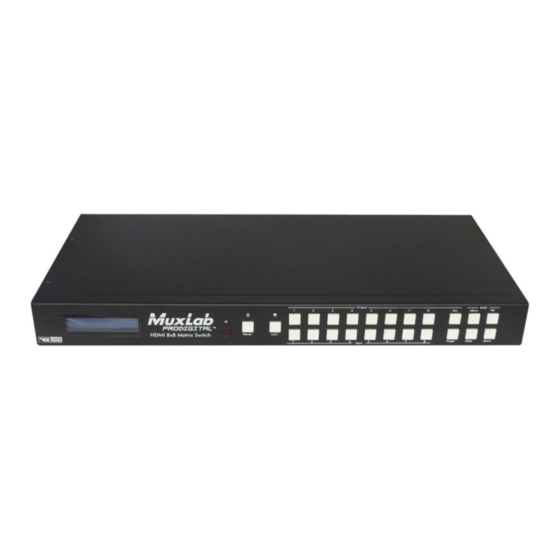

HDMI 8x8 Matrix Switch UHD-4K Installation Guide 500441 © Muxlab Inc. 2015 94-000791-A / SE-000791-A... -
Page 2: Safety Precautions
Unplug the power when left unused for a long period of time. Information on disposal of devices: do not burn or mix with general household waste, please treat them as normal electrical waste. NOTICE: Please read this manual carefully before using this product. © Muxlab Inc. 2015... -
Page 3: Table Of Contents
Set-Top boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. © Muxlab Inc. 2015... -
Page 4: Features
Eight (8) Wideband IR Tx cable Nine (9) Wideband IR Rx cable Notes：Please confirm if the product and the accessories are all included. If not, please contact the location at which you purchased the unit. © Muxlab Inc. 2015... -
Page 5: Specifications
−20 ºC to 60 ºC / −4 ºF to 140 ºF Relative Humidity 20 to 90 % RH (non-condensing) Power Consumption 23 W(max) / 0.5w(Standby) Compliance Regulatory: FCC, CE, RoHS Warranty 2 Years Ordering Information 500441 HDMI 8x8 Matrix Switch, UHD-4K © Muxlab Inc. 2015... -
Page 6: Panel Description
1 to 8. ALL button for HDMI outputs：Press to select all of the outputs from 1 to 8. HDMI HDMI input selection button 1 to 8： Press to select the Input input from 1 to 8. © Muxlab Inc. 2015... - Page 7 DVI 1024x768 DVI 1920X1080 DVI 1920X1200 Copy from HDMI Output 1 Copy from HDMI Output 2 Copy from HDMI Output 3 Copy from HDMI Output 4 Copy from HDMI Output 5 Copy from HDMI Output 6 © Muxlab Inc. 2015...
- Page 8 The Matrix is a complex piece of technology that replicates and switches between multiple inputs and outputs. Each connected source device will require one EDID to read. EDID management is carefully handled by the HDMI Matrix to provide a single EDID for each source to read. © Muxlab Inc. 2015...
- Page 9 A. Press MENU button to enter EDID set mode. Press UP/DOWN button to select the EDID you want. Press ENTER button ensure and enter Input port submenu. Press UP/DOWN button to select Input port you want. Press ENTER button ensure and save the setting. © Muxlab Inc. 2015...
-
Page 10: Rear Panel
Sensors IR Sensors. These ports are IR Matrix output ports. Connect Emitter with IR Emitters. Digital Audio output area, each port is linked to its HDMI Audio output port. For example: the audio signal of Digital © Muxlab Inc. 2015... - Page 11 HDMI 8x8 matrix switch; place the IR Sensor head near display. To control the display: Plug the IR Sensor into the IR Sensor port of the HDMI 8x8 matrix switch; place the IR Sensor head in position where it is able to receive remote signals. © Muxlab Inc. 2015...
- Page 12 HDMI 8x8 Matrix Switch, UHD-4K Installation Guide © Muxlab Inc. 2015...
-
Page 13: Remote Control
A. Press Power on /Standby button and wait a while. 2. How to select Output and Input Ports? Q. OUTPUT-X select INPUT-Y: A. Press OUTPUT-X (X means output 1 to 8, or ALL) Press INPUT-Y (Y means input 1 to © Muxlab Inc. 2015... -
Page 14: Operate And Connect
HDTV or an HD projector that uses HDMI inputs. Note that high-quality HDMI cables are recommended. 4. For power, plug in the unit power jack first, and then plug in the power supply to the wall. © Muxlab Inc. 2015... - Page 15 HDMI signal, access the display’s menu and adjust the resolution (lowest to highest until signal is displayed). Please note that a 24 Hz vertical refresh rate may work better than 60 Hz or higher. © Muxlab Inc. 2015...
-
Page 16: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: © Muxlab Inc. 2015 www.muxlab.com...
