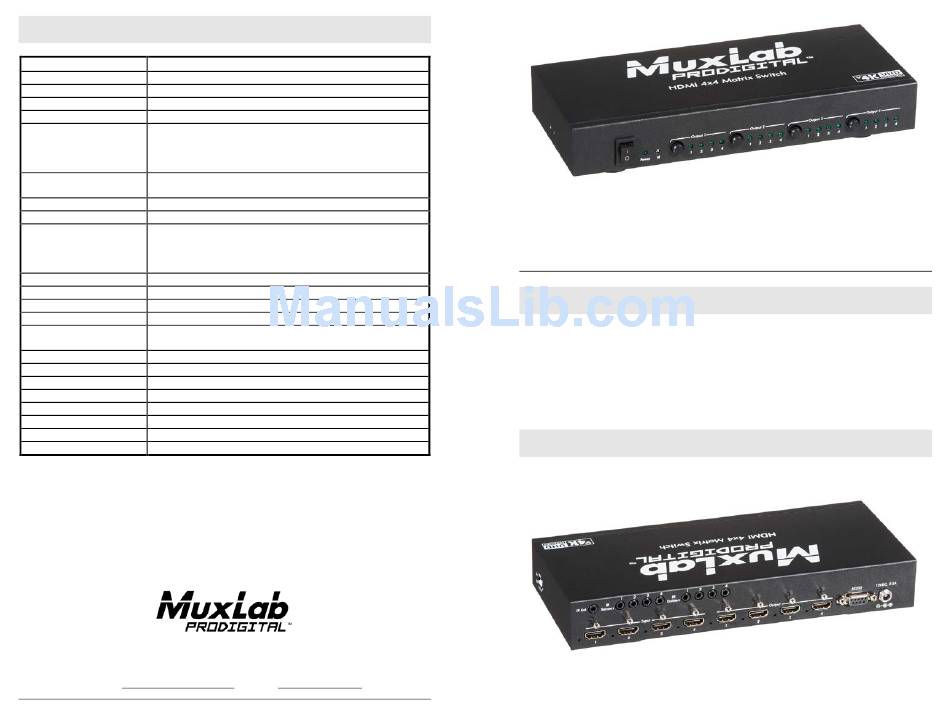

MuxLab 500440 Quick Installation Manual

MuxLab 500440 Quick Installation Manual

Hdmi 4x4 matrix switch, uhd-4k

Advertisement

Quick Links

Specifications

Environment
HDMI 1.4a (3D)
Devices
DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission
Transparent to the user
Frequency
25 to 340 MHz
Signals
HDMI 1.4 protocol
Connectors
Eight (8) HDMI Type A 19-pin female
Nine (9) 3.5mm Stereo Jack
One (1) RS232 connector
One (1) 2.1 mm Power Jack
LEDs
One (1) Power: Green
Sixteen (16) port selection: Green
Rocker switch on the front of the unit
Manual Control
Included
Remote Control
480i to 1080p @ 50/60 fps
Resolution
1080p @ 24/50/60 fps
3840 X 2160 @ 24/25/30 fps
VGA to UXGA
Color
8, 10 & 12 bit
Audio
LPCM, compressed (Dolby, DTS) and HBR
HDCP
Revision 1.4
Cable
HDMI Cable
Temperature
Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Enclosure
Metal enclosure
Bracket
Wall mount brackets included
Dimensions
10.63" x 4.53" x 1.77" (270 mm x 115 mm x 45 mm)
Weight
3.2 lbs (1.45 Kg)
Power Supply
12VDC, 2.5A with interchangeable blade for US, UK and Euro
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500440 HDMI 4X4 Matrix Switch, UHD-4K
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2015
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000790-A SE-000790-A

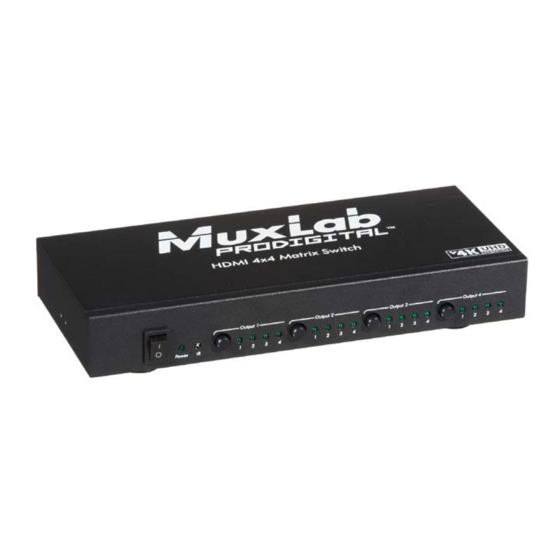

HDMI 4X4 Matrix Switch, UHD-4K
(500440)
Quick Installation Guide
Overview
The HDMI 4x4 Matrix Switch (500440) allows Four (4) HDMI sources to be
distributed to Four (4) HDMI display. The switcher supports up to 4K (3840 x
2160), 8-bit color and HD audio. The splitter is HDCP 1.4 compliant and features
LED diagnostics. Additionally, all HDMI connectors are on the rear panel for
neater cabling. Applications include; commercial and residential AV systems,
classroom projector systems, digital signage, boardroom systems, collaborative PC
systems, medical information systems.
Pre-Installation Check
Identify the connectors as indicated on the product
